INSERT CAR 32A SCH/IEC RCCB P

Inserts with schuko and outlets without meter

The inserts is designed e.g. for squares, cemeteries and other places where temporary access to 230/400V is needed. Equipped with quick coupling. AEUM is also equipped with a kWh meter. The ACU insert is an insert that makes it possible to replace the UI 416-6 with a Schuko socket. To do this requires adapter 41155 and wall socket 18 968 80. Not connected. For fuse protection complete with ACS416. Insert without measuring fits P100 system, RCCB, 1xschuko and 1xUI 432-6
E-number
E2449130
Article number
350857
Support
Standard EN61439-3
Short-circuit current [kA] 6kA
Frequency [Hz] 50Hz
Housing material Aluzinc
Color Grey
Rated current [A] 16A
Rated voltage [V AC] 230V AC
Modelltype PN100 Insert
Energymeter No
Number of MCB 1P (1) No
Number of Schuko[pcs] 1pcs
Response time [h] Continuous
Degree of protection [IP] IP44
EngineerWidth 175
EngineerHeight 220
EngineerDepth 130
Further feeding polebracket Yes
Further feeding wallbracket No
Name INSERT CAR 32A SCH/IEC RCCB P
E-number E2449130
Article number 350857
Type designation AEU32-J
Number of MCB 3P (1) 1pcs C332
Number of RCCB [pcs] 1 1pcs 4P 40A
CEE socket outlet 32A 1pcs 5P 32A 230/400V
Number of RCBO [pcs] No
Number of RCBO No
NetProductWeight 1.5

More variants of Inserts with schuko and outlets without meter

E-number Article number Type designation CEE socket outlet 16A Number of MCB 3P (1) Number of RCCB [pcs] 1 CEE socket outlet 32A Number of RCBO [pcs] Number of RCBO NetProductWeight
INSERT CAR 2IEC WOM P2 E2449455 2449455 ACU 416 1pcs 5P 16A 230/400V No No 0.67
INSERT CAR 16A WOM SCH/IEC R P E2449460 2449460 AEU16-J 1pcs 5P 16A 230/400V 1pcs C316 1pcs 4P 25A No 1.5
INSERT CAR 32A SCH/IEC RCCB P E2449130 350857 AEU32-J 1pcs C332 1pcs 4P 40A 1pcs 5P 32A 230/400V No No 1.5
INSERT CAR 16A SCH/IEC RCBO P E2449131 353195 AEU16-P 1pcs 5P 16A 230/400V No No 1pcs C4P 16A 1pcs C2P 10A 1.5
INSERT CAR 32A SCH/IEC RCBO P E2449132 353196 AEU32-P No No 1pcs 5P 32A 230/400V 1pcs C4P 32A 1pcs C2P 10A 1.5

Accessories for Inserts with schuko and outlets without meter

Name E-number Article number Type designation Description
ENERGYMETER 1PH PULS ENERGYMETER 1PH PULS E0900131 108043 GNM1D Energymeter 1 pole pulse
ENERGYMETER 3P PULS ENERGYMETER 3P PULS E0900134 108046 GNM3D Energymeter 3 pole pulse
RCCB 25A 30mA 10kA 2P RCCB 25A 30mA 10kA 2P E2163321 110092 RCCB 2P 25A 10kA 30mA GS RCCB type GS 25A 2-pole 30mA
RCBO C 2P 6A 6kA U RCBO C 2P 6A 6kA U E2163337 111372 RCBO C2P 6A 6kA U GC Earth leakage circuit breaker (RCBO) GC C-characteristic 2-poles 6A 6kA 1-module
RCBO C 2P 10A 6kA U RCBO C 2P 10A 6kA U E2163338 111373 RCBO C2P 10A 6kA U GC Earth leakage circuit breaker (RCBO) GC C-characteristic 2-poles 10A 6kA 1-module
RCBO C 2P 13A 6kA U RCBO C 2P 13A 6kA U E2163339 111374 RCBO C2P 13A 6kA U GC Earth leakage circuit breaker (RCBO) GC C-characteristic 2-poles 13A 6kA 1-module
RCBO C 2P 16A 6kA U RCBO C 2P 16A 6kA U E2163340 111375 RCBO C2P 16A 6kA U GC Earth leakage circuit breaker (RCBO) GC C-characteristic 2-poles 16A 6kA 1-module
MCB C 1P 4A 10kA GS MCB C 1P 4A 10kA GS E2142704 2142704 MCB GS C104 MCB GS C-Characteristic 4A 10kA 1-pole
MCB C 1P 6A 10kA GS MCB C 1P 6A 10kA GS E2142705 2142705 MCB GS C106 MCB GS C-Characteristic 6A 10kA 1-pole
MCB C 1P 10A 10kA GS MCB C 1P 10A 10kA GS E2142706 2142706 MCB GS C110 Miniature cirucit breaker C-characteristic 1-pole 10A 10kA GS
MCB C 1P 16A 10kA GS MCB C 1P 16A 10kA GS E2142708 2142708 MCB GS C116 MCB GS C-Characteristic 16A 10kA 1-pole
LOCKING PIN LOCKING PIN E2163136 2163136 LB 2 Locking pin suitable MCB GS,RCCB GS,RCBO GS,GCB ,GCBO and most other components.
RCBO GS C-CHAR 6A 2P RCBO GS C-CHAR 6A 2P E2163247 2163247 RCBO C2P 6A 10kA GS RCBO GS C-Characteristic 6A 10kA 2-pole
RCBO C 2P 10A 10kA RCBO C 2P 10A 10kA E2163248 2163248 RCBO C2P 10A 10kA GS Residual current circuit breaker with overcurrent protection (RCBO) C-characteristic 2-poles 10A 10kA
RCBO C 16A 2P GS RCBO C 16A 2P GS E2163250 2163250 RCBO C2P 16A 10kA GS RCBO GS C-Characteristic 16A 10kA 2-pole
SOCKET STRAIGHT 3P 16A 6h S SOCKET STRAIGHT 3P 16A 6h S E2424890 2424890 UIL 216-6 S Socket straight small basic 3-poles 16A 6h
OUTLET INSERT MVU OUTLET INSERT MVU E2449413 2449413 MVU Outlet inserts B50xH50

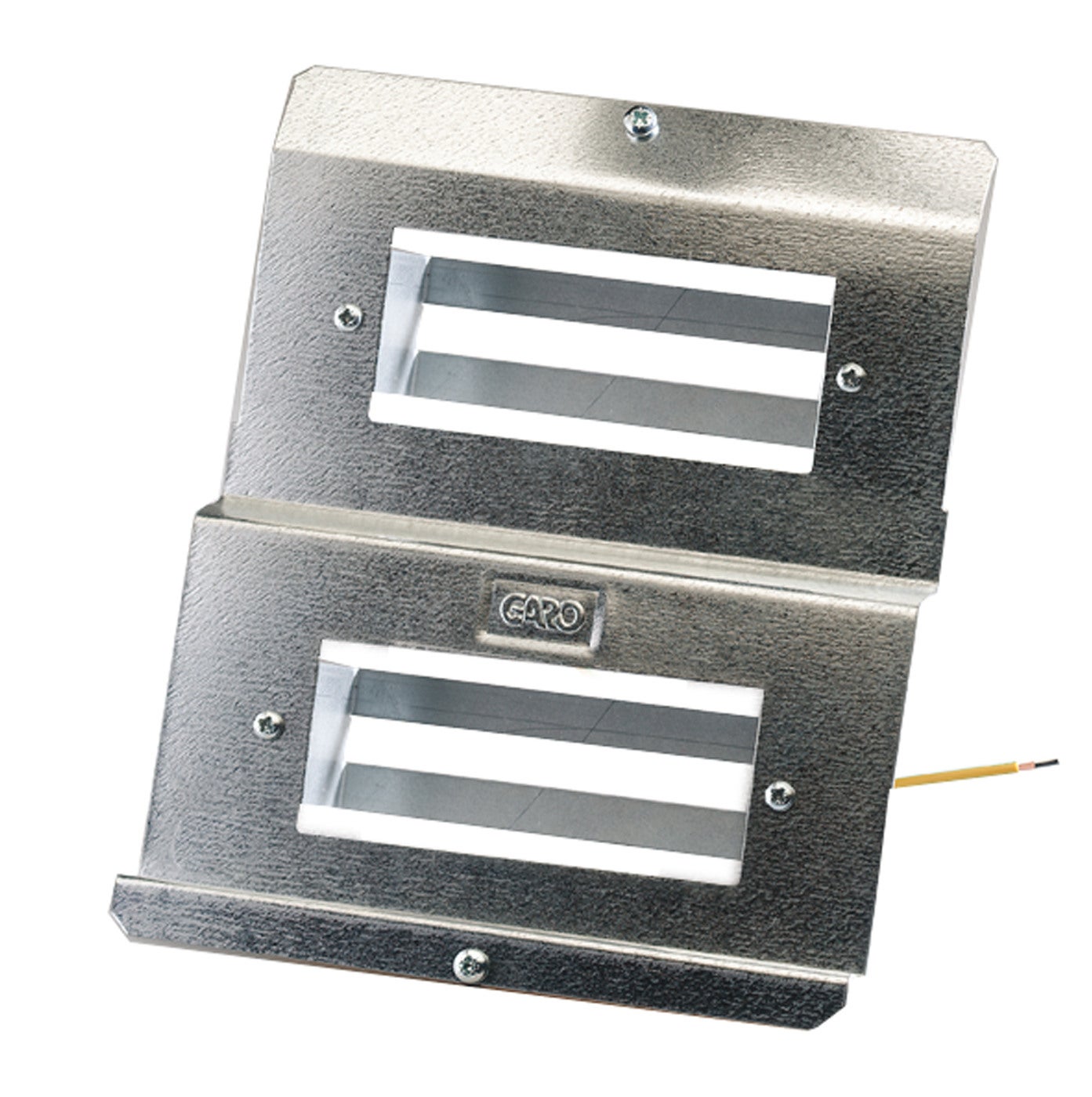

INSERT CAR 12MOD P INSERT CAR 12MOD P E2449456 2449456 ACS 416 Insert 12 modules fits P100 system.
CONTACT PLUG P100 CONTACT PLUG P100 E2449505 2449505 KD-P Contactplug fits P100 MVC
OUTLET SCHUKO UIF 10/16 OUTLET SCHUKO UIF 10/16 E2449508 2449508 UIF-P Schuko outlet UIF MVPE
ADAPTER 16/32-UIF 41155 ADAPTER 16/32-UIF
