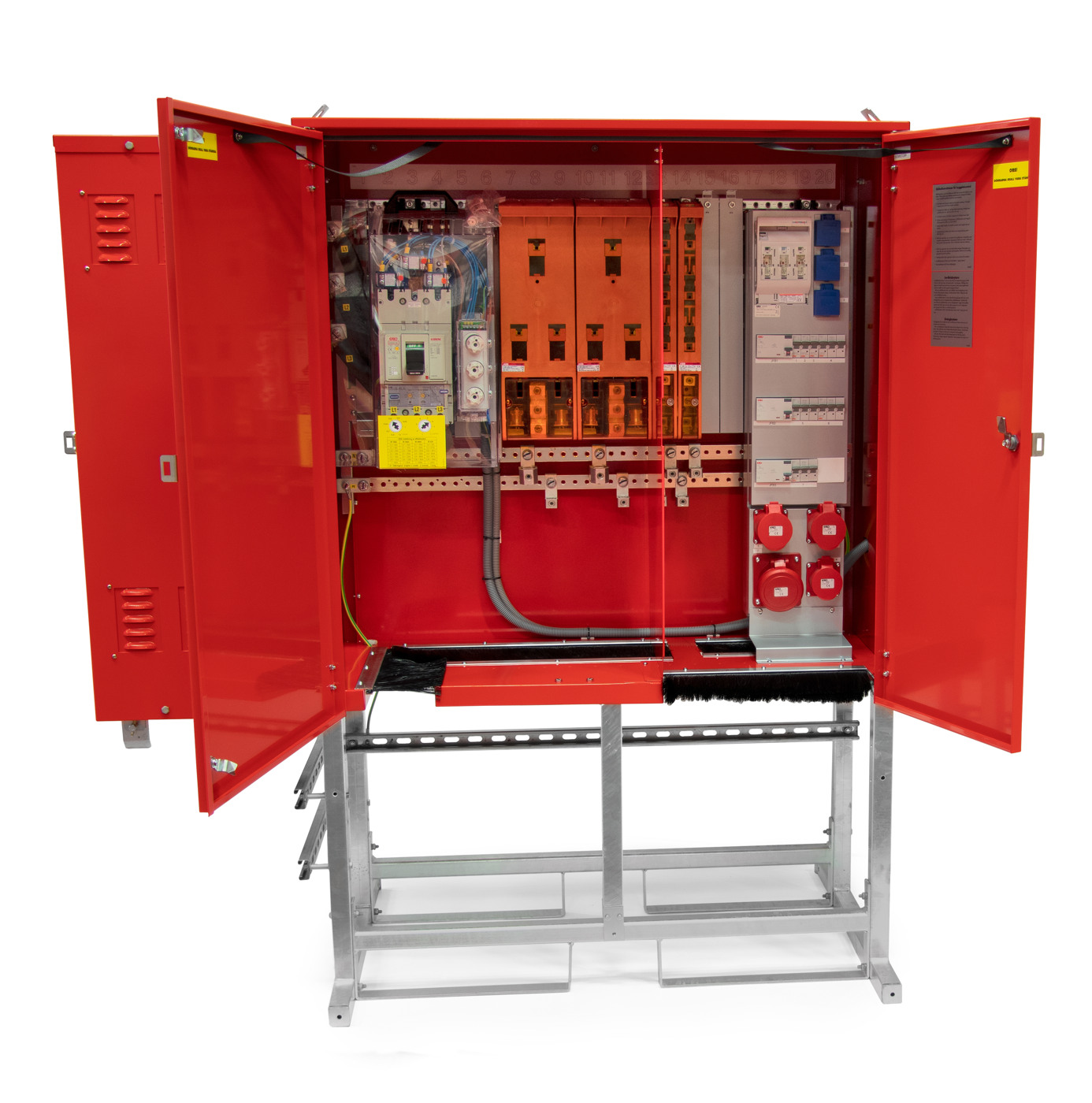

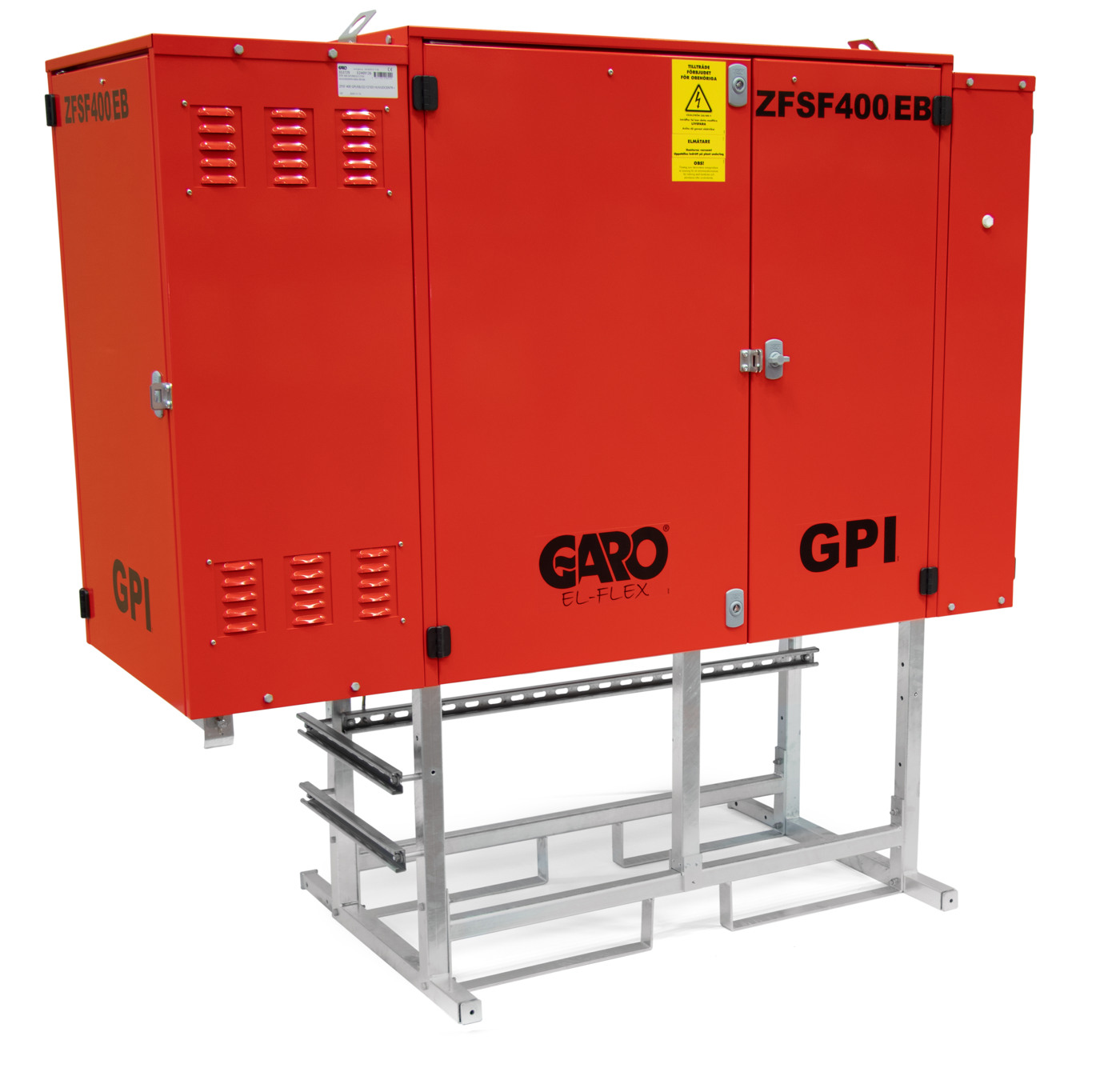

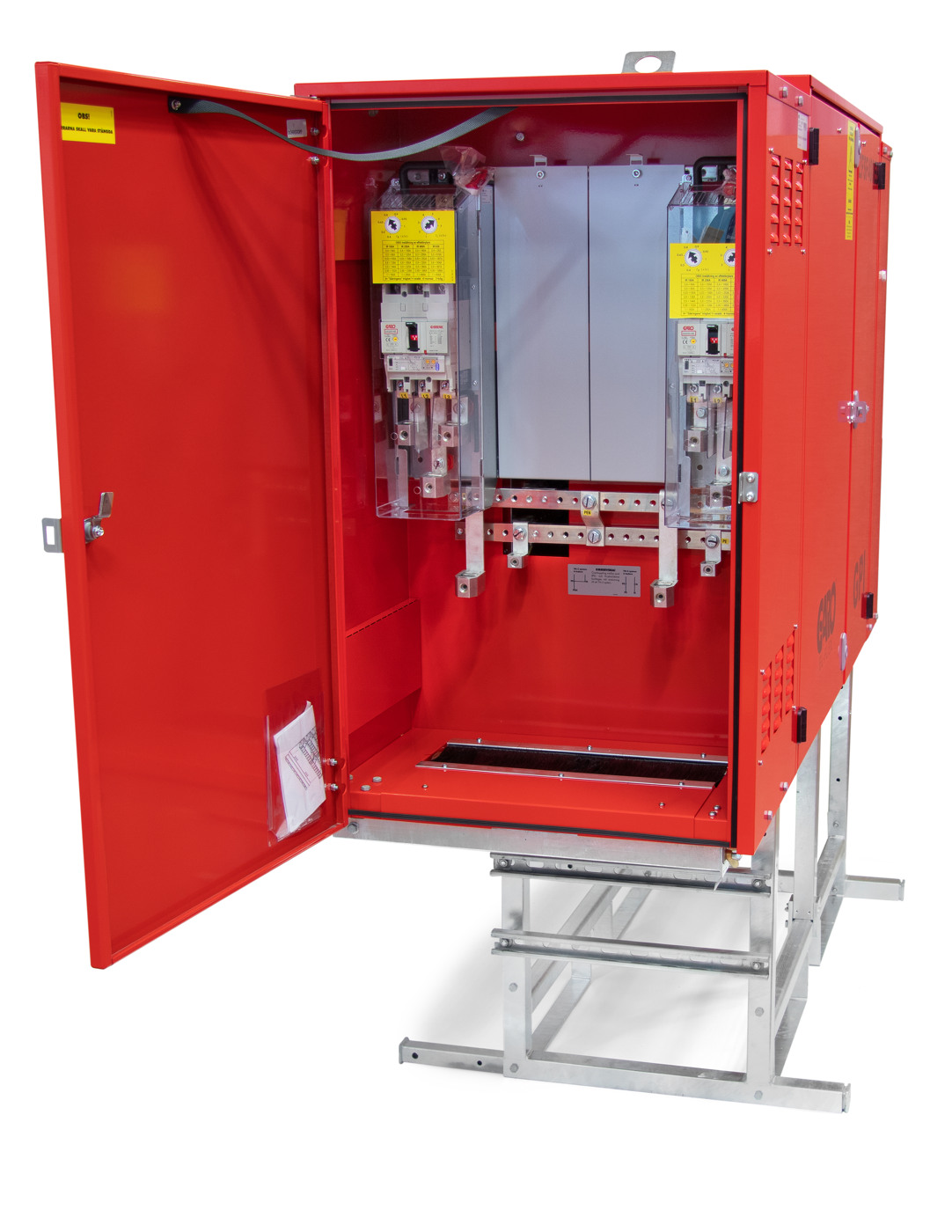

Main distribution assembly 400A (HC400) built in the GPI system. This distribution assembly is equipped with a separate side cabinet for connection of incoming cables from the energy provider (2 x fuse switches of 250A) and common fuse switch 400A with current transformer. This distribution assembly is normally used for the construction of large apartment blocks, hotels large events, etc. The distribution assembly is equipped with different outputs for onward feed with earth cables (Type AKKJ 16-95 mm² and 95-240 mm²). Possibility to supplement with outlet socket modules 13-63A which are preceded by residual current devices and circuit breakers as required. The distribution assembly is equipped with a hot-dip galvanized stand and lockable doors. Tightening torque terminalsblock 10-95mm²:15 Nm Tightening torque terminalsblock 95-2470mm²:25 Nm Main distribution assembly 400A GPI/EB/2xSLK400 2xSLK160 1x63 2x32 1x16 3x13.
E-number
2469126
Article number
353729
Type designation ZFSF 400 GPI/EB/22/12103
Materials Sheet steel
Colour Red
Frequency [Hz] 50
Standard EN 61439-4
Depth [mm] 650
Rated voltage [V AC] 400
Package size [pcs] 1
Name TEMP POWER MET UNIT 400A GPI/EB
E-number 2469126
Article number 353729
Degree of protection [IP] 44
Netweight [kg] 297
Rated current [A] 630
Width [mm] 1710
Height [mm] 1662
Flanged socket outlet 1 pcs 16A 3P+N+E 230/400V
Flanged socket outlet 2 pcs 32A 3P+N+E 230/400V
RCCB 1 pcs 40A/4P
MCB 3 pcs C113
MCB 1 pcs C316
Schuko [pcs] 3
Flanged socket outlet 1 pcs 63A 3P+N+E 230/400V
MCB 2 pcs C332
RCCB 1 pcs 63A/4P
Space for meters [pcs] 1
MCB 1 pcs C363
Fixed connect.NH1-2/250A [pcs] 2
Modules [pcs] 20
