Distribution boards fixed connection 125A

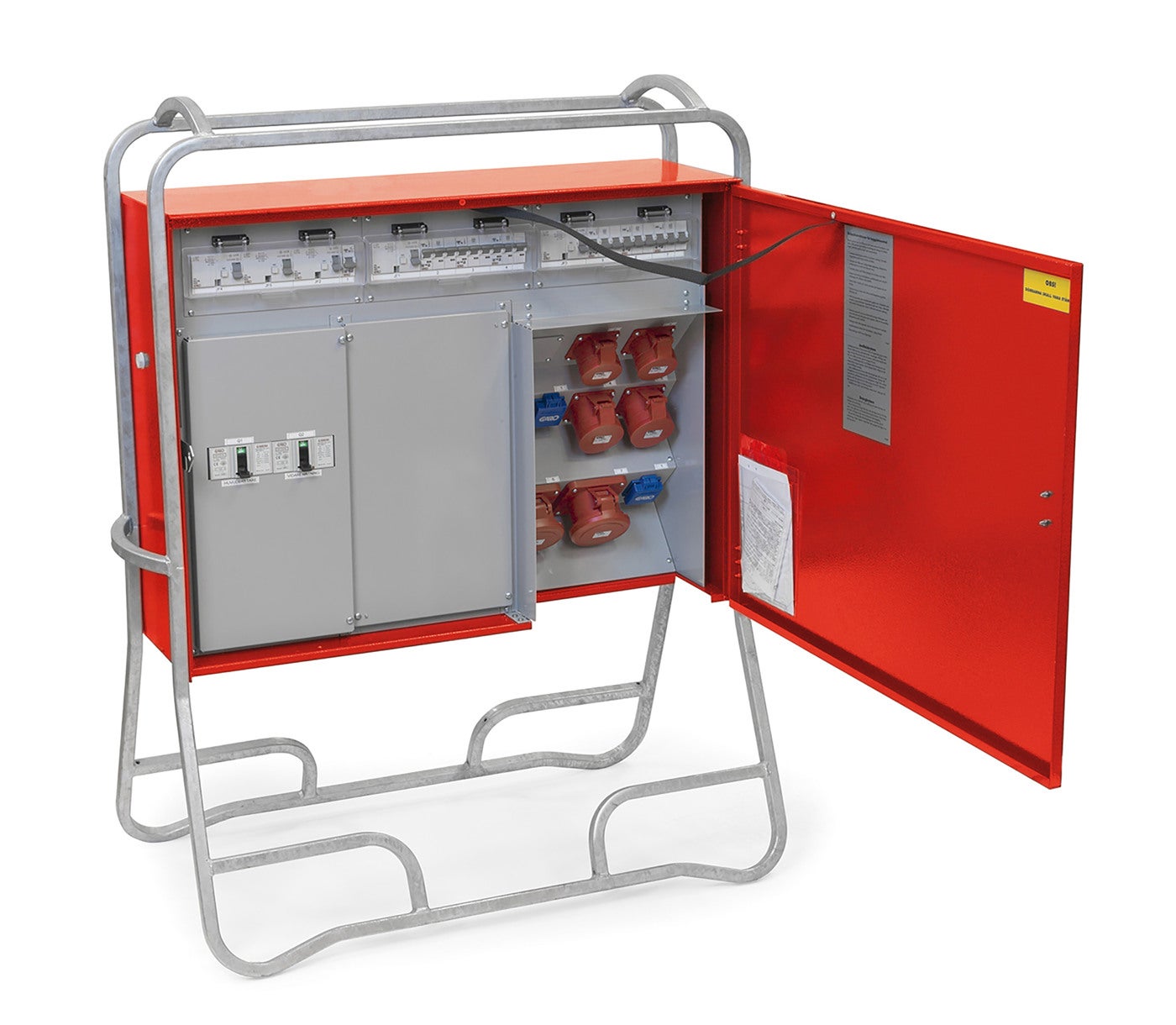

Portable distribution panel GSF125 is equipped with double circuit breakers for connection and feeder earth cable (2 x 16-95 mm²). Equipped with socket 13-63A preceded by a residual current device and fuse protected with miniature circuit breakers. Portable distribution board on stand 125A with socket outlets 13-63A
E-number
E2469043
E2469043
Article number
2469043
2469043
| NetProductWeight | 63 |
|---|---|
| EngineerWidth | 900 |
| Name | POWER DISTR 125A 5XRCCB |
|---|---|
| E-number | E2469043 |
| Article number | 2469043 |
| Type designation | GSF 125/01/12303-41 |
| Materials | Sheet metal |
| Standard | EN61439-3 |
| Short-circuit current [kA] | 17kA |
| Frequency [Hz] | 50Hz |
| Color | Red |
| Rated current [A] | 125A |
| Rated voltage [V AC] | 230/400V AC |
| CEE socket outlet 16A | 3pcs 5P 16A 230/400V |
| Number of MCB 1P (1) | 3pcs C316 |
| Number of MCB 1P (2) | 1pcs C363 |
| Number of Schuko[pcs] | 3pcs |
| Number of RCCB [pcs] 1 | 2pcs 4P 40A |
| CEE socket outlet 32A | 2pcs 5P 32A 230/400V |
| Number of RCCB [pcs] 2 | 1pcs 4P 63A |
| Number of MCB 1P (3) | 3pcs C113 |
| Degree of protection [IP] | IP44 |
| EngineerHeight | 1175 |
| EngineerDepth | 545 |
