Measurement devices module 400A

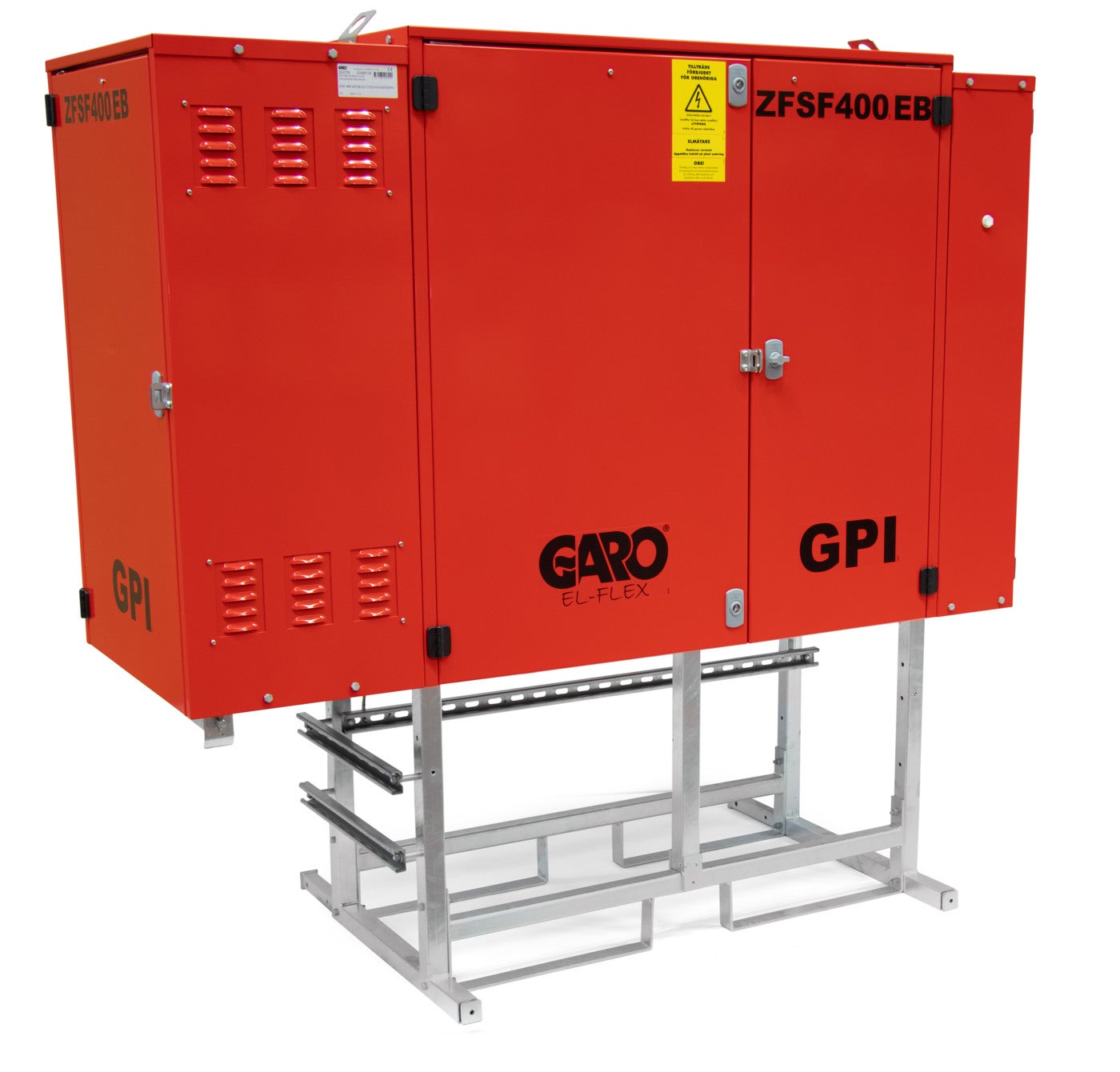

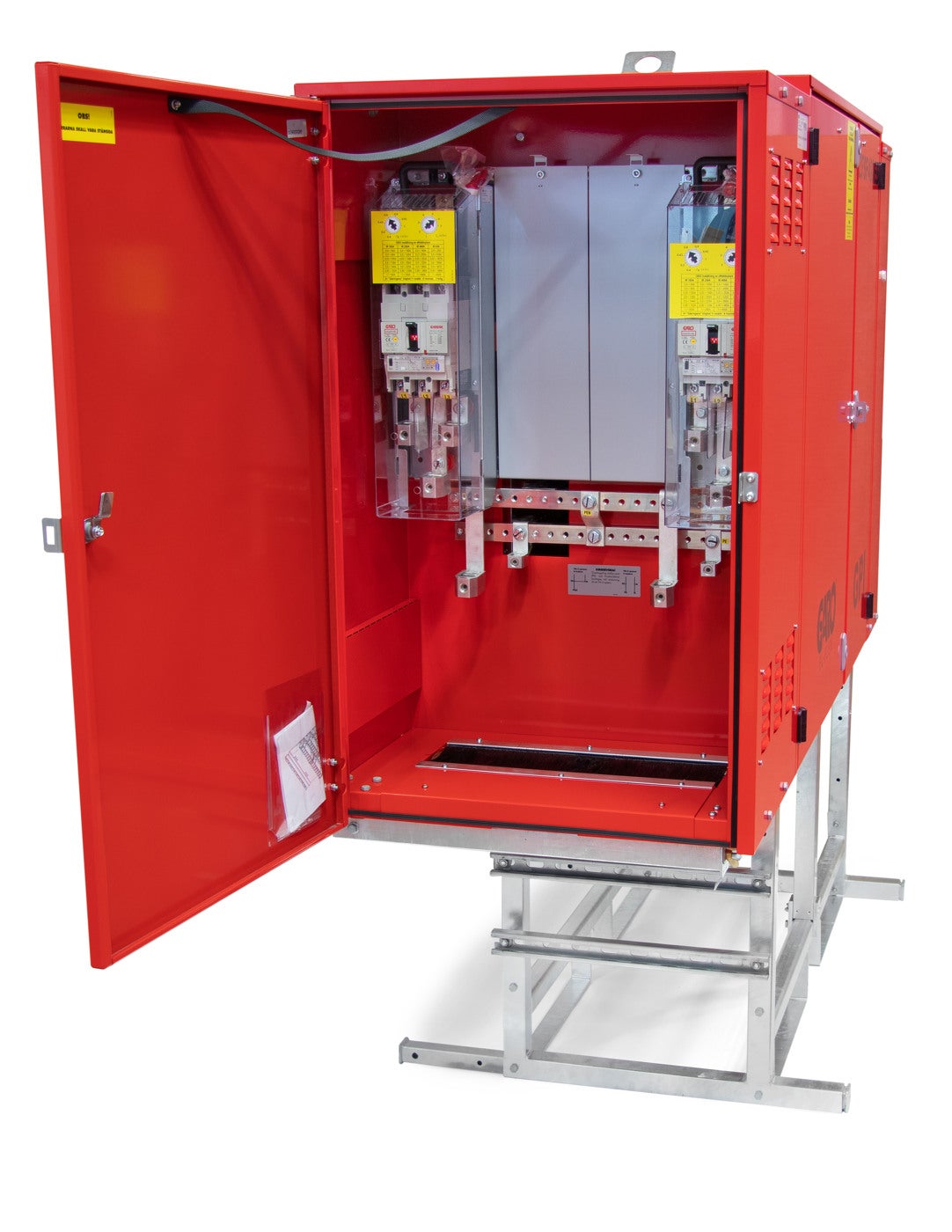

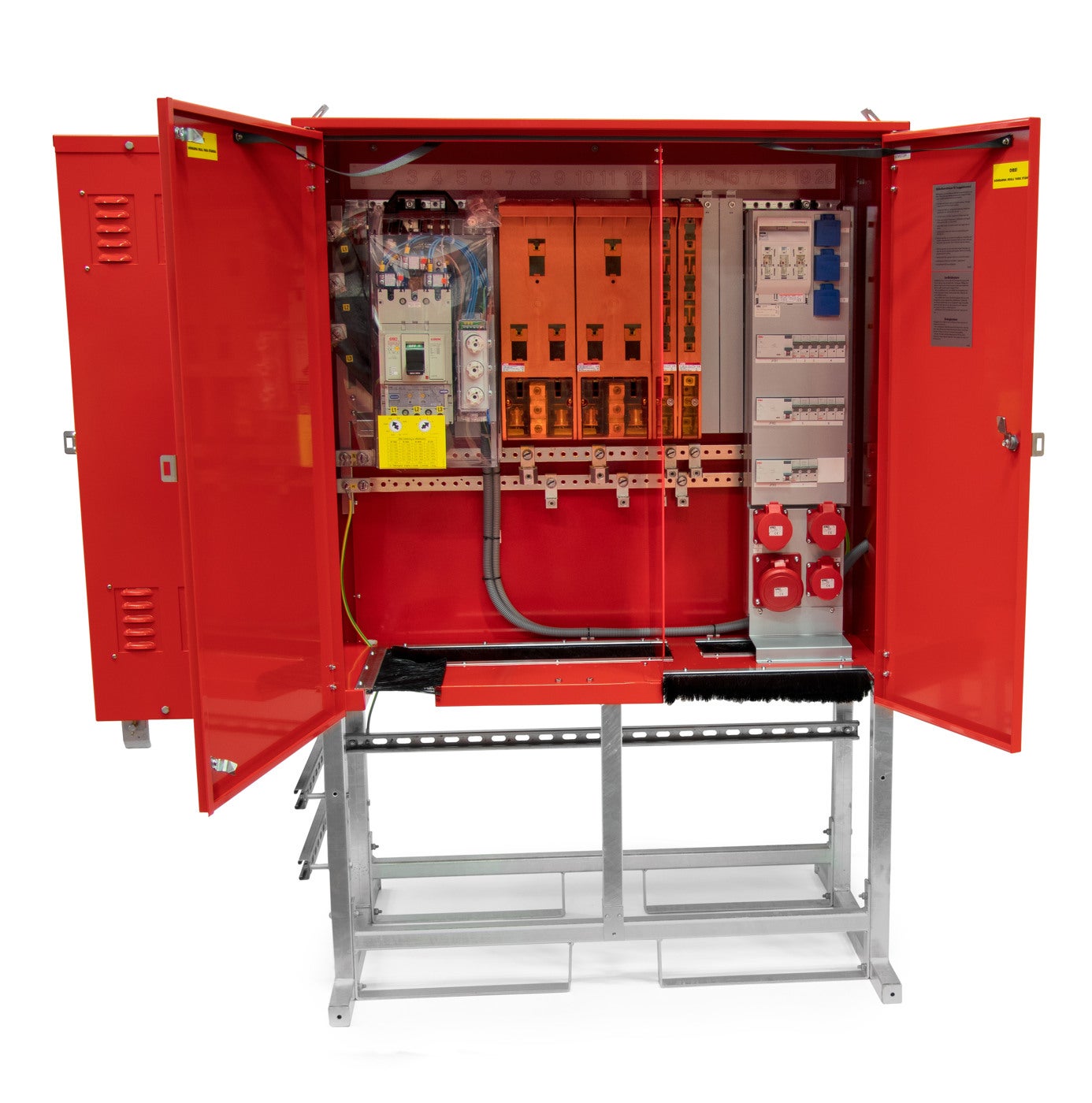

Main distribution assembly 400A (HC400) built in the GPI system. This distribution assembly is equipped with a separate side cabinet for connection of incoming cables from the energy provider (2 x fuse switches of 250A) and common fuse switch 400A with current transformer. This distribution assembly is normally used for the construction of large apartment blocks, hotels large events, etc. The distribution assembly is equipped with different outputs for onward feed with earth cables (Type AKKJ 16-95 mm² and Main distribution assembly 400A GPI/EB/2xSLK400 2xSLK160 1x63 2x32 1x16 3x13.
| Type designation | ZFSF 400 GPI/EB/22/12103 |
|---|---|
| Standard | EN61439-4 |
| Frequency [Hz] | 50Hz |
| Housing material | Sheet steel |
| Color | Red |
| Rated current [A] | 630A |
| Rated voltage [V AC] | 400V AC |
| Number of modules | 20 |
| CEE socket outlet 16A | 1pcs 5P 16A 230/400V |
| Number of MCB 1P (1) | 3pcs C113 |
| Number of MCB 1P (2) | 1pcs C316 |
| Number of MCB 3P (1) | 2pcs C332 |
| Number of MCB 3P (2) | 1pcs C363 |
| Number of Schuko[pcs] | 3pcs |
| Number of RCCB [pcs] 1 | 1pcs 4P 40A |
| CEE socket outlet 32A | 2pcs 5P 32A 230/400V |
| CEE socket outlet 63A | 1pcs 5P 16A 230/400V |
| Number of RCCB [pcs] 2 | 1pcs 4P 63A |
| Space for meters [pcs] | 1 |
| Degree of protection [IP] | IP44 |
| Fixed connection NH1-2 | 2x250A |
| NetProductWeight | 297 |
| EngineerWidth | 1710 |
| EngineerHeight | 1662 |
| EngineerDepth | 650 |
| Name | TEMP POWER MET UNIT 400A GPI/EB |
|---|---|
| E-number | E2469126 |
| Article number | 353729 |
