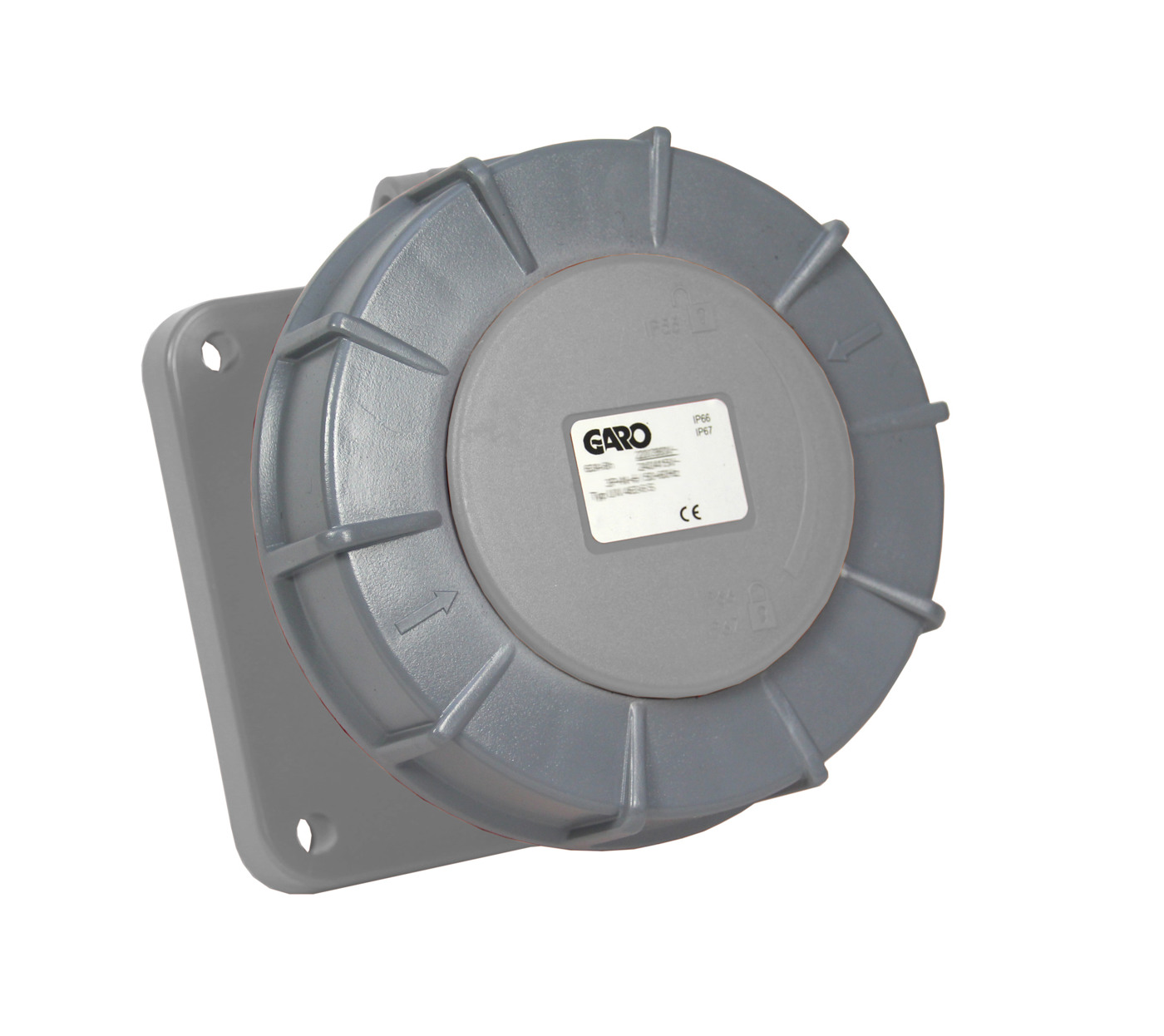

SOCKET STRAIGHT WT 3P 63A 12h

Flanged sockets Basic with straight mounting plate 63A IP67

Basic, our standard range with a screw function. Socket 63A recess mounting with straight mounting plate. Supplied including seal. Socket straight basic watertight 4-poles 63A 2h
E-number
2424985
Article number
2424985
Support
Wire flexible [mm²] 6-16
Rated current [A] 63
Degree of protection [IP] 67
Standard Class 1 EN 60044-8
Width [mm] 100
Height [mm] 100
Depth [mm] 130
Materials Plastic
Location Recessed
Function Basic
Wire solid [mm²] 6-25
Name SOCKET STRAIGHT WT 3P 63A 12h
E-number 2424985
Article number 2424985
Type designation UIV 263-12 S
Colour Grey
Frequency [Hz] 50/60
Rated voltage [V AC] Matning fr.isolertransf.
Netweight [kg] 0.49
No.of Poles [pcs] 3/2P+E
Position of earth [h] 12
RAL-nummer RAL7046

More variants of Flanged sockets Basic with straight mounting plate 63A IP67

E-number Article number Type designation Colour Frequency [Hz] Rated voltage [V AC] Netweight [kg] No.of Poles [pcs] Position of earth [h] RAL-nummer
SOCKET STRAIGHT WT 3P 63A 4h 2424982 2424982 UIV 263-4 S Yellow 50/60 100-130 0.49 3/2P+E 4 RAL1023
SOCKET STRAIGHT WT 3P 63A 6h 2424983 2424983 UIV 263-6 S Blue 50/60 200-250 0.49 3/2P+E 6 RAL5017
SOCKET STRAIGHT WT 3P 63A 9h 2424984 2424984 UIV 263-9 S Red 50/60 380-415 0.49 3/2P+E 9 RAL3000
SOCKET STRAIGHT WT 3P 63A 12h 2424985 2424985 UIV 263-12 S Grey 50/60 Matning fr.isolertransf. 0.49 3/2P+E 12 RAL7046
SOCKET STRAIGHT WT 4P 63A 4h 2424986 2424986 UIV 363-4 S Yellow 50/60 100-130 0.60 4/3P+E 4 RAL1023
SOCKET STRAIGHT WT 4P 63A 6h 2424987 2424987 UIV 363-6 S Red 50/60 400 0.60 4/3P+E 6 RAL3000
SOCKET STRAIGHT WT 4P 63A 7h 2424988 2424988 UIV 363-7 S Black 50/60 480-500 0.60 4/3P+E 7 RAL9005
SOCKET STRAIGHT WT 4P 63A 9h 2424989 2424989 UIV 363-9 S Blue 50/60 230 0.60 4/3P+E 9 RAL5017
SOCKET STRAIGHT WT 4P 63A 11h 2424990 2424990 UIV 363-11 S Red 60 440-460 0.60 4/3P+E 11 RAL3000
SOCKET STRAIGHT WT 5P 63A 4h 2424991 2424991 UIV 463-4 S Yellow 50/60 100-130 0.65 5/3PN+E 4 RAL1023
SOCKET STRAIGHT WT 5P 63A 6h 2424992 2424992 UIV 463-6 S Red 50/60 230/400 0.65 5/3PN+E 6 RAL3000
SOCKET STRAIGHT WT 5P 63A 7h 2424993 2424993 UIV 463-7 S Black 50/60 480-500 0.65 5/3PN+E 7 RAL9005
SOCKET STRAIGHT WT 5P 63A 9h 2424994 2424994 UIV 463-9 S Blå/Blue 50/60 208-250 0.65 5/3PN+E 9 RAL5017
SOCKET STRAIGHT WT 5P 63A 11h 2424995 2424995 UIV 463-11 S Red 60 440-460 0.65 5/3PN+E 11 RAL3000
