DISTRIBUTION ENCLOSURE 21FL 220 I/I SP

Distribution box 21 flange

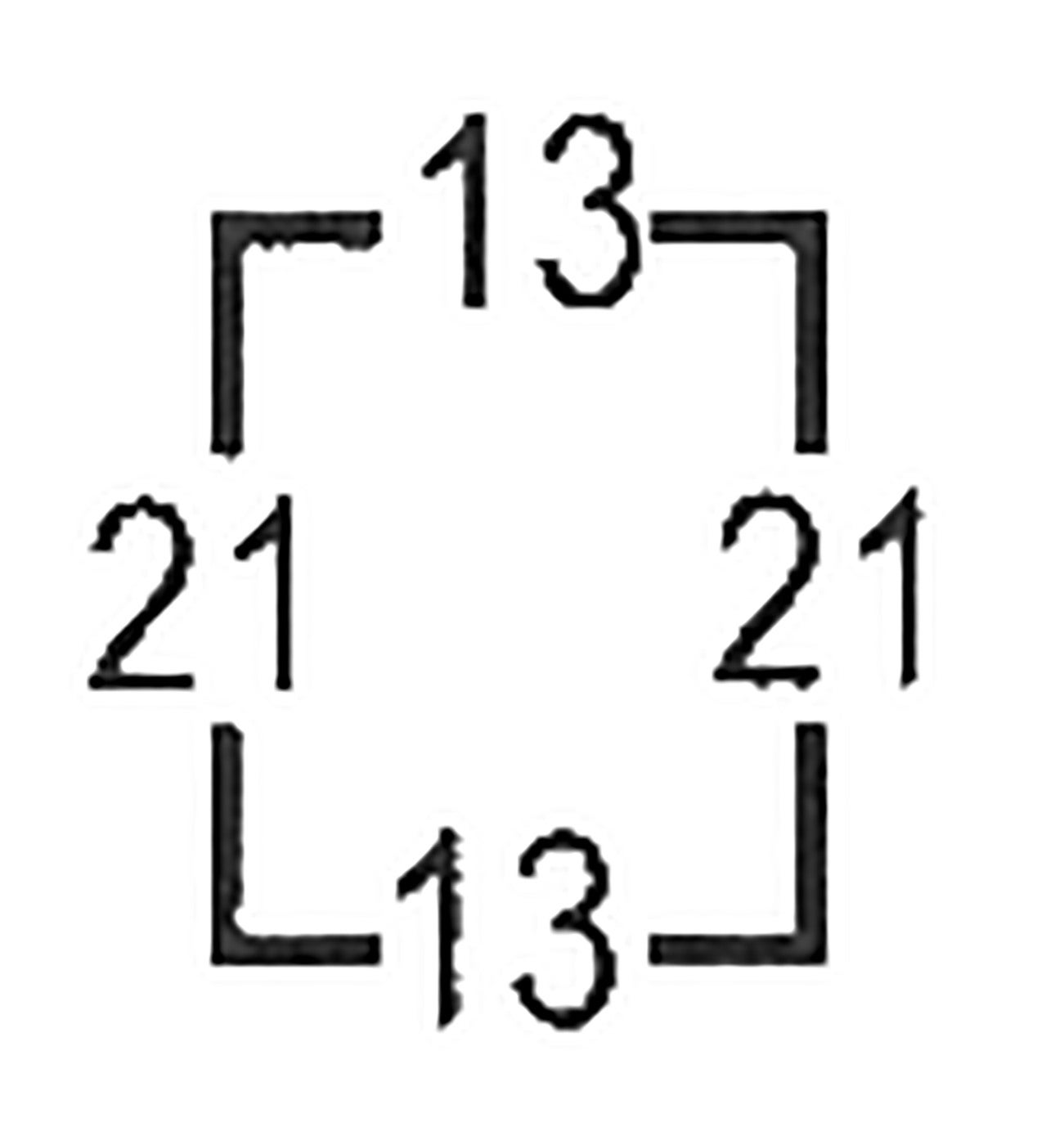

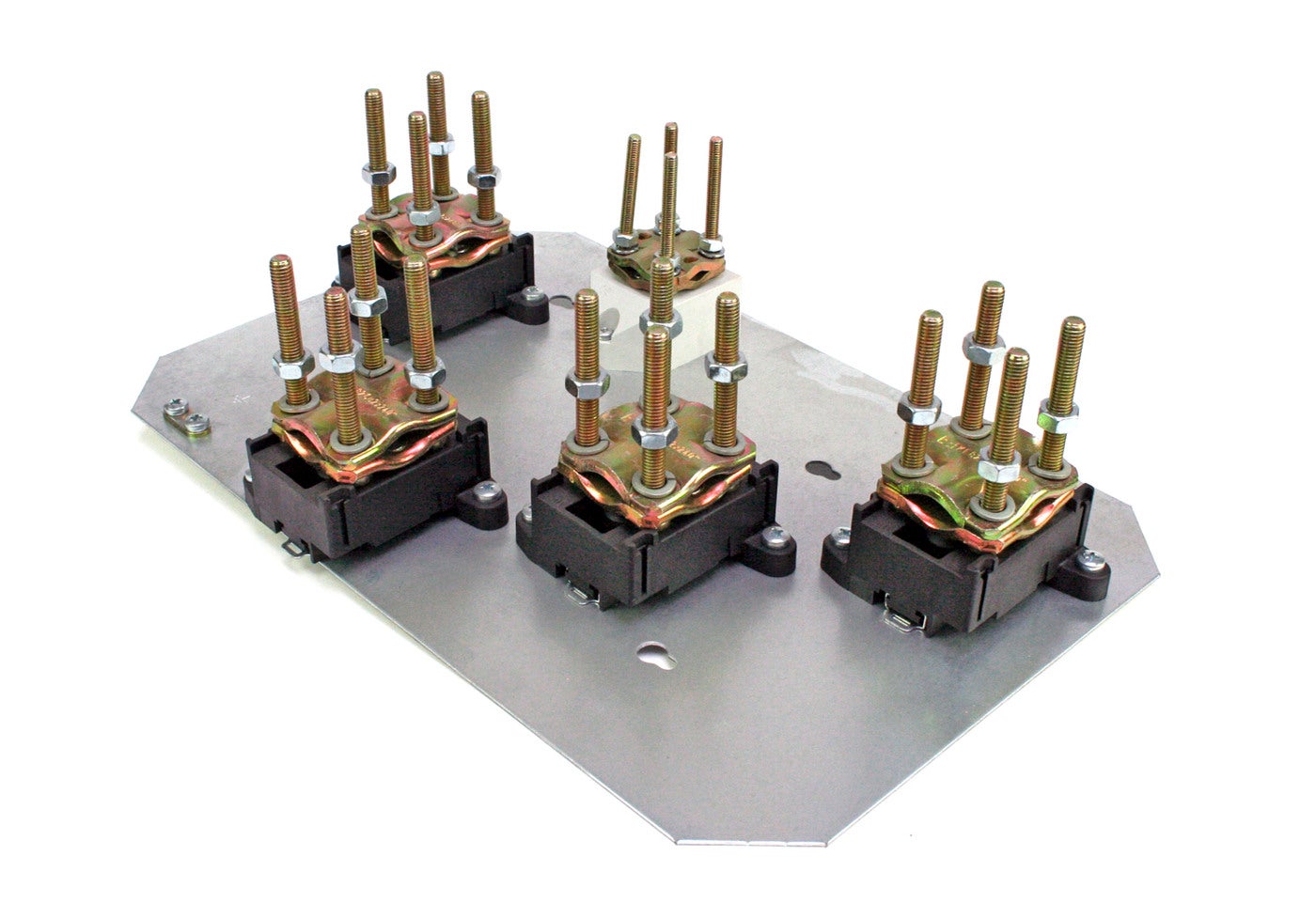

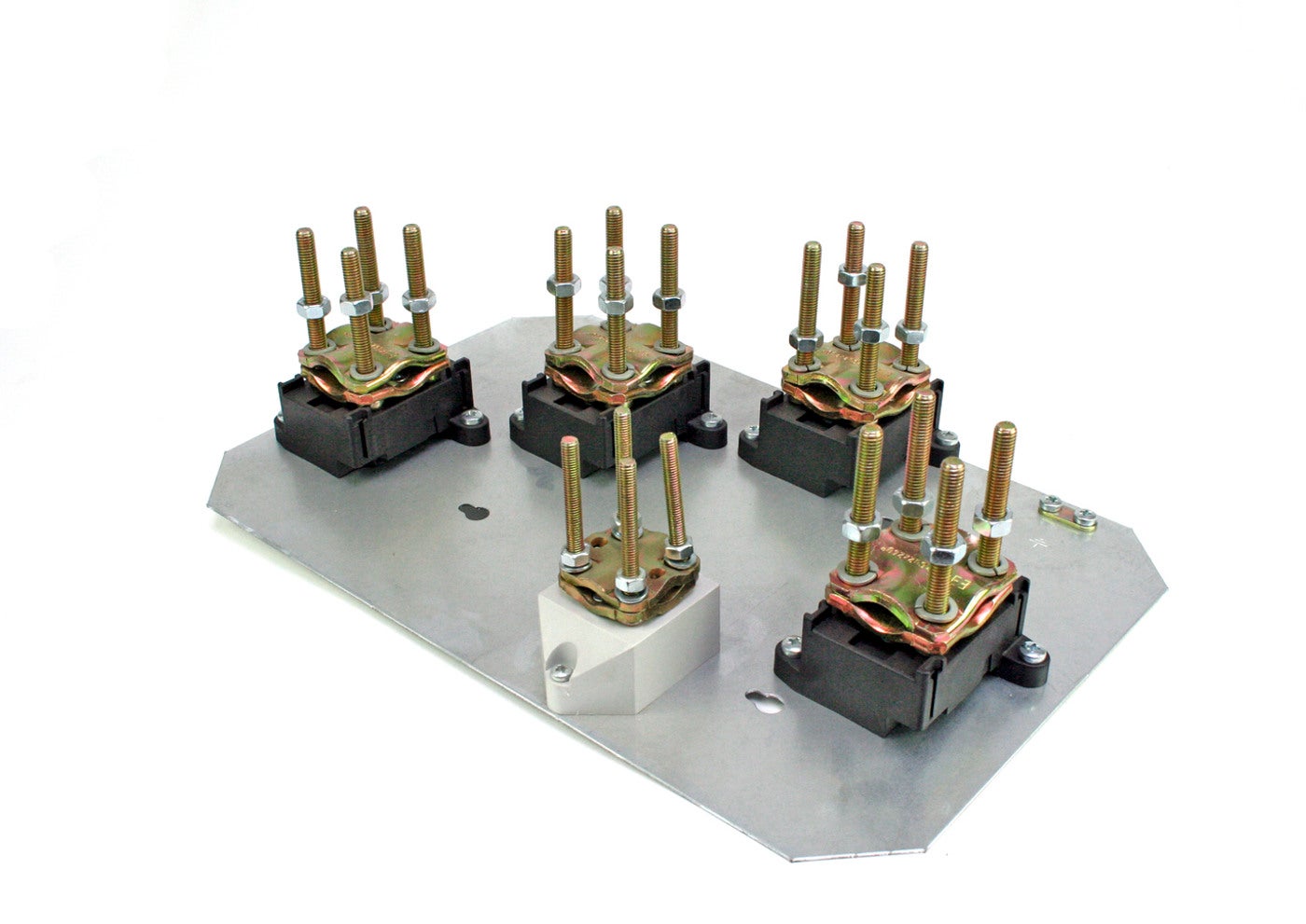

The boxes can be equipped with busbars max diameter 20 mm tubular bars 400A, or 20 mm round copper 630A alternatively with terminal equipped connection inserts that allow different distribution possibilities with soft conductors. Regarding equipment option for the boxes. Distribution box 220 flange 21 in side 13/13 up/down
E-number
E2384852
Article number
2384852
Support
Standard EN61439-3
Housing material Sheet steel
Color Grey
EngineerHeight 275
EngineerDepth 175
Name DISTRIBUTION ENCLOSURE 21FL 220 I/I SP
E-number E2384852
Article number 2384852
Type designation FPS 220 I/I
Degree of protection [IP] IP43
NetProductWeight 2.9
EngineerWidth 220

More variants of Distribution box 21 flange

E-number Article number Type designation Degree of protection [IP] NetProductWeight EngineerWidth
DISTRIBUTION ENCLOSURE 21FL 220 I/I SP E2384852 2384852 FPS 220 I/I IP43 2.9 220

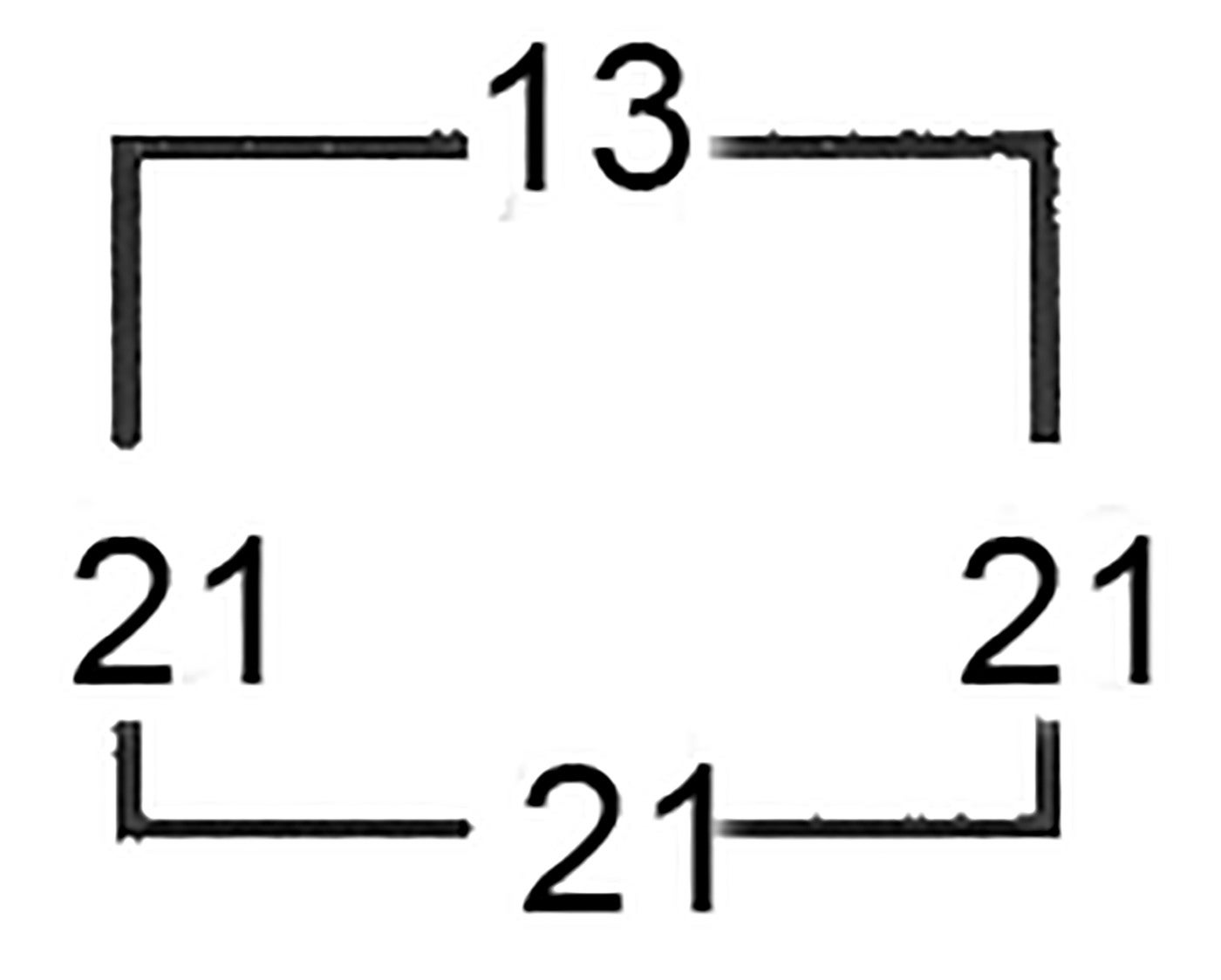

DISTRIBUTION ENCLOSURE 21FL 275 I/II SP E2384856 2384856 FPS 275 I/II IP43 3.4 275

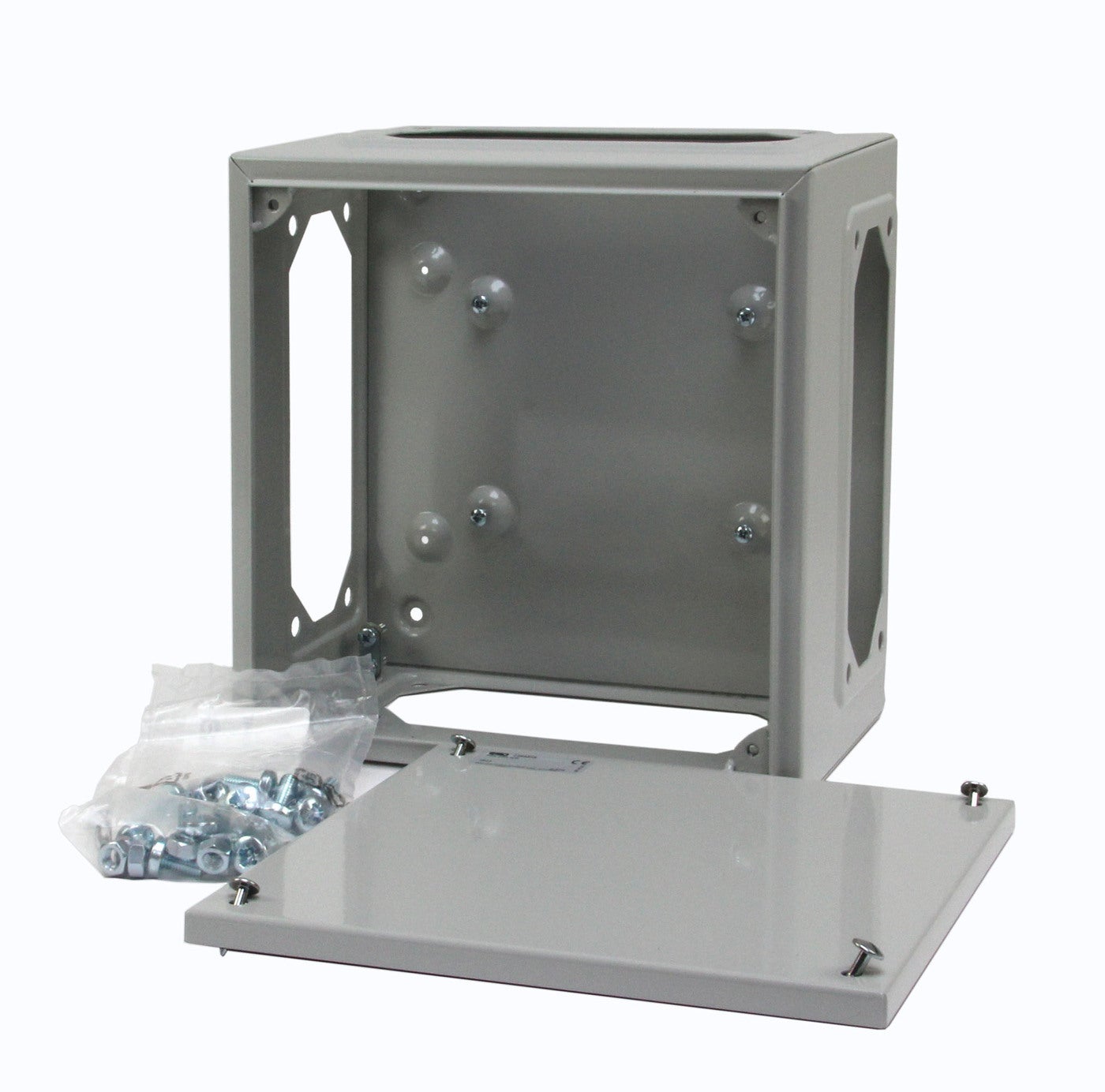

DISTRIBUTION ENCLOSURE 21FL 275 II/II SP E2384858 2384858 FPS 275 II/II 3.3 275

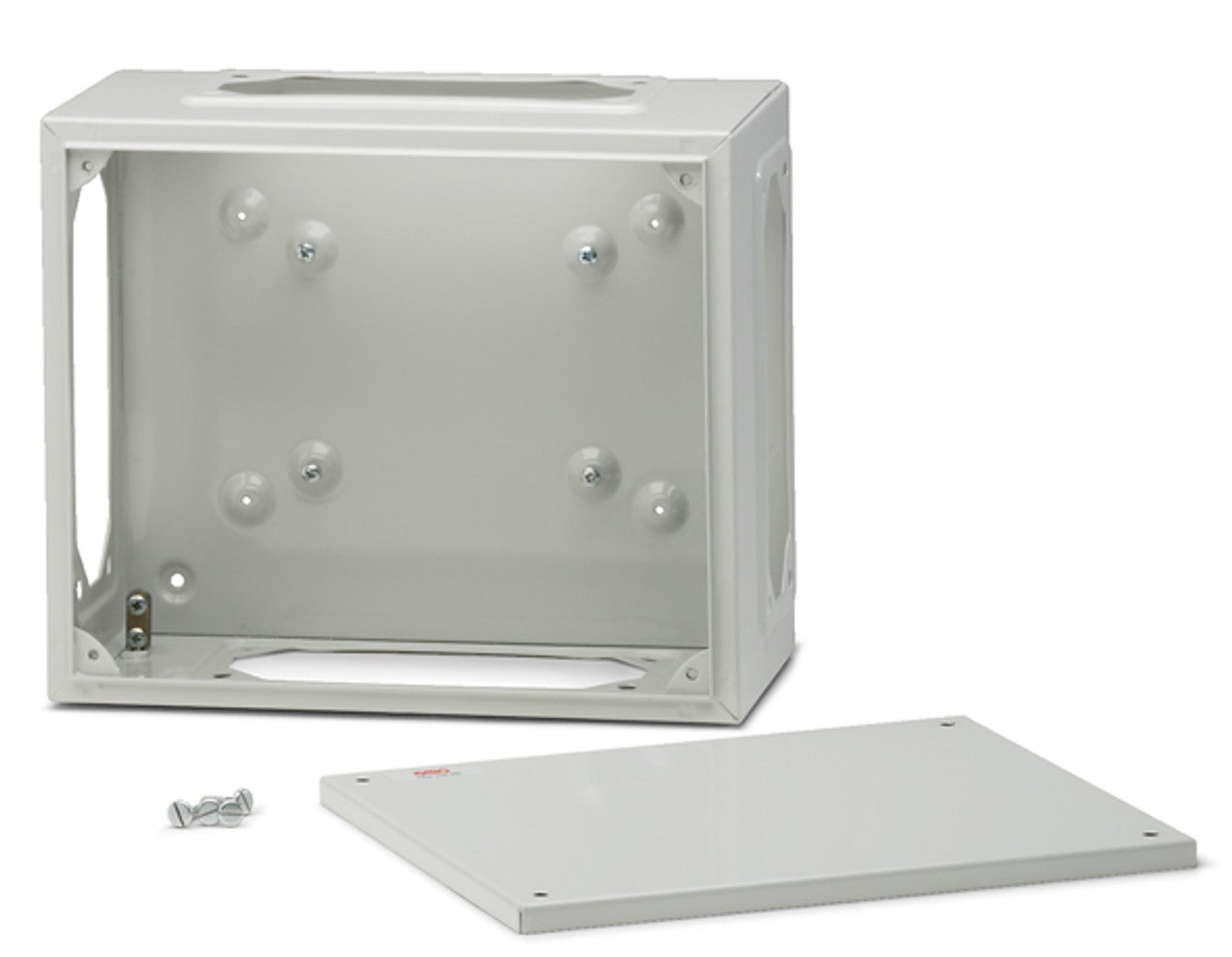

DISTRIBUTION ENCLOSURE 21FL 330 II/II SP E2384860 2384860 FPS 330 II/II IP43 3.7 330

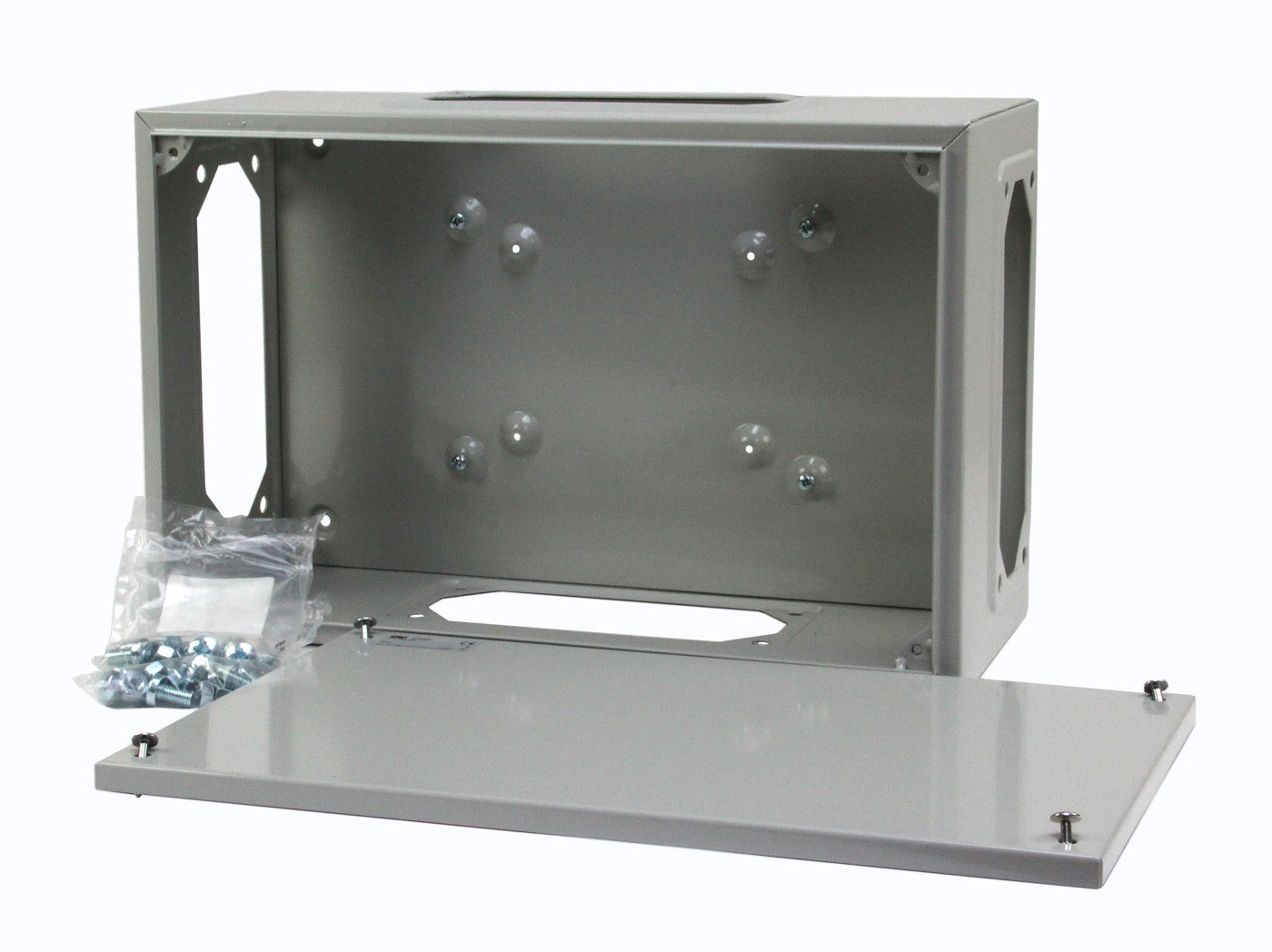

DISTRIBUTION ENCLOSURE 21FL 440 II/II SP E2384864 2384864 FPS 440 II/II IP43 4.8 440

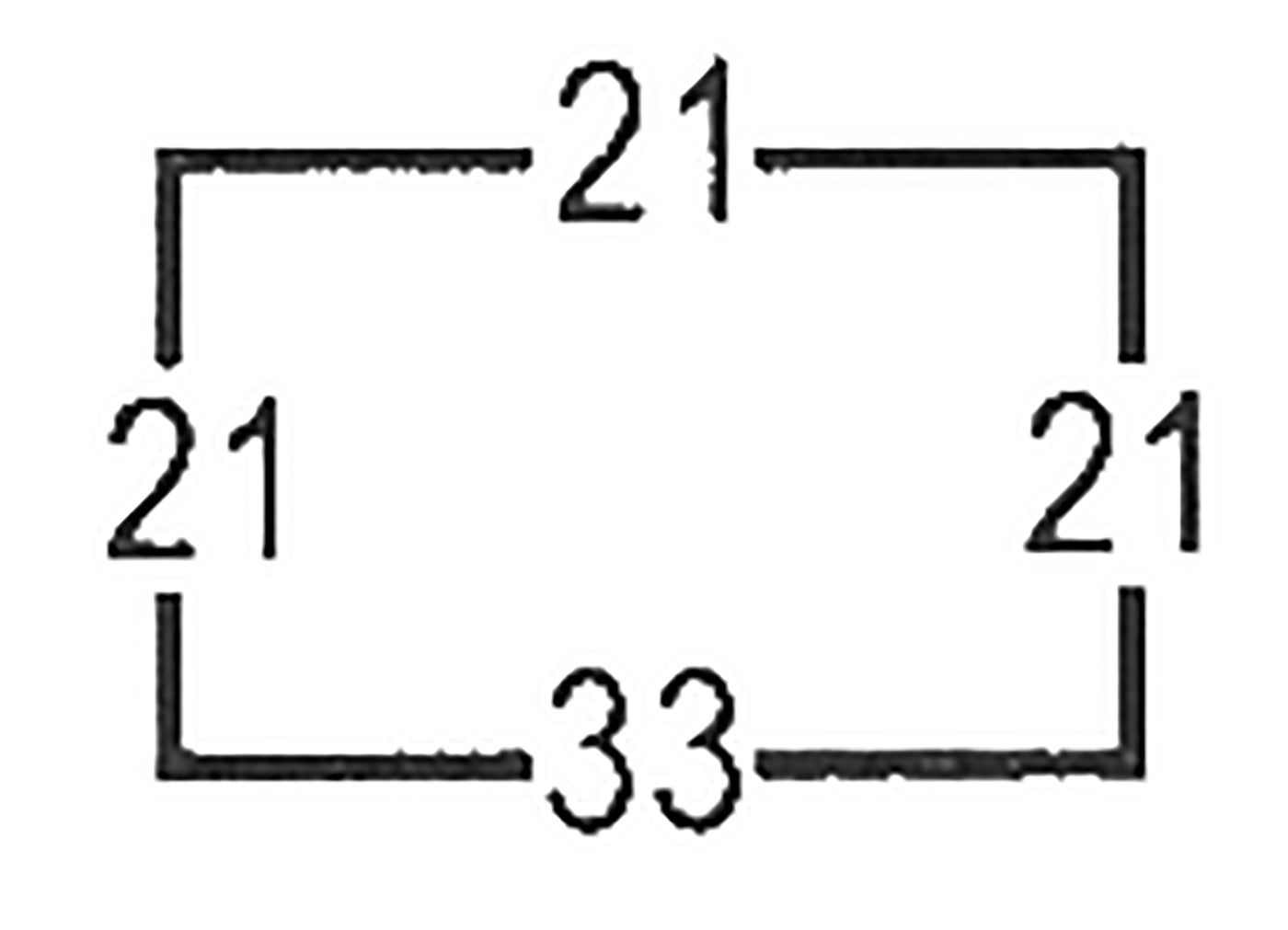

DISTRIBUTION ENCLOSURE 21FL 440 II/III SP E2384866 2384866 FPS 440 II/III IP43 5.1 440

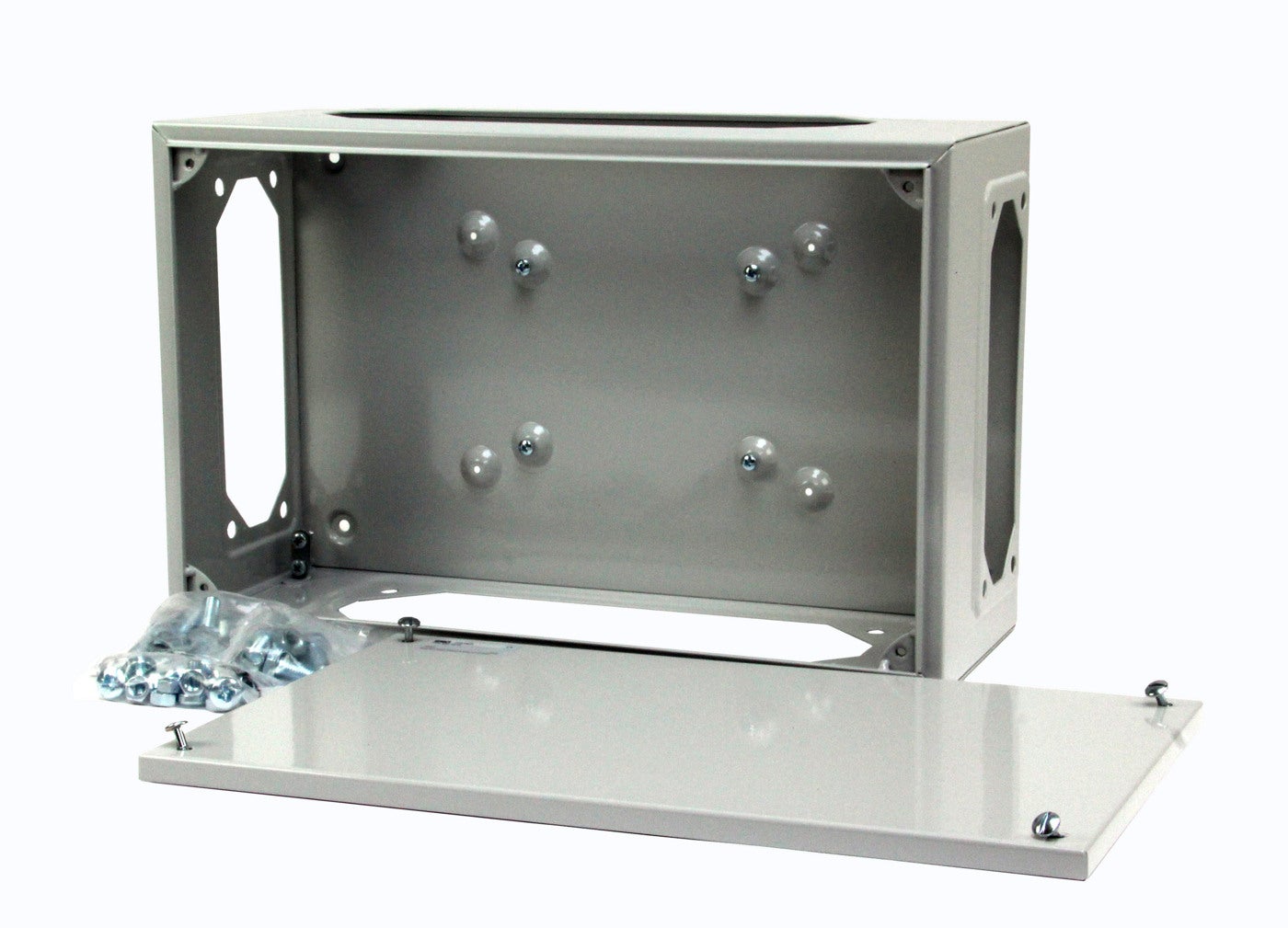

DISTRIBUTION ENCLOSURE 21FL 440 III/III SP E2384868 2384868 FPS 440 III/III IP43 5 440

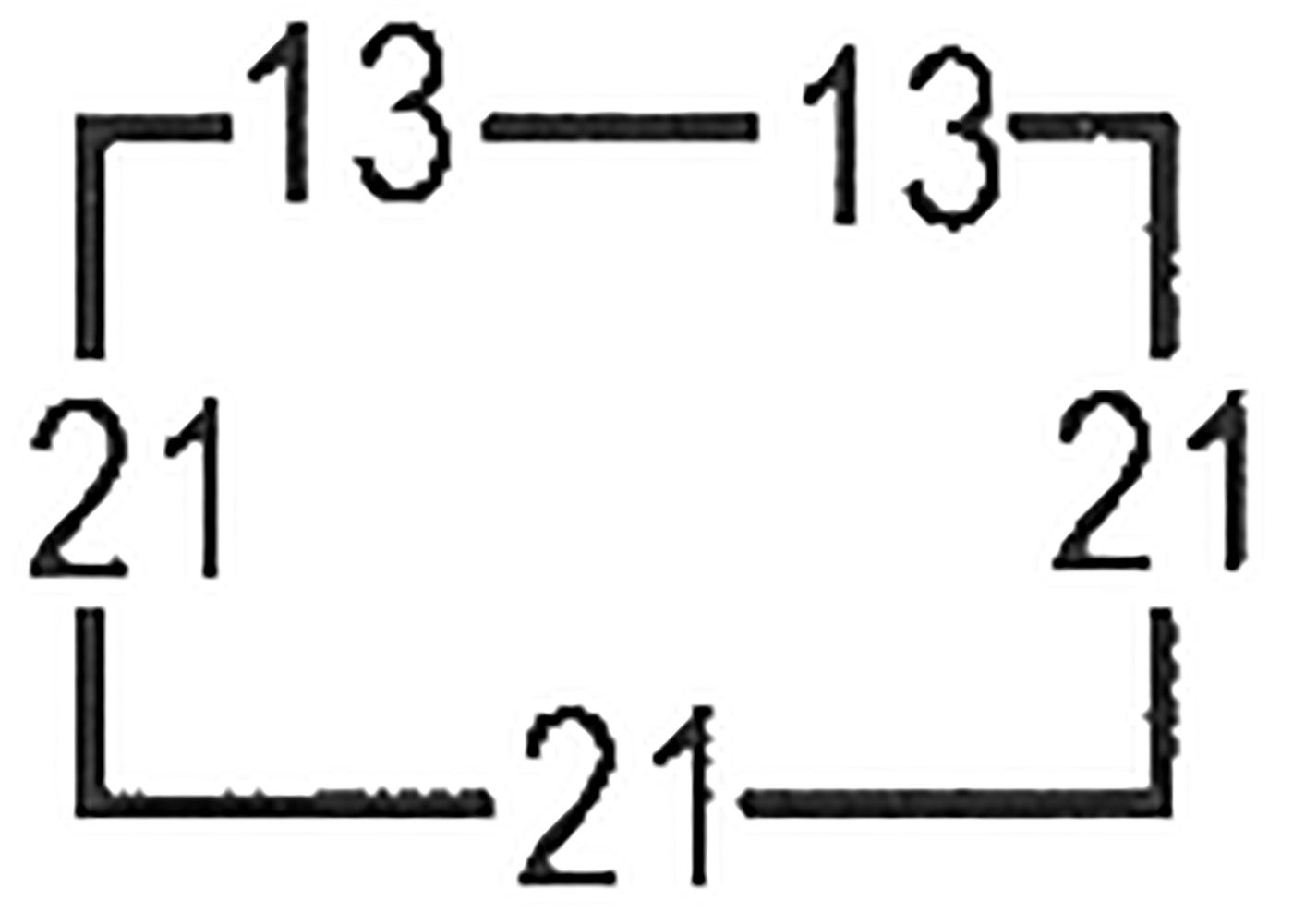

DISTRIBUTION ENCLOSURE 21FL 440 I+I/II SP E2384870 2384870 FPS 440 I+I/II IP43 5.3 440

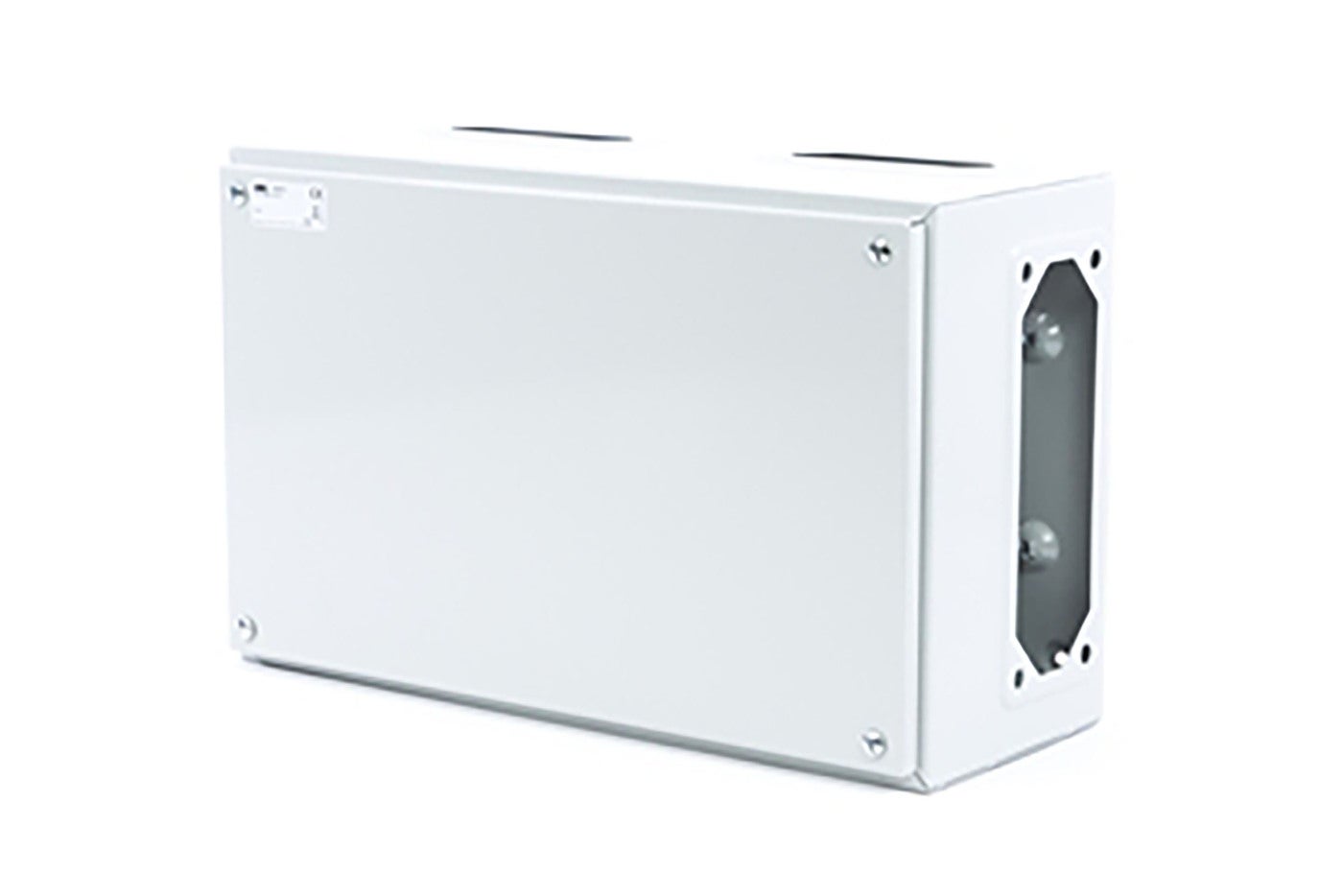

DISTRIBUTION ENCLOSURE 21FL 440 I+I/I+I SP E2384872 2384872 FPS 440 I+I/I+I IP43 5 440

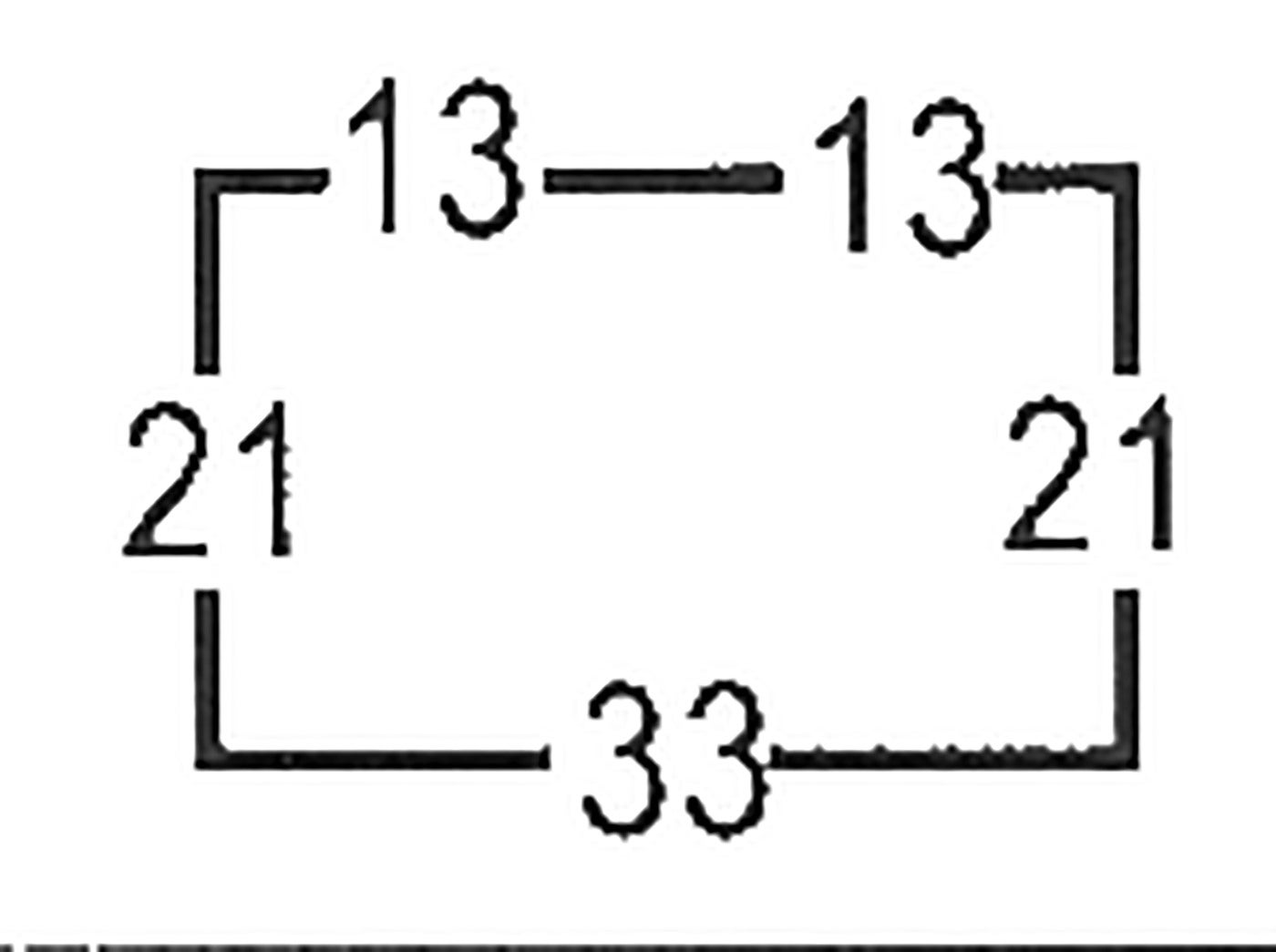

DISTRIBUTION ENCLOSURE 21FL 440 I+I/III SP E2384874 2384874 FPS 440 I+I/III IP43 4.9 440

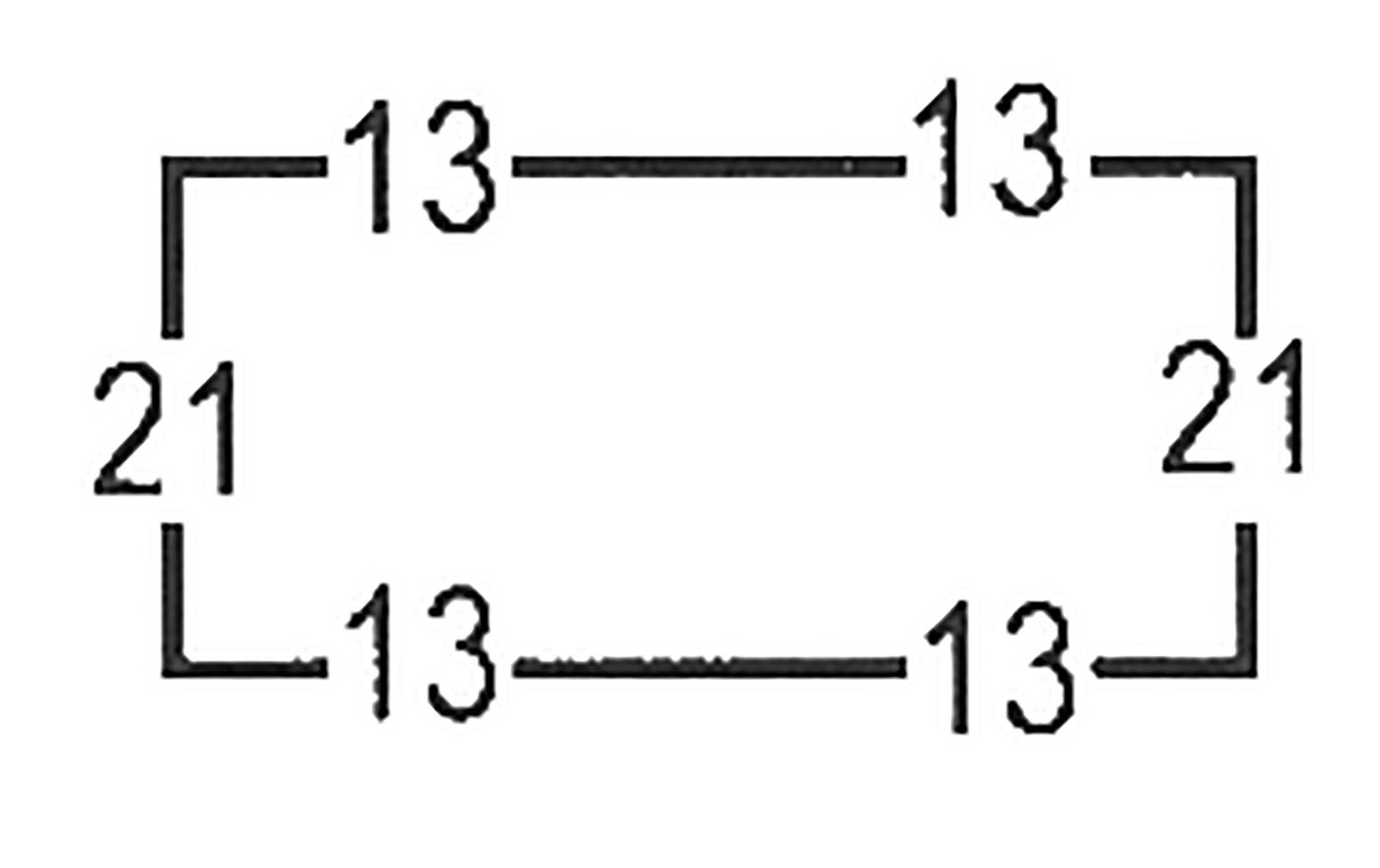

DISTRIBUTION ENCLOSURE 21FL 550 I+I/I+I SP E2384876 2384876 FPS 550 I+I/I+I IP43 5.7 550
