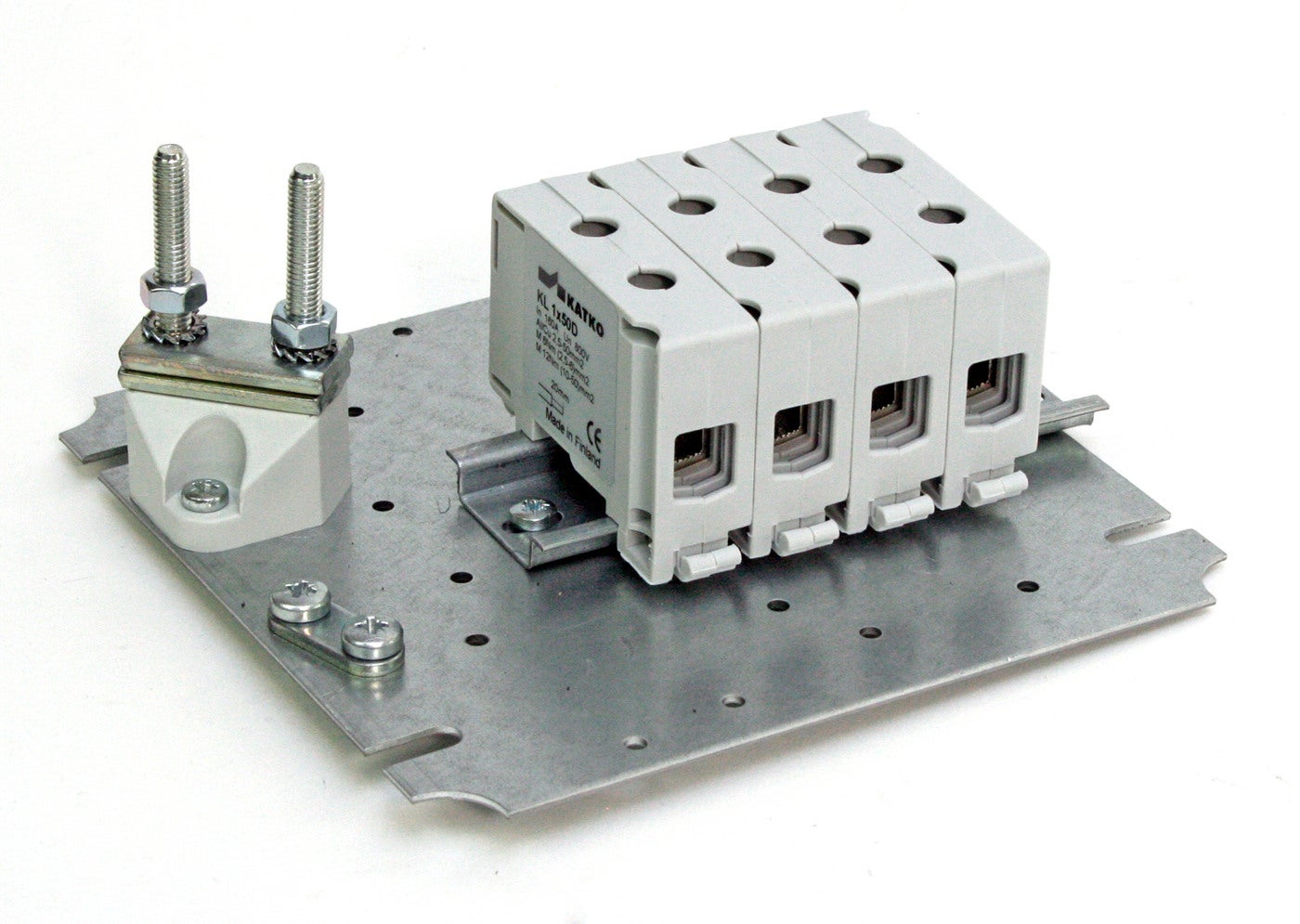

INSERT COPPER AND ALU CABLE 5X50

Inserts Cu and Al cable

The table below shows the boxes that the connection inserts fit in, the size of each box's flange opening and connection area must be taken into consideration depending on the cable type and number of cables to be used. Coupling insert for copper and aluminum cable 5x35
E-number
E2393918
Article number
2393918
Support
Name INSERT COPPER AND ALU CABLE 5X50
E-number E2393918
Article number 2393918
Type designation K 550 AL
NetProductWeight 0.49
EngineerWidth 150
EngineerHeight 150
EngineerDepth 60

More variants of Inserts Cu and Al cable

E-number Article number Type designation NetProductWeight EngineerWidth EngineerHeight EngineerDepth
TERMINAL BLOCK 5x95 E2270622 2270622 KACL 595 0.45 90 55 120
INSERT COPPER AND ALU CABLE 5X50 E2393918 2393918 K 550 AL 0.49 150 150 60

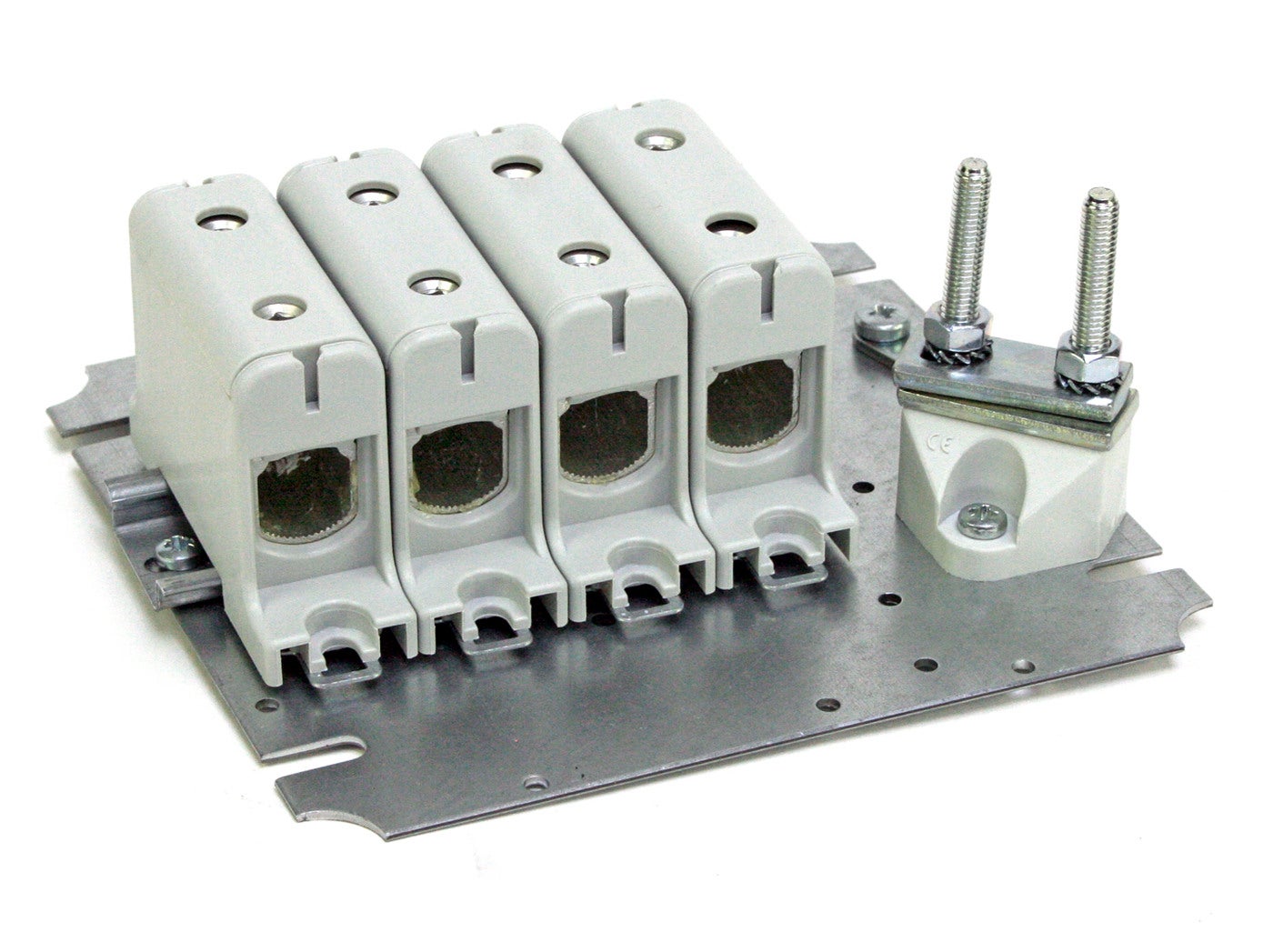

INSERT COPPER AND ALU CABLE 5X95 E2393920 2393920 K 595 AL 0.66 150 150 70

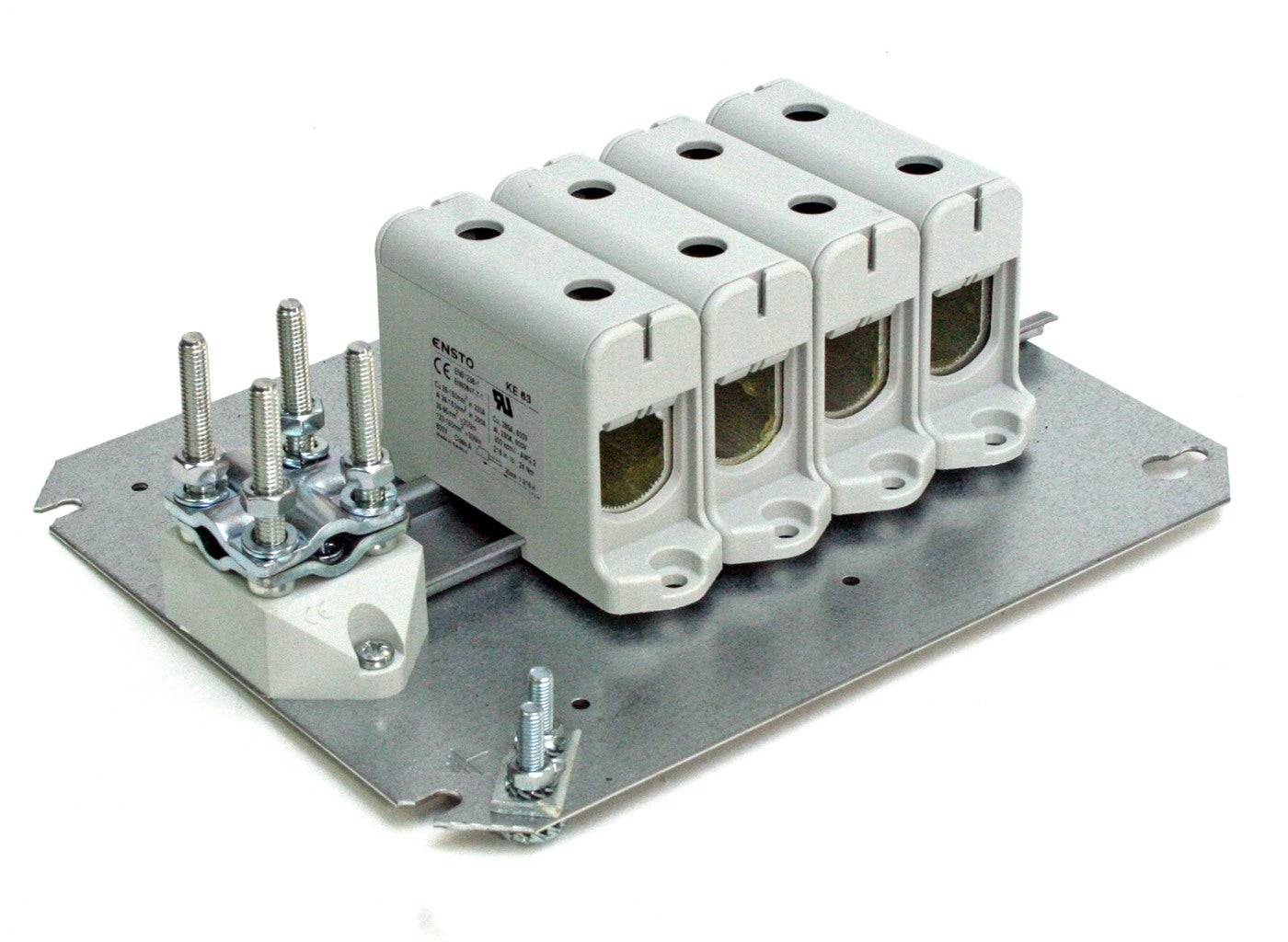

INSERT COPPER AND ALU CABLE 5X150 E2393922 2393922 K 5150 AL 1.13 170 215 70

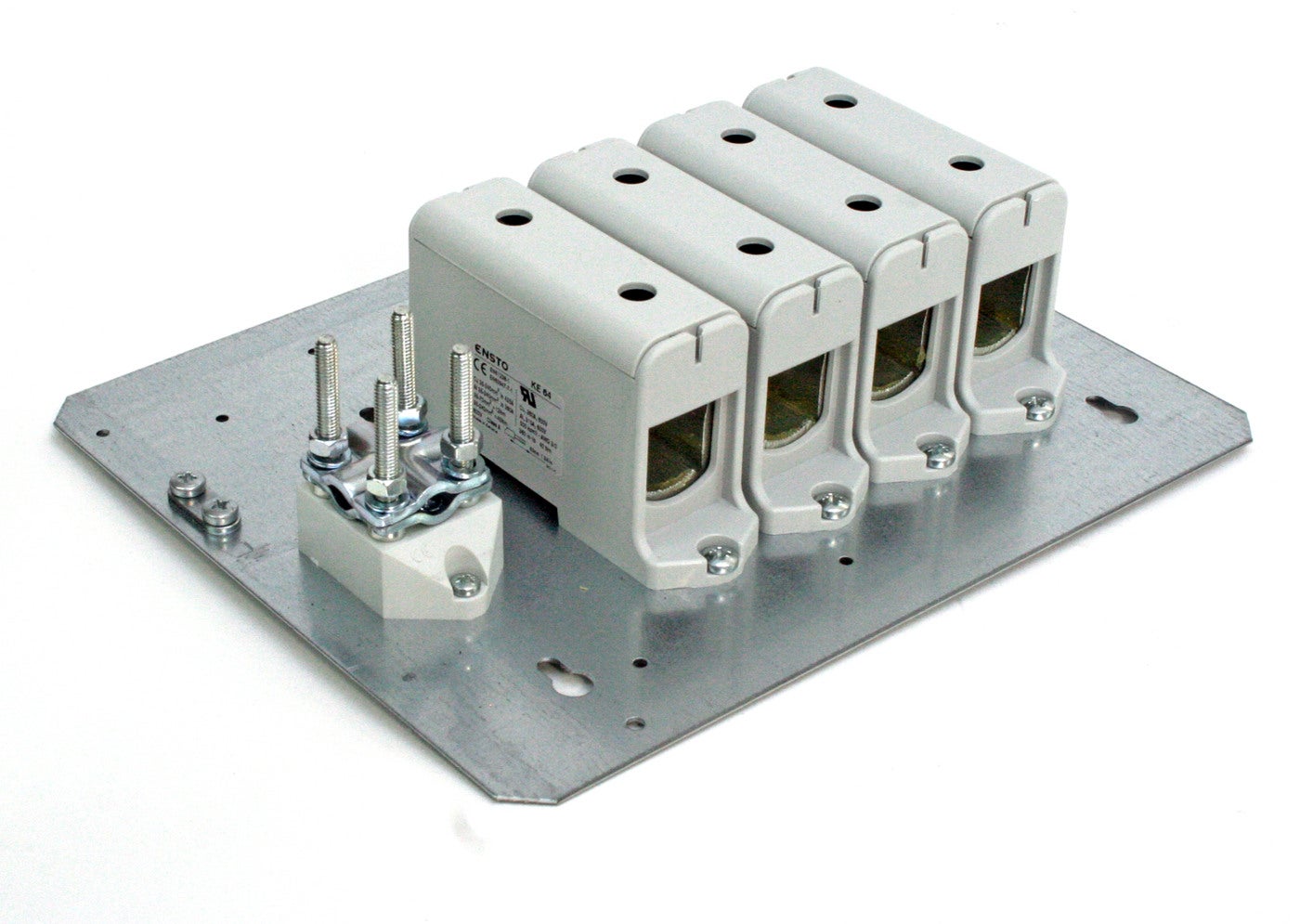

INSERT COPPER & AL CAB 5X240 E2393924 2393924 K 5240 AL 1.83 270 220 70

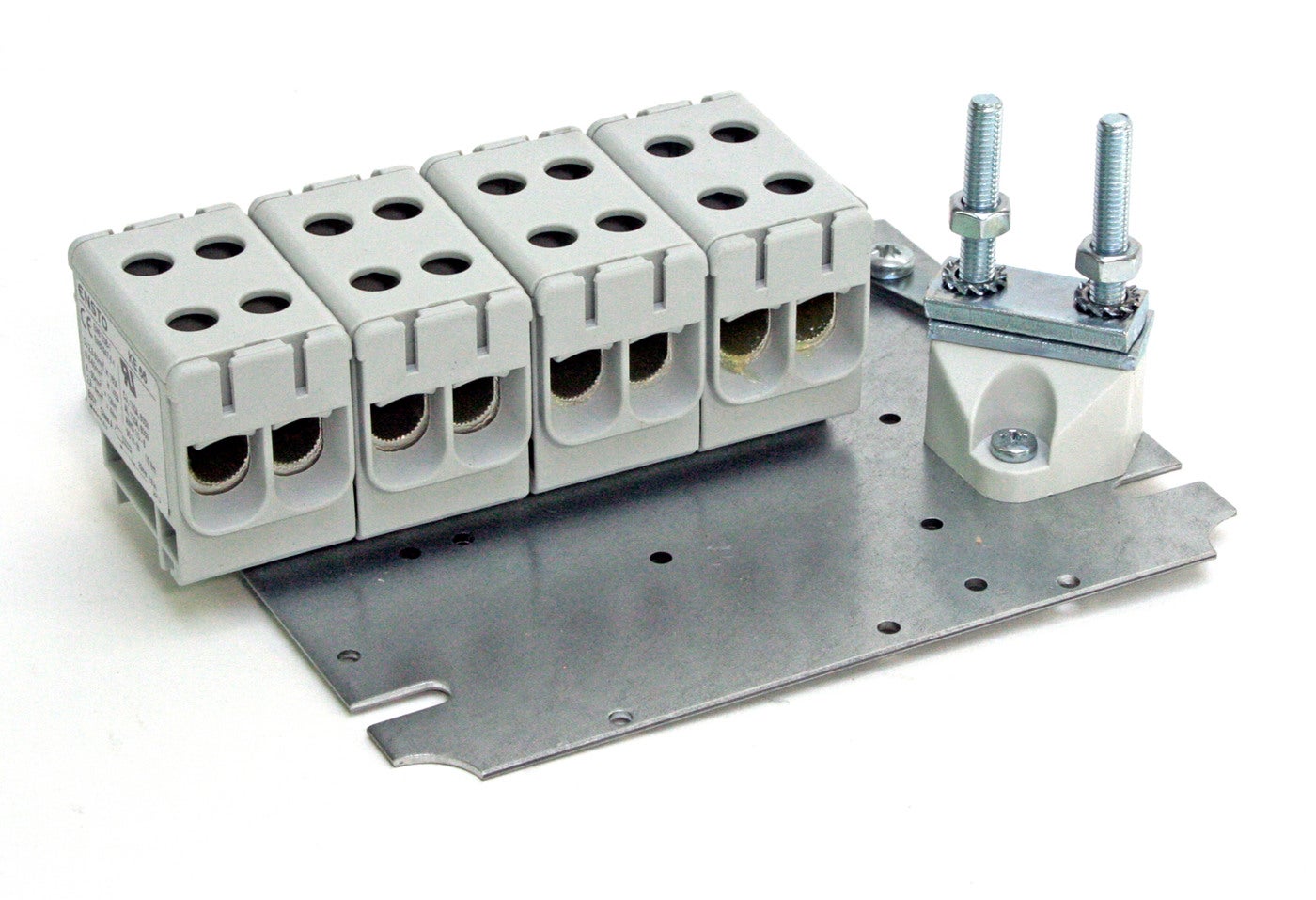

INSERT COPPER & AL CAB 2X2X50 E2393949 2393949 K 2X550 AL 0.56 150 150 60

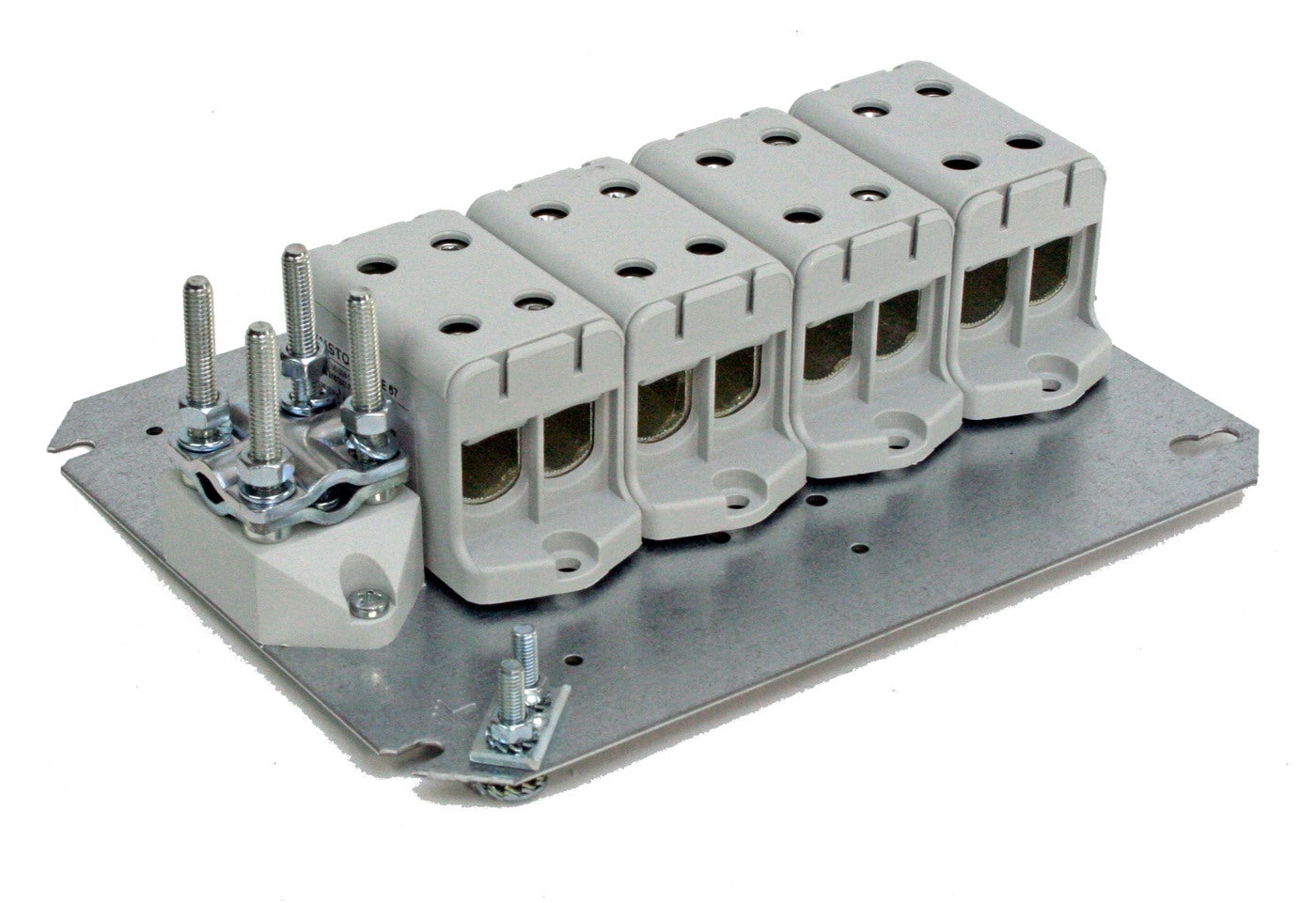

INSERT COPPER AND ALU CABLE 2X2X95 E2393950 2393950 K 2X595 AL 1.15 170 215 70

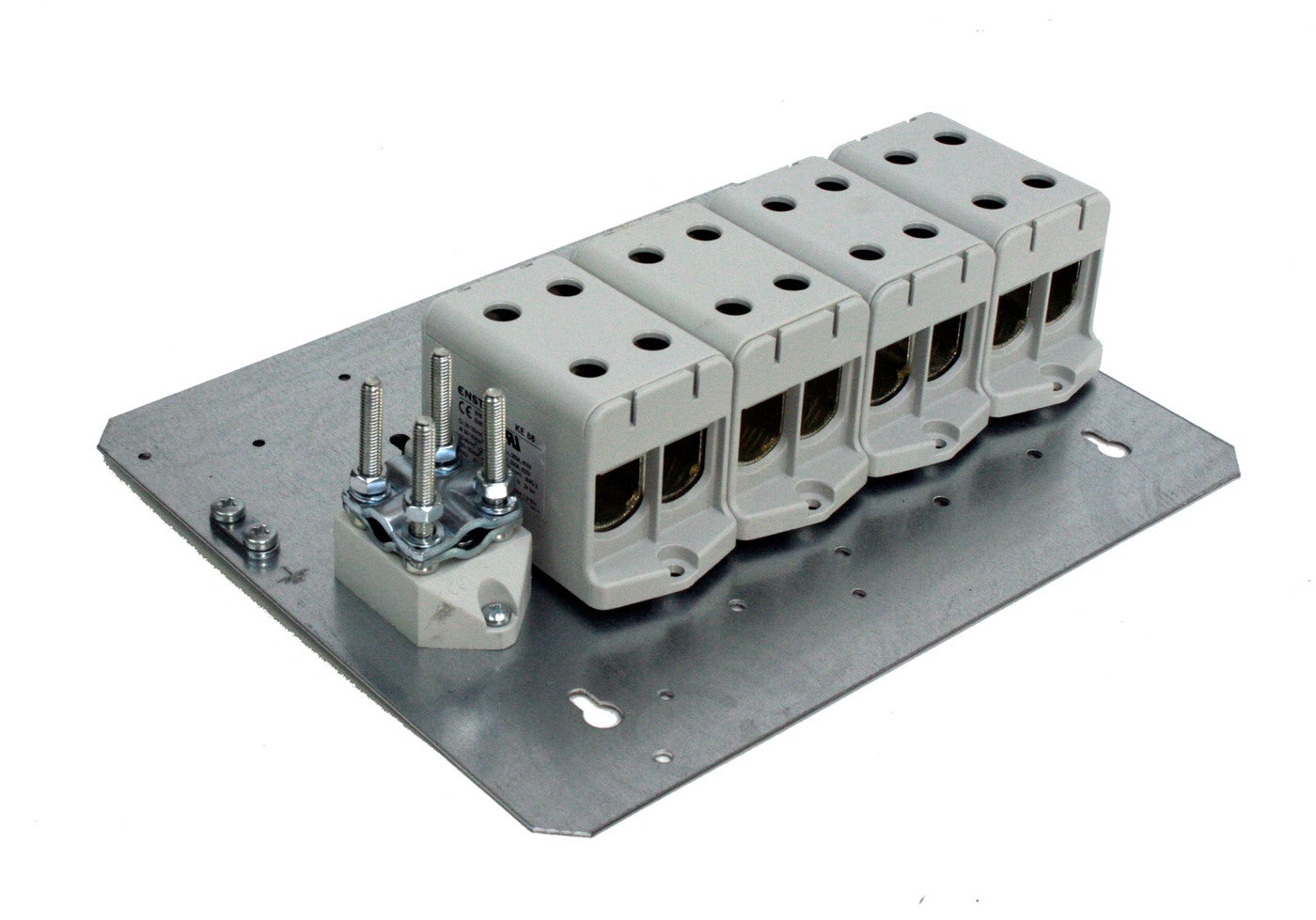

INSERT COPPER AND ALU CABLE 2X2X150 E2393951 2393951 K 2X5150 AL 1.76 270 220 65

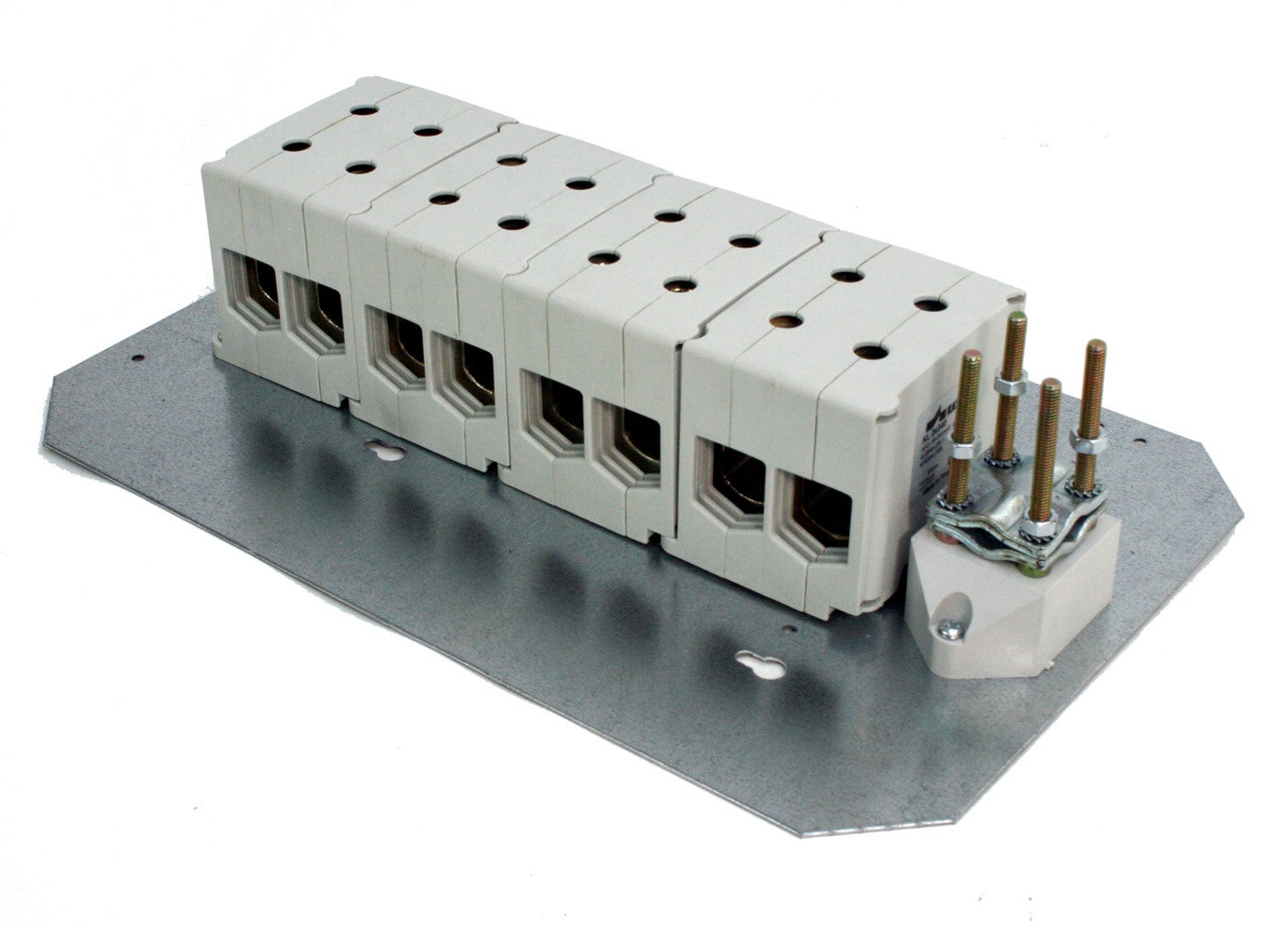

INSERT COPPER & AL CAB 2X2X240 E2393953 2393953 K 2X5240 AL 3.12 240 370 95
