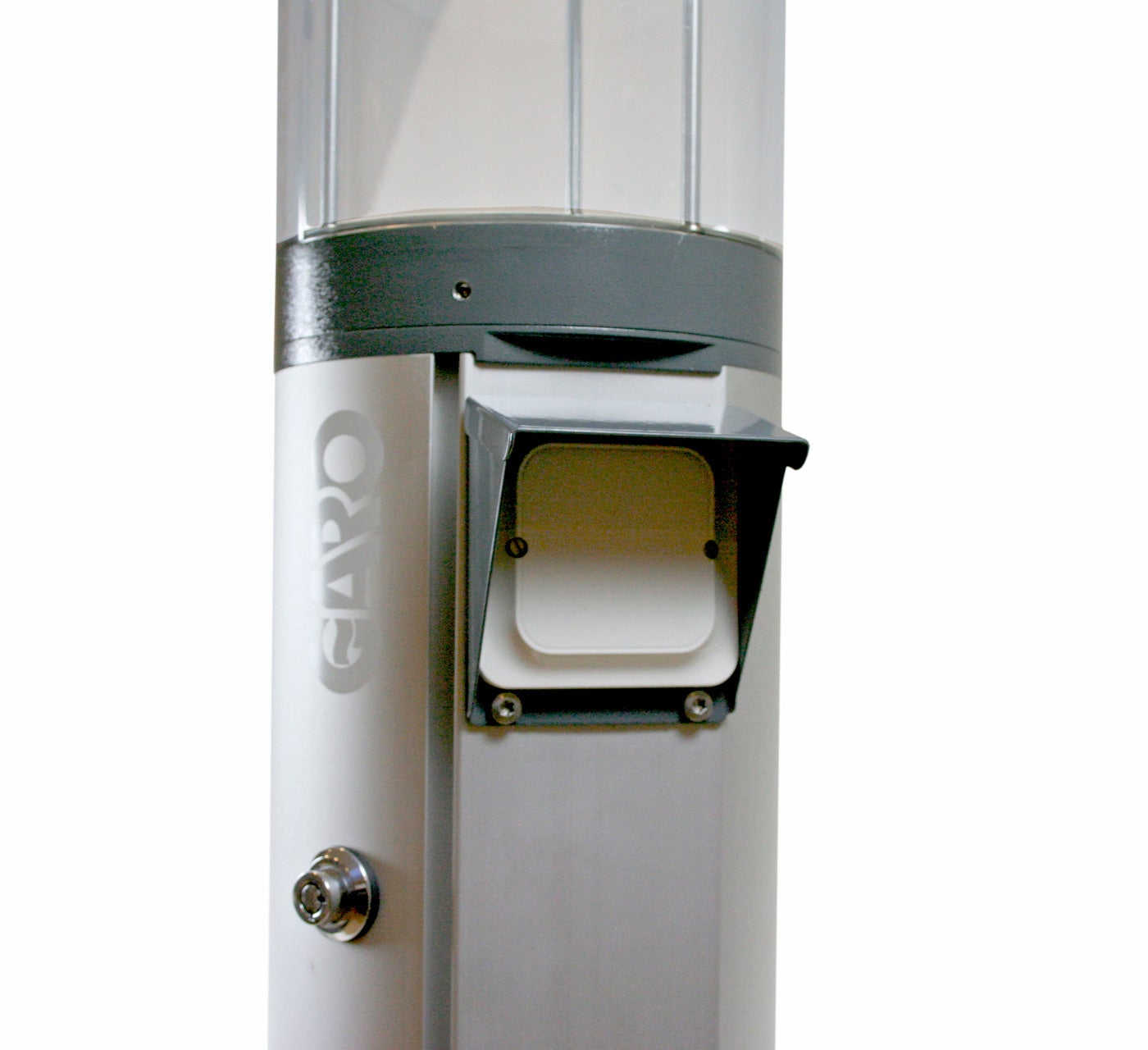

Koster with two 1-phase socket without meter
Koster marina posts with the designation GMS E2 or GMS M2 are ideal for private jetties or for small boat club. The pedestal is equipped with two 230V electrical outlet sockets, type IEC216. The outlet sockets are equipped with hardware for a standard padlock and the outlet sockets can be locked with or without the plug inserted. The posts are supplied with 6, 10 or 16A residual current breaker with overload protection. All posts are prepared to be equipped with water tap and hose reel, which are sold as ac Pedestal without measuring 2xIEC 16A place for antenna
| Standard | EN61439-3 |
|---|---|
| Short-circuit current [kA] | 10kA |
| Frequency [Hz] | 50Hz |
| Housing material | Aluminium |
| Color | Grey |
| Rated current [A] | 63A |
| Mounting method | Floor fastening |
| Energymeter | No |
| Lock | Yes |
| CEE socket outlet 16A | 2pcs 3P 16A 230V |
| Degree of protection [IP] | IPX6 |
| Name | MARINAPOLE 16A 2XIEC WOM A |
|---|---|
| E-number | E2449771 |
| Article number | 352213 |
| Type designation | GMS E2 16A A C |
| Modelltype | Koster |
| Number of RCBO [pcs] | 2pcs C2P 16A |
