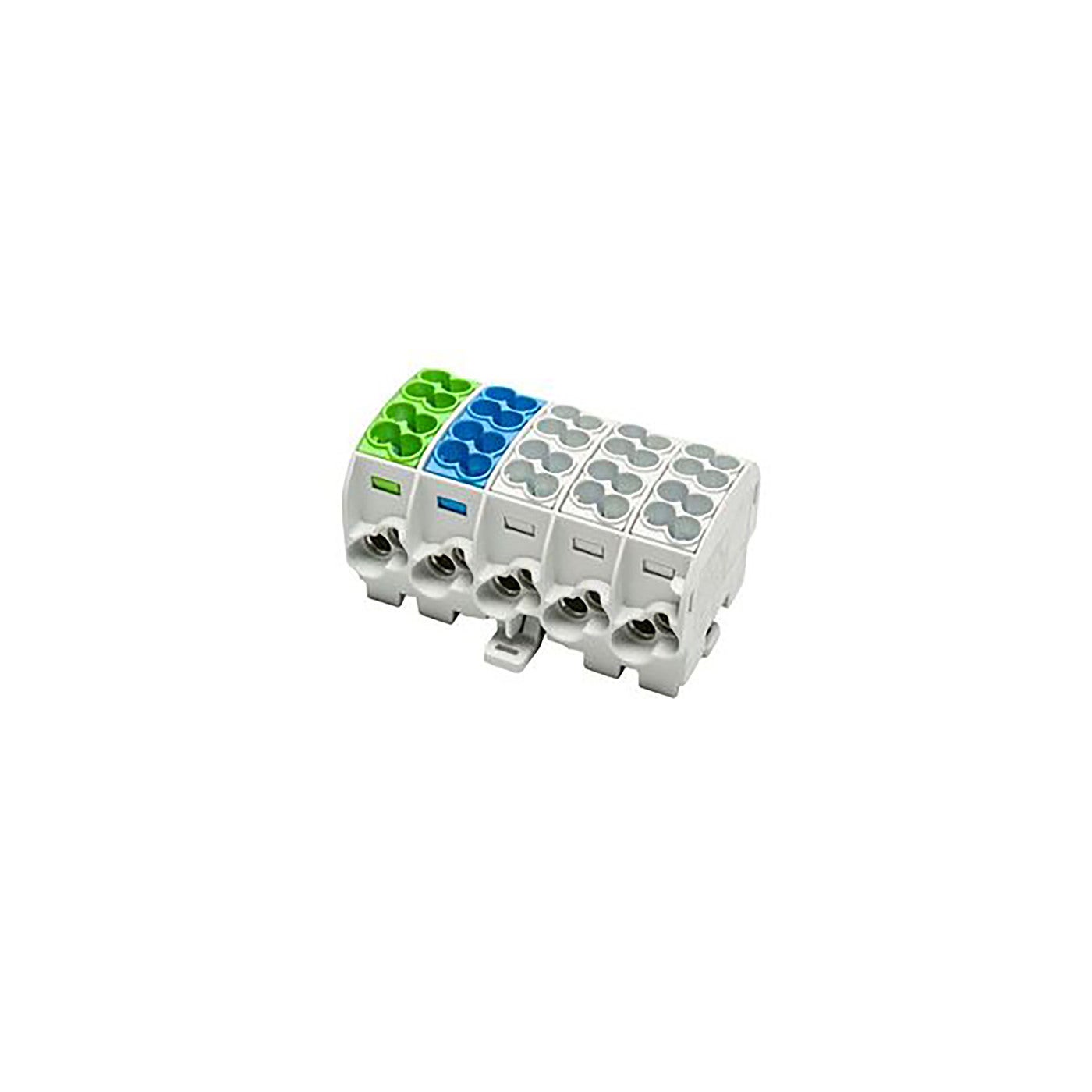

TERMINAL 5P AL/CU MVC

Terminal installation 5-poles

GARO GKL is a series of terminals for cable from 2.5mm² up to 240mm² copper and aluminum for DIN rail assembly or screw mount. Available for single or double mounting and in three colors: Grey, Blue; Yellow / Green. The products are approved according to IEC 61238-1: 2003, Class A and equipped with a QR code for easy access to the installation manual. Terminal 5-pole Al/Cu MVC
E-number
E2670477
Article number
353155
Support
Standard IEC61238-1:2003,Class A
Housing material Plastic
Color Grey
Rated voltage [V AC] 230V AC
Number of poles 5
Connection type Screw
Mounting method DIN-rail
Name TERMINAL 5P AL/CU MVC
E-number E2670477
Article number 353155
Type designation P5-N
Rated current [A] 100A
Connectable conductor cross sect 25mm²
NetProductWeight 0.34
EngineerWidth 90
EngineerHeight 56
EngineerDepth 50

More variants of Terminal installation 5-poles

E-number Article number Type designation Rated current [A] Tightening torque [Nm] Connectable conductor cross sect NetProductWeight EngineerWidth EngineerHeight EngineerDepth
TERMINAL 5-POLE AL/CU 16MM2 E2670734 111510 GKL5x16 Al: 75A / Cu: 76A 5-10Nm 16mm²
TERMINAL 5P AL/CU MVC E2670477 353155 P5-N 100A 25mm² 0.34 90 56 50
