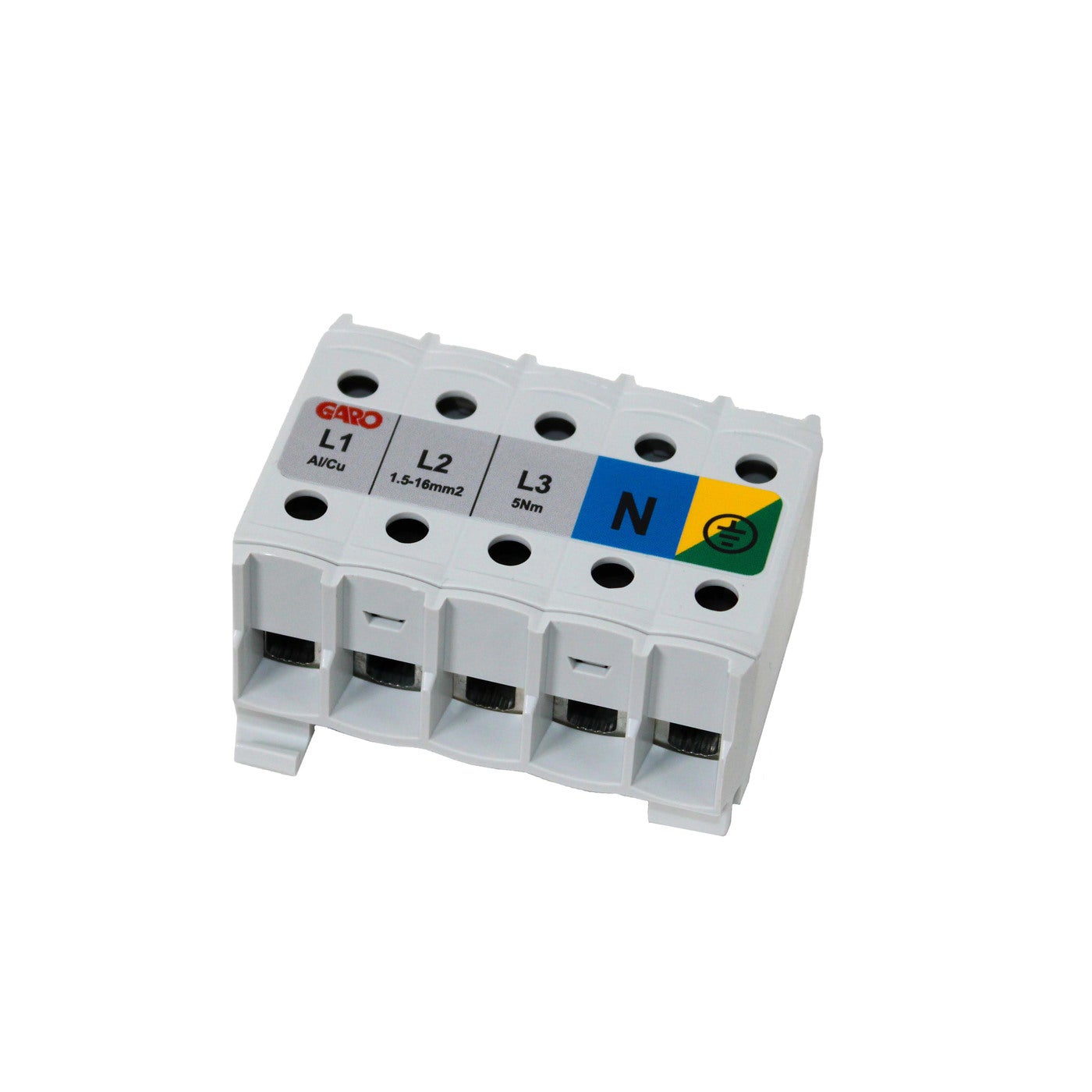

  • TERMINAL 5-POLE AL/CU 16MM2 - 2

Terminal installation 5-poles

GARO GKL is a series of terminals for cable from 2.5mm² up to 240mm² copper and aluminum for DIN rail assembly or screw mount. Available for single or double mounting and in three colors: Grey, Blue; Yellow / Green. The products are approved according to IEC 61238-1: 2003, Class A and equipped with a QR code for easy access to the installation manual. 5-pole terminal for 1,5-16mm² cu and 2,5-16mm² alu
E-number
E2670734
Article number
111510
Support
Standard IEC61238-1:2003,Class A
Housing material Plastic
Color Grey
Rated voltage [V AC] 230V AC
Number of poles 5
Connection type Screw
Mounting method DIN-rail
Name TERMINAL 5-POLE AL/CU 16MM2
E-number E2670734
Article number 111510
Type designation GKL5x16
Rated current [A] Al: 75A / Cu: 76A
Tightening torque [Nm] 5-10Nm
Connectable conductor cross sect 16mm²

More variants of Terminal installation 5-poles

E-number Article number Type designation Rated current [A] Tightening torque [Nm] Connectable conductor cross sect NetProductWeight EngineerWidth EngineerHeight EngineerDepth
TERMINAL 5-POLE AL/CU 16MM2 E2670734 111510 GKL5x16 Al: 75A / Cu: 76A 5-10Nm 16mm²
TERMINAL 5P AL/CU MVC E2670477 353155 P5-N 100A 25mm² 0.34 90 56 50
