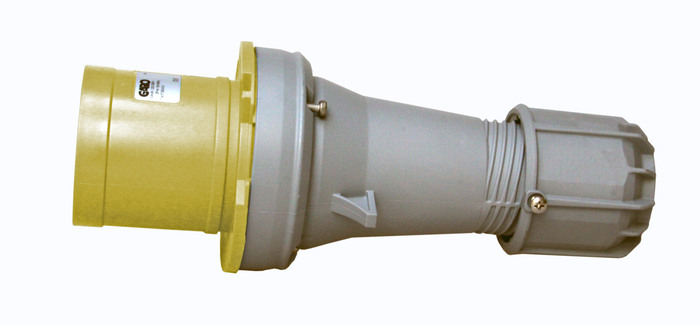

PLUGS 5P 63A 4h§

Plugs Basic 63A IP44

Basic, our standard range with a screw function. Plugs basic 5-poles 63A 4h.
E-number
2424562
Article number
2424562
Support
Rated current [A] 63
Degree of protection [IP] 44
Wire flexible [mm²] 6-16
Standard Class 1 EN 60044-8
Width [mm] 102
Height [mm] 257
Depth [mm] 102
Materials Plastic
Function Basic
Name PLUGS 5P 63A 4h§
E-number 2424562
Article number 2424562
Type designation P 463-4 S
No.of Poles [pcs] 5/3PN+E
Rated voltage [V AC] 100-130
Frequency [Hz] 50/60
Colour Yellow
Netweight [kg] 0.62
Position of earth [h] 4
RAL-nummer RAL1023

More variants of Plugs Basic 63A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Netweight [kg] Supply voltage [VAC] Position of earth [h] RAL-nummer
PLUGS 3P 63A 3h 2424549 2424549 P 263-3 S 3/2P+E >50-250 DC Grey 0.53 3 RAL7046
PLUGS 3P 63A 4h 2424550 2424550 P 263-4 S 3/2P+E 100-130 50/60 Yellow 0.53 4 RAL1023
PLUGS 3P 63A 6h 2424551 2424551 P 263-6 S 3/2P+E 200-250 50/60 Blue 0.53 6 RAL5017
PLUGS 3P 63A 9H 2424552 2424552 P 263-9 S 3/2P+E 380-415 50/60 Red 0.53 9 RAL3000
PLUGS 3P 63A 12h 2424553 2424553 P 263- 12 S 3/2P+E Matning fr.isolertransf. 50/60 Grey 0.53 12 RAL7046
PLUGS 4P 63A 3h 2424554 2424554 P 363-3 S 4/3P+E 380-440 50/60 Red 0.53 3 RAL3000
PLUGS 4P 63A 4h 2424555 2424555 P 363-4 S 4/3P+E 100-130 50/60 Yellow 0.57 4 RAL1023
PLUGS 4P 63A 6h 2424556 2424556 P 363-6 S 4/3P+E 400 50/60 Red 0.57 6 RAL3000
PLUGS 4P 63A 7h 2424557 2424557 P 363-7 S 4/3P+E 480-500 50/60 Black 0.57 480-500 7 RAL9005
PLUGS 4P 63A 9h 2424558 2424558 P 363-9 S 4/3P+E 230 50/60 Blue 0.57 9 RAL5017
PLUGS 4P 63A 10h 2424559 2424559 P 363-10 S 4/3P+E >50 100-300 Green 0.57 10 RAL6010
PLUGS 4P 63A 11h 2424560 2424560 P 363-11 S 4/3P+E 440-460 60 Red 0.57 11 RAL3000
PLUGS 5P 63A 2h 2424561 2424561 P 463-2 S 5/3PN+E >50 >300-500 Green 0.62 2 RAL6010
PLUGS 5P 63A 4h§ 2424562 2424562 P 463-4 S 5/3PN+E 100-130 50/60 Yellow 0.62 4 RAL1023
PLUGS 5P 63A 5h 2424563 2424563 P 463-5 S 5/3PN+E 600-690 50/60 Black 0.62 5 RAL9005
PLUGS 5P 63A 6h 2424564 2424564 P 463-6 S 5/3PN+E 230/400 50/60 Red 0.62 6 RAL3000
PLUGS 5P 63A 7h 2424565 2424565 P 463-7 S 5/3PN+E 480-500 50/60 Black 0.62 7 RAL9005
PLUGS 5P 63A 9h 2424566 2424566 P 463-9 S 5/3PN+E 208-250 50/60 Blue 0.62 9 RAL5017
PLUGS 5P 63A 11h 2424567 2424567 P 463-11 S 5/3PN+E 440-460 60 Red 0.62 11 RAL3000

Accessories for Plugs Basic 63A IP44

Name E-number Article number Type designation Description
COVER 63 COVER 63 2425905 2425905 TL 63S Cover for P 63A and II 63A
