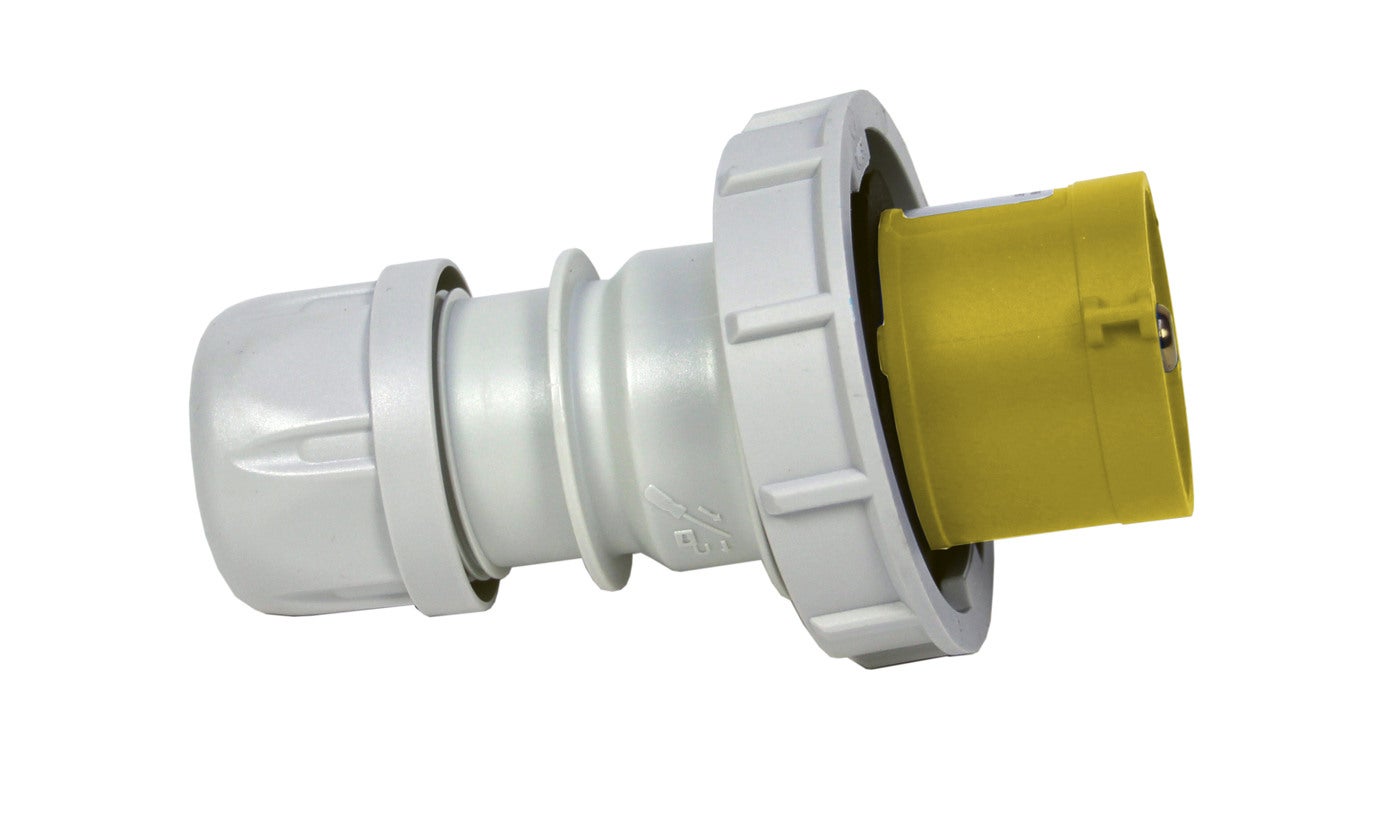

PLUG 3P 32A 4h WT

Plugs 32A IP44 Basic

Plug basic, our standard range with a screw function. Plugs basic 3-poles 32A 4h watertight
E-number
E2424582
Article number
2424582
Support
Name PLUG 3P 32A 4h WT
E-number E2424582
Article number 2424582
Type designation PV 232-4 S
Materials Plastic
Standard EN60309-2
Frequency [Hz] 50/60Hz
Color Yellow
Rated current [A] 32A
Rated voltage [V AC] 100-130V AC
Number of poles 3/2P+E
Connection type Screwed terminal
Wire flexible [mm²] 2,5-6mm²
RAL-number RAL1023
Clock hour position [h] 4h
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Cable entry Other
Contact material CuZn
Phase inverter No
Contact plating Untreated
Plug angle Straight
Pin/Sleeve Pin
Degree of protection [IP] IP67
NetProductWeight 0.22
EngineerWidth 93
EngineerHeight 146
EngineerDepth 50

More variants of Plugs 32A IP44 Basic

E-number Article number Type designation Materials Standard Frequency [Hz] Color Rated current [A] Rated voltage [V AC] Number of poles Connection type Wire flexible [mm²] RAL-number Clock hour position [h] Voltage according to EN 60309-2 Cable entry Contact material Phase inverter Contact plating Plug angle Pin/Sleeve Degree of protection [IP] NetProductWeight EngineerWidth EngineerHeight EngineerDepth

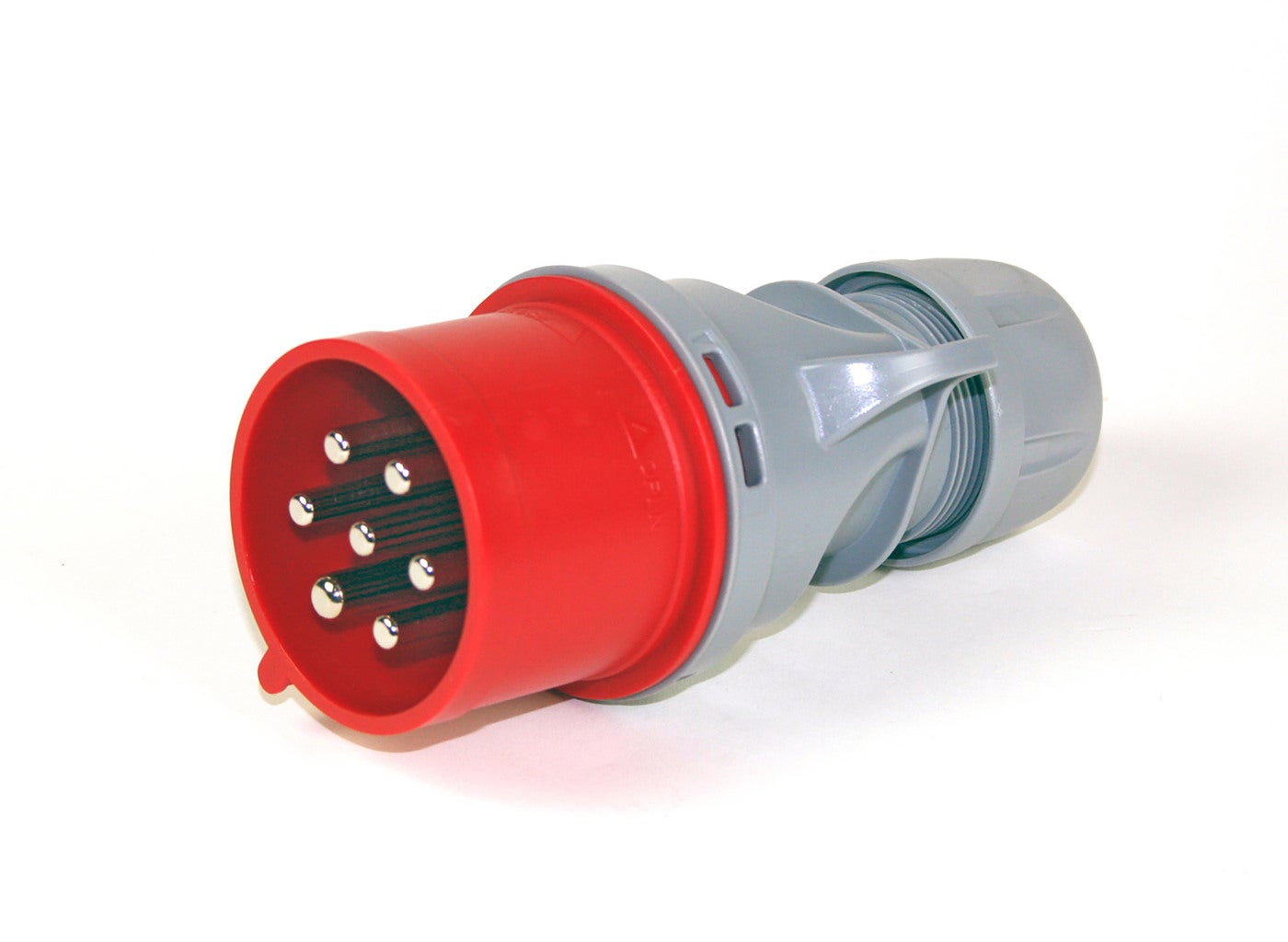

PLUG 7P 32A 6h E2425909 107749 P 732-6S Plastic EN60309-2 50/60Hz Red 3 Screwed terminal 2,5-6mm² RAL3020 6h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.28 70 156 70
PLUG 3P 32A 2h E2424525 2424525 P 232-2 S Other 0.18 63 146 50
PLUG 3P 32A 3h E2424526 2424526 P 232-3 S Other 0.18 63 146 50
PLUG 3P 32A 4h E2424527 2424527 P 232-4 S Other 0.18 63 146 50
PLUG 3P 32A 6h BASIC E2424528 2424528 P 232-6S Other 0.18 190 140 290
PLUG 3P 32A 7h E2424529 2424529 P 232-7 S Other 0.18 63 146 50
PLUG 3P 32A 9h E2424530 2424530 P 232-9 S 0.18 63 146 50
PLUG 3P 32A 12h E2424531 2424531 P 232-12 S 0.18 63 146 50
PLUG 4P 32A 2h E2424532 2424532 P 332-2 S Other 0.2 63 146 50
PLUG 4P 32A 3h E2424533 2424533 P 332-3 S 0.2 63 146 50
PLUG 4P 32A 4h E2424534 2424534 P 332-4 S 0.2 63 146 50
PLUG 4P 32A 5h E2424535 2424535 P 332-5 S 0.2 63 146 50
PLUG 4P 32A 6h E2424536 2424536 P 332-6 S Other 0.2 190 140 290
PLUG 4P 32A 7h E2424537 2424537 P 332-7 S Other 0.2 63 146 50

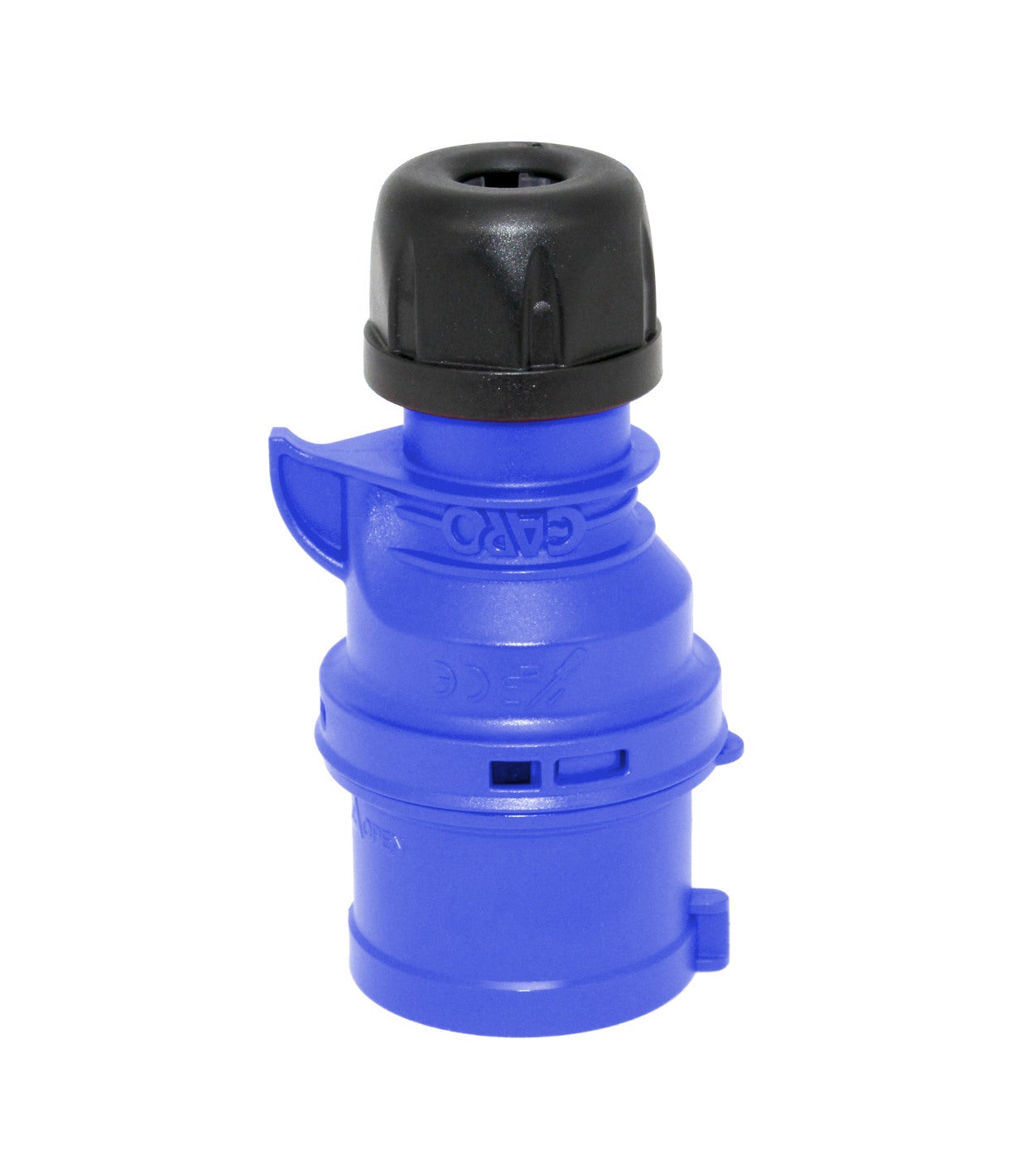

PLUG 4P 32A 9h E2424538 2424538 P 332-9 S 0.2 63 146 50

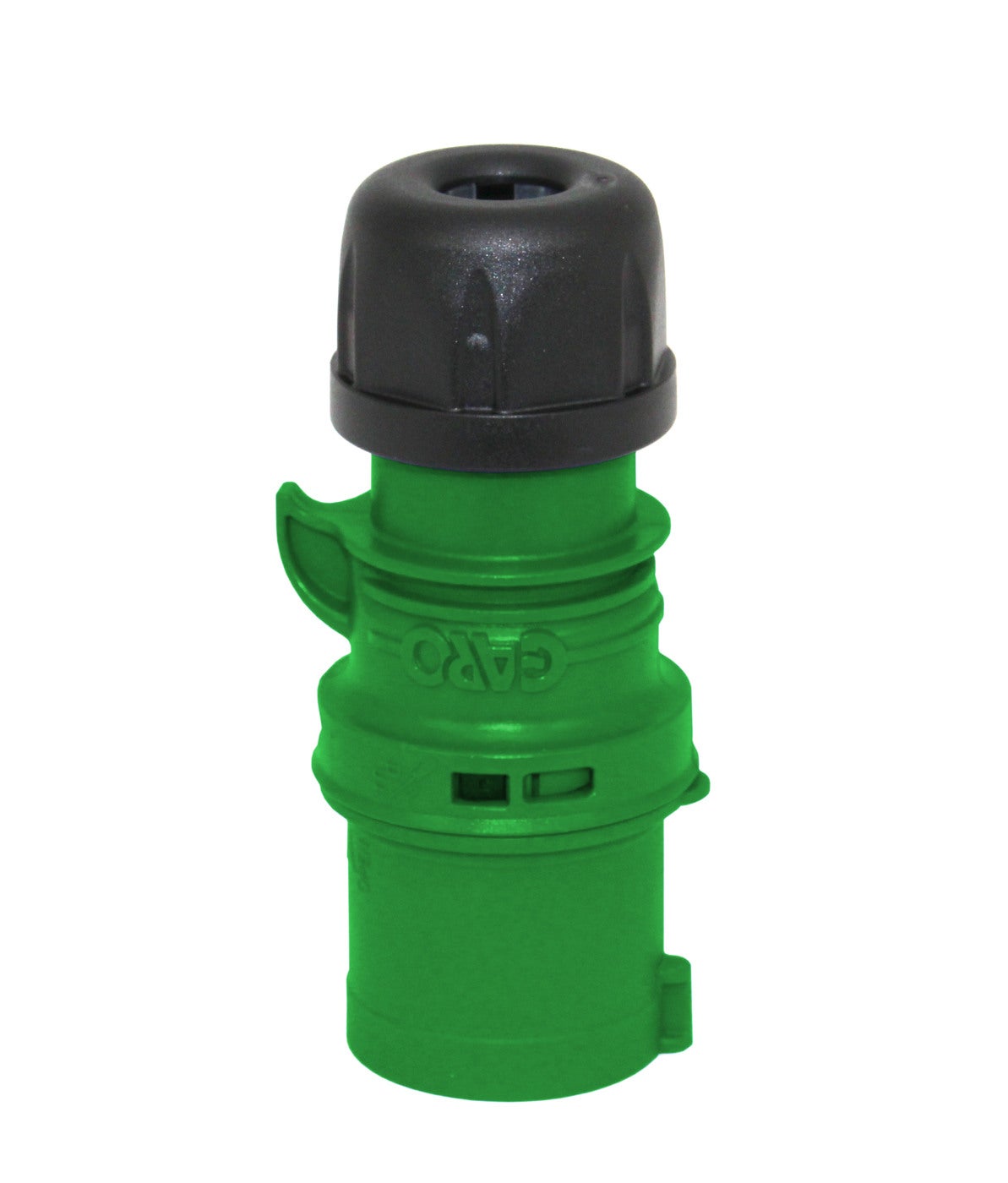

PLUG 4P 32A 10h E2424539 2424539 P 332-10 S 0.2 63 146 50
PLUG 4P 32A 11h E2424540 2424540 P 332-11 S 0.2 63 146 50
PLUG 5P 32A 2h E2424541 2424541 P 432-2 S 0.23 70 152 50

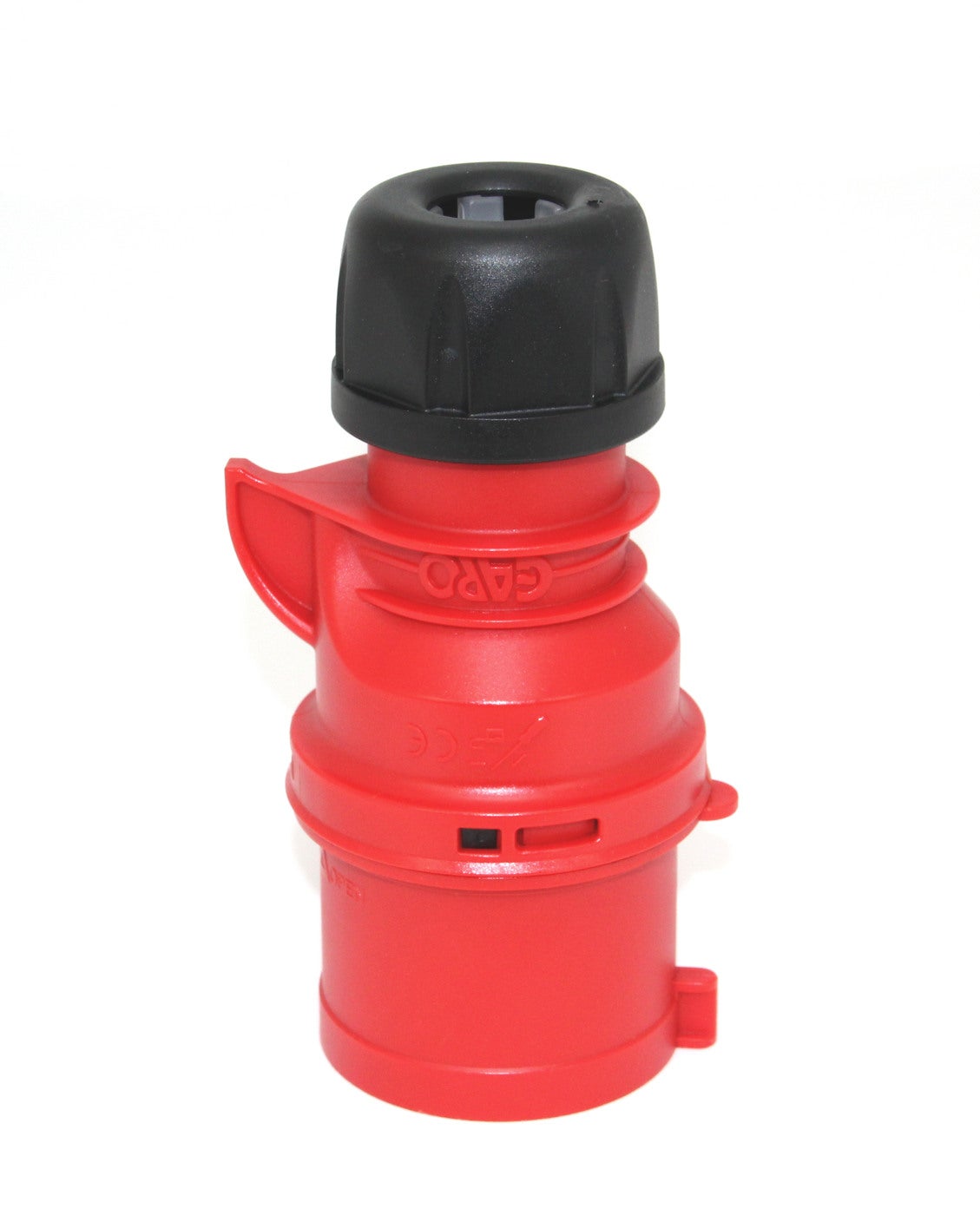

PLUG 5P 32A 3h E2424542 2424542 P 432-3 S Other 0.23 70 152 50

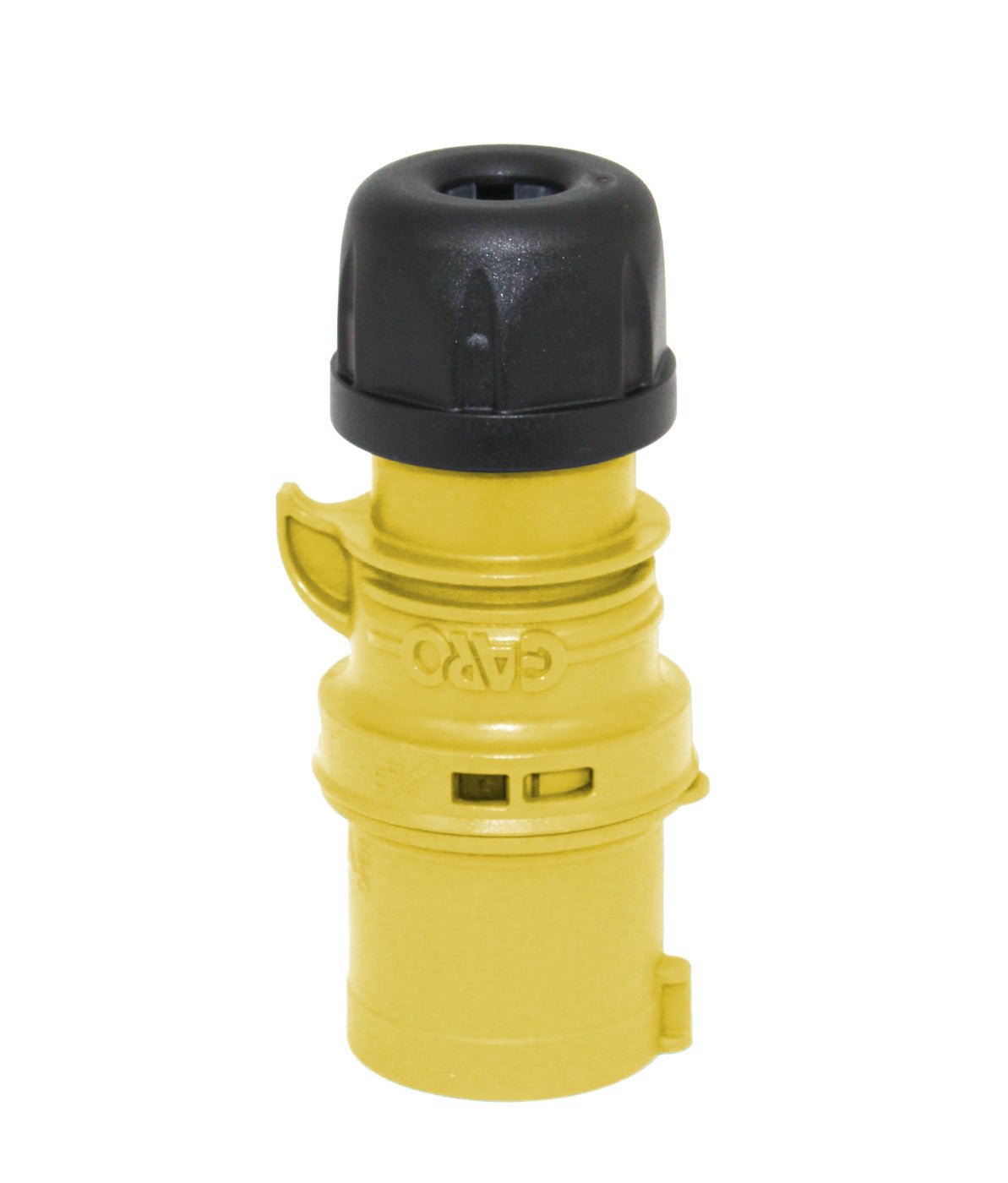

PLUG 5P 32A 4h E2424543 2424543 P 432-4 S Other 0.23 70 152 50

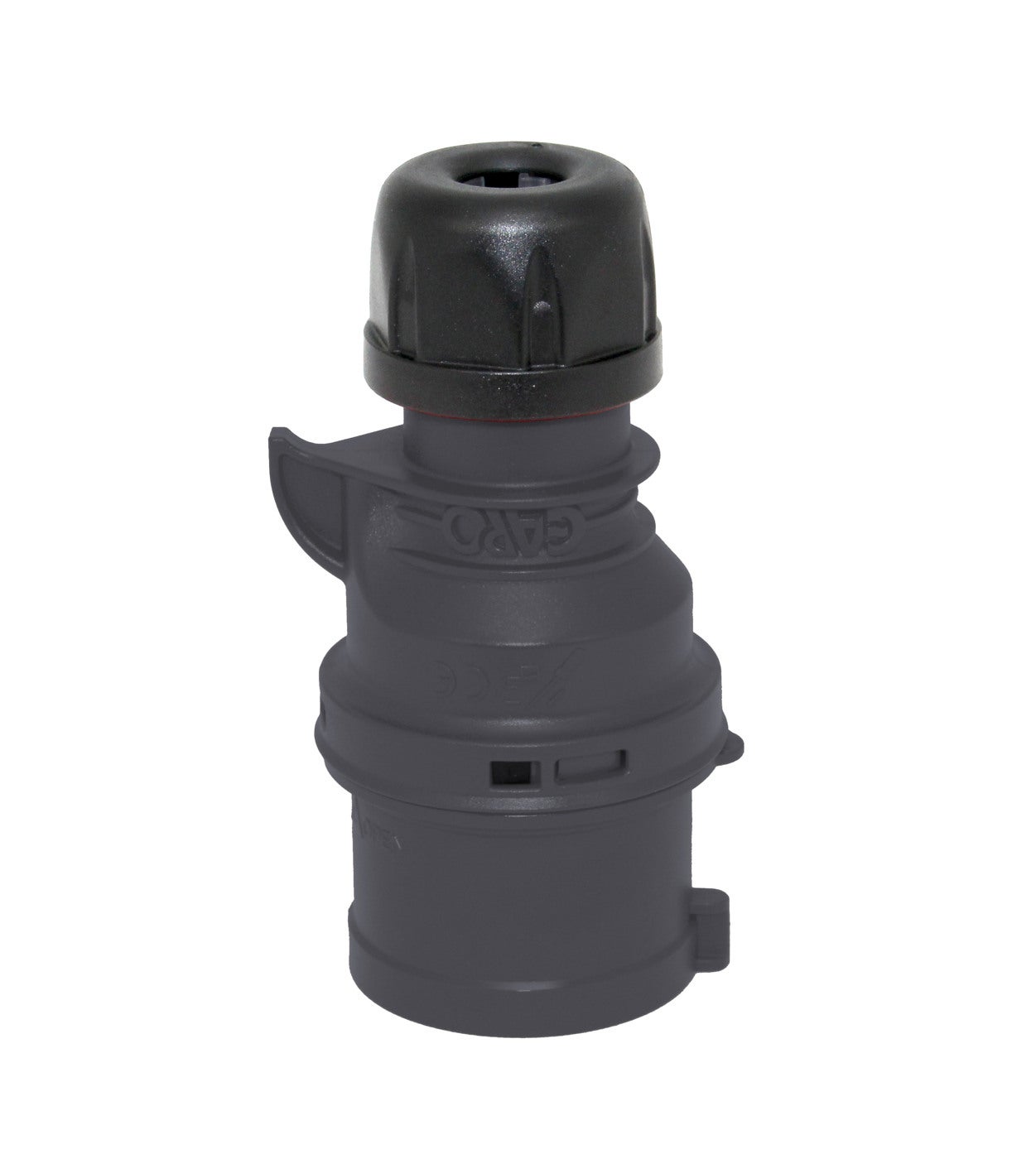

PLUG 5P 32A 5h E2424544 2424544 P 432-5 S Other 0.23 70 152 50
PLUG 5P 32A 6h E2424545 2424545 P 432-6 S Plastic EN60309-2 50/60Hz Red 3 Screwed terminal 2,5-6mm² RAL3020 6h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.23 70 152 50
PLUG 5P 32A 7h E2424546 2424546 P 432-7 S 0.23 70 152 50
PLUG 5P 32A 9h E2424547 2424547 P 432-9 S Plastic EN60309-2 50/60Hz Red 3 Screwed terminal 2,5-6mm² RAL3020 6h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.23 70 152 50
PLUG 5P 32A 11h E2424548 2424548 P 432-11 S 0.23 70 152 50
PLUG 3P 32A 4h WT E2424582 2424582 PV 232-4 S Plastic EN60309-2 50/60Hz Yellow 32A 100-130V AC 3/2P+E Screwed terminal 2,5-6mm² RAL1023 4h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP67 0.22 93 146 50
