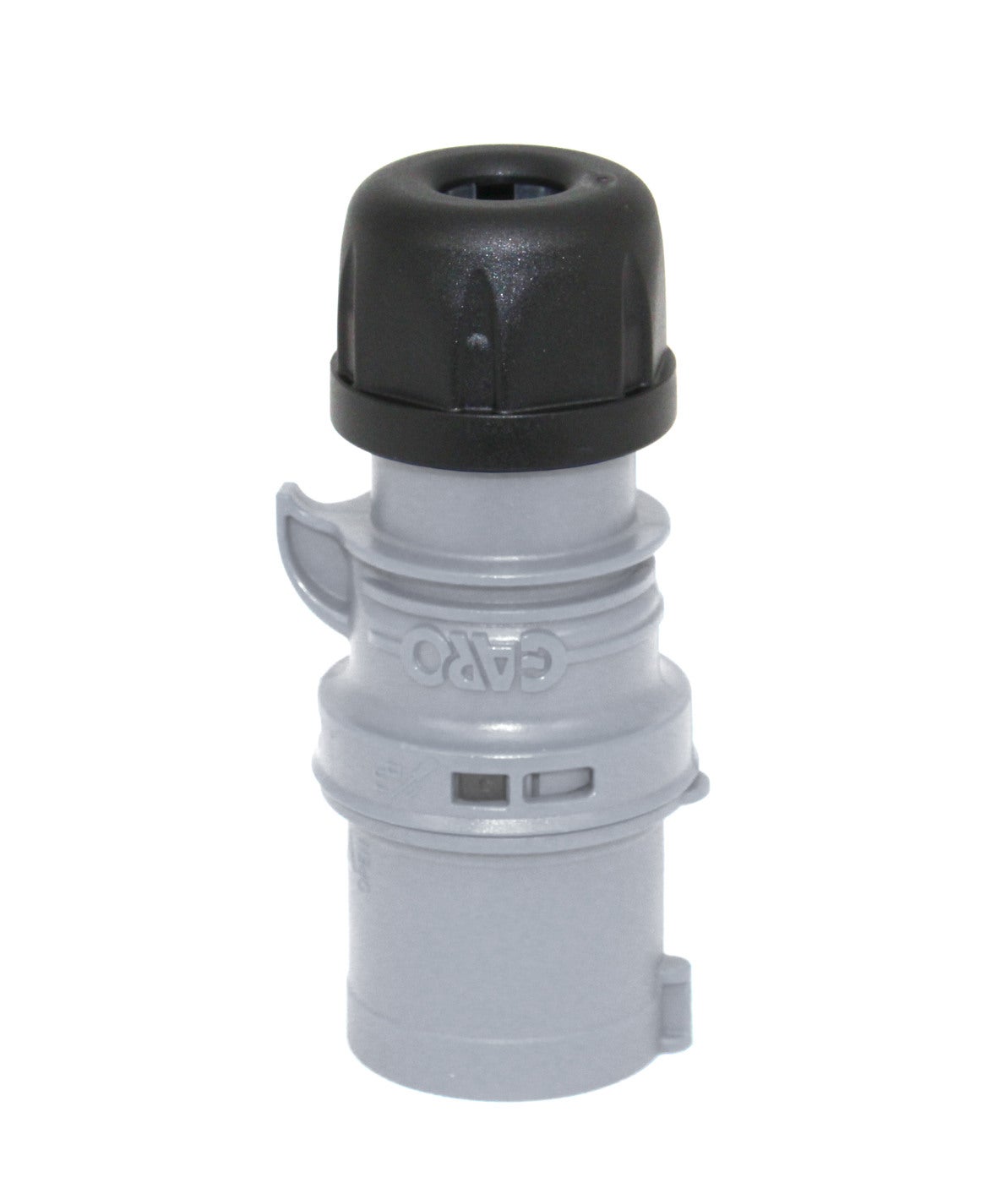

PLUG 3P 16A 3h

Plugs 16A IP44 Basic

Plug basic, our standard range with a screw function. Plugs basic 3-poles 16A 3h
E-number
E2424501
Article number
2424501
Support
Name PLUG 3P 16A 3h
E-number E2424501
Article number 2424501
Type designation P 216-3 S
Materials Plastic
Standard EN60309-2
Frequency [Hz] DC
Color Grey
Rated current [A] 16A
Rated voltage [V AC] >50-250V AC
Number of poles 3/2P+E
Wire flexible [mm²] 1-2,5mm²
RAL-number RAL7046
Clock hour position [h] 3h
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Cable entry Other
Phase inverter No
Contact plating Untreated
Plug angle Straight
Pin/Sleeve Pin
Degree of protection [IP] IP44
NetProductWeight 0.11
EngineerWidth 47
EngineerHeight 118
EngineerDepth 38

More variants of Plugs 16A IP44 Basic

E-number Article number Type designation Materials Standard Frequency [Hz] Color Rated current [A] Rated voltage [V AC] Number of poles Connection type Wire flexible [mm²] Modelltype RAL-number Clock hour position [h] Voltage according to EN 60309-2 Cable entry Contact material Phase inverter Contact plating Plug angle Pin/Sleeve Degree of protection [IP] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
PLUG 7P 16A 9h 107839 P 716-9S Plastic EN60309-2 50/60Hz Red 16A 480-500V AC 7 Screwed terminal 2,5-6mm² Basic RAL3020 9h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44

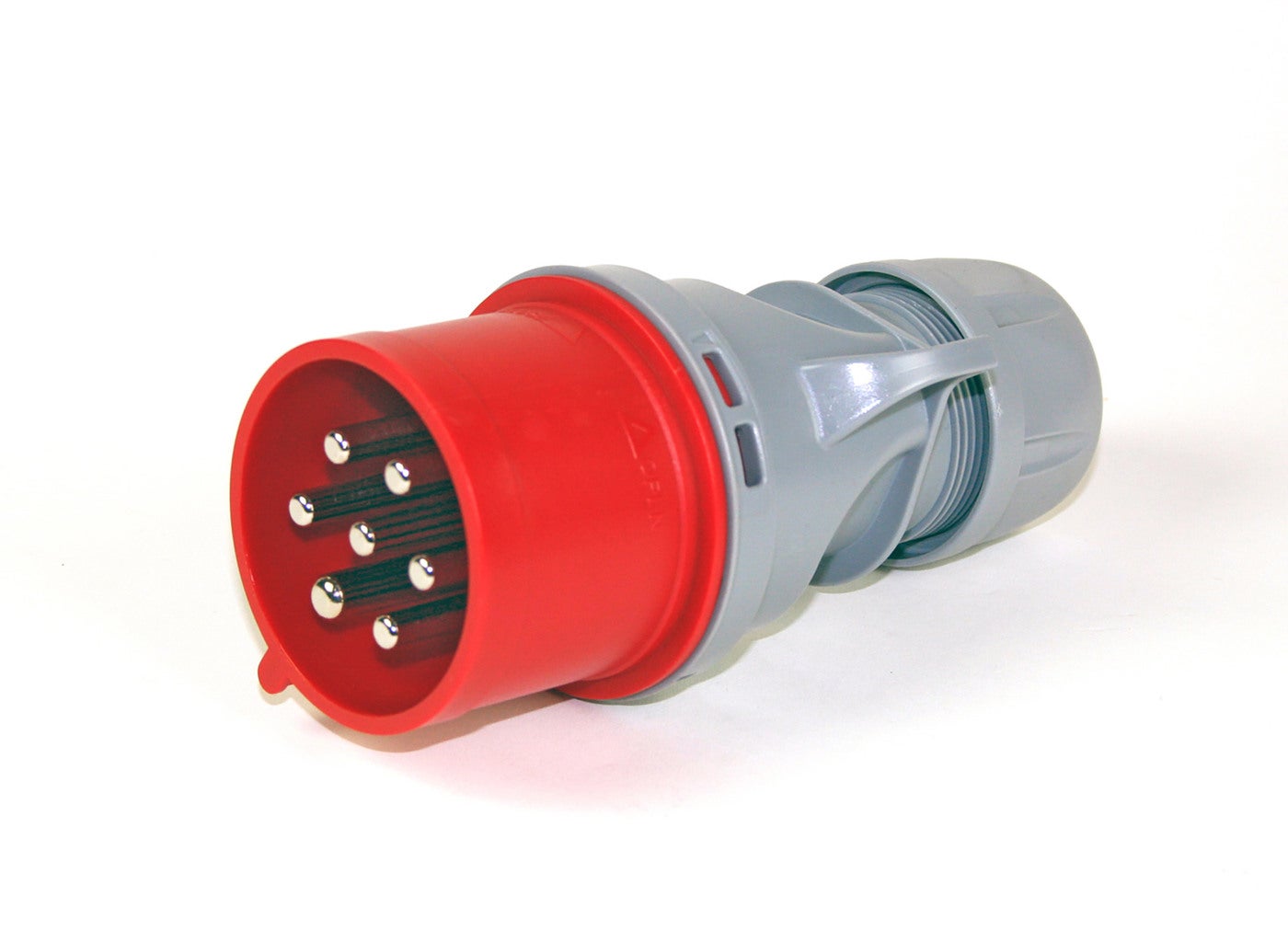

PLUG 7P 16A 6h E2425908 107904 P 716-6S Plastic EN60309-2 50/60Hz Red 400V AC 7 Screwed terminal 2,5-6mm² Basic RAL3000 6h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.19 61 134 61
PLUG 3P 16A 2h E2424500 2424500 P 216-2 S Plastic EN60309-2 300-500Hz Green 16A >50V AC 3/2P+E 1-2,5mm² RAL6010 2h 400 V (50+60 Hz) red Other No Untreated Straight IP44 0.11 47 118 38
PLUG 3P 16A 3h E2424501 2424501 P 216-3 S Plastic EN60309-2 DC Grey 16A >50-250V AC 3/2P+E 1-2,5mm² RAL7046 3h 400 V (50+60 Hz) red Other No Untreated Straight Pin IP44 0.11 47 118 38
PLUG 3P 16A 4h E2424502 2424502 P 216-4 S Plastic EN60309-2 DC Yellow 16A 100-130V AC 3 1-2,5mm² RAL1023 4h 400 V (50+60 Hz) red Other No Untreated Straight Pin IP44 0.11 47 118 38
PLUG 3P 16A 6h E2424504 2424504 P 216-6 S Plastic EN60309-2 50/60Hz Red 16A 200-250V AC 3/2P+E Screwed terminal 1-2,5mm² RAL5017 6h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.11 190 140 290

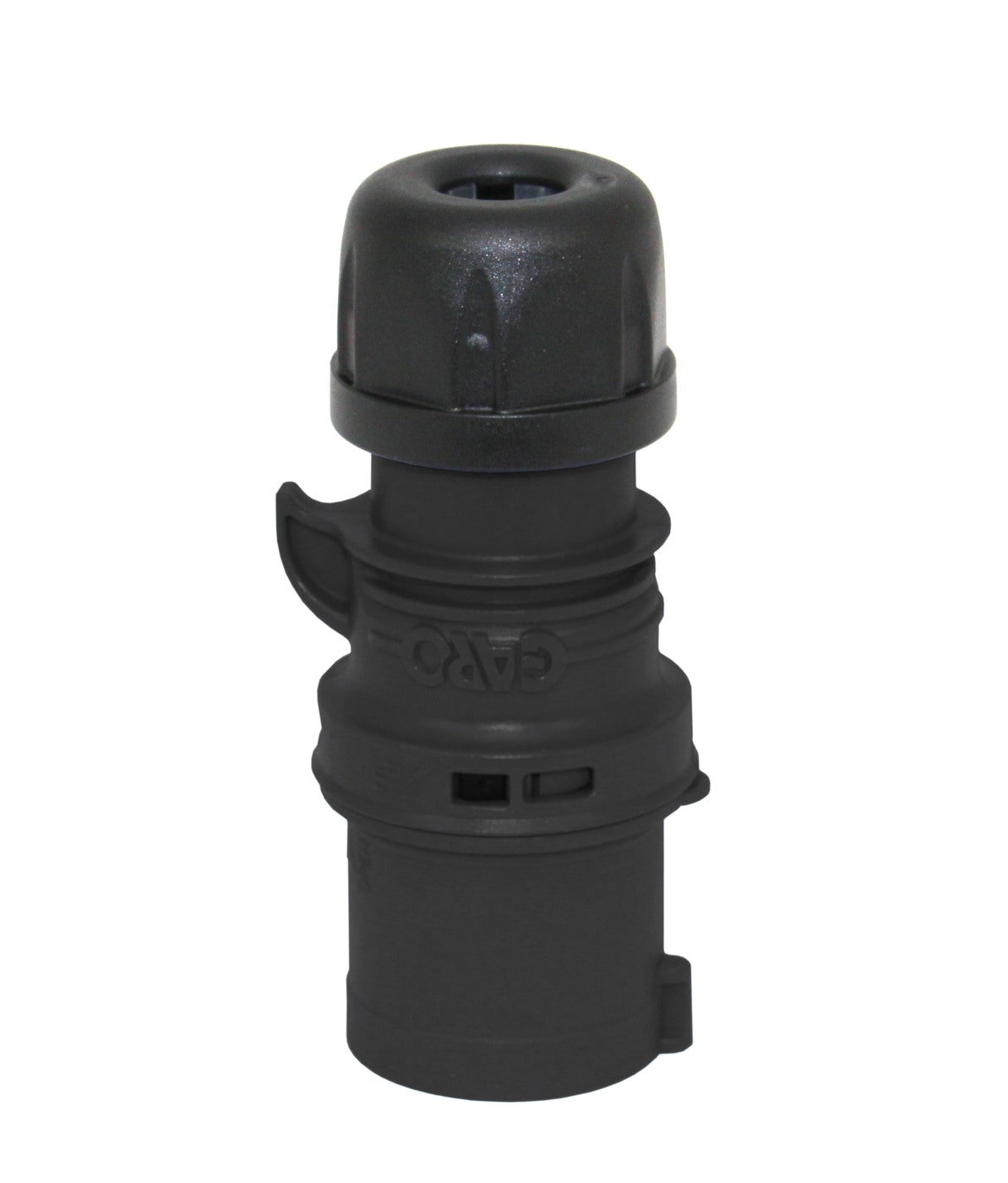

PLUG 3P 16A 7h E2424505 2424505 P 216-7 S Plastic EN60309-2 50/60Hz Black 16A 480-500V AC 3/2P+E Screwed terminal 1-2,5mm² Basic RAL9005 7h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.11 47 118 38
PLUG 3P 16A 9h E2424506 2424506 P 216-9 S Plastic EN60309-2 50/60Hz Red 16A 380-415V AC 3/2P+E Screwed terminal 1-2,5mm² Basic RAL3000 9h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.11 47 118 38
PLUG 3P 16A 12h E2424507 2424507 P 216-12 S Plastic EN60309-2 50/60Hz Grey 16A After isolating transformerb 3/2P+E Screwed terminal 1-2,5mm² Basic RAL7046 12h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.11 47 118 38
PLUG 4P 16A 2h E2424508 2424508 P 316-2 S Plastic EN60309-2 50/60Hz Green 16A >50V AC 4/3P+E Screwed terminal 1-2,5mm² Basic RAL6010 2h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.13 53 124 38
PLUG 4P 16A 3h E2424509 2424509 P 316-3 S Plastic EN60309-2 50/60Hz Red 16A 380-440V AC 4/3P+E Screwed terminal 1-2,5mm² RAL3000 3h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.13 53 124 38
PLUG 4P 16A 4h E2424510 2424510 P 316-4 S Plastic EN60309-2 50/60Hz Red 16A 100-130V AC 3 Screwed terminal 1-2,5mm² RAL3020 6h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.13 53 124 38
PLUG 4P 16A 5h E2424511 2424511 P 316-5 S Plastic EN60309-2 50/60Hz Black 16A 4/3P+E Screwed terminal 1-2,5mm² RAL9005 5h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.13 53 124 38
PLUG 4P 16A 6h E2424512 2424512 P 316-6 S Plastic EN60309-2 50/60Hz Red 16A 400V AC 4/3P+E Screwed terminal 1-2,5mm² RAL3000 6h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.13 190 140 290
PLUG 4P 16A 7h E2424513 2424513 P 316-7 S Plastic EN60309-2 50/60Hz Black 16A 480-500V AC 4/3P+E Screwed terminal 1-2,5mm² RAL9005 7h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.13 53 124 38

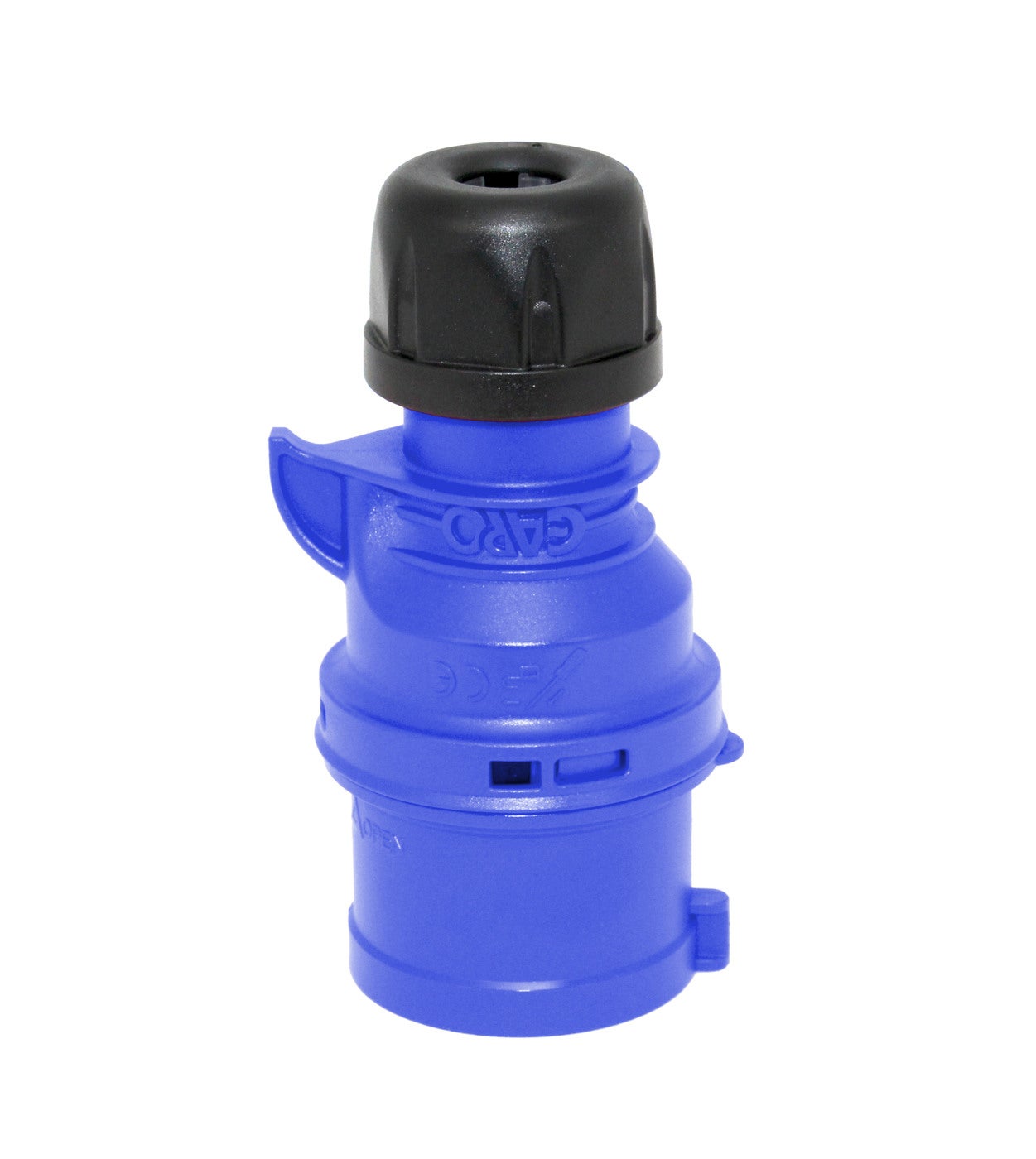

PLUG 4P 16A 9h E2424514 2424514 P 316-9 S Plastic EN60309-2 50/60Hz Blue 16A 230V AC 4/3P+E Screwed terminal 1-2,5mm² RAL5017 9h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.13 53 124 38

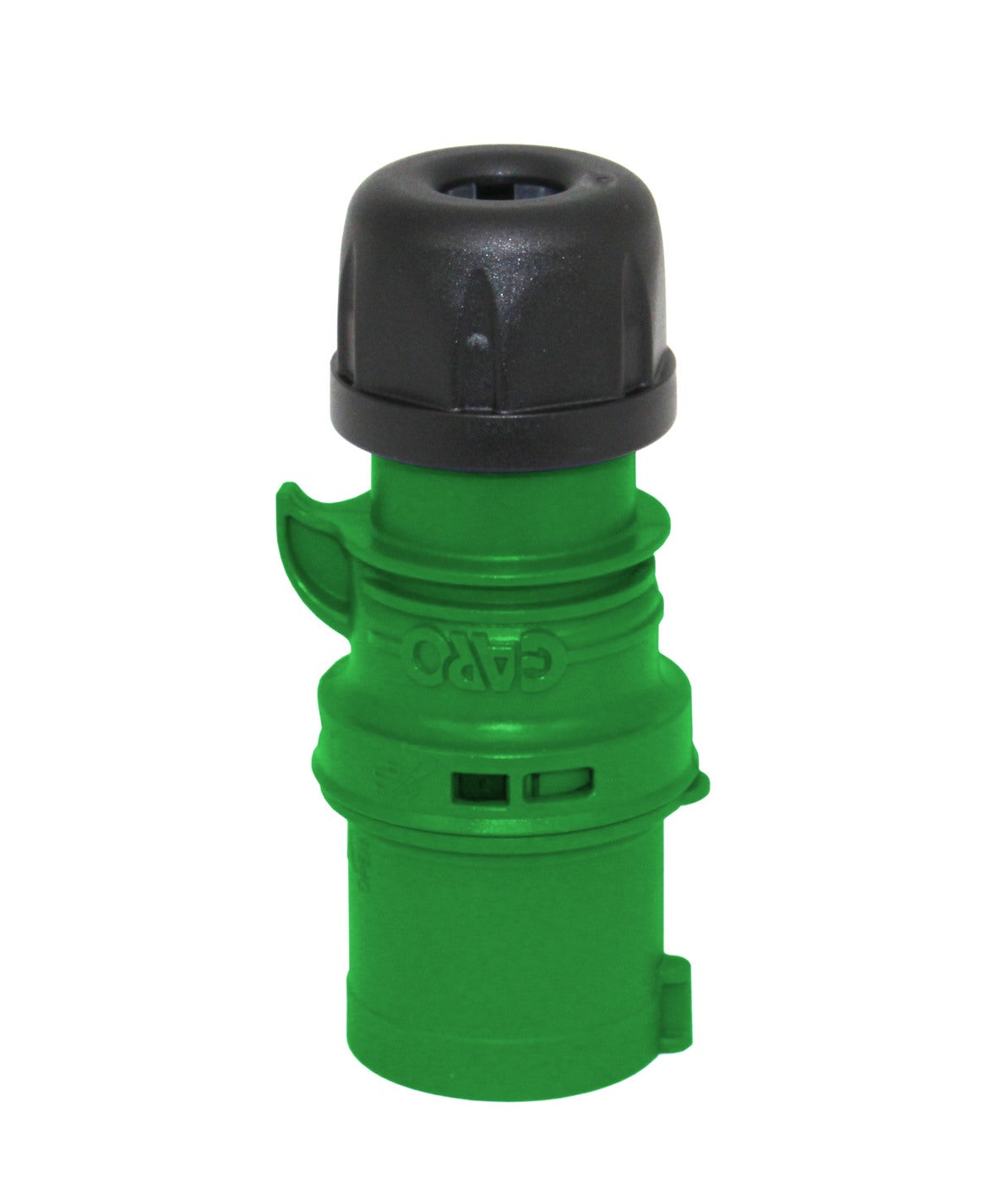

PLUGS 4P 16A 10h E2424515 2424515 P 316-10 S Plastic EN60309-2 50Hz Green 16A >50V AC 4/3P+E Screwed terminal 1-2,5mm² RAL6010 10h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.13 53 124 38
PLUG 4P 16A 11h E2424516 2424516 P 316-11 S Plastic EN60309-2 60Hz Red 16A 440-460V AC 4/3P+E Screwed terminal 1-2,5mm² RAL3000 11h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.13 53 124 38
PLUG 5P 16A 2h 2424517 2424517 P 416-2 S Plastic EN60309-2 300-500Hz Green 16A >50V AC 5/3P+N+E Screwed terminal 1-2,5mm² RAL6010 2h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44

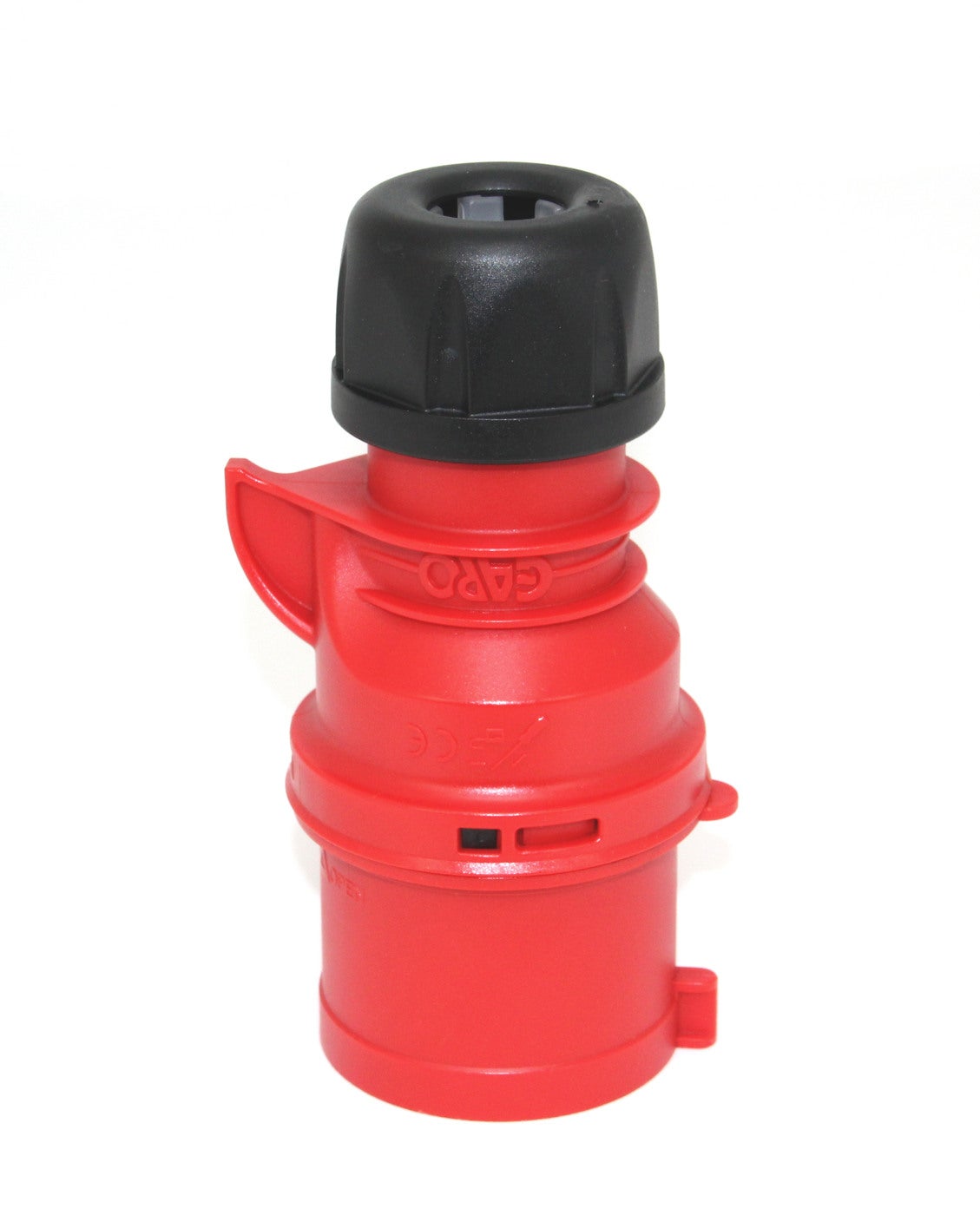

PLUG 5P 16A 3h E2424518 2424518 P 416-3 S Plastic EN60309-2 50/60Hz Red 16A 380-440V AC 5/3P+N+E Screwed terminal 1-2,5mm² RAL3020 3h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.15 61 131 42
PLUG 5P 16A 4h E2424519 2424519 P 416-4 S Plastic EN60309-2 50/60Hz Yellow 16A 100-130V AC 5/3P+N+E Screwed terminal 1-2,5mm² RAL3020 4h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.15 61 131 42

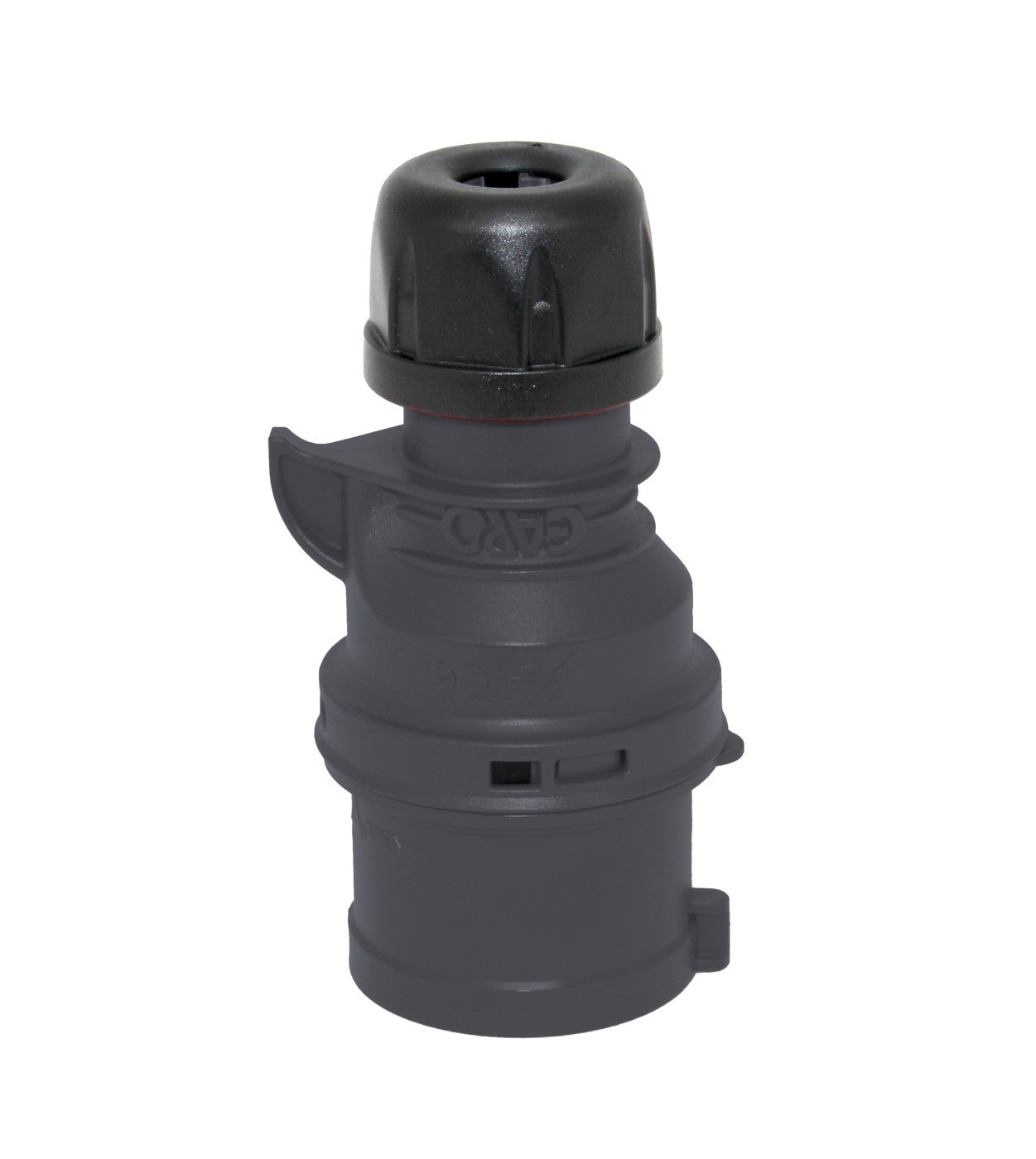

PLUG 5P 16A 5h E2424520 2424520 P 416-5 S Plastic EN60309-2 50/60Hz Black 16A 600-690V AC 5/3P+N+E Screwed terminal 1-2,5mm² RAL9005 5h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.15 61 131 42
PLUG 5P 16A 6h E2424521 2424521 P 416-6 S Plastic EN60309-2 50/60Hz Red 16A 230/400V AC 5/3P+N+E Screwed terminal 1-2,5mm² RAL3000 6h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.15 61 131 42
PLUG 5P 16A 7h E2424522 2424522 P 416-7 S Plastic EN60309-2 50/60Hz Red 16A 480-500V AC 5/3P+N+E Screwed terminal 1-2,5mm² RAL9005 6h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.15 61 131 42
PLUG 5P 16A 9h E2424523 2424523 P 416-9 S Plastic EN60309-2 50/60Hz Blue 16A 208-250V AC 5/3P+N+E Screwed terminal 1-2,5mm² RAL5017 9h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.15 61 131 42
PLUG 5P 16A 11h E2424524 2424524 P 416-11 S Plastic EN60309-2 60Hz Red 16A 440-460V AC 5/3P+N+E Screwed terminal 1-2,5mm² RAL3000 11h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP44 0.15 61 131 42

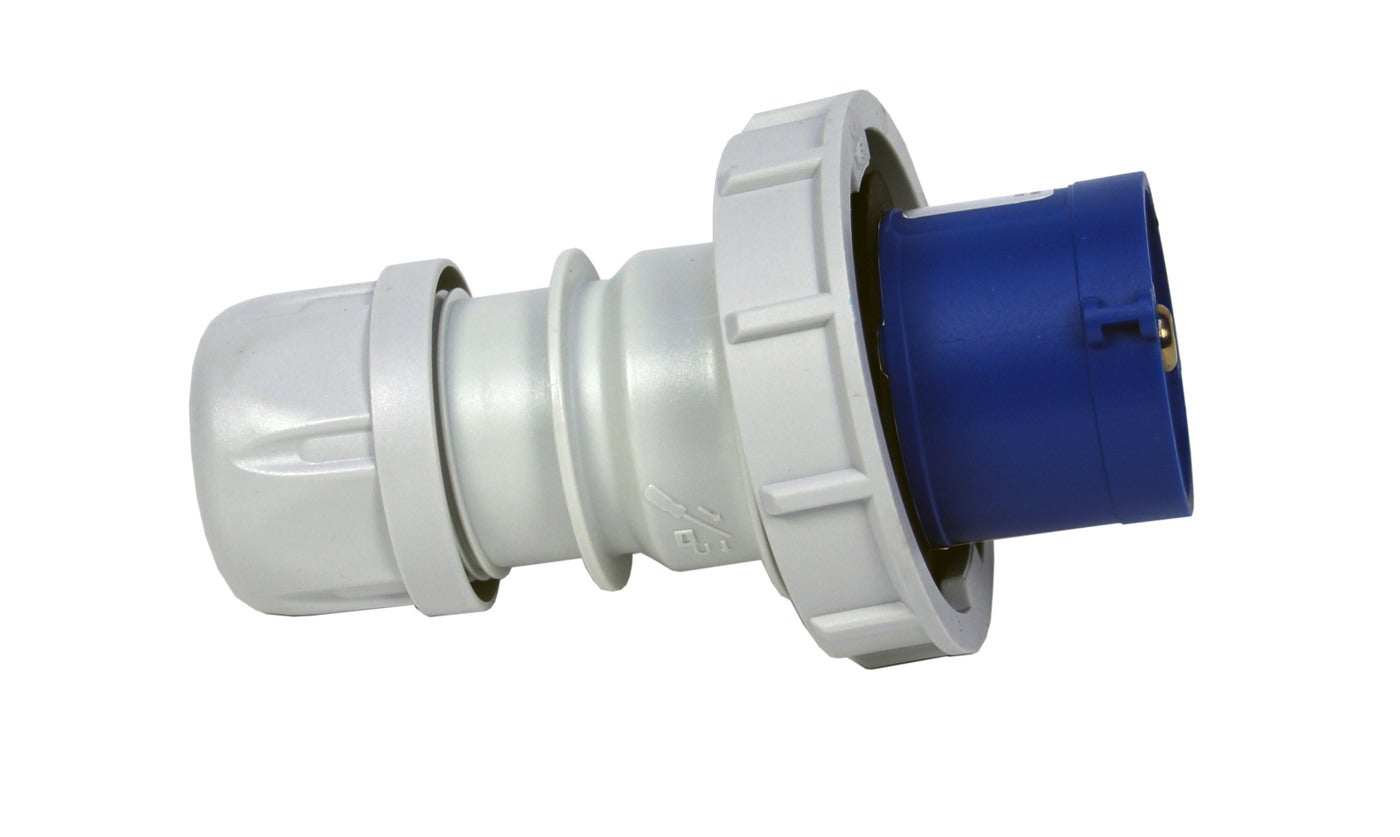

PLUG 3P 16A 6h WT E2424569 2424569 PV 216-6 S Plastic EN60309-2 50/60Hz Blue 16A 200-250V AC 3/2P+E Screwed terminal 1-2,5mm² RAL5017 6h 400 V (50+60 Hz) red Other CuZn No Untreated Straight Pin IP67 0.13 190 140 290
PLUGS TT 4P 16A 9h E2425397 2425397 P 316-9 Q 0.14 53 124 38
