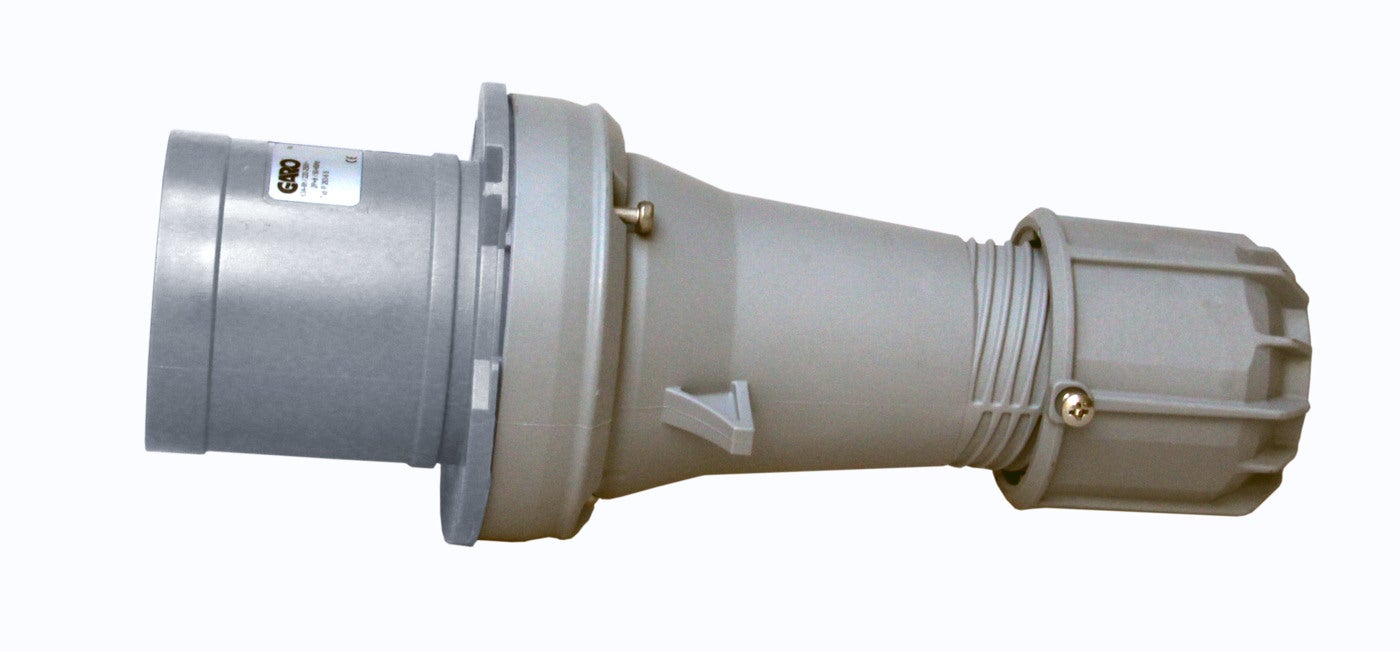

PLUG 3P 63A 3h

Plugs 63A IP44 Basic

Plug basic, our standard range with a screw function. Plugs basic 3-poles 63A 3h
E-number
E2424549
Article number
2424549
Support
Materials Plastic
Standard EN60309-2
Rated current [A] 63A
Connection type Screwed terminal
Wire flexible [mm²] 6-16mm²
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Cable entry Other
Contact material CuZn
Phase inverter No
Contact plating Untreated
Plug angle Straight
Pin/Sleeve Pin
Degree of protection [IP] IP44
Name PLUG 3P 63A 3h
E-number E2424549
Article number 2424549
Type designation P 263-3 S
Frequency [Hz] DC
Color Grey
Rated voltage [V AC] >50-250V AC
Number of poles 3/2P+E
RAL-number RAL7046
Clock hour position [h] 3h
NetProductWeight 0.53
EngineerWidth 102
EngineerHeight 257
EngineerDepth 102

More variants of Plugs 63A IP44 Basic

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
PLUG 3P 63A 3h E2424549 2424549 P 263-3 S DC Grey >50-250V AC 3/2P+E RAL7046 3h 0.53 102 257 102
PLUG 3P 63A 6h E2424551 2424551 P 263-6 S 50/60Hz Blue 200-250V AC 3/2P+E RAL5017 6h 0.53 190 140 290

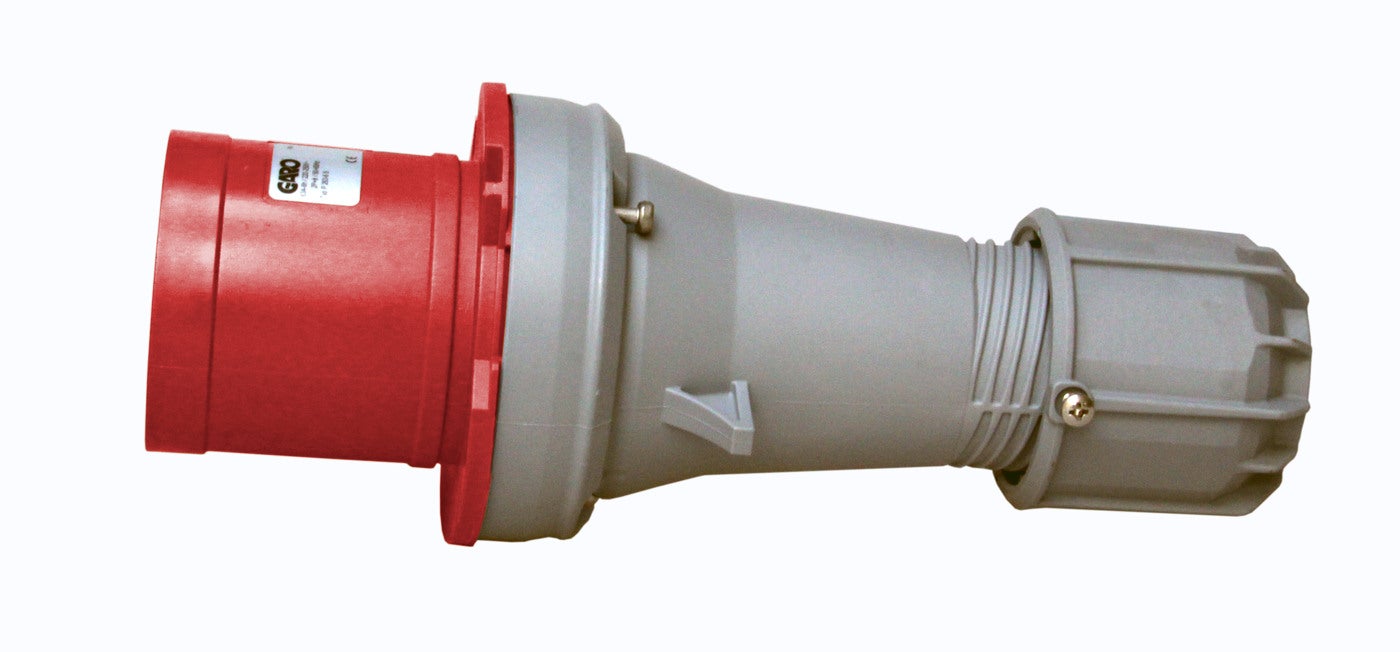

PLUG 3P 63A 9H E2424552 2424552 P 263-9 S 50/60Hz Red 380-415V AC 3/2P+E RAL3000 9h 0.53 102 257 102
PLUG 4P 63A 3h E2424554 2424554 P 363-3 S 50/60Hz Red 380-440V AC 4/3P+E RAL3000 3h 0.53 102 257 102

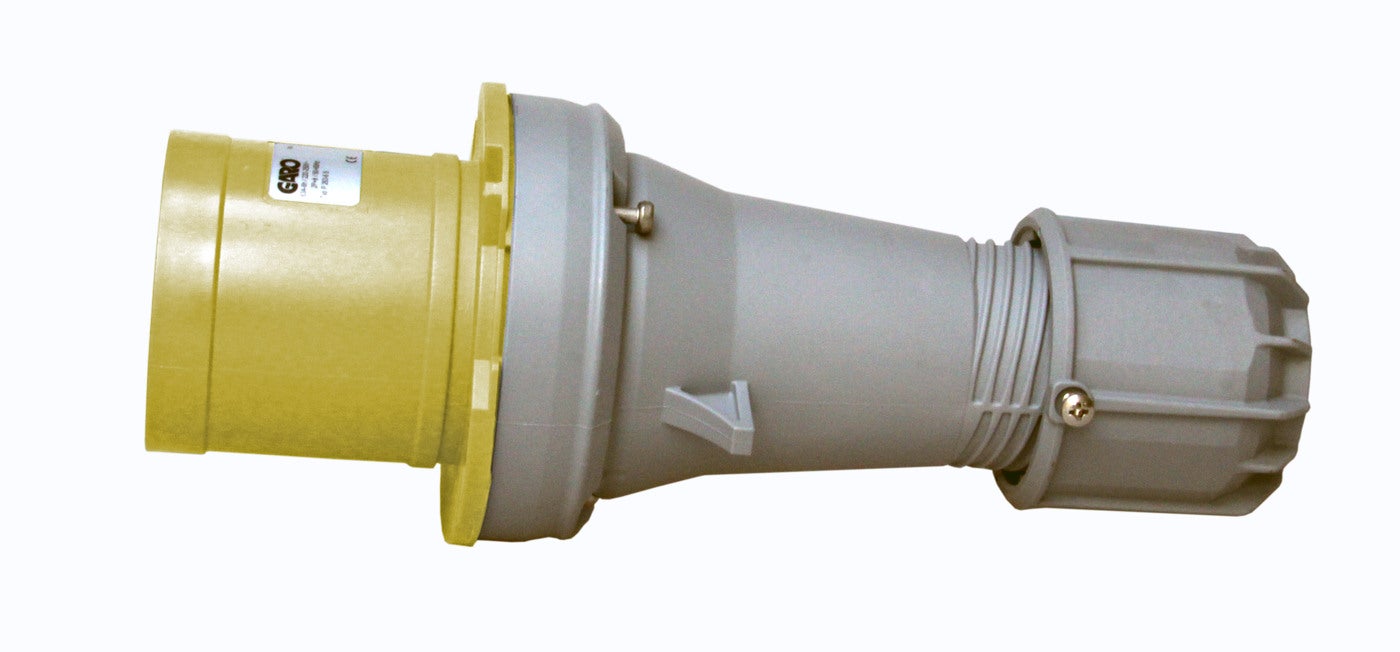

PLUG 4P 63A 4h E2424555 2424555 P 363-4 S 50/60Hz Yellow 100-130V AC 4/3P+E RAL1023 4h 0.57 102 257 102
PLUG 4P 63A 6h E2424556 2424556 P 363-6 S 50/60Hz Red 400V AC 4/3P+E RAL3000 6h 0.57 190 140 290
PLUG 4P 63A 4h E2424557 2424557 P 363-7 S 50/60Hz Black 480-500V AC 4/3P+E RAL9005 7h 0.57 102 257 102

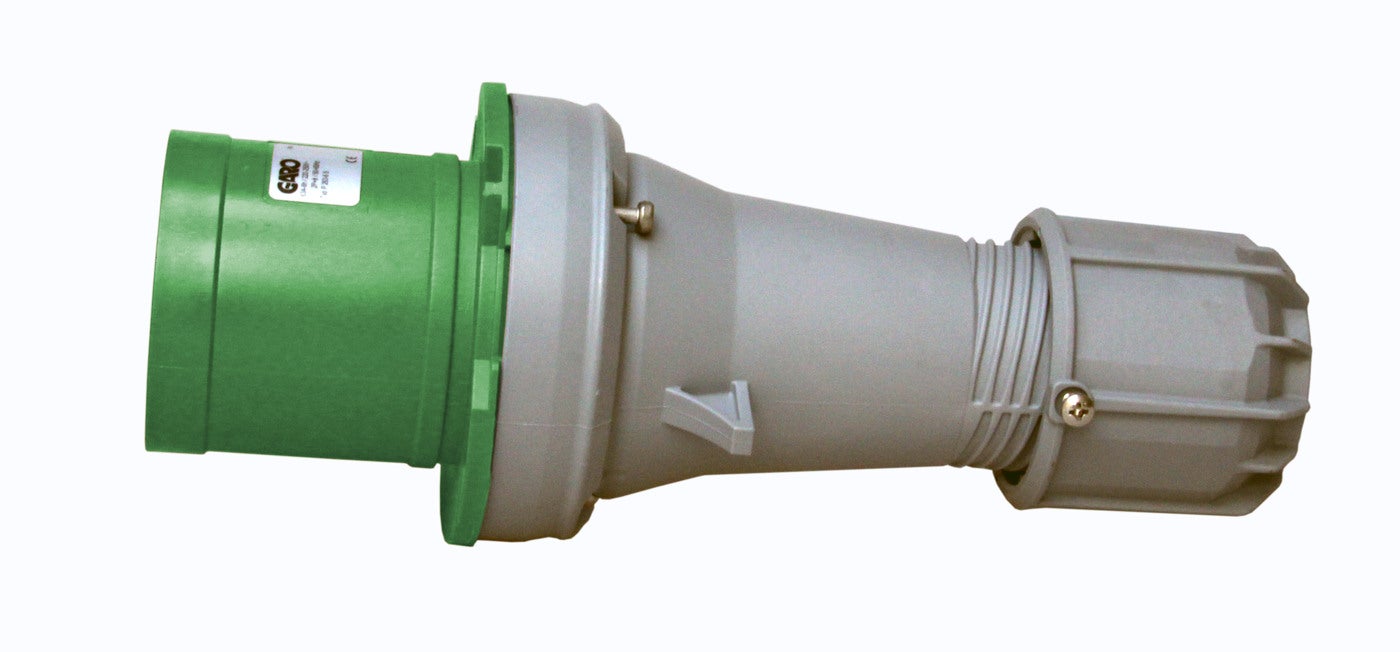

PLUG 4P 63A 10h E2424559 2424559 P 363-10 S 50/60Hz Green >50V AC 4/3P+E RAL6010 10h 0.57 102 257 102
PLUG 5P 63A 2h E2424561 2424561 P 463-2 S 300-500Hz Green >50V AC 5/3P+N+E RAL6010 2h 0.62 102 257 102
PLUG 5P 63A 4h E2424562 2424562 P 463-4 S 50/60Hz Yellow 100-130V AC 5/3P+N+E RAL1023 4h 0.62 102 257 102
PLUG 5P 63A 5h E2424563 2424563 P 463-5 S 50/60Hz Black 600-690V AC 5/3P+N+E RAL9005 5h 0.62 102 257 102
PLUG 5P 63A 6h E2424564 2424564 P 463-6 S 50/60Hz Red 230/400V AC 5/3P+N+E RAL3000 6h 0.62 102 257 102

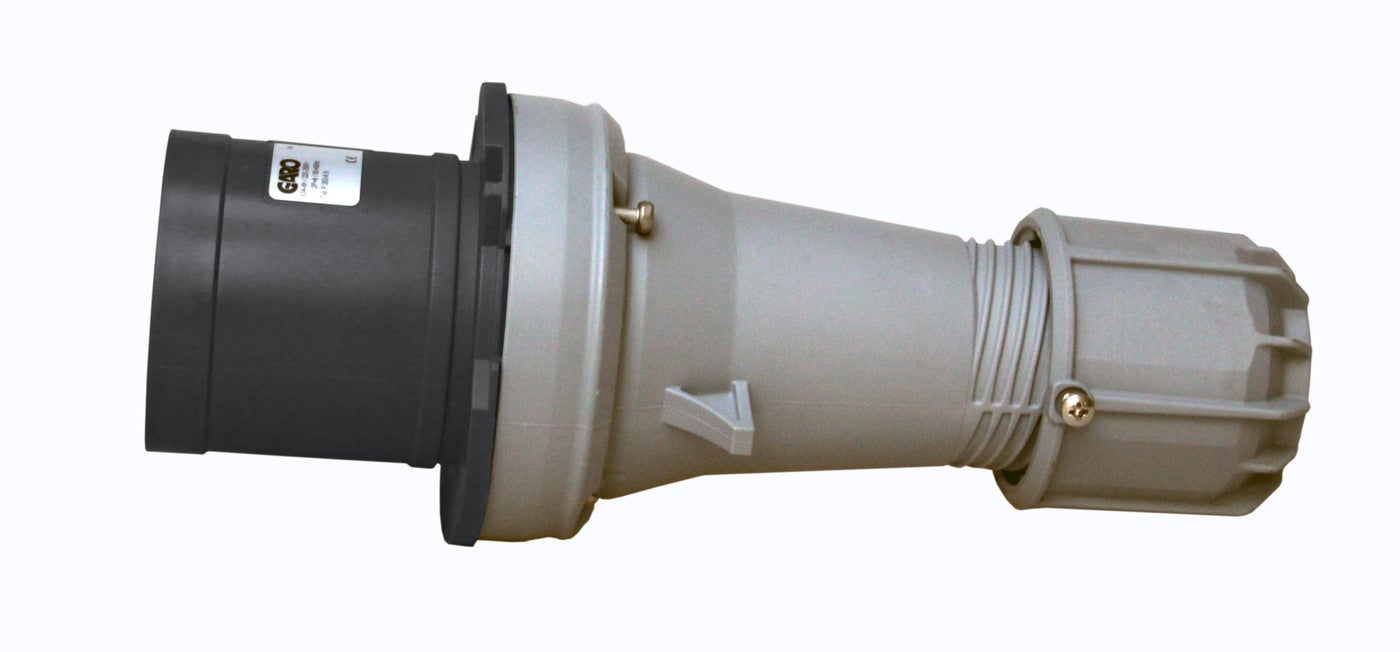

PLUG 5P 63A 7h 2424565 2424565 P 463-7 S 50/60Hz Black 480-500V AC 5/3P+N+E RAL9005 7h
PLUG 5P 63A 9h E2424566 2424566 P 463-9 S 50/60Hz Blue 208-250V AC 5/3P+N+E RAL5017 9h 0.62 102 257 102
PLUG 5P 63A 11h E2424567 2424567 P 463-11 S 60Hz Red 440-460V AC 5/3P+N+E RAL3000 11h 0.62 102 257 102
