Measurement devices module 630A

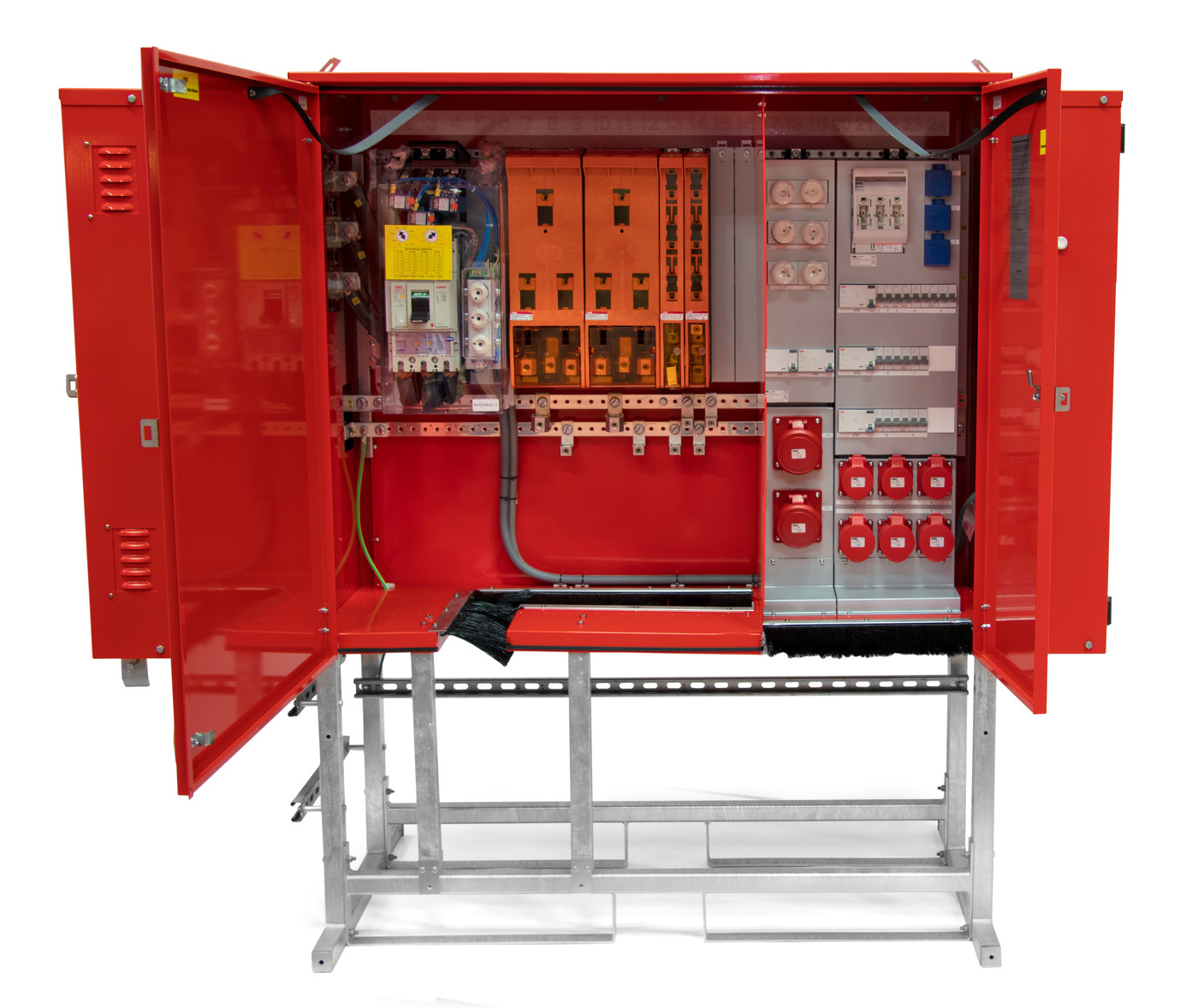

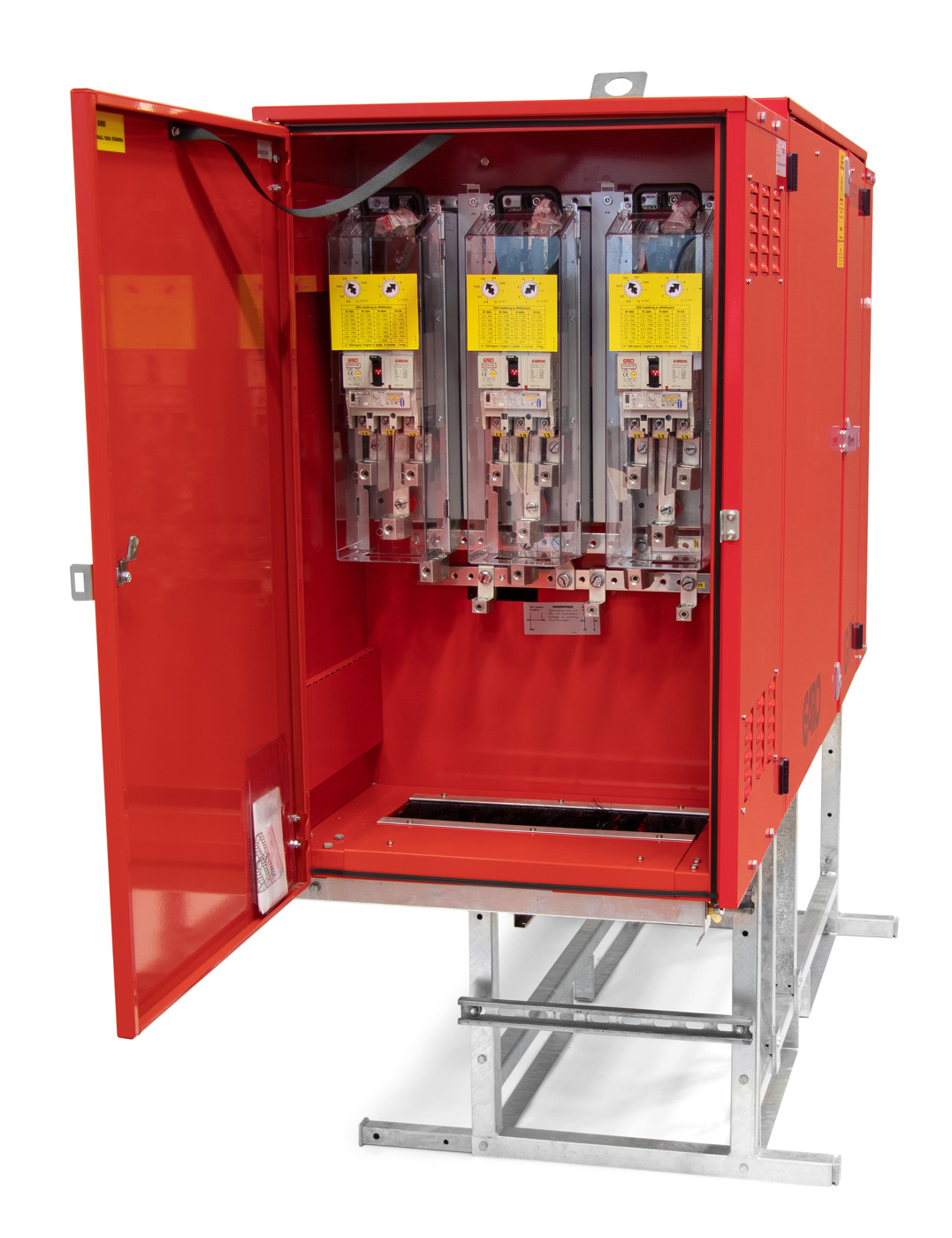

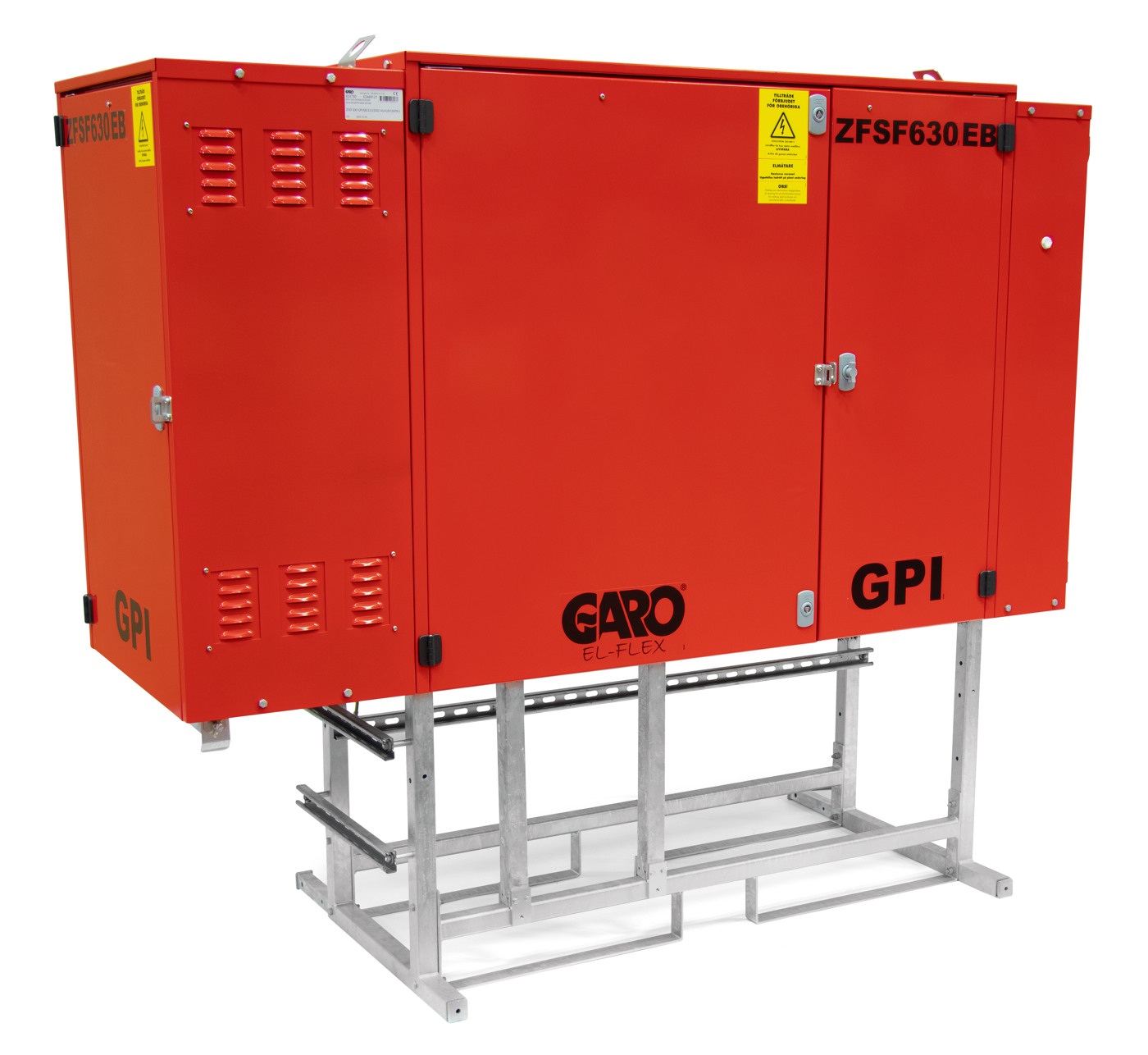

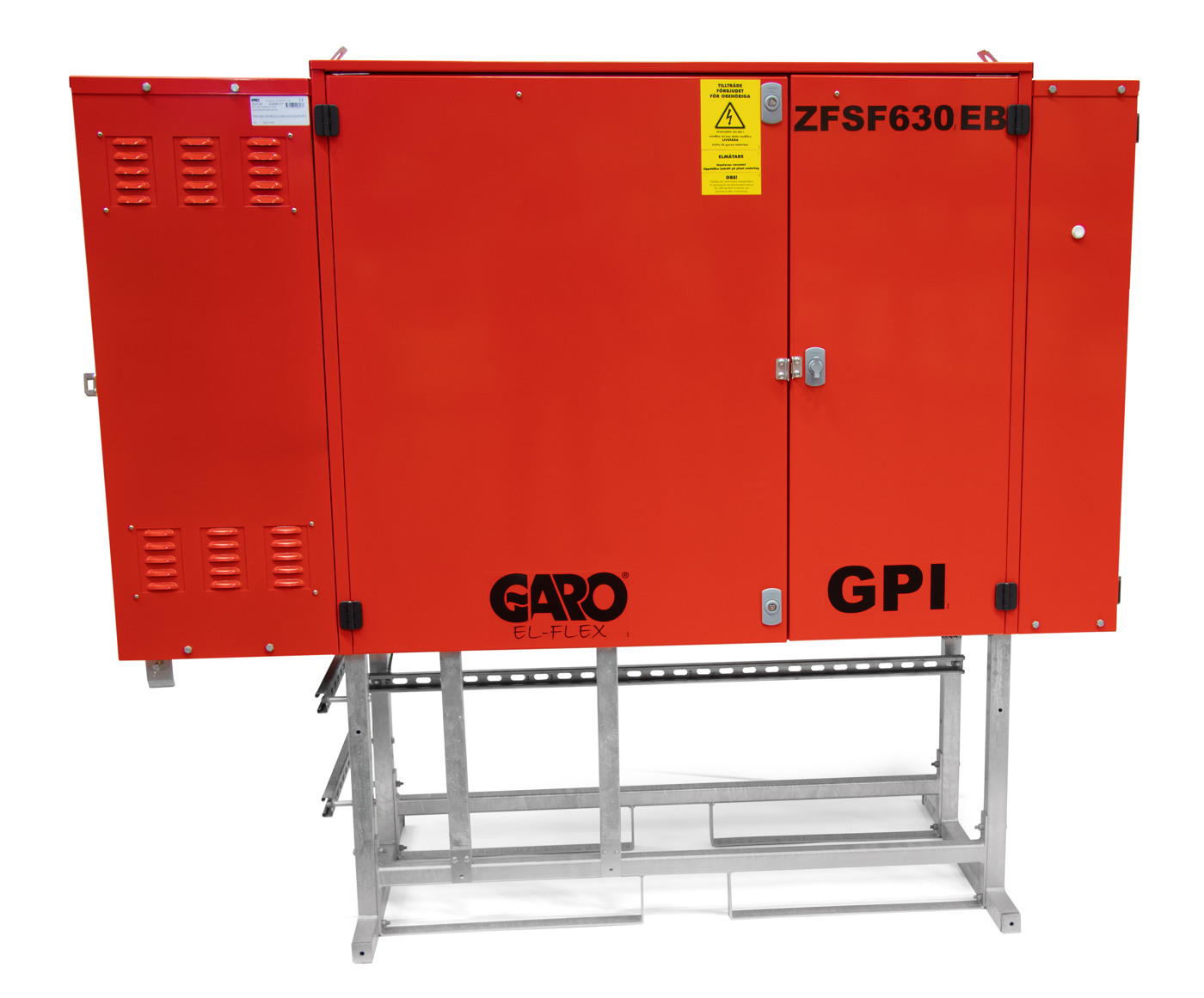

Main distribution assembly 630A (6300) built in the GPI system. This distribution assembly is equipped with a separate side cabinet for connection of incoming cables from the energy provider (3 x fuse switches) and common fuse switch 630A with current transformer. This distribution assembly is normally used for the construction of large apartment blocks, hotels arenas, shopping centres, events, etc. The distribution assembly is equipped with different outputs for onward feed with earth cables (Type AKKJ 16-95 mm² and 95-240 mm²). Possibility to supplement with outlet socket modules 13-63A which are preceded by residual current devices and circuit breakers as required. The distribution assembly is equipped with a hot-dip galvanized stand and lockable doors. Tightening torque terminalsblock 10-95mm²:15 Nm Tightening torque terminalsblock 95-2470mm²:25 Nm Main distribution assembly 630A GPI/EB/2xSLK400 2xSLK160 2x63 3x32 3x16 3x13
E-number
2469127
Article number
353730
Type designation ZFSF 630 GPI/EB/22/23303
Materials Sheet steel
Degree of protection [IP] 44
Colour Red
Rated current [A] 630
Frequency [Hz] 50
Standard EN 61439-4
Depth [mm] 650
Package size [pcs] 1
Space for meters [pcs] 1
Name TEMP POWER MET UNIT 630A GPI/EB
E-number 2469127
Article number 353730
Netweight [kg] 333
Width [mm] 1910
Height [mm] 1662
Flanged socket outlet 3 pcs 16A 3P+N+E 230/400V
Rated voltage [V AC] 400
Flanged socket outlet 3 pcs 32A 3P+N+E 230/400V
RCCB 3 pcs 63A/4P
MCB 3 pcs C113
MCB 3 pcs C316
Schuko [pcs] 3
Flanged socket outlet 2 pcs 63A 3P+N+E 230/400V
MCB 3 pcs C332
RCCB 2 pcs 63A/4P/300mA
Fixed connection NH00/160 [pcs] 2
Fixed connect.NH1-2/250A [pcs] 2
Modules [pcs] 36

Accessories for Measurement devices module 630A

Name E-number Article number Type designation Description
RCCB GD 40A 30mA 4P RCCB GD 40A 30mA 4P 107977 RCCB GD 40A 30mA 4-pole
RCCB GD 63A 30mA 4P RCCB GD 63A 30mA 4P 107978 RCCB GD 63A 30mA 4-pole
RCCB GD 63A 300mA 4P RCCB GD 63A 300mA 4P 108029 RCCB GD 63A 300mA 4-pole
OUTLET SCHUKO 10/16A OUTLET SCHUKO 10/16A 1896880 1896880 UIF 10/16 Outlet schuko 10/16A
MCB GS C-KAR 13A 10kA1P MCB GS C-KAR 13A 10kA1P 2142707 2142707 MCB GS C113 MCB GS C-Characteristic 13A 10kA 1-pole
MCB GS C-KAR 16A 10kA 3P MCB GS C-KAR 16A 10kA 3P 2142753 2142753 MCB GS C316 MCB GS C-Characteristic 16A 10kA 3-pole
MCB GS C-KAR 32A 10kA 3P MCB GS C-KAR 32A 10kA 3P 2142756 2142756 MCB GS C332 MCB GS C-Characteristic 32A 10kA 3-pole
MCB GS C-KAR 63A 10kA 3P MCB GS C-KAR 63A 10kA 3P 2142759 2142759 MCB GS C363 MCB GS C-Characteristic 63A 10kA 3-pole
MAIN SW MODULAR 3P 40A MAIN SW MODULAR 3P 40A 2142854 2142854 HB 340 Main switch modular 40A 3-pole
MAIN SW MODULAR 3P 80A MAIN SW MODULAR 3P 80A 2142856 2142856 HB 380 Main switch modular 80A 3-pole
SOCKET STRAIGHT 5P 16A 6h SOCKET STRAIGHT 5P 16A 6h 2424909 2424909 UI 416-6 S Socket straight basic 5-poles 16A 6h
SOCKET STRAIGHT 5P 32A 6h SOCKET STRAIGHT 5P 32A 6h 2424930 2424930 UI 432-6 S Socket straight basic 5-poles 32A 6h
SOCKET STRAIGHT 5P 63A 6h SOCKET STRAIGHT 5P 63A 6h 2424949 2424949 UI 463-6 S Socket straight basic 5-poles 63A 6h
SOCKET SLOPING 5P 63A 6h SOCKET SLOPING 5P 63A 6h 2425071 2425071 UIS 463-6 S Socket sloping basic 5-poles 63A 6h
POWERDISTR 63A STEELFRAME 3RCB POWERDISTR 63A STEELFRAME 3RCB 2469015 2469015 U GBSN 463-6/00/12306-21 Distribution panel 63A RCCB 6xschuko 3x16A outlet 2x32A outlet 1x63A outlet
POWER DISTR 125A 1x63 2x32 3x16 3x13
POWER DISTR 125A 1x63 2x32 3x16 3x13 2469043 2469043 GSF 125/01/12303-41 Portable distribution board on stand 125A with socket outlets 13-63A
COVER MODULE GPI 1M 50MM
COVER MODULE GPI 1M 50MM 2469101 2469101 BM-1 Cover module GPI 1 module 50mm
COVER MODULE GPI 3M 150MM
COVER MODULE GPI 3M 150MM 2469102 2469102 BM-3 Cover module GPI 3 module 150mm
COVER MODULE GPI 200MM
COVER MODULE GPI 200MM 2469103 2469103 BM-4 Cover module GPI 4 modules
CONTACT KIT PROTECT GPI
CONTACT KIT PROTECT GPI 2469104 2469104 BS-GPI Contact kit protect for hardwire cables
TRANSPORT SECURITY GPI
TRANSPORT SECURITY GPI 2469107 2469107 TF Transport security GPI for outletmodule
DIVISIBLE TERMINAL KIT 10-95 DIVISIBLE TERMINAL KIT 10-95 2466339 351982 PE/N 10-95 Divisible terminal kit PE/N 10-95mm² GPI.
DIVISIBLE TERMINAL KIT 95-240 DIVISIBLE TERMINAL KIT 95-240 2466340 351983 PE/N 95-240 Divisible terminal kit PE/N 95-240mm²
353006 UNDERCENTRAL 250A GPI
SUPPORT INSERT FOR UPI 3M 80793 Protection cover support insert for outlet-modules 3 modules fits GPI-system.
SUPPORT INSERT FOR UPI 4M 80794 Protection cover support insert for outlet-modules 4 modules fits GPI-system.
SUPPORT INSERT FOR UPI 5M 80795 Protection cover support insert for outlet-modules 5modules fits GPI-system.
