Shed units 32A

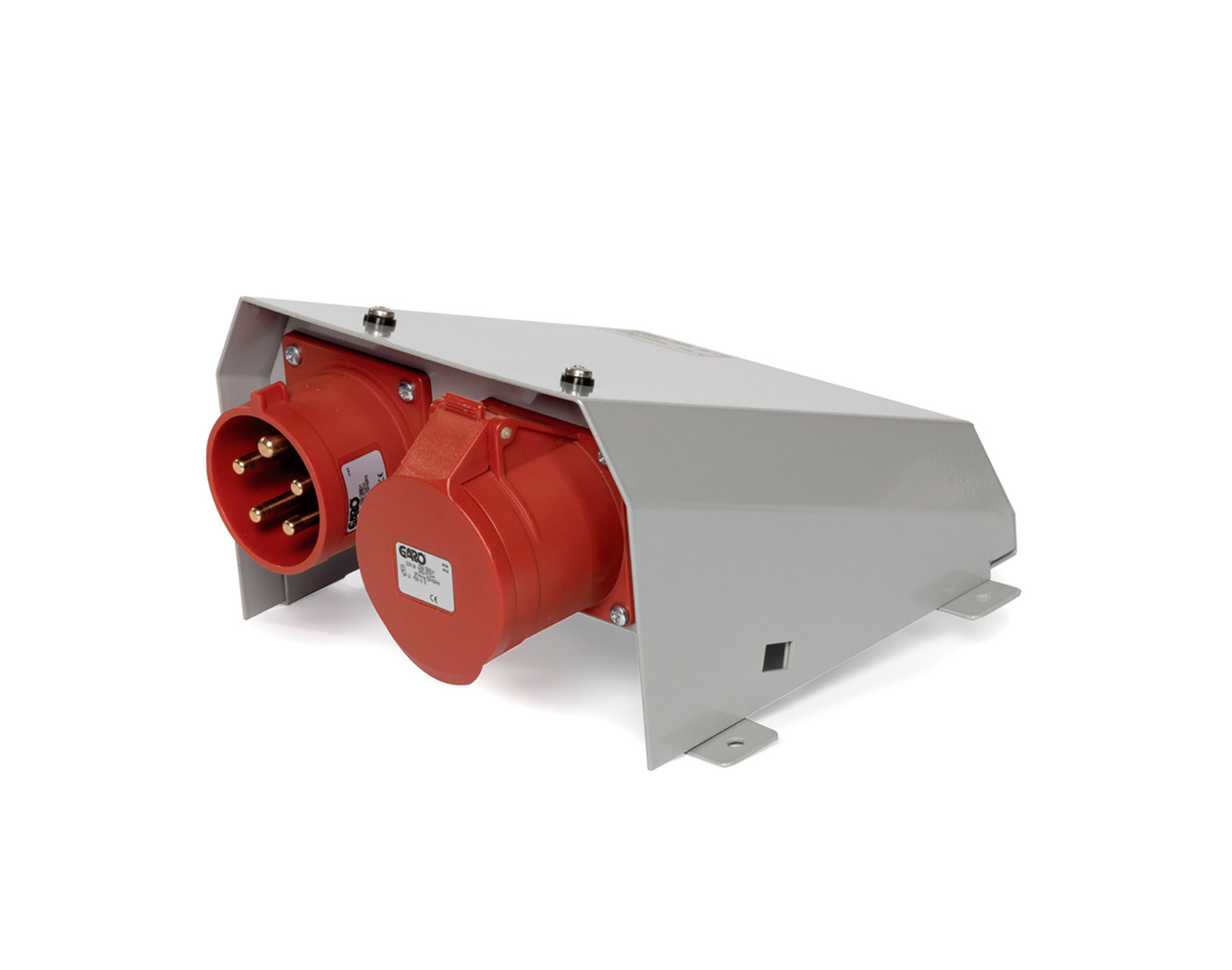

Cabin distribution board 16-32A, mounted on modular buildings, portable cabins, site huts, containers, etc. Equipped with CEE inputs and CEE outputs and terminal connection of outgoing cable. Cabin distribution board 32A
E-number
2469039
2469039
Article number
2469039
2469039
| Type designation | GBA 432-6 |
|---|---|
| Materials | Sheet metal |
| Degree of protection [IP] | 44 |
| Colour | Grey |
| Netweight [kg] | 2.50 |
| Rated current [A] | 32 |
| Frequency [Hz] | 50/60 |
| No.of Poles [pcs] | 5/3PN+E |
| Standard | EN 61439-3 |
| Width [mm] | 208 |
| Height [mm] | 137 |
| Depth [mm] | 204 |
| Flanged plug | 1 pcs 32A 3P+N+E 230/400V |
| Flanged socket outlet | 1 pcs 32A 3P+N+E 230/400V |
| Rated voltage [V AC] | 230/400 |
| Package size [pcs] | 1 |
| Connection [mm²] | 240 |
| Name | INLETBOX MODULAR UNIT 32A |
|---|---|
| E-number | 2469039 |
| Article number | 2469039 |
