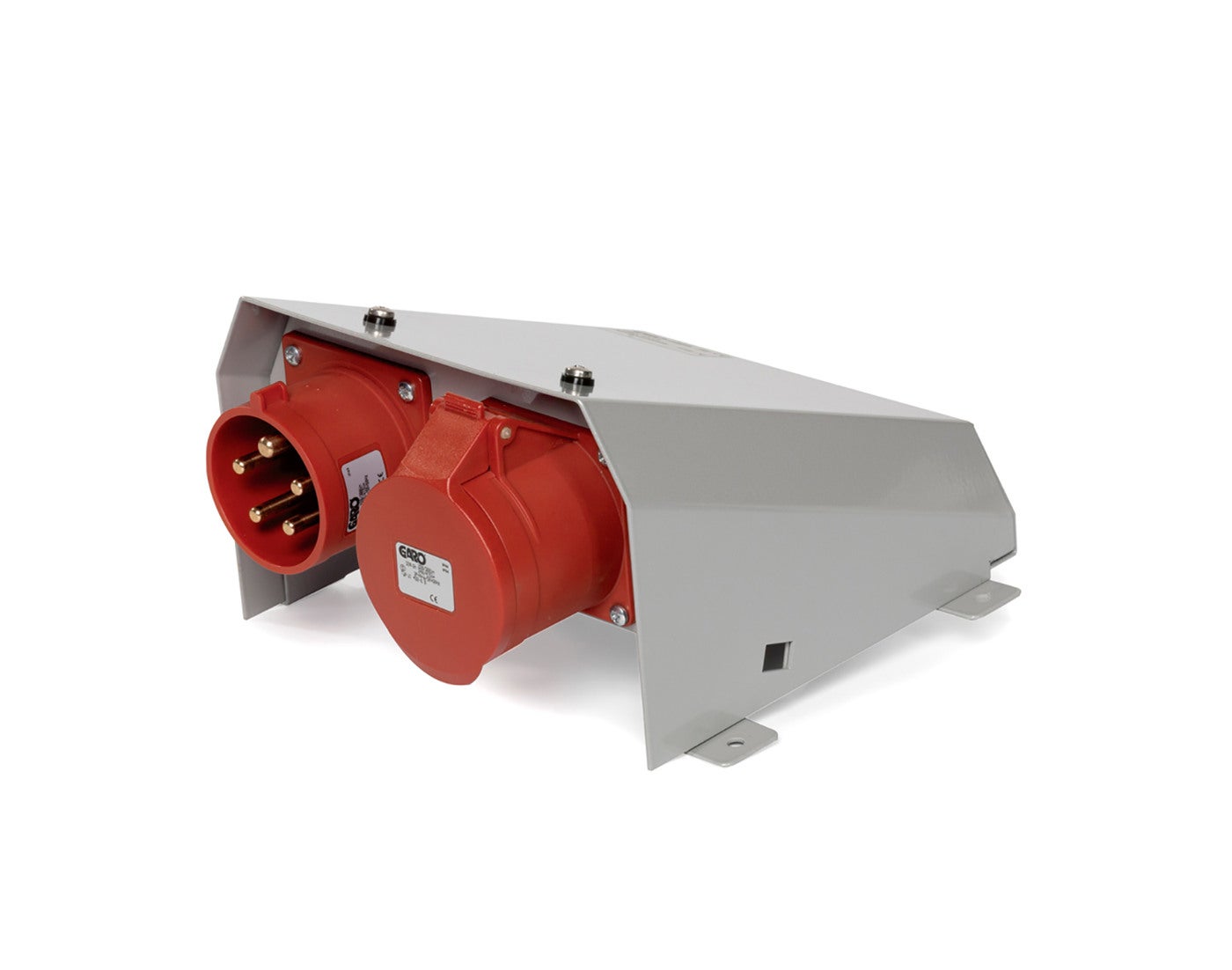

Shed units 32A
Cabin distribution board 16-32A, mounted on modular buildings, portable cabins, site huts, containers, etc. Equipped with CEE inputs and CEE outputs and terminal connection of outgoing cable. Cabin distribution board 32A
E-number
E2469039
E2469039
Article number
2469039
2469039
| Type designation | GBA 432-6 |
|---|---|
| Materials | Sheet metal |
| Standard | EN61439-3 |
| Frequency [Hz] | 50/60Hz |
| Color | Grey |
| Rated current [A] | 32A |
| Rated voltage [V AC] | 230/400V AC |
| Number of poles | 5/3P+N+E |
| CEE socket outlet 32A | 1pcs 5P 32A 230/400V |
| CEE socket inlet 32A | 1pcs 5P 16A 230/400V |
| Degree of protection [IP] | IP44 |
| NetProductWeight | 2.5 |
| EngineerWidth | 208 |
| EngineerHeight | 137 |
| EngineerDepth | 204 |
| Name | INLETBOX MODULAR UNIT 32A |
|---|---|
| E-number | E2469039 |
| Article number | 2469039 |
