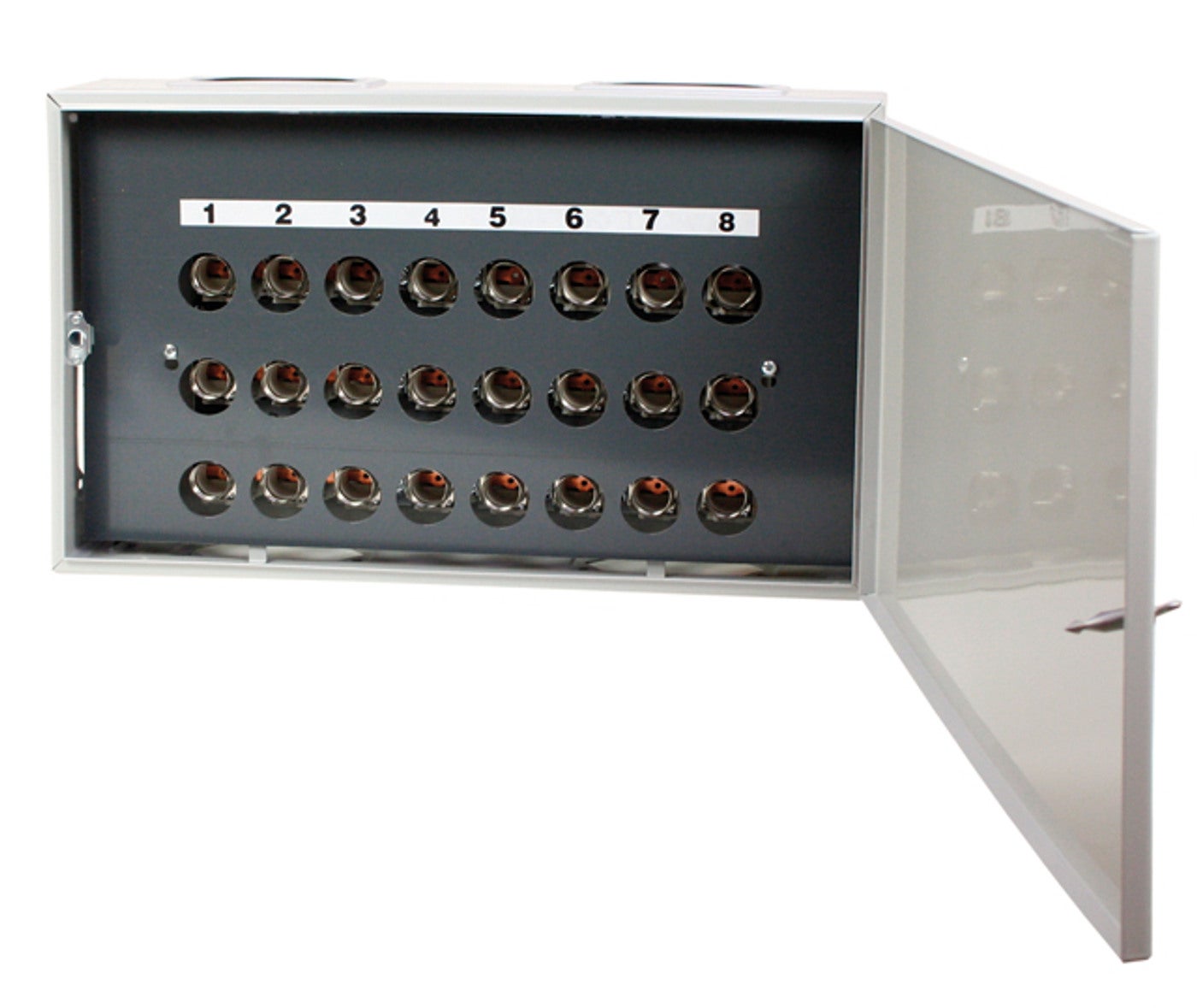

  • SWITCHBOARD 25A 8/3 SP - 2
  • SWITCHBOARD 25A 8/3 SP - 3

Switchboard fuse DZ

Switchboards with 1 and 3-pole fuse protected groups positioned on one row for 3-phase connection. Equipped with disconnectable neutral rail and earth conductor rail. Switchboard 25A 8groups 3-pole fuse base
E-number
E2383118
Article number
2383118
Support
Standard EN61439-3
Housing material Sheet steel
Color Grey
Rated current [A] 25A
RAL-number RAL7035
EngineerDepth 120
Name SWITCHBOARD 25A 8/3 SP
E-number E2383118
Article number 2383118
Type designation GP 25/38
NetProductWeight 10.3
EngineerWidth 550
EngineerHeight 330

More variants of Switchboard fuse DZ

E-number Article number Type designation Number of poles Fuse size Degree of protection [IP] NetProductWeight EngineerWidth EngineerHeight
SWITCHBOARD 25A 3/1 SP E2383013 2383013 GP 25/13 3/1 DII IP43 3.1 220 220
SWITCHBOARD 25A 2/3 SP E2383112 2383112 GP 25/32 4.6 220 330
SWITCHBOARD 25A 3/3 SP E2383113 2383113 GP 25/33 4.6 220 330
SWITCHBOARD 25A 4/3 SP E2383114 2383114 GP 25/34 5.8 275 330
SWITCHBOARD 25A 6/3 SP E2383116 2383116 GP 25/36 8.3 440 330
SWITCHBOARD 25A 8/3 SP E2383118 2383118 GP 25/38 10.3 550 330
SWITCHBOARD 63A 2/3 SP E2383152 2383152 GP 63/32 4.6 220 330
SWITCHBOARD 63A 3/3 SP E2383153 2383153 GP 63/33 5.8 275 330
SWITCHBOARD 63A 4/3 SP E2383154 2383154 GP 63/34 8.3 440 330
