• DISTRIBUTION ENCLOSURE 13FL 440 I+I/I+I SP - 1
  • DISTRIBUTION ENCLOSURE 13FL 440 I+I/I+I SP - 2

Distribution boxes 13 flange

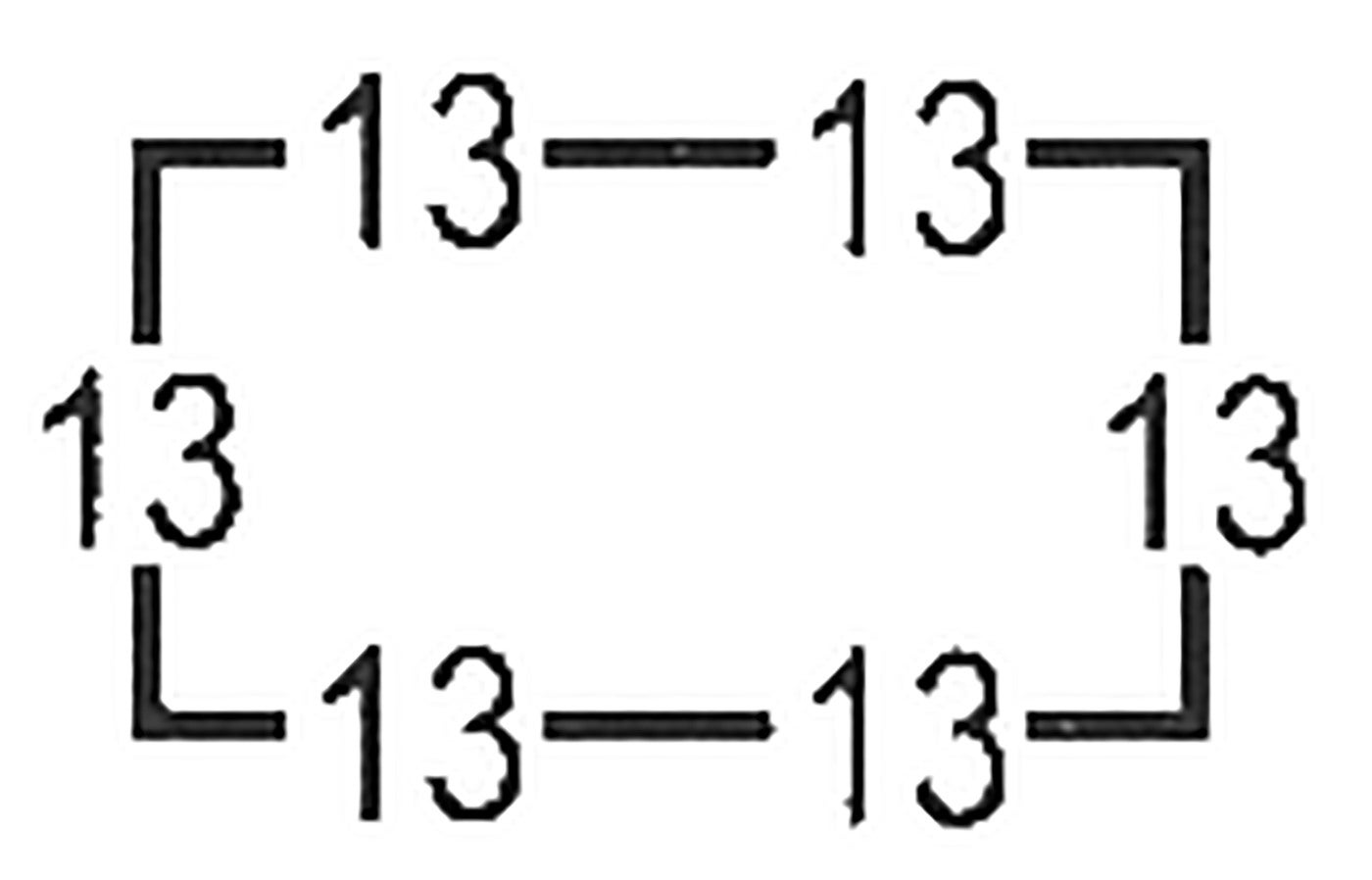

The boxes can be equipped with busbars max diameter 12 mm 275 A, or with terminal equipped connection inserts that allow different distribution possibilities with soft conductors. Regarding equipment option for the boxes. Distribution box 440 flange 13 in side 13+13/13+13 up/down
E-number
E2384822
Article number
2384822
Support
Standard EN61439-3
Housing material Sheet steel
Color Grey
Degree of protection [IP] IP43
EngineerHeight 220
EngineerDepth 120
Name DISTRIBUTION ENCLOSURE 13FL 440 I+I/I+I SP
E-number E2384822
Article number 2384822
Type designation FP 440 I+I/I+I
NetProductWeight 3.6
EngineerWidth 440

More variants of Distribution boxes 13 flange

E-number Article number Type designation NetProductWeight EngineerWidth
DISTRIBUTION ENCLOSURE 13FL 220 I/I SP E2384802 2384802 FP 220 I/I 2.2 220
DISTRIBUTION ENCLOSURE 13FL 275 I/I SP E2384804 2384804 FP 275 I/I 2.4 275
DISTRIBUTION ENCLOSURE 13FL 275 I/II SP E2384806 2384806 FP 275 I/II 2.4 275
DISTRIBUTION ENCLOSURE 13FL 275 II/II SP E2384808 2384808 FP 275 II/II 2.3 275
DISTRIBUTION ENCLOSURE 13FL 330 II/II SP E2384810 2384810 FP 330 II/II 2.7 330
DISTRIBUTION ENCLOSURE 13FL 440 II/II SP E2384814 2384814 FP 440 II/II 3.8 440
DISTRIBUTION ENCLOSURE 13FL 440 I+I/II SP E2384820 2384820 FP 440 I+I/II 3.7 440
DISTRIBUTION ENCLOSURE 13FL 440 I+I/I+I SP E2384822 2384822 FP 440 I+I/I+I 3.6 440
DISTRIBUTION ENCLOSURE 13FL 550 I+I/I+I SP E2384826 2384826 FP 550 I+I/I+I 4.3 550
