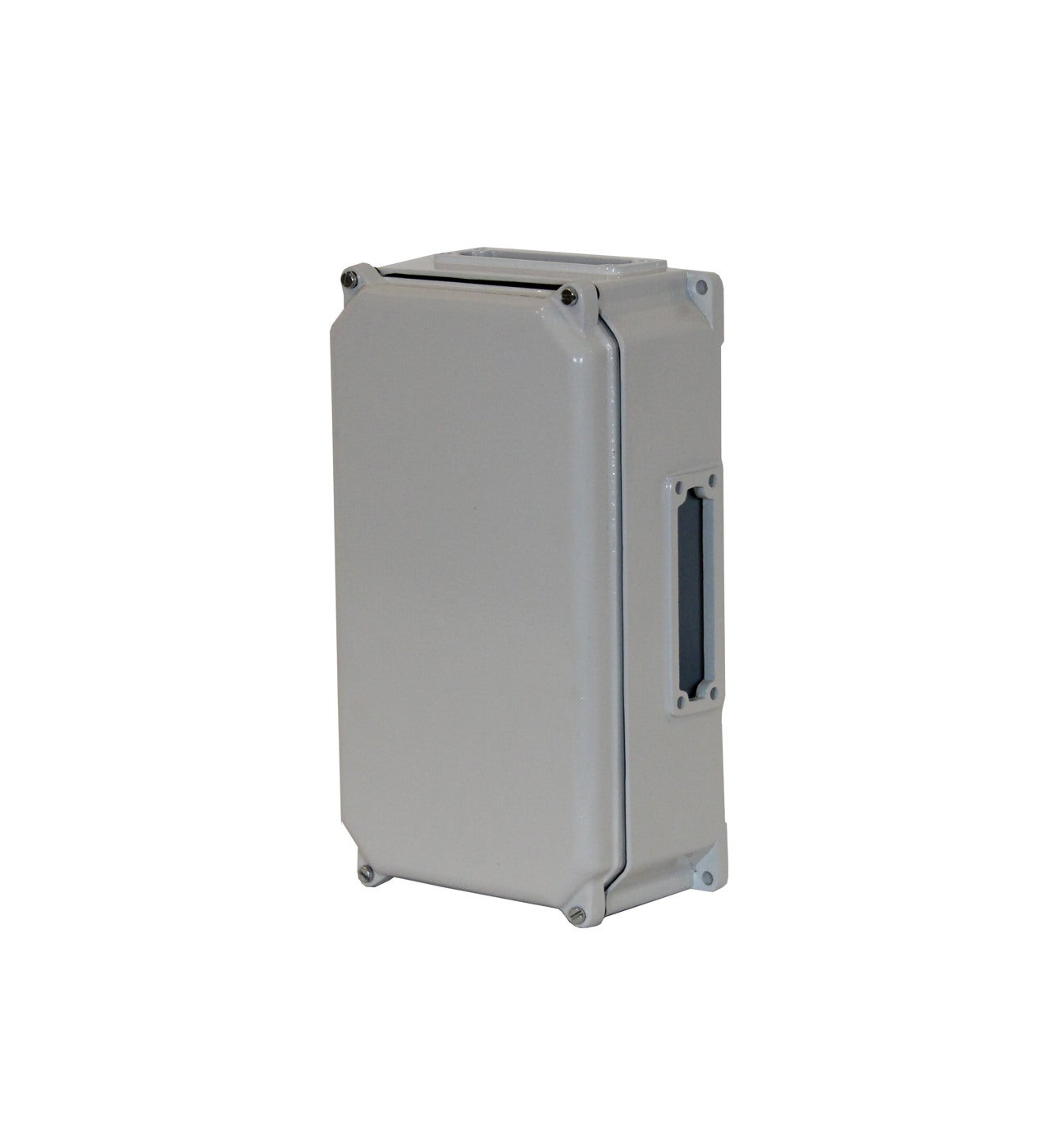

  • DISTRIBUTION BOX 360 l/l LM - 2
  • DISTRIBUTION BOX 360 l/l LM - 3

Distribution boxes H210

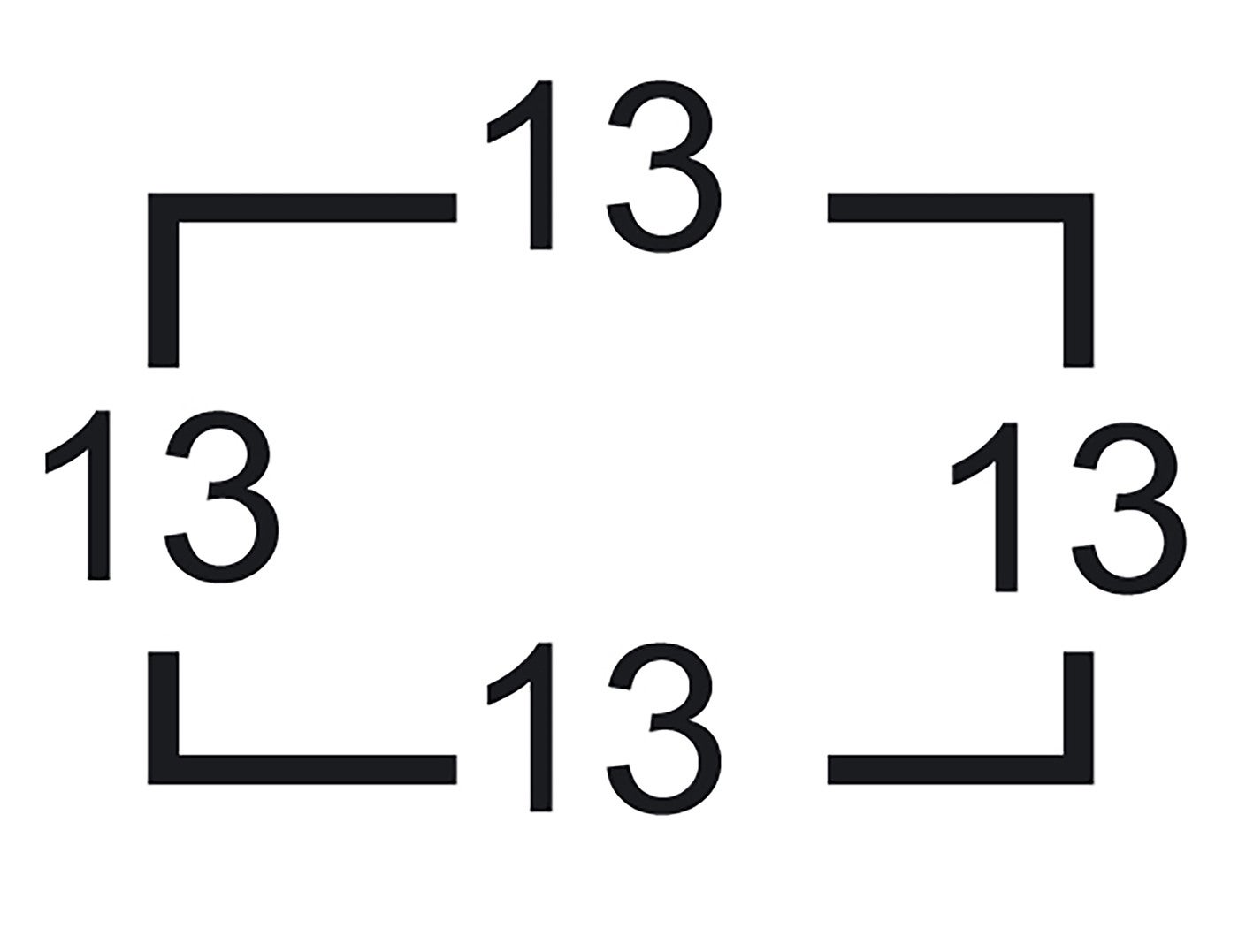

All boxes are designed for the assembly of different connection inserts, depending on the cable type and cross section, see the compilation of connection inserts. Distribution box 360 flange 13/13 Aloy
E-number
E2393810
Article number
2393810
Support
Standard EN61439-3
Frequency [Hz] 50Hz
Housing material Light metal
Rated voltage [V AC] 690V AC
RAL-number RAL7044
Degree of protection [IP] IP65
EngineerHeight 210
Name DISTRIBUTION BOX 360 l/l LM
E-number E2393810
Article number 2393810
Type designation F 360l/l
NetProductWeight 2.8
EngineerWidth 360
EngineerDepth 120

More variants of Distribution boxes H210

DISTRIBUTION BOX 210 l/l LM
DISTRIBUTION BOX 210 l/l LM
E-number
E2393801
Article number
2393801
Type designation
NetProductWeight
2.3
EngineerWidth
210
EngineerDepth
120
DISTRIBUTION BOX 240 l/l LM
DISTRIBUTION BOX 240 l/l LM
E-number
E2393802
Article number
2393802
Type designation
F 240l/l
NetProductWeight
2.1
EngineerWidth
240
EngineerDepth
120
DISTRIBUTION BOX 260 l/l LM
DISTRIBUTION BOX 260 l/l LM
E-number
E2393803
Article number
2393803
Type designation
F 260l/l
NetProductWeight
2.6
EngineerWidth
260
EngineerDepth
120
DISTRIBUTION BOX 360 l/l LM
DISTRIBUTION BOX 360 l/l LM
E-number
E2393810
Article number
2393810
Type designation
F 360l/l
NetProductWeight
2.8
EngineerWidth
360
EngineerDepth
120
DISTRIBUTION BOX 300 ll/ll LM
DISTRIBUTION BOX 300 ll/ll LM
E-number
E2393824
Article number
2393824
Type designation
FSA 300ll/ll
NetProductWeight
3.3
EngineerWidth
300
EngineerDepth
145

More variants of Distribution boxes H210

E-number Article number Type designation NetProductWeight EngineerWidth EngineerDepth
DISTRIBUTION BOX 210 l/l LM E2393801 2393801 2.3 210 120
DISTRIBUTION BOX 240 l/l LM E2393802 2393802 F 240l/l 2.1 240 120
DISTRIBUTION BOX 260 l/l LM E2393803 2393803 F 260l/l 2.6 260 120
DISTRIBUTION BOX 360 l/l LM E2393810 2393810 F 360l/l 2.8 360 120
DISTRIBUTION BOX 300 ll/ll LM E2393824 2393824 FSA 300ll/ll 3.3 300 145

Accessories for Distribution boxes H210

INSERT COPPER AND ALU CABLE 5X50
INSERT COPPER AND ALU CABLE 5X50
E-number
E2393918
Article number
2393918
Type designation
INSERT COPPER AND ALU CABLE 5X95
INSERT COPPER AND ALU CABLE 5X95
E-number
E2393920
Article number
2393920
Type designation
INSERT COPPER AND ALU CABLE 5X150
INSERT COPPER AND ALU CABLE 5X150
E-number
E2393922
Article number
2393922
Type designation
INSERT COPPER & AL CAB 2X2X50
INSERT COPPER & AL CAB 2X2X50
E-number
E2393949
Article number
2393949
Type designation
K 2X550 AL
INSERT COPPER AND ALU CABLE 2X2X95
INSERT COPPER AND ALU CABLE 2X2X95
E-number
E2393950
Article number
2393950
Type designation

Accessories for Distribution boxes H210

Name E-number Article number Type designation Description
INSERT COPPER AND ALU CABLE 5X50 INSERT COPPER AND ALU CABLE 5X50 E2393918 2393918 Coupling insert for copper and aluminum cable 5x35
INSERT COPPER AND ALU CABLE 5X95 INSERT COPPER AND ALU CABLE 5X95 E2393920 2393920 Coupling insert for copper and aluminum cable 5x95
INSERT COPPER AND ALU CABLE 5X150 INSERT COPPER AND ALU CABLE 5X150 E2393922 2393922 Coupling insert for copper and aluminum cable 5x150
INSERT COPPER & AL CAB 2X2X50 INSERT COPPER & AL CAB 2X2X50 E2393949 2393949 K 2X550 AL Coupling insert for copper and aluminum cable 5x550
INSERT COPPER AND ALU CABLE 2X2X95 INSERT COPPER AND ALU CABLE 2X2X95 E2393950 2393950 Coupling insert for copper and aluminum cable 5x595
