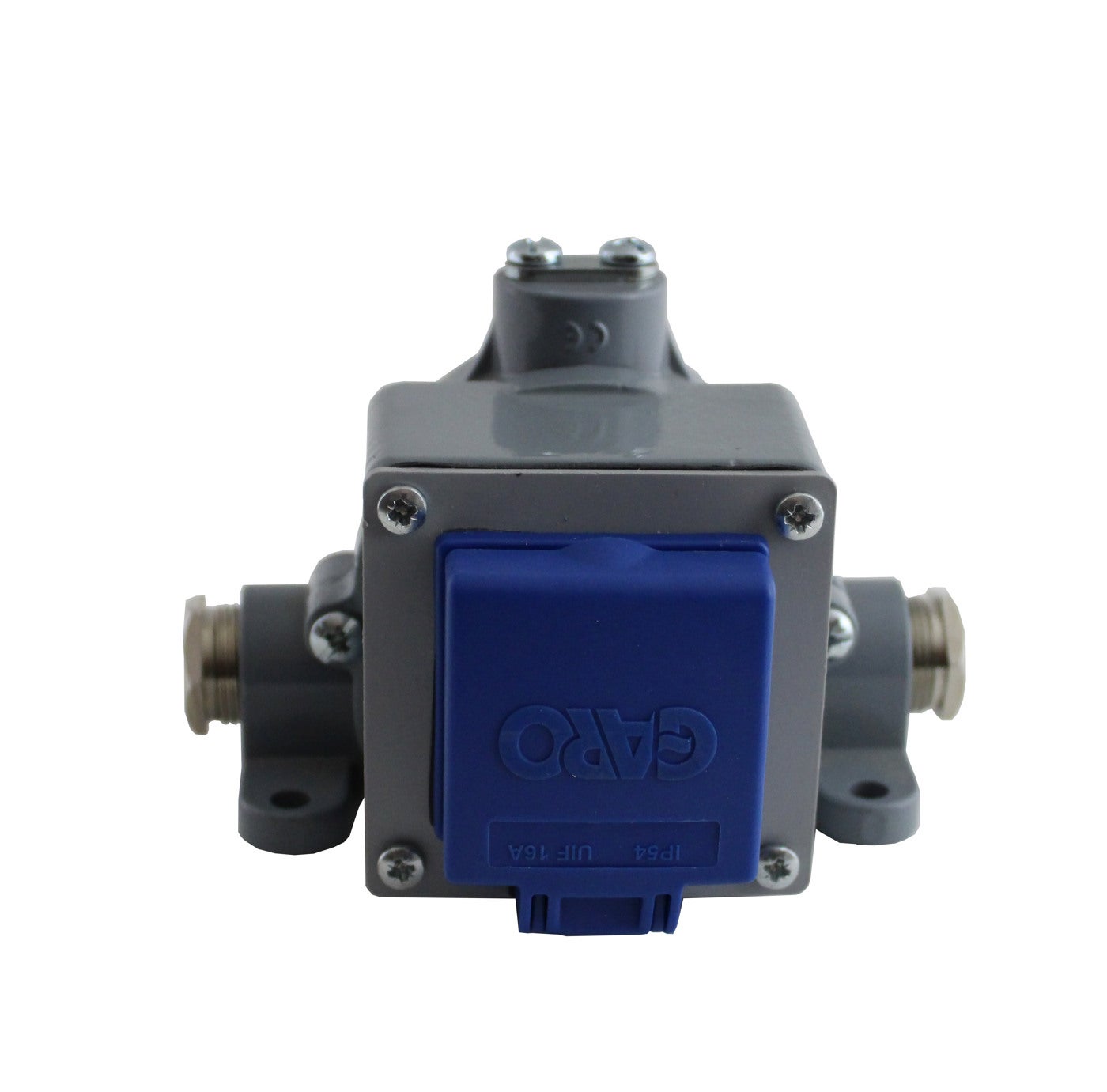

Junction box with outlet IP54
GARO’s junction boxes are made of die cast aluminium. Supplied with 2-pin wall sockets with earth connection, terminal block with 4 sheath clamps for max 3x4mm² cable cross-section per terminal clamp, and earth screw and 2 complete cable glands PR22.5. Connetion box with socket 10A
E-number
E1440080
E1440080
Article number
1440080
1440080
| Standard | EN60998-1-2, EN60670-1 |
|---|---|
| Housing material | Light metal |
| Color | Grey |
| Wire flexible [mm²] | 3x4mm² |
| Mounting method | Floor fastening |
| Wire solid [mm²] | 3x4mm² |
| NetProductWeight | 0.55 |
| EngineerWidth | 100 |
| Name | CONNECT BOX W SOCKET 10A |
|---|---|
| E-number | E1440080 |
| Article number | 1440080 |
| Type designation | VUJ 210 |
| Rated current [A] | 10A |
| Degree of protection [IP] | IP54 |
| EngineerHeight | 120 |
| EngineerDepth | 110 |
