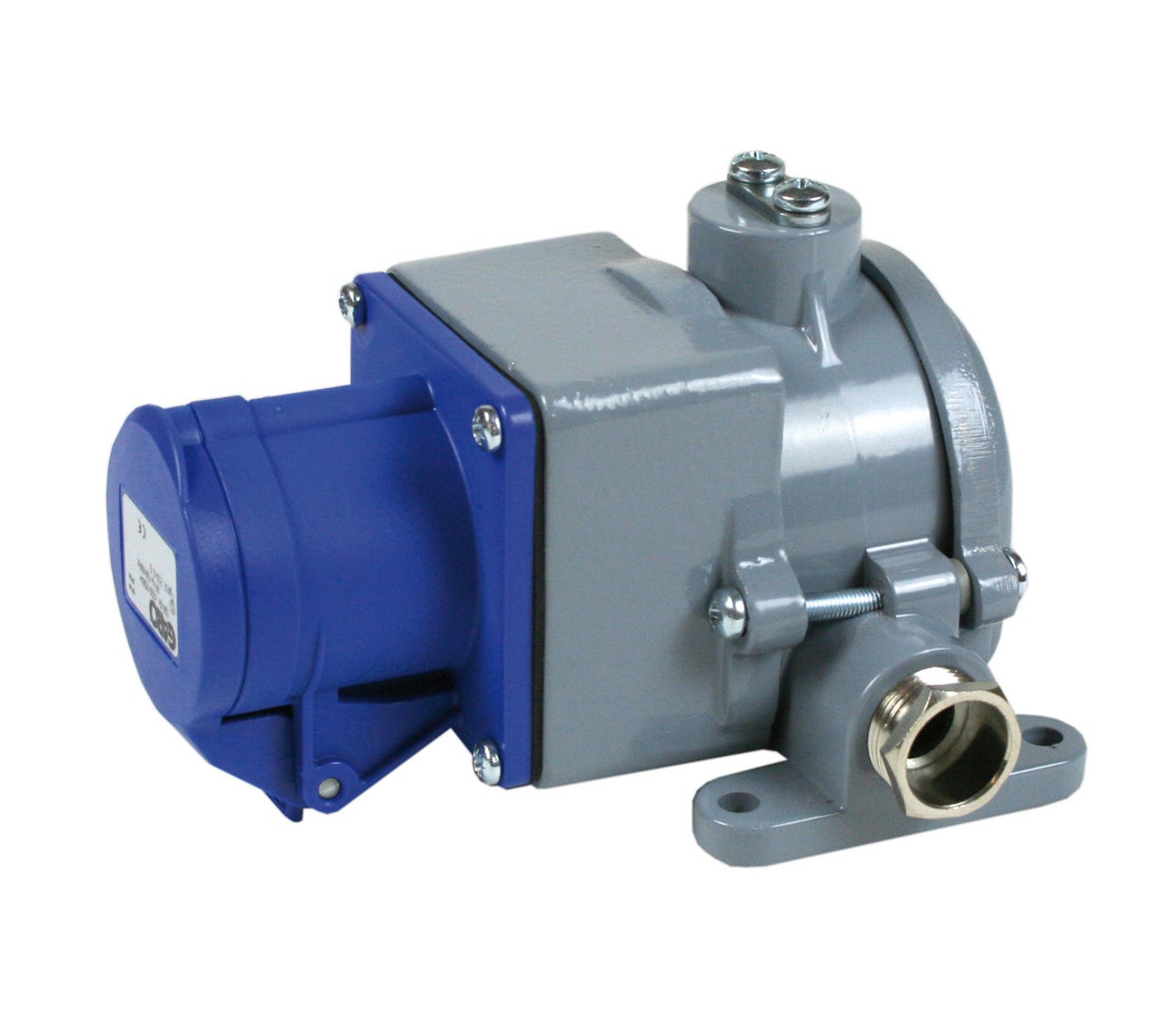

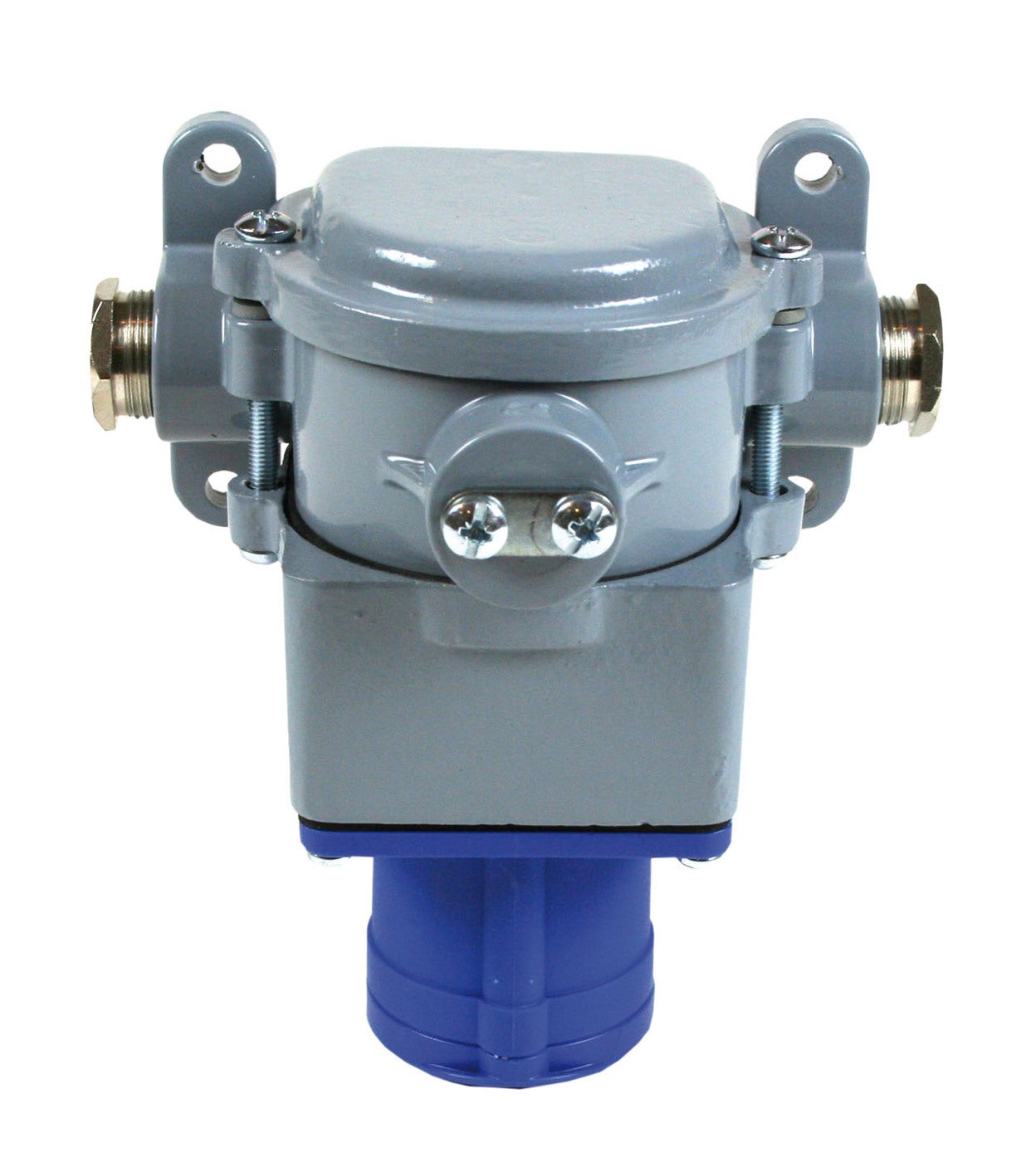

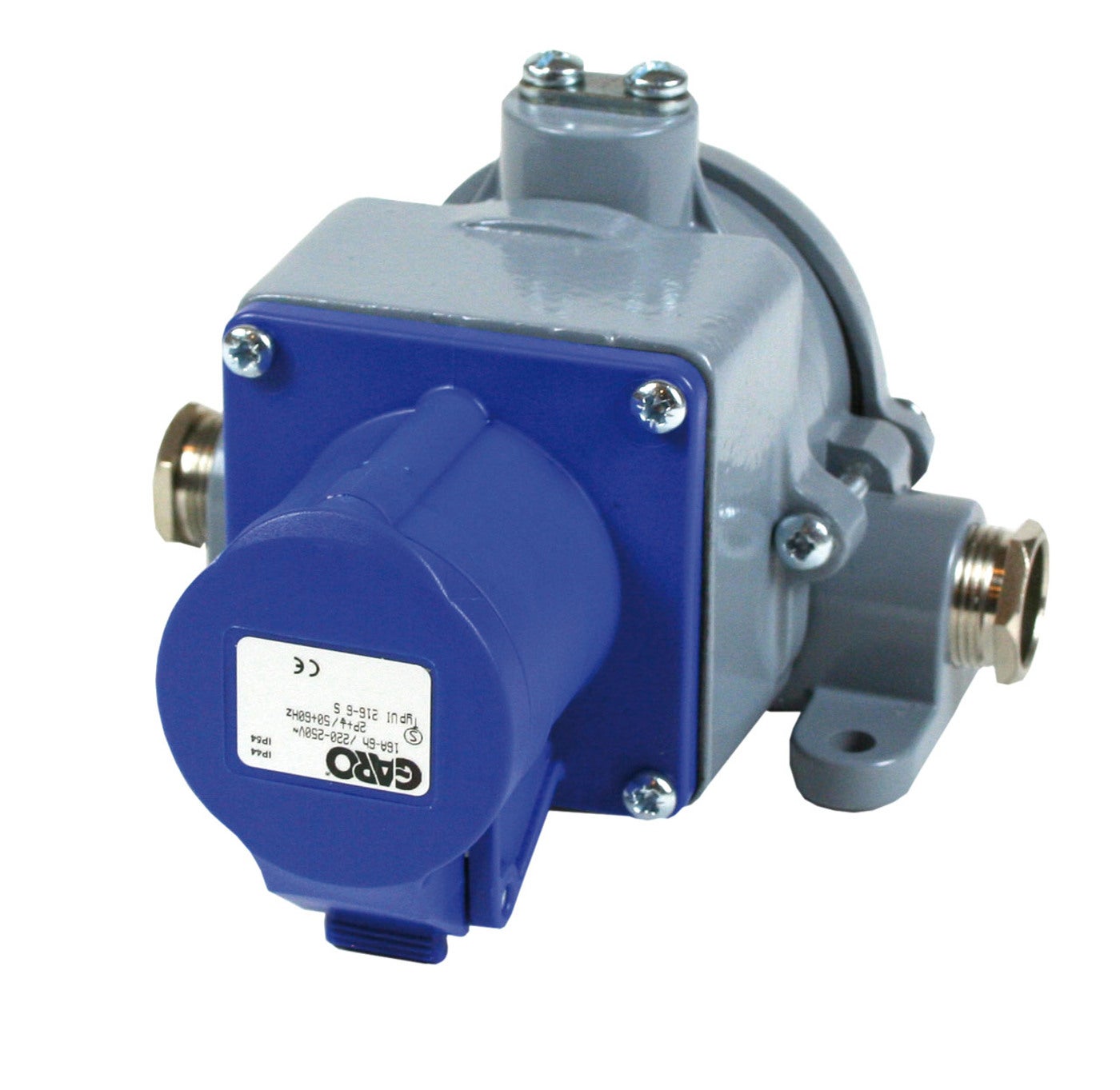

Junction box with outlet IP54
GARO’s junction boxes are made of die cast aluminium. Supplied with 2-pin wall sockets with earth connection, terminal block with 4 sheath clamps for max 3x4mm² cable cross-section per terminal clamp, and earth screw and 2 complete cable glands PR22.5. Connetion box with socket 16A
E-number
E1440084
E1440084
Article number
1440084
1440084
| Standard | EN60998-1-2, EN60670-1 |
|---|---|
| Housing material | Light metal |
| Color | Grey |
| Wire flexible [mm²] | 3x4mm² |
| Mounting method | Floor fastening |
| Wire solid [mm²] | 3x4mm² |
| NetProductWeight | 0.55 |
| EngineerWidth | 100 |
| Name | CONNECT BOX W SOCKET 16A |
|---|---|
| E-number | E1440084 |
| Article number | 1440084 |
| Type designation | VUJ 216 |
| Rated current [A] | 16A |
| Degree of protection [IP] | IP44 |
| EngineerHeight | 145 |
| EngineerDepth | 145 |
