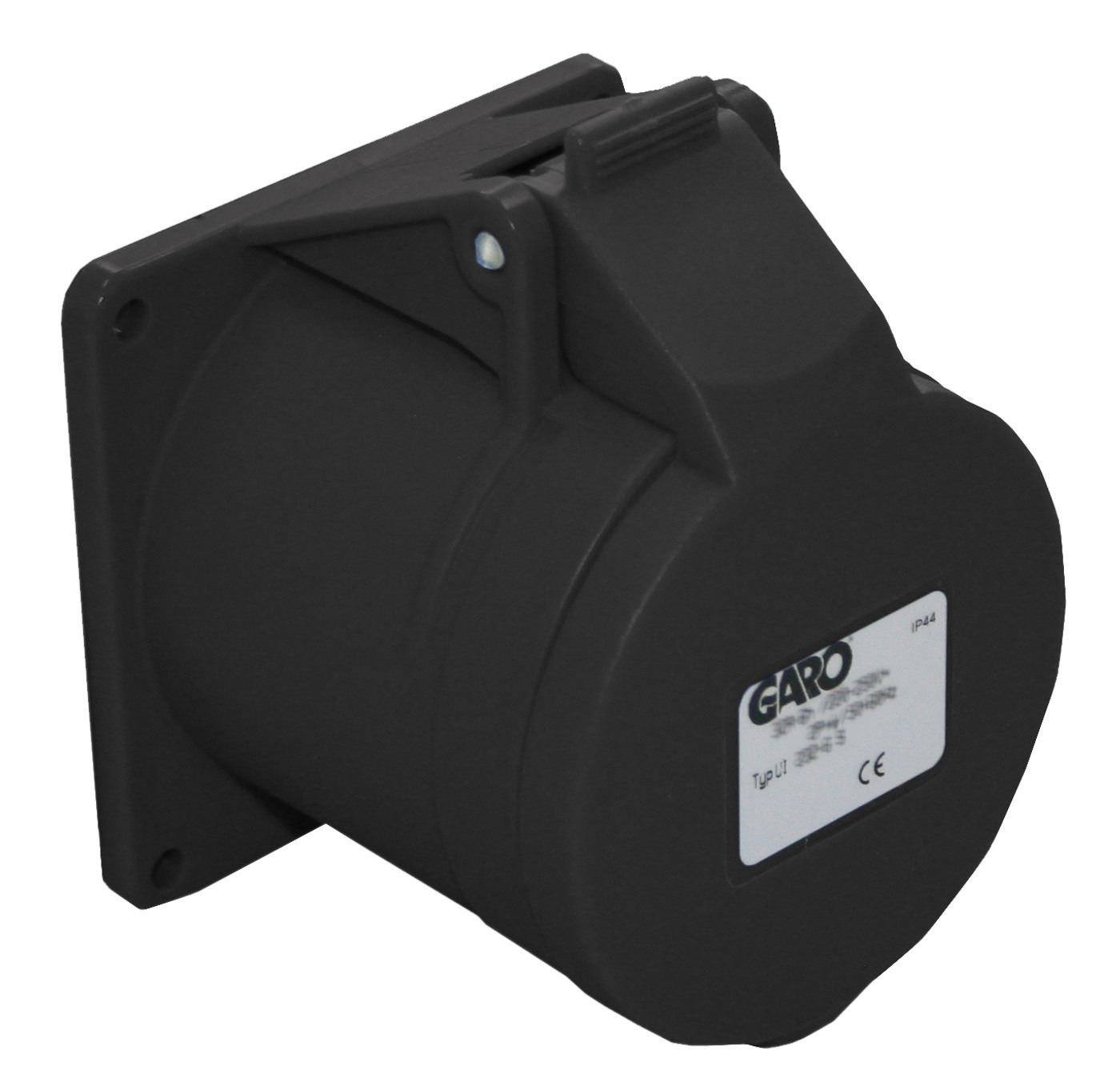

SOCKET STRAIGHT TT 5P 32A 4h

Flanged sockets Quick with straight mounting plate 32A IP44

Quick, our screwless range with snap-in connections that require no tools, just a simple push of the thumb. Socket 32A for recess mounting with straight mounting plate. Supplied including seal. Socket straight with quick connection 5-poles 32A 5h
E-number
2425563
Article number
2425563
Support
Rated current [A] 32
Degree of protection [IP] 44
Wire flexible [mm²] 2,5-6
Standard Class 1 EN 60044-8
Package size [pcs] 10
Width [mm] 75
Height [mm] 75
Depth [mm] 90
Materials Plastic
Location Recessed
Function Quick
Wire solid [mm²] 2,5-10
Name SOCKET STRAIGHT TT 5P 32A 4h
E-number 2425563
Article number 2425563
Type designation UI 432-5 Q
No.of Poles [pcs] 5/3PN+E
Rated voltage [V AC] 600-690
Frequency [Hz] 50/60
Colour Black
Netweight [kg] 0.20
Position of earth [h] 5

More variants of Flanged sockets Quick with straight mounting plate 32A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Netweight [kg] Position of earth [h]
SOCKET STRAIGHT TT 3P 32A 2h 2425547 2425547 UI 232-2 Q 3/2P+E >50 >300-500 Green 0.15 2
SOCKET STRAIGHT TT 3P 32A 4h 2425548 2425548 UI 232-4 Q 3/2P+E 100-130 50/60 Yellow 0.15 4
SOCKET STRAIGHT TT 3P 32A 6h 2425549 2425549 UI 232-6 Q 3/2P+E 200-250 50/60 Blue 0.15 6
SOCKET STRAIGHT TT 3P 32A 9h 2425550 2425550 UI 232-9 Q 3/2P+E 380-415 50/60 Red 0.15 9
SOCKET STRAIGHT TT 3P 32A 12h 2425551 2425551 UI 232-12 Q 3/2P+E Matning fr.isolertransf. 50/60 Grey 0.15 12
SOCKET STRAIGHT TT 4P 32A 2h 2425552 2425552 UI 332-2 Q 4/3P+E >50 >300-500 Green 0.17 2
SOCKET STRAIGHT TT 4P 32A 3h 2425553 2425553 UI 332-3 Q 4/3P+E 380-440 50/60 Red 0.17 3
SOCKET STRAIGHT TT 4P 32A 4h 2425554 2425554 UI 332-4 Q 4/3P+E 100-130 50/60 Yellow 0.17 4
SOCKET STRAIGHT TT 4P 32A 6h 2425555 2425555 UI 332-6 Q 4/3P+E 400 50/60 Röd/Red 0.17 6
SOCKET STRAIGHT TT 4P 32A 7h 2425556 2425556 UI 332-7 Q 4/3P+E 480-500 50/60 Black 0.17 7
SOCKET STRAIGHT TT 4P 32A 9h 2425557 2425557 UI 332-9 Q 4/3P+E 230 50/60 Blue 0.17 9
SOCKET STRAIGHT TT 4P 32A 10h 2425558 2425558 UI 332-10 Q 4/3P+E >50 100-300 Green 0.17 10
SOCKET STRAIGHT TT 4P 32A 11h 2425559 2425559 UI 332-11 Q 4/3P+E 440-460 60 Red 0.17 11
SOCKET STRAIGHT TT 5P 32A 2h 2425560 2425560 UI 432-2 Q 5/3PN+E >50 >300-500 Green 0.20 2
SOCKET STRAIGHT TT 5P 32A 3h 2425561 2425561 UI 432-3 Q 5/3PN+E 380-440 50/60 Red 0.20 3
SOCKET STRAIGHT TT 5P 32A 4h 2425562 2425562 UI 432-4 Q 5/3PN+E 100-130 50/60 Yellow 0.20 4
SOCKET STRAIGHT TT 5P 32A 4h 2425563 2425563 UI 432-5 Q 5/3PN+E 600-690 50/60 Black 0.20 5
SOCKET STRAIGHT TT 5P 32A 6h 2425564 2425564 UI 432-6 Q 5/3PN+E 230/400 50/60 Red 0.20 6
SOCKET STRAIGHT TT 5P 32A 7h 2425565 2425565 UI 432-7 Q 5/3PN+E 480-500 50/60 Black 0.20 7
SOCKET STRAIGHT TT 5P 32A 9h 2425566 2425566 UI 432-9 Q 5/3PN+E 208-250 50/60 Blue 0.20 9
SOCKET STRAIGHT TT 5P 32A 11h 2425567 2425567 UI 432-11 Q 5/3PN+E 440-460 60 Red 0.20 11
