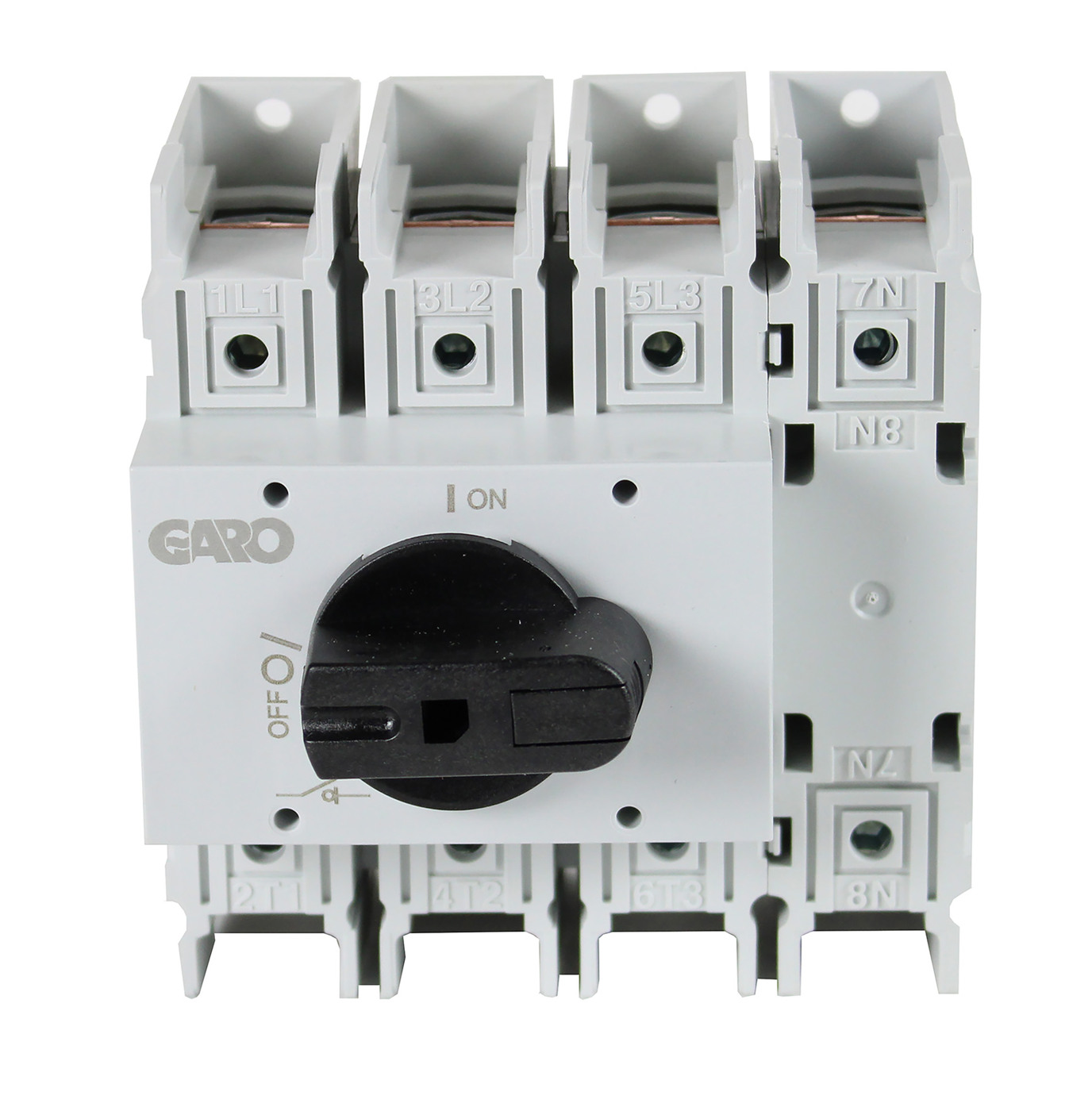

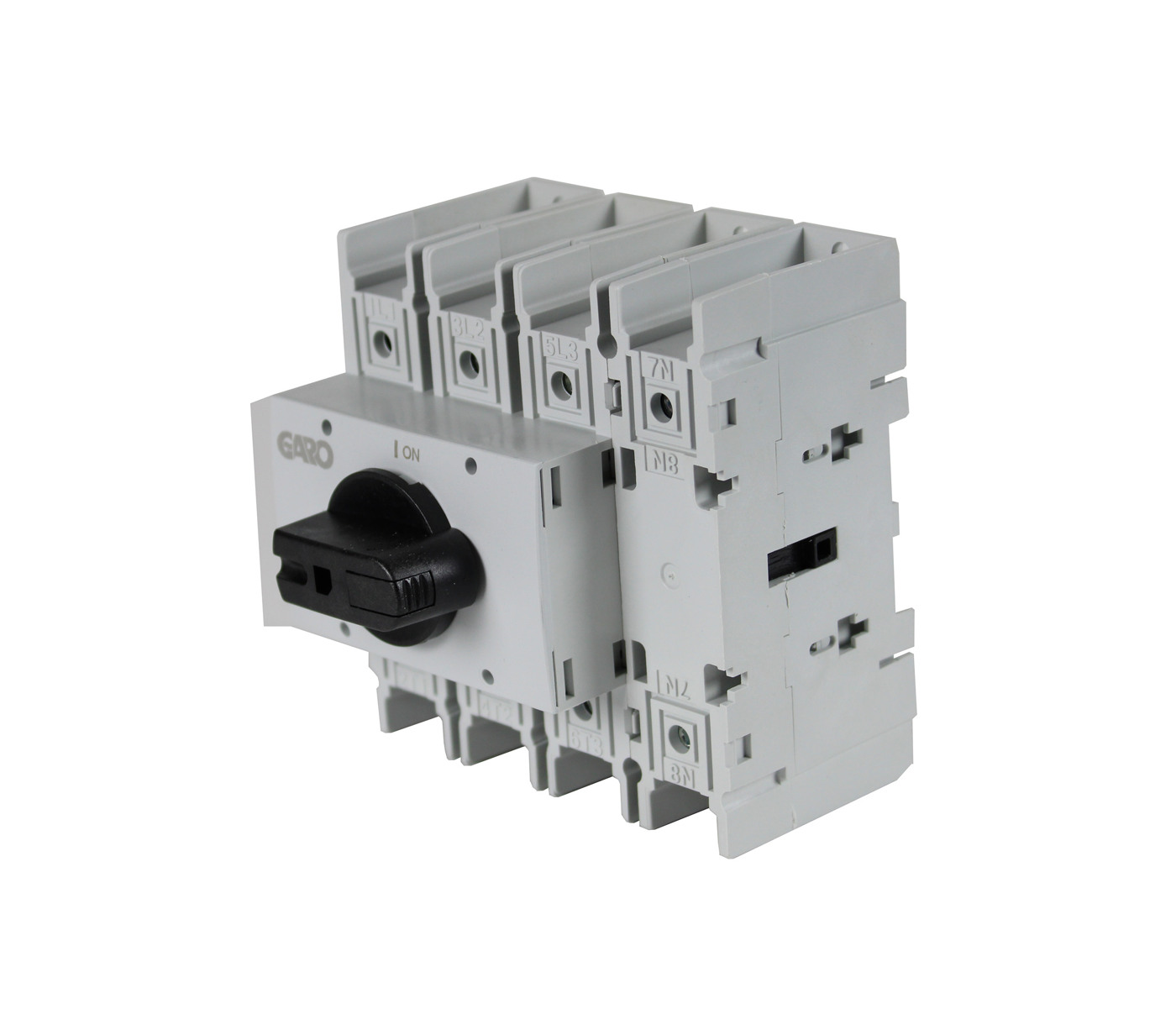

Main switches modular 4-pole

The switches are approved according to the standard SS EN 60947-3. They conform to the requirements as a main switch with isolation properties to be placed in enclosures with miniature circuit breakers. Main switch modular 4-poles 160A
E-number
2142896
Article number
110124
Support
Poles 4
Rated voltage [V AC] 400
Frequency [Hz] 50/60
Degree of protection [IP] 20
Colour Grey
Temperature range [C] -20...+40
Storage temperature [C] -40...+80
Standard EN 60947-3
Package size [pcs] 1
Materials Plastic
Rated short-circuit cap. [kA] 50
Isolation voltage [V] 690
Name MAIN SW MODULAR 4P 160A
E-number 2142896
Article number 110124
Type designation HB 4160
Rated current [A] 160
Rated current AC23 400V [A] 160
Wire flexible [mm²] 6-70
Modules [pcs] 6
Netweight [kg] 0.70
Rated current AC21 400V [A] 160
Rated current AC22 400V [A] 160

More variants of Main switches modular 4-pole

E-number Article number Type designation Rated current [A] Rated current AC23 400V [A] Wire flexible [mm²] Tightening torque [Nm] Modules [pcs] Width [mm] Height [mm] Depth [mm] Netweight [kg] Rated current AC21 400V [A] Rated current AC22 400V [A]
MAIN SW MODULAR 4P 160A 2142896 110124 HB 4160 160 160 6-70 6 0.70 160 160
MAIN SW MODULAR 4P 40A 2142855 2142855 HB 440 40 25 1,5-16 1,8 4 70 60 110 0.23 63 40
MAIN SW MODULAR 4P 80A 2142857 2142857 HB 480 80 63 2,5-35 2,5 4 70 85 70 0.25 100 80
