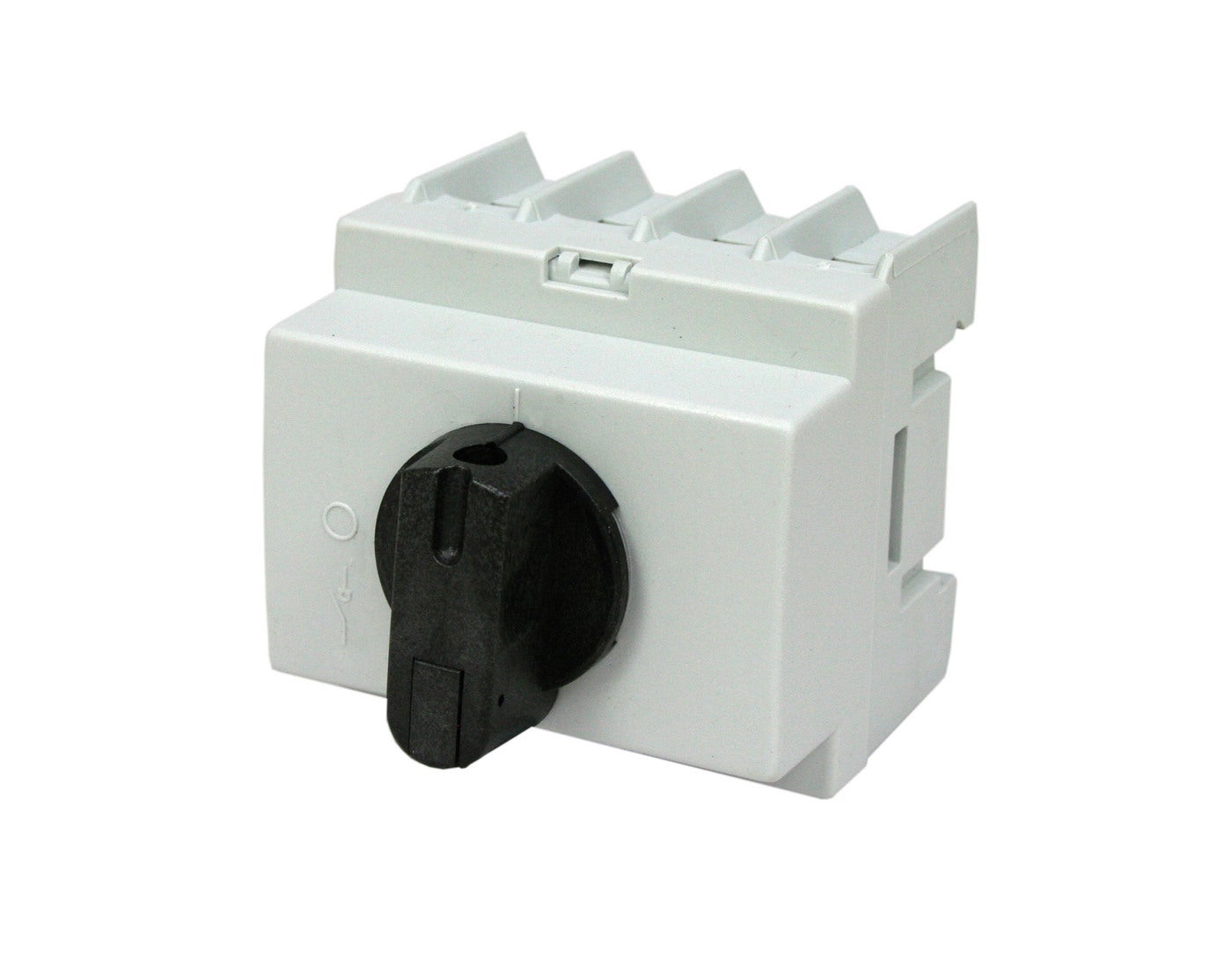

MAIN SWITCH 4P 40A

Main switches 4-poles

The switches are approved according to the standard SS EN 60947-3. They conform to the requirements as a main switch with isolation properties to be placed in enclosures with miniature circuit breakers. Main switch modular 40A 4-pole
E-number
E2142855
Article number
2142855
Support
Standard EN60947-3
Short-circuit current [kA] 50kA
Storage temperature [C] -40C...+80C
Operation Temperature [C] -20C...+40C
Frequency [Hz] 50/60Hz
Color Grey
Rated voltage [V AC] 400V
Number of poles 4
Isolation voltage [V] 690V
Degree of protection [IP] IP20
Name MAIN SWITCH 4P 40A
E-number E2142855
Article number 2142855
Type designation HB 440
Rated current [A] 40A
Number of modules 4
Tightening torque [Nm] 1,8Nm
Wire flexible [mm²] 1,5-16mm²
Rated current AC22 400V [A] 40A
NetProductWeight 0.23
EngineerWidth 70
EngineerHeight 60
EngineerDepth 110
Rated current AC21 400V [A] 63A

More variants of Main switches 4-poles

E-number Article number Type designation Rated current [A] Number of modules Tightening torque [Nm] Wire flexible [mm²] Rated current AC22 400V [A] NetProductWeight EngineerWidth EngineerHeight EngineerDepth Rated current AC21 400V [A]

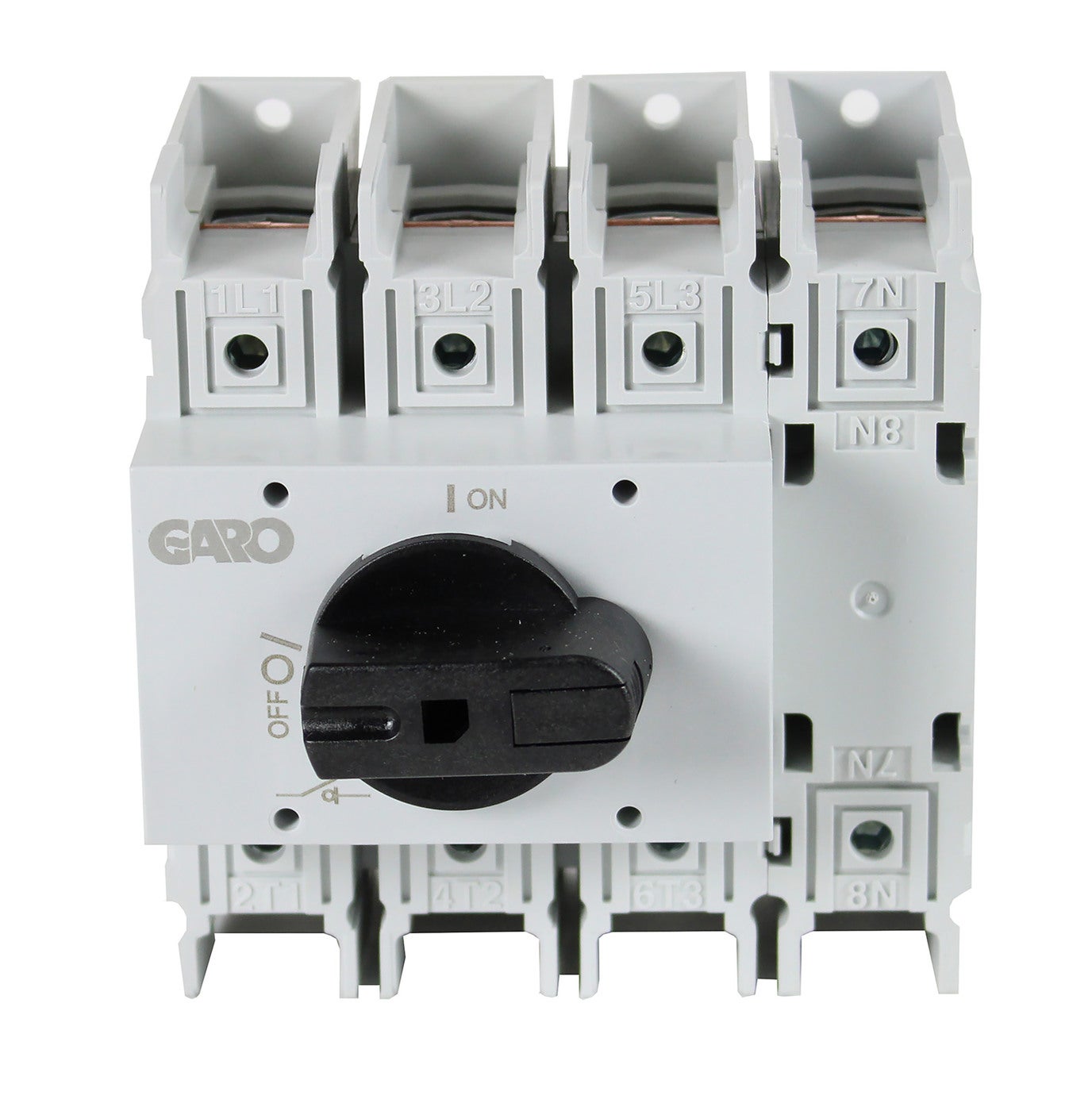

MAIN SWITCH 4P 160A E2142896 110124 HB 4160 160A 6 6-70mm² 160A 0.7 160A
MAIN SWITCH 4P 40A E2142855 2142855 HB 440 40A 4 1,8Nm 1,5-16mm² 40A 0.23 70 60 110 63A
MAIN SWITCH 4P 80A E2142857 2142857 HB 480 80A 4 2,5Nm 2,5-35mm² 80A 0.25 70 85 70 100A
