Main switches 4-poles

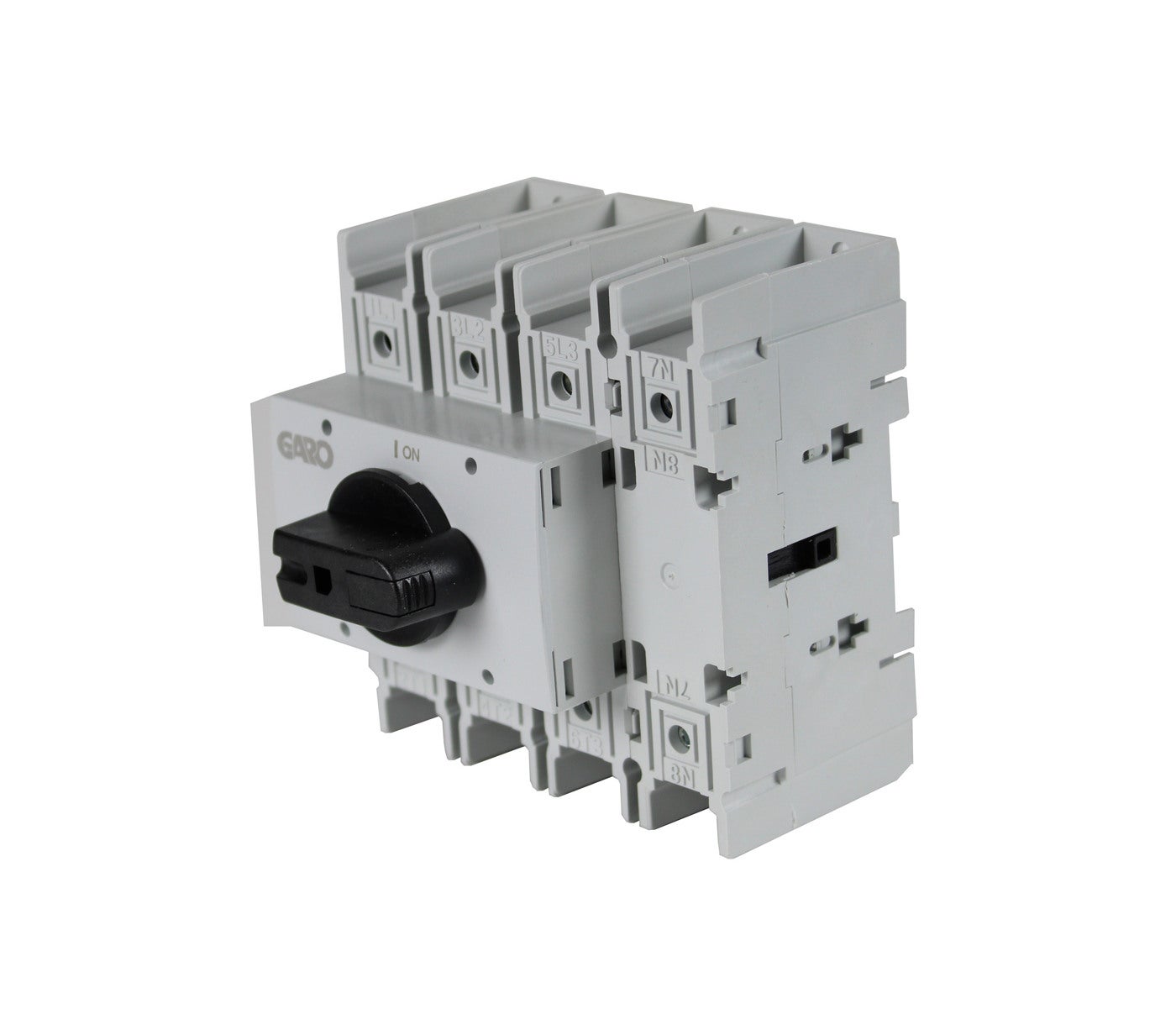

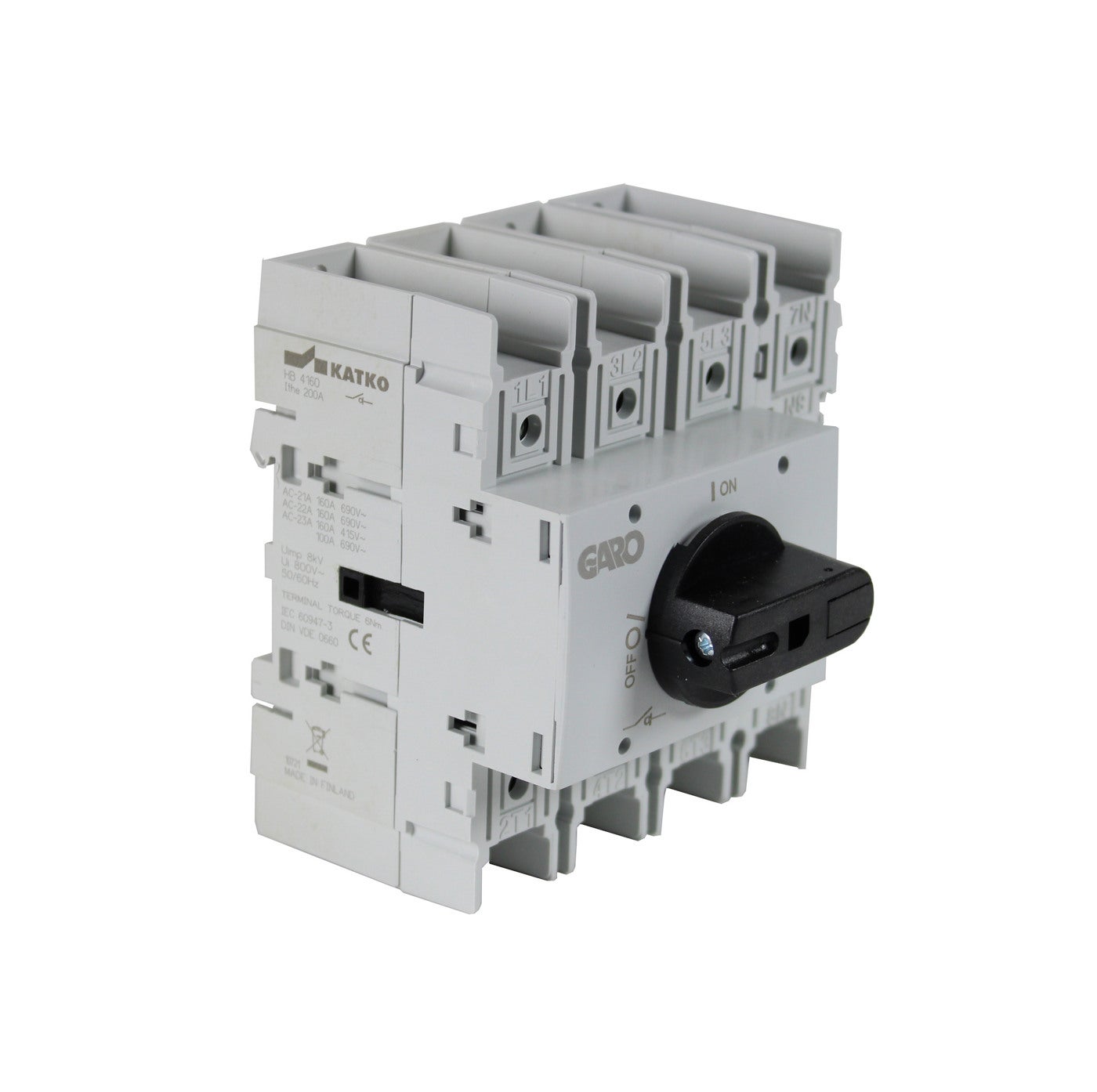

The switches are approved according to the standard SS EN 60947-3. They conform to the requirements as a main switch with isolation properties to be placed in enclosures with miniature circuit breakers. MAIN SWITCH 4P 160A
E-number
E2142896
E2142896
Article number
110124
110124
| Standard | EN60947-3 |
|---|---|
| Short-circuit current [kA] | 50kA |
| Storage temperature [C] | -40C...+80C |
| Operation Temperature [C] | -20C...+40C |
| Frequency [Hz] | 50/60Hz |
| Color | Grey |
| Rated voltage [V AC] | 400V |
| Number of poles | 4 |
| Isolation voltage [V] | 690V |
| Degree of protection [IP] | IP20 |
| Name | MAIN SWITCH 4P 160A |
|---|---|
| E-number | E2142896 |
| Article number | 110124 |
| Type designation | HB 4160 |
| Rated current [A] | 160A |
| Number of modules | 6 |
| Wire flexible [mm²] | 6-70mm² |
| Rated current AC22 400V [A] | 160A |
| NetProductWeight | 0.7 |
| Rated current AC21 400V [A] | 160A |
