Energy meters 1-phase directmeter

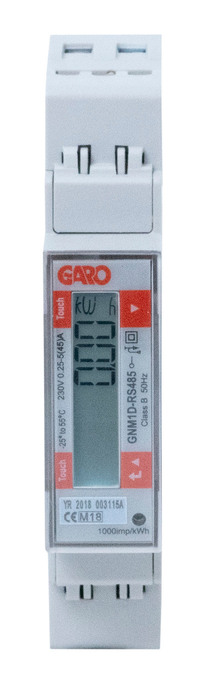

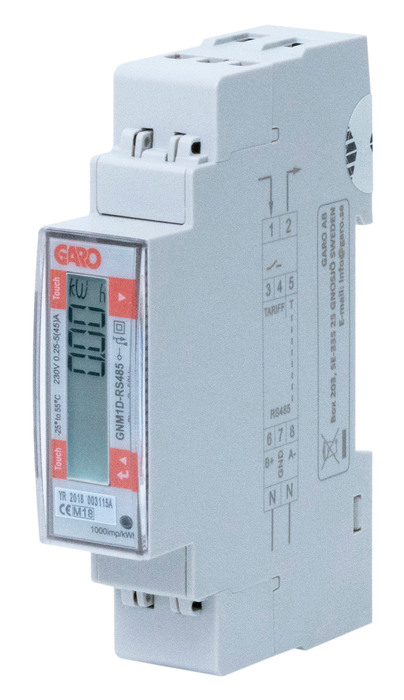

"GNM1D is a series of compact DIN-mounted digital electricity meters for 1-phase loads. The meters measure up to 45A and have a pulse output and modbus output to report power consumption. Reading of power consumption is easy to do on the sharp LCD screen. The meters are billing approved according to MID (MI003)." Energymeter 1-phase Modbus RS485 1 module
E-number
0900132
0900132
Article number
108044
108044
Rated current [A] | 45 |
---|---|
Rated voltage [V AC] | 400 |
Frequency [Hz] | 50/60 |
Degree of protection [IP] | 20 |
Wire flexible [mm²] | 2,5-6 |
Colour | Grey |
Tightening torque [Nm] | 2,8 |
Storage temperature [C] | -5...+55 |
Modules [pcs] | 1 |
Accuracy class | 1 |
Power loss [W] | <1 |
Phases | 1 |
Standard | EN 50470-1 |
Package size [pcs] | 1 |
Width [mm] | 17.80 |
Height [mm] | 91.50 |
Depth [mm] | 62 |
Netweight [kg] | 0.08 |
Materials | Plastic |
Mounting method | DIN-rail |
Name | ENERGYMETER 1PH MODB RS485 1M |
---|---|
E-number | 0900132 |
Article number | 108044 |
Type designation | GNM1D-RS485 |
Temperature range [C] | -25...+55 |
Interface | Modbus RS485 |
