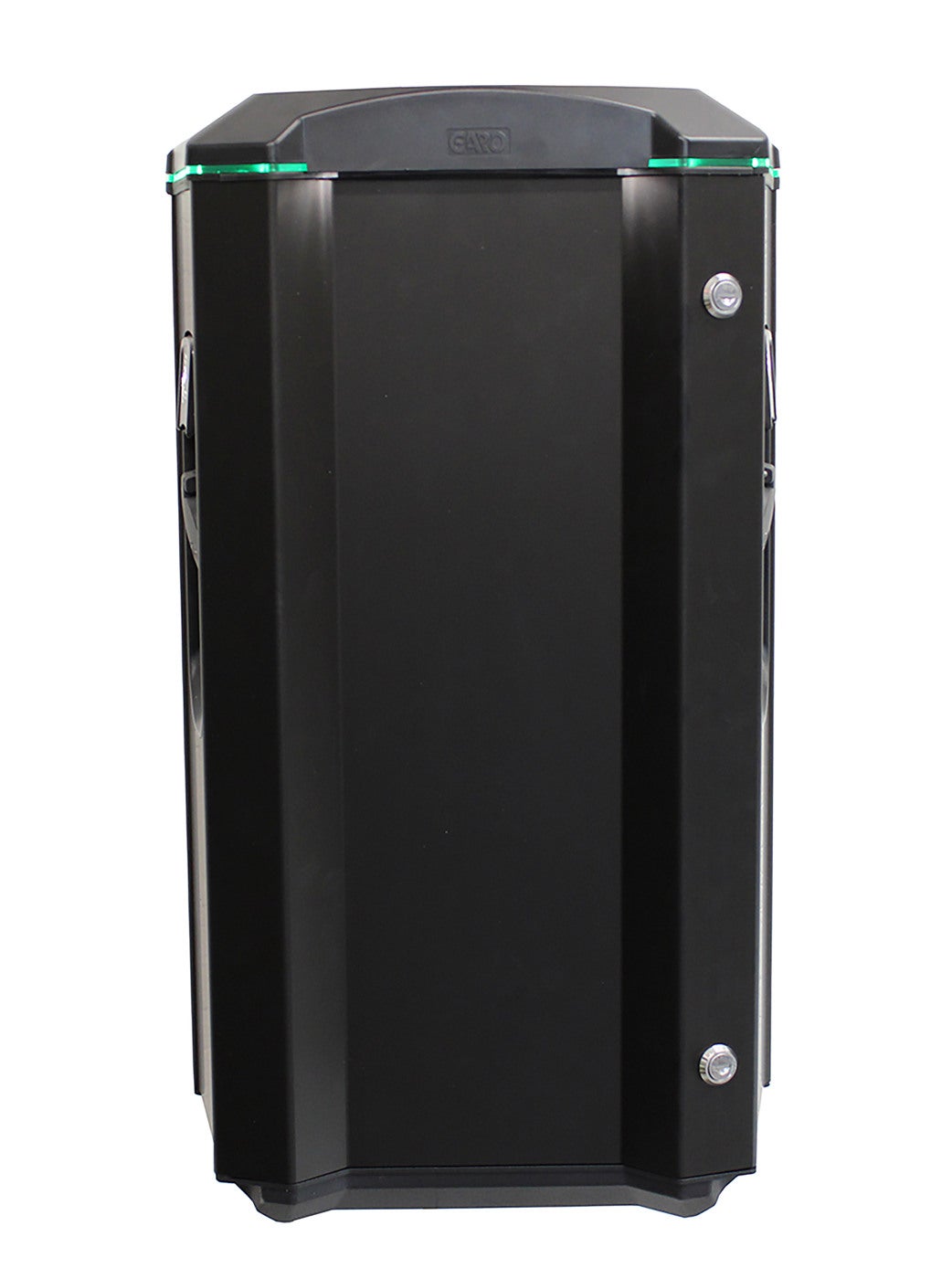

Wallbox with Outlet
Please note that this is a discontinued product. See the document ”Phaseout GLB I GTB” .GAROs wallbox with two charging points, without Wifi. Can be built to the desired system through group formation, based on the master unit with Wifi card to which simpler charging boxes can be connected. Each charging point is protected with DC fault protection and RCBO A according to international standards. Load balancing automatically reduces the vehicle's charging current and minimizes the risk of the main fuse tripp Wallbox 2st EV-outlet 7,4kW DC JFB-A with Mbus meter
| Standard | EN61851-1 IEC 61439-7 AEVCS |
|---|---|
| WIFI | 0 |
| Storage temperature [C] | -40C...+50C |
| Operation Temperature [C] | -25C...+40C |
| Frequency [Hz] | 50/60Hz |
| Housing material | Aluminium |
| Color | Black |
| Rated current [A] | 63A |
| Rated voltage [V AC] | 230/400V AC |
| Mounting method | Wall mounting |
| Modelltype | Twin |
| Energymeter | Yes |
| Phases [PH] | 3PH |
| Length of cable [m] | 0 |
| Lock | Yes |
| AC/DC output 1 | Type 2 Outlet |
| AC/DC output 2 | Type 2 Outlet |
| DC-fault protection | Yes |
| Power per charging point [kW] | 22kW |
| Number of RCCB-A [pcs] | Yes |
| Degree of protection [IP] | IP44 |
| Impact strength [IK] | IK10 |
| NetProductWeight | 14 |
| EngineerWidth | 277 |
| EngineerHeight | 660 |
| EngineerDepth | 213 |
| Name | WALLBOX T2EV 7,4kW MBUS A |
|---|---|
| E-number | E2701330 |
| Article number | 354675 |
| Type designation | GTB-DCMB-T274WO-A |
