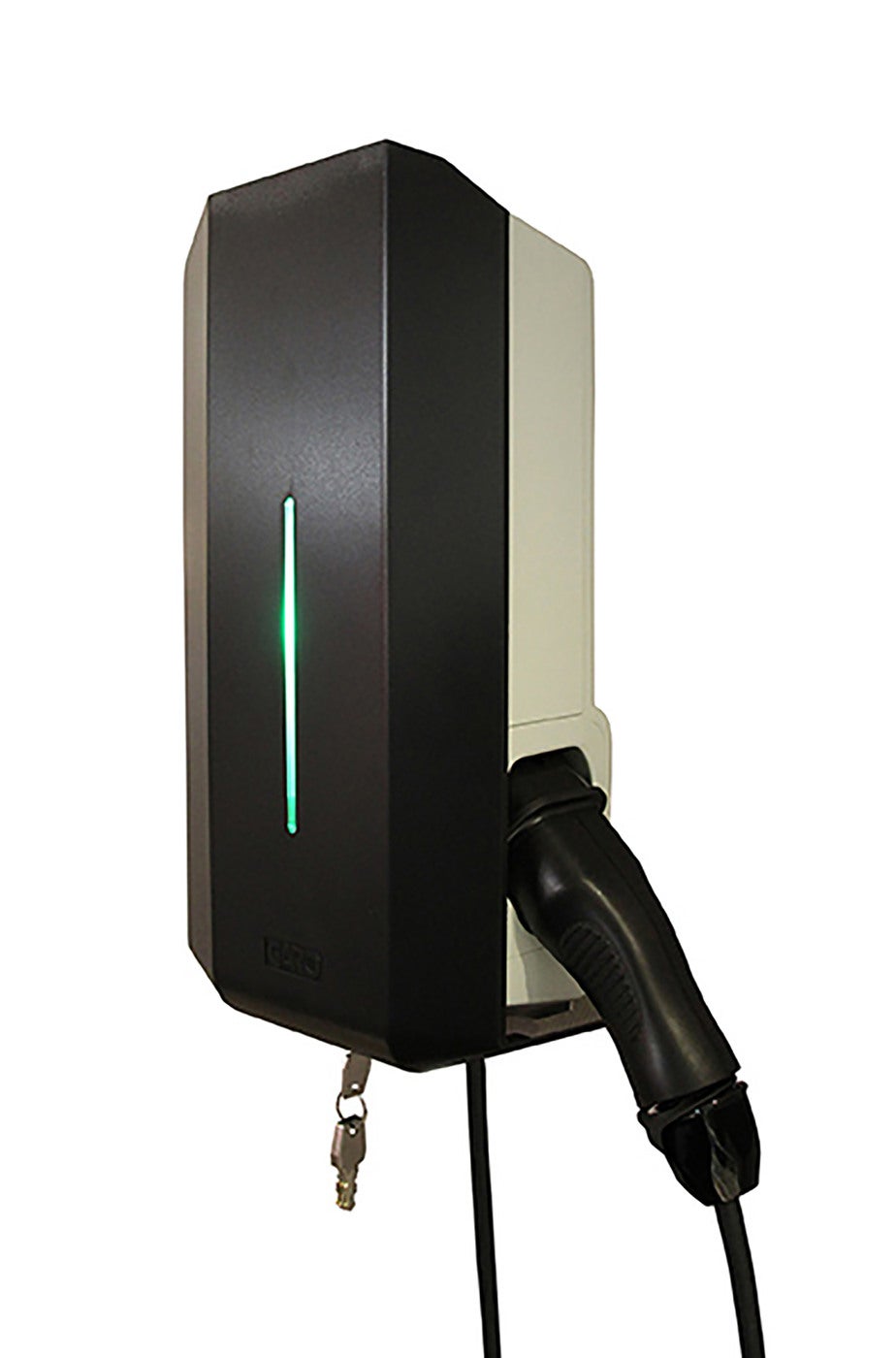

  • WALLBOX T2FC 22kW RCCB-A DC - 2

Wallbox with fixed cable GLB

Please note that this is a discontinued product. See the document ”Phaseout GLB I GTB”. Modular wallboxes that can be built to the desired system through group formation, based on a master unit with WiFi-module that simpler wallboxes can be connected. Protected against DC fault currents and prepared with dynamic load balancing in several levels. Always equipped with DC protection according to international standards. Load balancing automatically reduces the vehicle's charging current and minimizes the risk Wallbox type2 fixed cable 22kW with RCCB A and DC monitoring.
E-number
E2449136§
Article number
353408
Support
Materials Plastic
Standard EN61851-1 IEC 61439-7 AEVCS
Frequency [Hz] 50Hz
Color Black
Mounting method Wall mounting
Length of cable [m] 4,5m
Lock Yes
Degree of protection [IP] IP44
Impact strength [IK] IK08
EngineerWidth 205
EngineerHeight 422
EngineerDepth 124
Name WALLBOX T2FC 22kW RCCB-A DC
E-number E2449136§
Article number 353408
Type designation GLB-DC-T222FC-A
Rated current [A] 32A
Rated voltage [V AC] 400V AC
Energymeter No
Phases [PH] 3PH
AC/DC output 1 Type 2 Cable Straight
DC-fault protection Yes
RCCB Type A
Charging current [A] 6, 10, 13, 16, 20, 25, 32
Power [kW] 22kW
RCBO No
NetProductWeight 5.8

More variants of Wallbox with fixed cable GLB

E-number Article number Type designation Rated current [A] Rated voltage [V AC] Energymeter Phases [PH] AC/DC output 1 DC-fault protection RCCB Charging current [A] Power [kW] RCBO NetProductWeight
WALLB T2FC 3,7kW RCBO-A DC MM E2449134 353405 GLB-DCM-T237FC-A 16A 230V AC Built-in meter 1PH Type 2 Cable Straight Yes No 6, 10, 13, 16 3,7kW Yes 5.8
WALLBOX T2FC 22kW RCCB-A DC E2449136§ 353408 GLB-DC-T222FC-A 32A 400V AC No 3PH Type 2 Cable Straight Yes Type A 6, 10, 13, 16, 20, 25, 32 22kW No 5.8
WALLBOX T2FC 22kW DC MM E2449137 353409 GLB-DCM-T222FC 32A 400V AC Built-in meter 3PH Type 2 Outlet No No 6, 10, 13, 16, 20, 25, 32 22kW No 6
