Main distribution module devices for measurement 160A

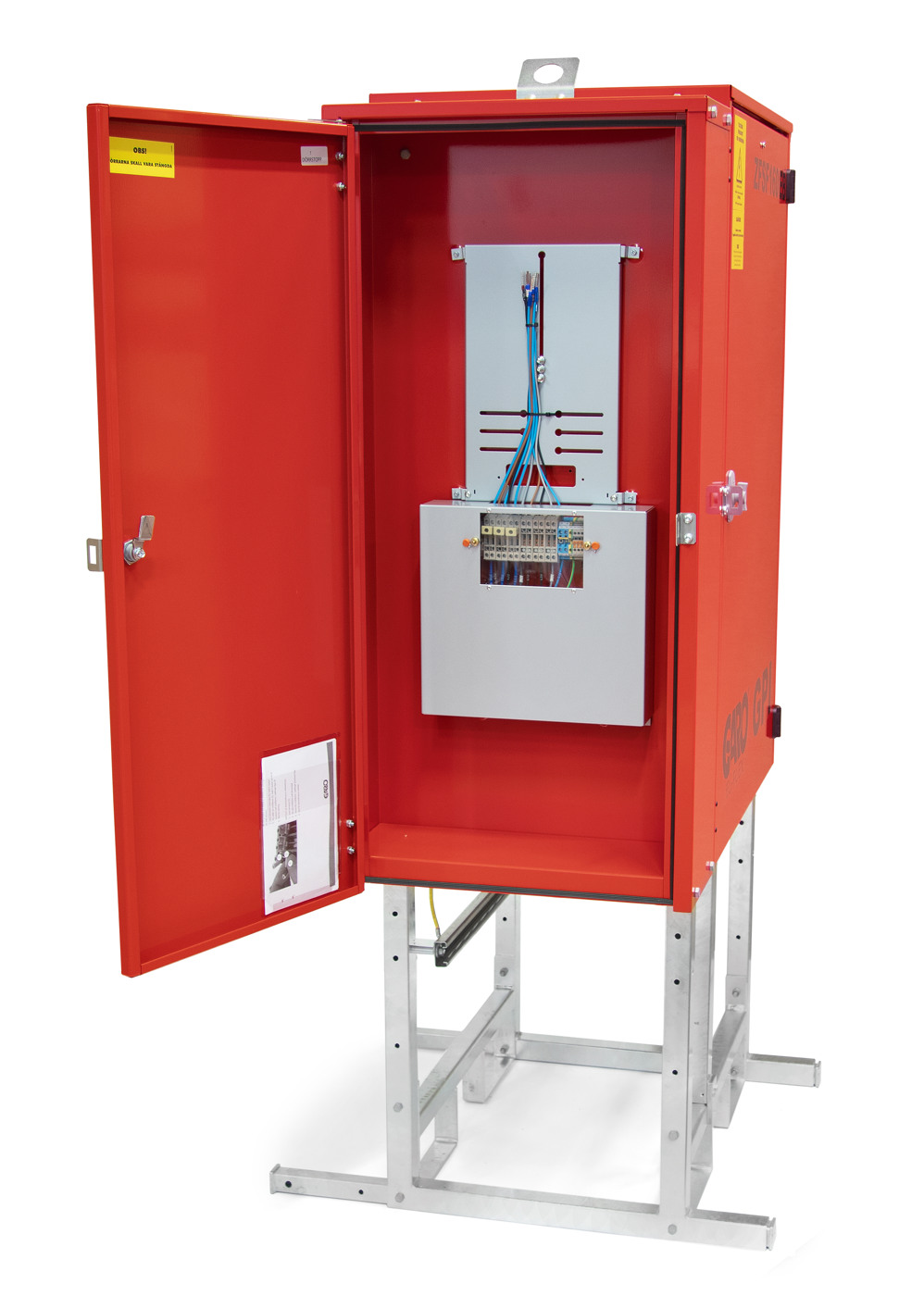

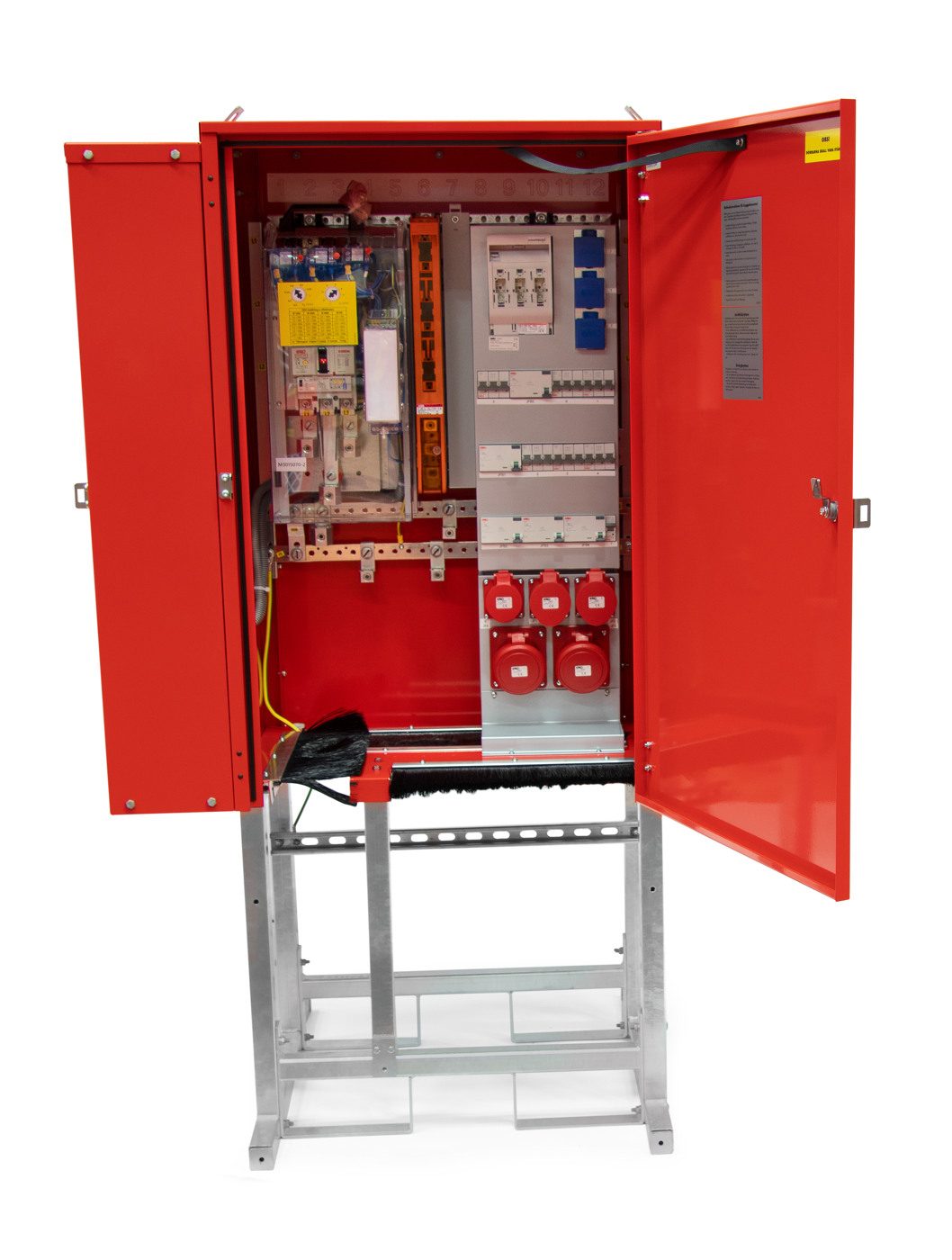

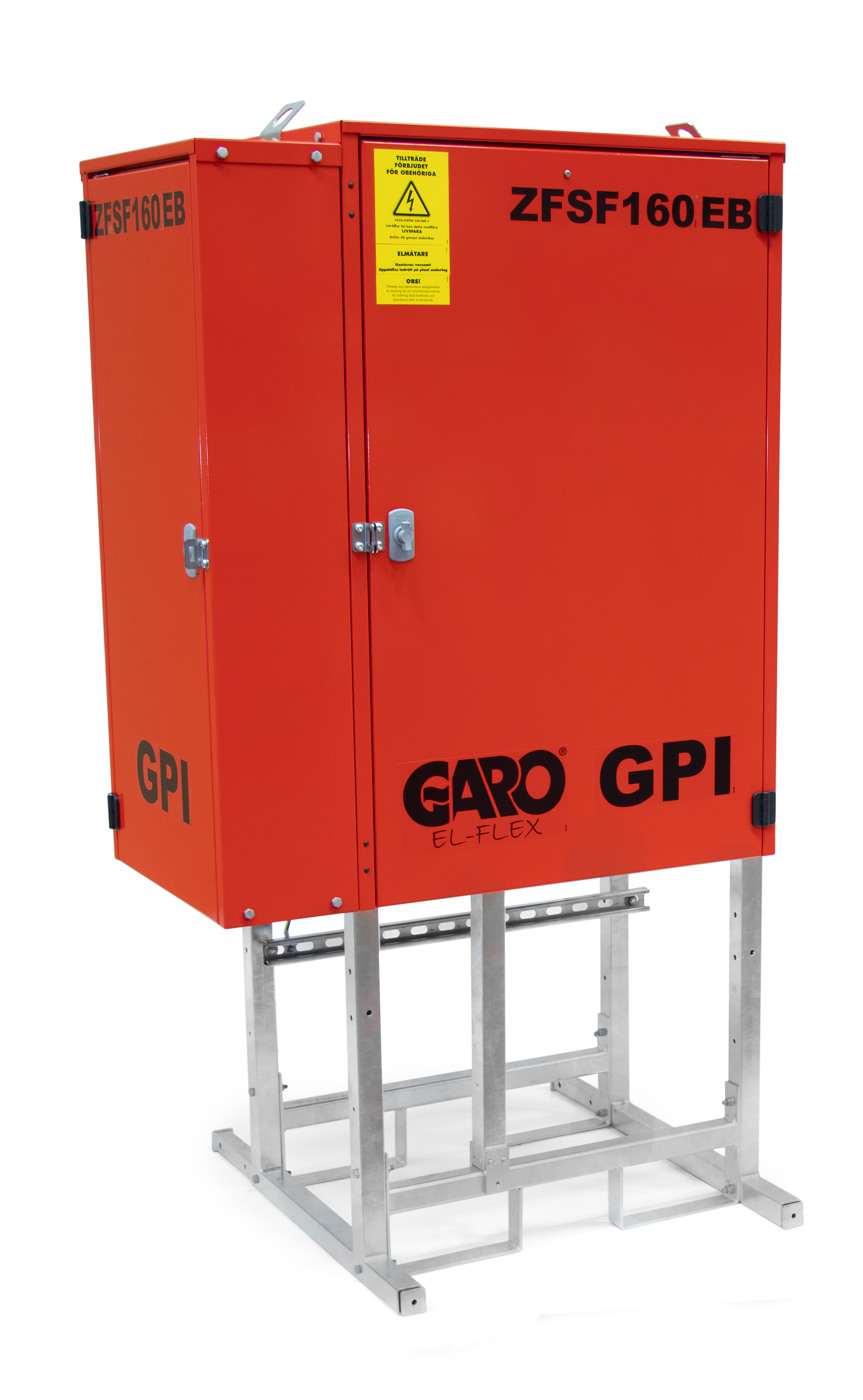

Main distribution assembly 160A (HC160) built in the GPI system. This distribution assembly is normally used for the construction of terraced houses, apartment construction, events, etc. The distribution assembly is equipped with sockets 13-63A which are preceded by residual current devices and miniature circuit breakers. This model is also equipped with outputs for onward feed of the earth cable (Type AKKJ) 16-95 mm². The distribution assembly is equipped with a hot-dip galvanized stand and lockable doors. Main distribution assembly 160A GPI/EB/1xSLK160 2x63 2x32 1x16 3x13.
| Type designation | ZFSF 160 GPI/EB/01/22103 |
|---|---|
| Standard | EN61439-4 |
| Frequency [Hz] | 50Hz |
| Housing material | Sheet steel |
| Color | Red |
| Rated current [A] | 160A |
| Rated voltage [V AC] | 400V AC |
| CEE socket outlet 16A | 1pcs 5P 16A 230/400V |
| Number of MCB 1P (1) | 1pcs C316 |
| Number of MCB 1P (2) | 2pcs C363 |
| Number of MCB 3P (1) | 1pcs C316 |
| Number of MCB 3P (2) | 3pcs C332 |
| Number of Schuko[pcs] | 3pcs |
| Number of RCCB [pcs] 1 | 3pcs 4P 40A |
| CEE socket outlet 32A | 2pcs 5P 32A 230/400V |
| CEE socket outlet 63A | 2pcs 5P 63A 230/400V |
| Number of RCCB [pcs] 2 | 2pcs 4P 63A 300mA |
| Space for meters [pcs] | 1 |
| Degree of protection [IP] | IP44 |
| NetProductWeight | 169 |
| EngineerWidth | 905 |
| EngineerHeight | 1662 |
| EngineerDepth | 506 |
| Name | TEMP POWER MET UNIT 160A GPI/EB |
|---|---|
| E-number | E2469124 |
| Article number | 353727 |
