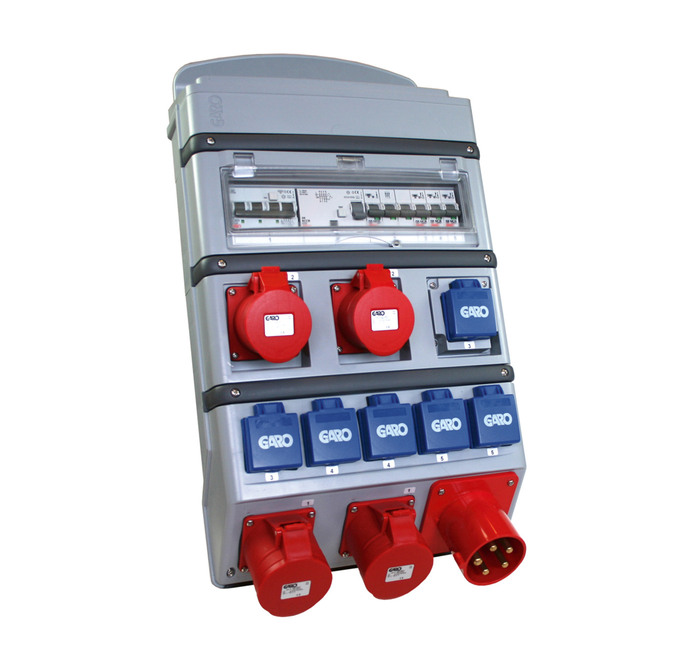

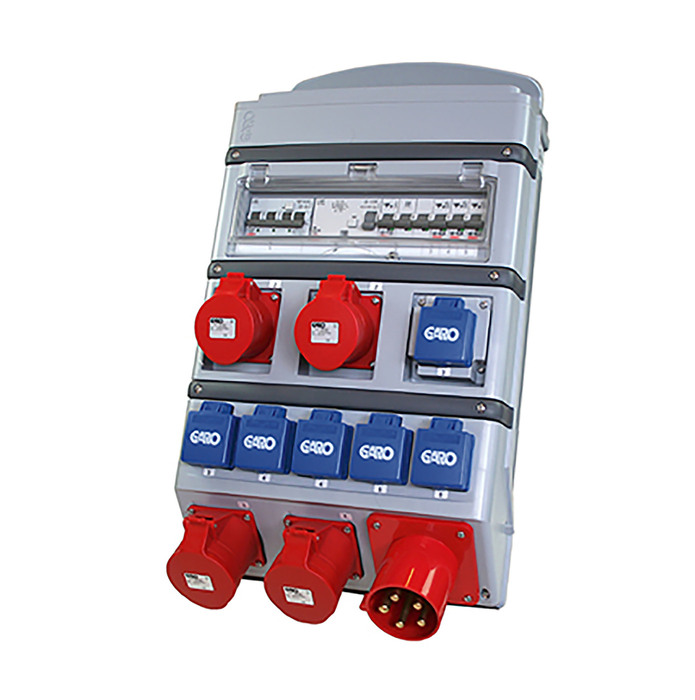

Portable outlet box 63A

Portable electricity cases/distribution boards 63A with different equipping options. Portable cases 63A RCCB 10xschuko 1x16A outlet 1x32A outlet
E-number
2469009
Article number
2469009
Support
Materials Plastic
Colour Grey
Rated current [A] 63
Frequency [Hz] 50
Width [mm] 330
Depth [mm] 120
Flanged plug 1 pcs 63A 3P+N+E 230/400V
Rated voltage [V AC] 230/400
Package size [pcs] 1
Flanged socket outlet 1 pcs 32A 3P+N+E 230/400V
Short-circuit current [kA] 10
MCB 3 pcs C113
Name POWERB 63A RCB 2x32 2x16 6x230
E-number 2469009
Article number 2469009
Type designation U GBN 463-6/00/02206-20
Netweight [kg] 7.50
Height [mm] 512
Flanged socket outlet 1 pcs 32A 3P+N+E 230/400V
RCCB 1 pcs 63A/4P
MCB 2 pcs C316
Schuko [pcs] 6
RCBO 1pcs 32A/4P

More variants of Portable outlet box 63A

E-number Article number Type designation Netweight [kg] Height [mm] Flanged socket outlet RCCB MCB Schuko [pcs] RCBO
POWERB 63A RCB 1x32 1x16 5x230 2469008 2469008 U GBN 463-6/00/01105-20 6 387 1 pcs 32A 3P+N+E 230/400V 1 pcs C316 5 1pcs 32A/4P
POWERB 63A RCB 2x32 2x16 6x230 2469009 2469009 U GBN 463-6/00/02206-20 7.50 512 1 pcs 32A 3P+N+E 230/400V 1 pcs 63A/4P 2 pcs C316 6 1pcs 32A/4P
POWERB 63A RCB 2x32 3x16 5x230 2469010 2469010 U GBN 463-6/00/02305/30 10 637 1 pcs 32A 3P+N+E 230/400V 1 pcs 63A/4P 3 pcs C316 5 2pcs 32A/4P

Accessories for Portable outlet box 63A

Name E-number Article number Type designation Description
RCCB 4P 63A 10kA 30mA RCCB 4P 63A 10kA 30mA 107978 Residual current circuit breaker 4-poles 63A 10kA 30mA GD
RCCB 4P 63A 10kA 300mA RCCB 4P 63A 10kA 300mA 108029 Residual current circuit breaker 4-poles 63A 10kA 300mA GD
111645
OUTLET SCHUKO 10/16A OUTLET SCHUKO 10/16A 1896880 1896880 UIF 10/16 Outlet schuko 10/16A
MCB GS C-KAR 10A 10kA 1P MCB GS C-KAR 10A 10kA 1P 2142706 2142706 MCB GS C110 MCB GS C-Characteristic 10A 10kA 1-pole
MCB GS C-KAR 13A 10kA1P MCB GS C-KAR 13A 10kA1P 2142707 2142707 MCB GS C113 MCB GS C-Characteristic 13A 10kA 1-pole
MCB GS C-KAR 16A 10kA 3P MCB GS C-KAR 16A 10kA 3P 2142753 2142753 MCB GS C316 MCB GS C-Characteristic 16A 10kA 3-pole
RCCB GS 40A 4P 30mA RCCB GS 40A 4P 30mA 2163209 RCCB GS 40A 30mA 4P RCCB type GS 40A 4-pole 30mA
SOCKET STRAIGHT 5P 16A 6h SOCKET STRAIGHT 5P 16A 6h 2424909 2424909 UI 416-6 S Socket straight basic 5-poles 16A 6h
SOCKET STRAIGHT 5P 32A 6h SOCKET STRAIGHT 5P 32A 6h 2424930 2424930 UI 432-6 S Socket straight basic 5-poles 32A 6h
INLET STRAIGHT 5P 16A 6h INLET STRAIGHT 5P 16A 6h 2425298 2425298 II 416-6 S Inlet straight basic 5-poles 16A 6h
INLET STRAIGHT 5P 32A 6h INLET STRAIGHT 5P 32A 6h 2425319 2425319 II 432-6 S Inlet straight basic 5-poles 32A 6h
STAND FOR POWERBOX UGBL STAND FOR POWERBOX UGBL 2469030 UGBLS Stands for portable power case and Gbox
STANDS LOCKABLE STANDS LOCKABLE 2469035 2469035 LBS 16-63 Stands lockable for portable boxes 16-32
FUSE COVER COMPL 351763 Complete fuse cover for 16- and 32A electrical bags.
STAND FOR POWERBOX UGBL/GBOX STAND FOR POWERBOX UGBL/GBOX 2466382 352053 S-UNI Portable stand for outletbox UGBL, G-Box
EXT CABLE 230-25H H07 25M 3G1,5 EXT CABLE 230-25H H07 25M 3G1,5 2403608 352077 SKARVK-230-25H Extension cable 230 H07 3G1,5 25meter
EXT CABLE 16A H07 5G2,5 25M EXT CABLE 16A H07 5G2,5 25M 2403609 352095 SKARVK-416-25H Extension cable 16A H07RN-F 5G2,5 25meter
EXT CABLE 32A H07 5G6 25M EXT CABLE 32A H07 5G6 25M 352096 Extension cable 32A H07RN-F 5G6 25meter
EXT CABLE 63A H07 5G16 25M EXT CABLE 63A H07 5G16 25M 352097 Extension cable 63A H07RN-F 5G16 25meter
ADAPTER 400V 16A->32A W CABLE ADAPTER 400V 16A->32A W CABLE 2417720 352426 KBAD416-6/432-6 Adapter 416-6->432-6 400V with cable
MOUNTINGPLATE CONTAINER BOX MOUNTINGPLATE CONTAINER BOX 2466338 80773 MP CONT Mounting plater for container box centrals fits E24 690 00 and E24 690 01
