Portable outlet boxes standard 63A

Bärbara elväskor/undercentraler för olika ändamål, såsom fördelning med olika antal uttag, med effektmätare, för containers, för belysningsstyrning, för betonghärdning etc Portable cases 63A RCCB 5xschuko 1x16A outlet 1x32A outlet

E-number
E2469008

Article number
2469008

Support

Materials	Plastic
Standard	EN61439-3
Short-circuit current [kA]	10kA
Frequency [Hz]	50Hz
Color	Grey
Rated current [A]	63A
Rated voltage [V AC]	230/400V AC
Energymeter	No
CEE socket inlet 63A	1pcs 5P 63A 230/400V
Degree of protection [IP]	IP44

Name	POWERB 63A RCB 1x32 1x16 5x230
E-number	E2469008
Article number	2469008
Type designation	U GBN 463-6/00/01105-20
CEE socket outlet 16A	1pcs 5P 16A 230/400V
Number of MCB 1P (1)	3pcs C113
Number of MCB 3P (1)	1pcs C316
Number of Schuko[pcs]	5pcs
CEE socket outlet 32A	1pcs 5P 32A 230/400V

More variants of Portable outlet boxes standard 63A

E-number	Article number	Type designation	CEE socket outlet 16A	Number of MCB 1P (1)	Number of MCB 3P (1)	Number of Schuko[pcs]	Number of RCCB [pcs] 1	CEE socket outlet 32A	Number of RCBO [pcs]
E2469008	2469008	U GBN 463-6/00/01105-20	1pcs 5P 16A 230/400V	3pcs C113	1pcs C316	5pcs		1pcs 5P 32A 230/400V
E2469009	2469009	U GBN 463-6/00/02206-20	2pcs 5P 16A 230/400V	3pcs C113	2pcs C316	6pcs	1pcs 4P 63A	2pcs 5P 32A 230/400V	1pcs C4P 32A
E2469010	2469010	U GBN 463-6/00/02305/30	3pcs 5P 16A 230/400V	3pcs C113	3pcs C316	5pcs	1pcs 4P 63A	1pcs 5P 32A 230/400V	2pcs C3P 32A
E2466535	354016	U GBN 463-6/00/02000-10 J			2pcs C332	0	Type B	2pcs 5P 32A 230/400V

Accessories for Portable outlet boxes standard 63A

Name	E-number	Article number	Type designation	Description
RCCB 4P 63A 10kA 30mA		107978		Residual current circuit breaker 4-poles 63A 10kA 30mA GD
RCCB 4P 63A 10kA 300mA		108029		Residual current circuit breaker 4-poles 63A 10kA 300mA GD
OUTLET SCHUKO 10/16A	E1896880	1896880	UIF 10/16	Outlet schuko 10/16A
MCB C 1P 10A 10kA GS	E2142706	2142706	MCB GS C110	Miniature cirucit breaker C-characteristic 1-pole 10A 10kA GS
MCB C 1P 13A 10kA GS	E2142707	2142707	MCB C113	MCB GS C-Characteristic 13A 10kA 1-pole
MCB C 3P 16A 10kA GS	E2142753	2142753	MCB C316	Miniature circuit breaker (MCB) C-Characteristic 3-pole 16A 10kA GS
RCCB GS 40A 4P 30mA		2163209		RCCB type GS 40A 4-pole 30mA
SOCKET STRAIGHT 5P 16A 6h	E2424909	2424909	UI 416-6 S	Socket straight basic 5-poles 16A 6h
SOCKET STRAIGHT 5P 32A 6h	E2424930	2424930	UI 432-6 S	Socket straight basic 5-poles 32A 6h
INLET STRAIGHT 5P 16A 6h	E2425298	2425298	II 416-6 S	Inlet straight basic 5-poles 16A 6h
INLET STRAIGHT 5P 32A 6h	E2425319	2425319	II 432-6 S	Inlet straight basic 5-poles 32A 6h
STAND FOR POWERBOX UGBL		2469030	UGBLS	Stands for portable power case and Gbox
STANDS LOCKABLE	E2469035	2469035	LBS 16-63	Stands lockable for portable boxes 16-32
FUSE COVER COMPL		351763		Complete fuse cover for 16- and 32A electrical bags.
STAND FOR POWERBOX UGBL/GBOX	E2466382	352053	S-UNI	Portable stand for outletbox UGBL, G-Box
EXTENSIONCABLE 230V 3G1,5 25M	E2403608	352077	SKARVK-230-25H	Extension cable 230V 3G1,5 25meter
EXTENSIONCABLE16A400V5G2,5 25M	E2403609	352095		Extension cable 16A 400V H07RN-F 5G2,5 25meter
EXTENSIONCABLE 32A400V5G6 25M		352096	KBSK32A-5G6-25	Extension cable 32A 400V H07RN-F 5G6 25meter
EXTENSIONCABLE 63A400V5G16 25M		352097	KBSK63A-5G16-25	Extension cable 63A 400V H07RN-F 5G16 25meter

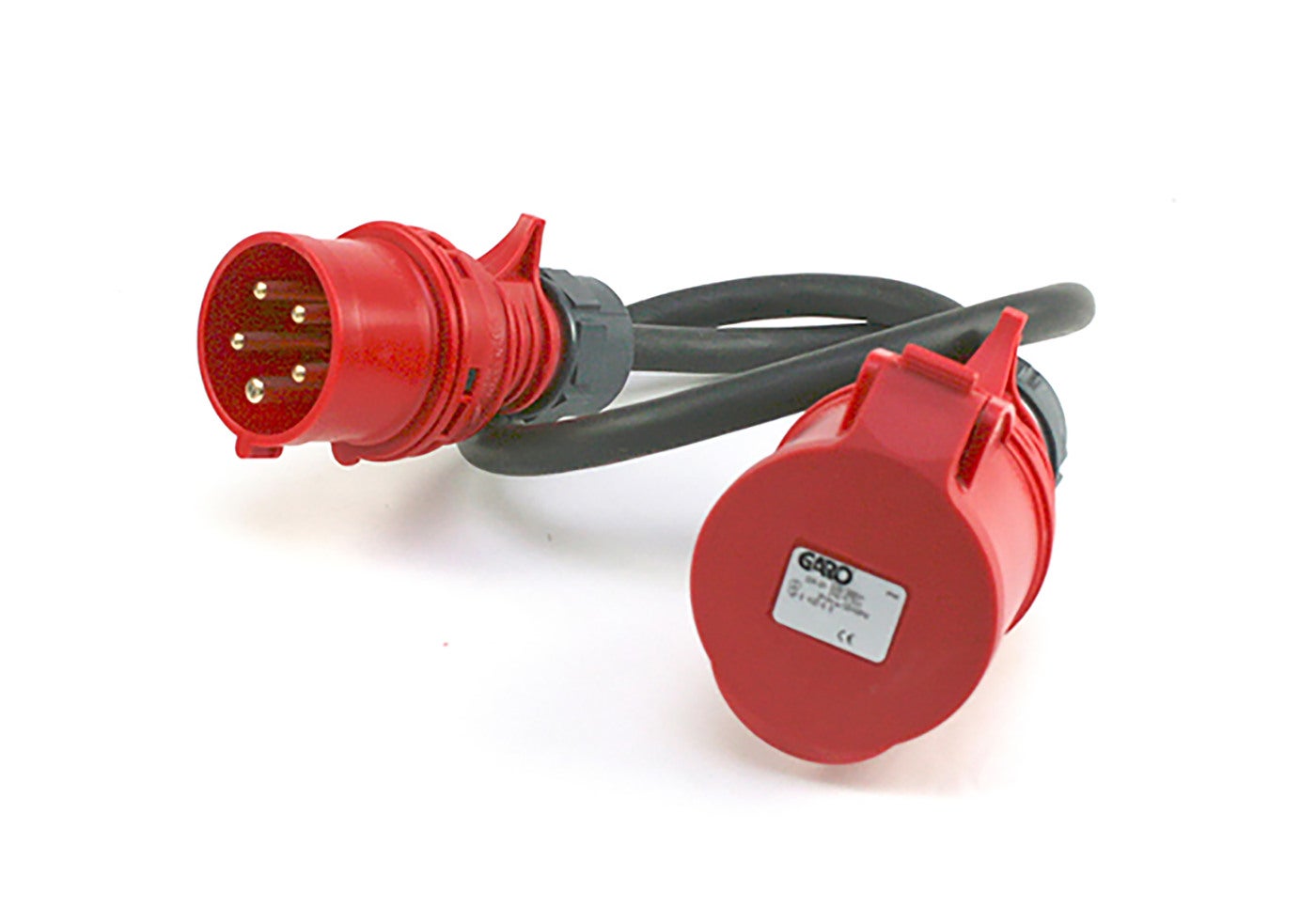

ADAPTER 400V 16A->32A W CABLE	E2417720	352426		Adapter 416-6->432-6 400V with cable
MOUNTINGPLATE CONTAINER BOX	2466338	80773	MP CONT	Mounting plater for container box centrals fits E24 690 00 and E24 690 01
