Junction boxes H133

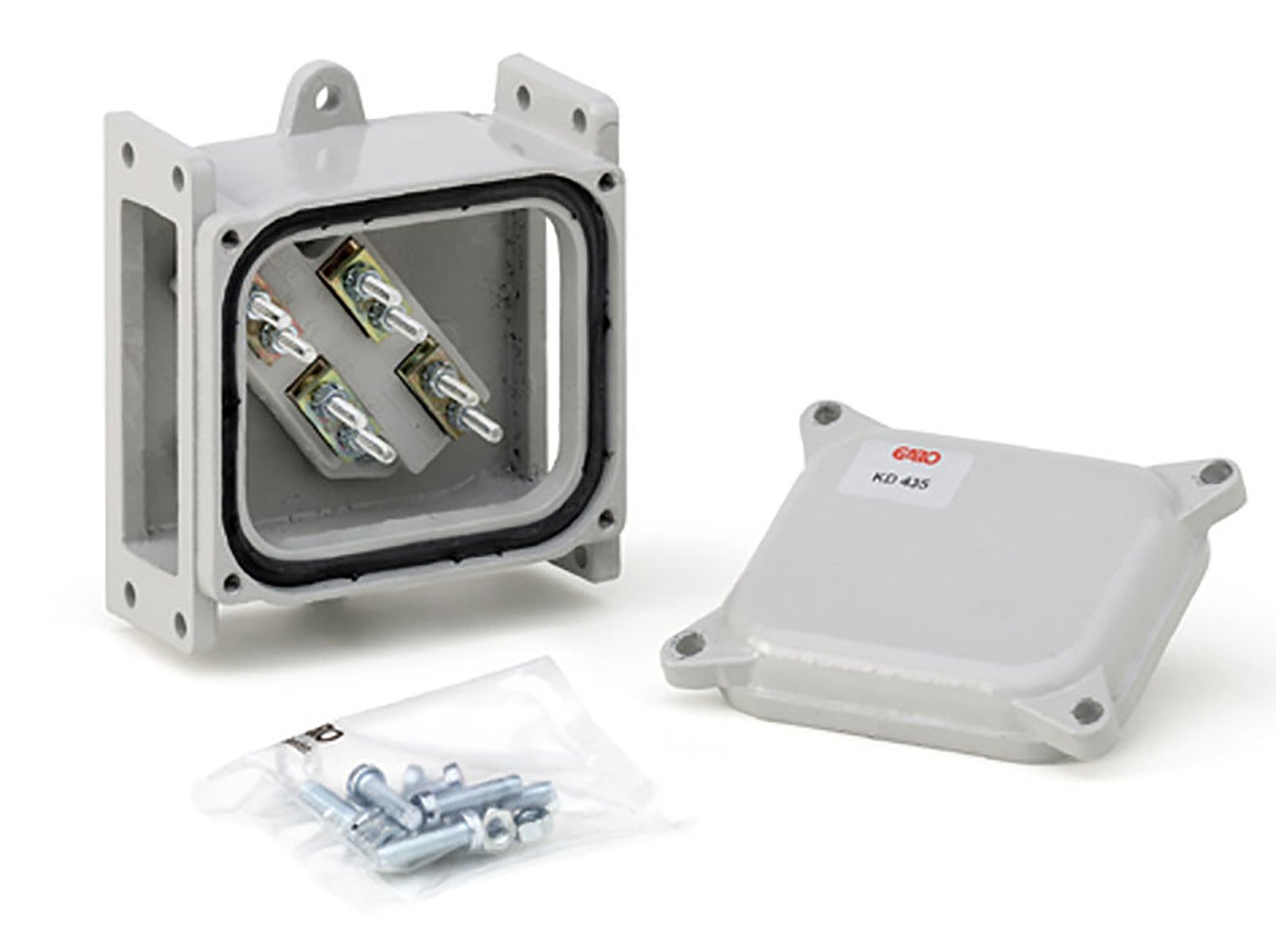

The boxes are equipped with 4-way terminal blocks and earth connection clamp. Height 133mm. Junction box KD 435 Alloy
E-number
E2393792
E2393792
Article number
2393792
2393792
| Type designation | KD 435 |
|---|---|
| Standard | EN61439-3 |
| Frequency [Hz] | 50Hz |
| Housing material | Light metal |
| Rated voltage [V AC] | 690V AC |
| Number of poles | 4x35 |
| RAL-number | RAL7044 |
| Degree of protection [IP] | IP65 |
| NetProductWeight | 0.95 |
| EngineerWidth | 150 |
| EngineerHeight | 133 |
| EngineerDepth | 80 |
| Name | JUNCTION BOX KD 4X35 A LM |
|---|---|
| E-number | E2393792 |
| Article number | 2393792 |
