Fuse base boxes L DII H100

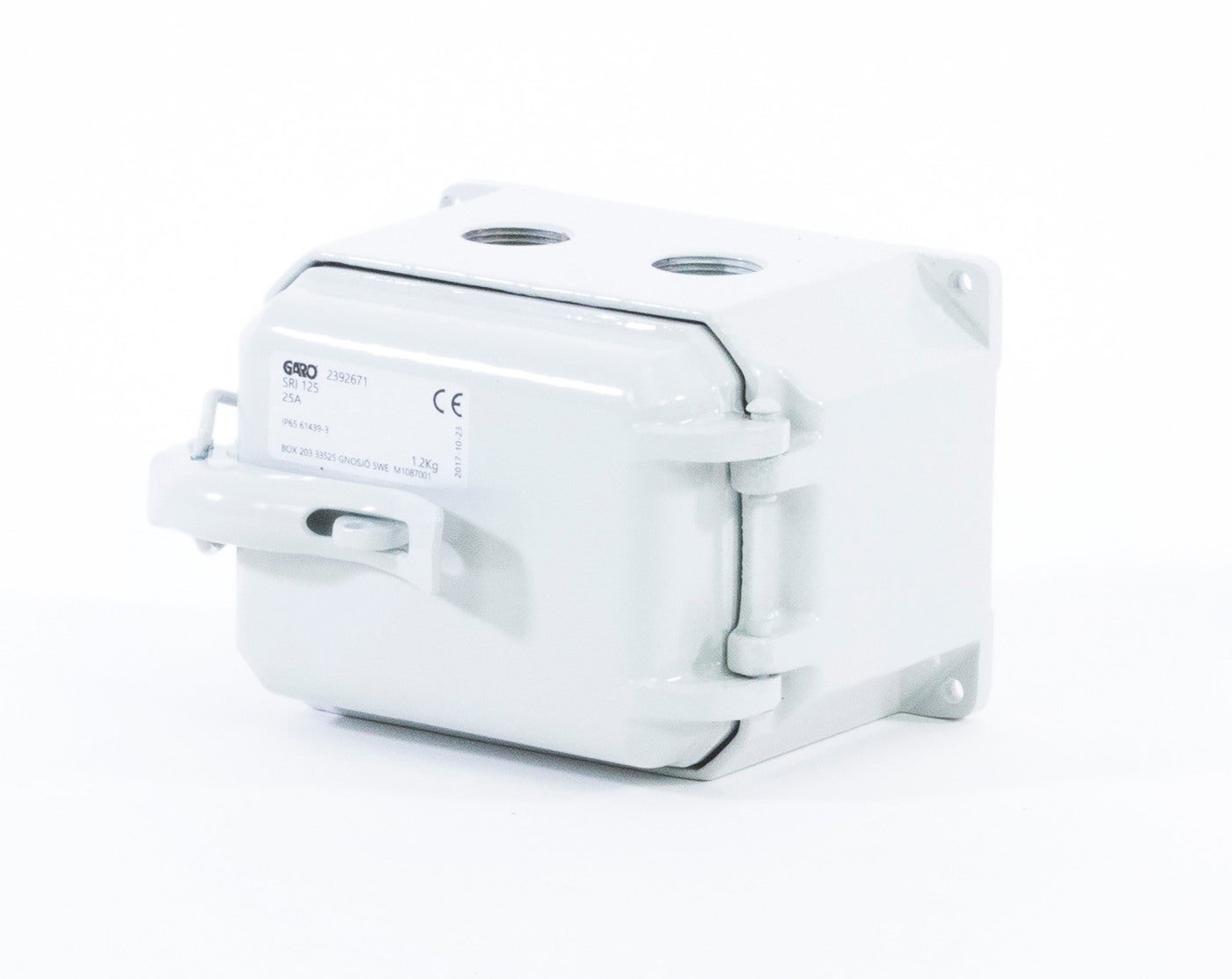

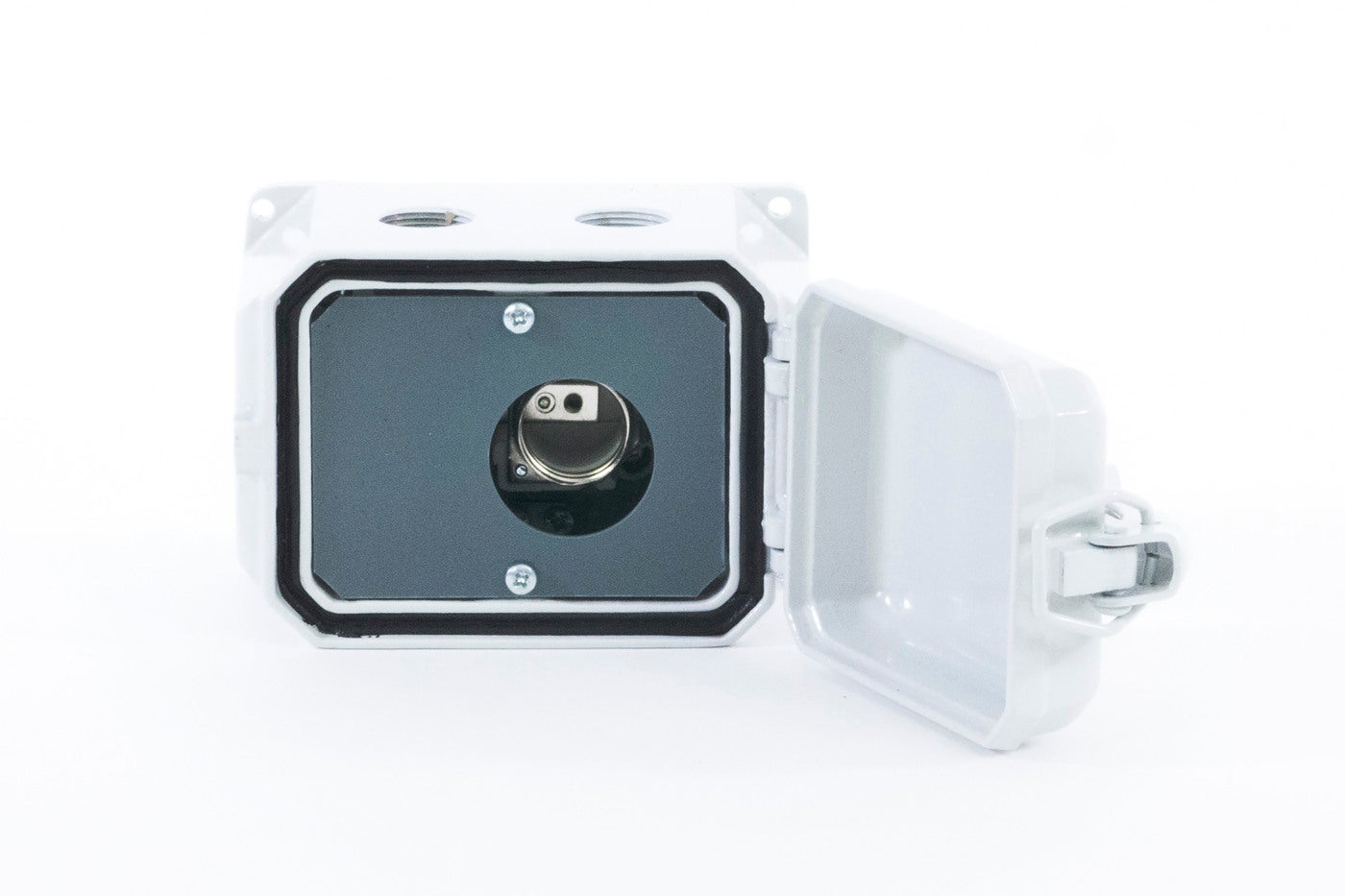

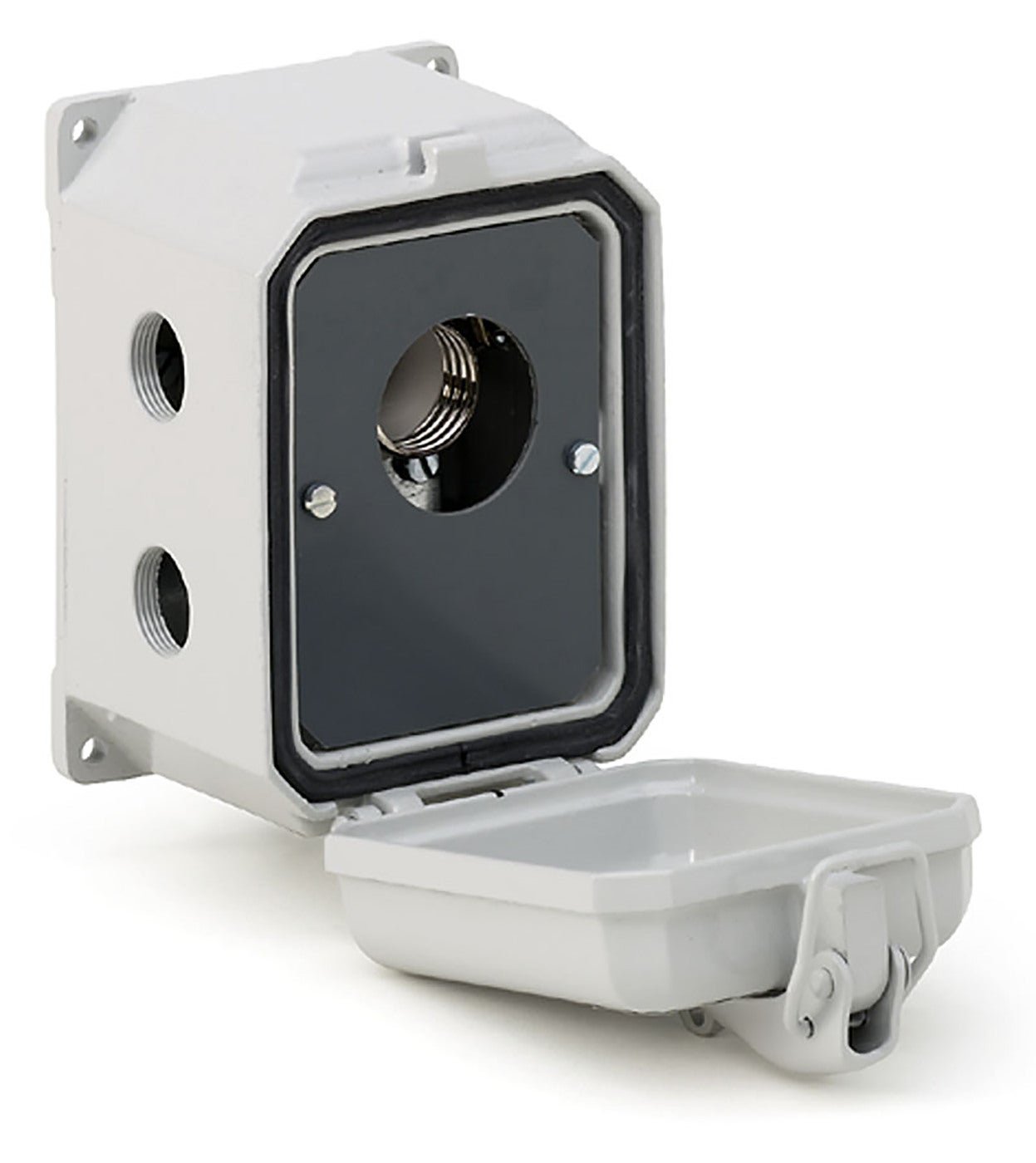

3-pole fuse-protected group with neutral terminal and earth conductor terminal. The box consists of 3-pole screw-base fuse with a front-operated 3-pole switch, which in the ON position prevents the lid from being opened. Height 100mm. Fuse base box SRI 25A 1x1phase alloy
E-number
E2392671
E2392671
Article number
2392671
2392671
| Type designation | SRI 125 |
|---|---|
| Standard | EN61439-3 |
| Frequency [Hz] | 50Hz |
| Housing material | Light metal |
| Rated current [A] | 25A |
| Rated voltage [V AC] | 690V AC |
| Number of poles | 1/1 |
| RAL-number | RAL7044 |
| Fuse size | DII |
| Degree of protection [IP] | IP65 |
| NetProductWeight | 1.15 |
| EngineerWidth | 140 |
| EngineerHeight | 100 |
| EngineerDepth | 102 |
| Name | FUSE BOX 25A 1/1 A LM |
|---|---|
| E-number | E2392671 |
| Article number | 2392671 |
