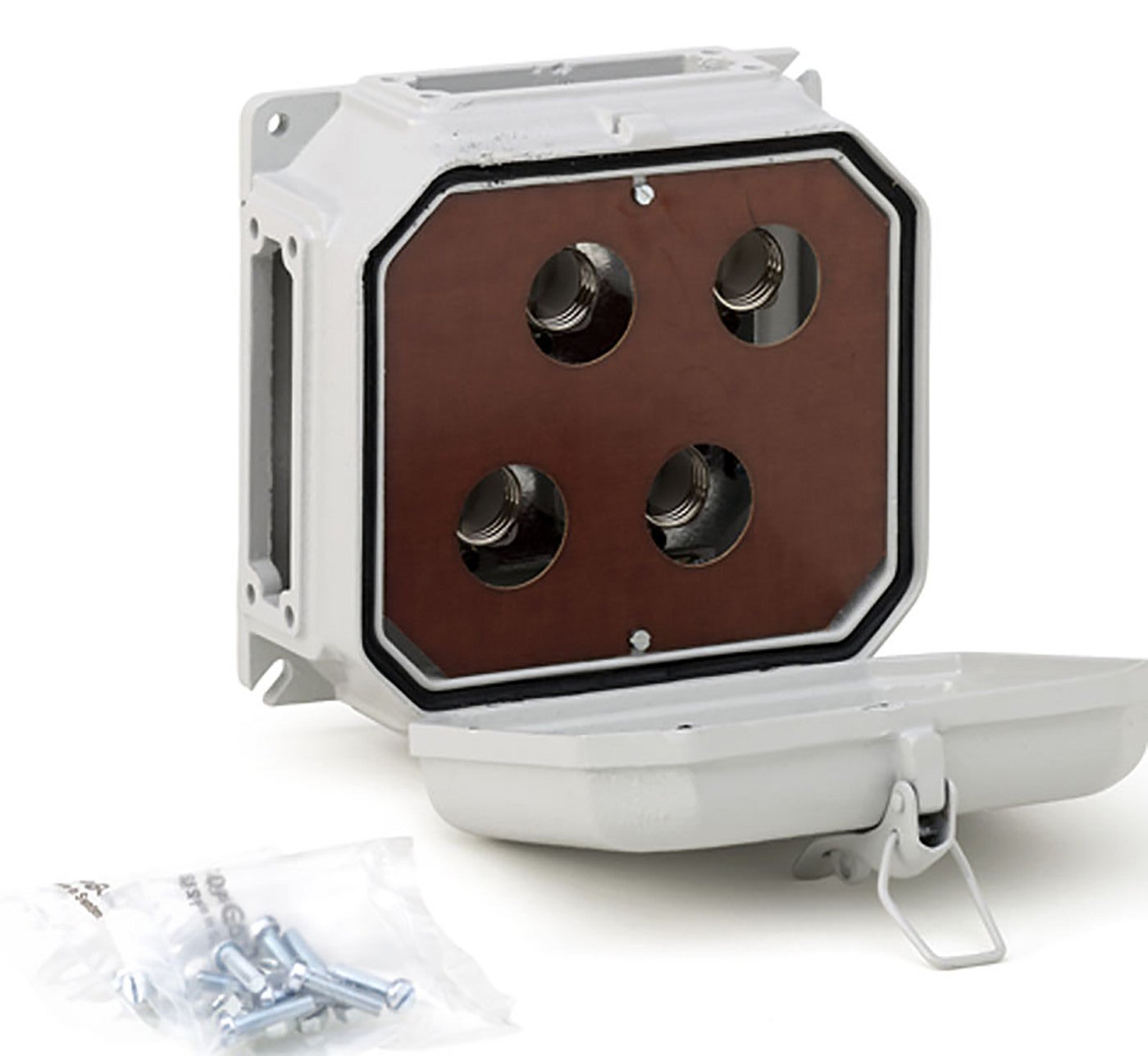

Fuse base boxes L DII H210
3-pole fuse-protected group with neutral terminal and earth conductor terminal. The box consists of 3-pole screw-base fuse with a front-operated 3-pole switch, which in the ON position prevents the lid from being opened. Height 210mm. Fuse base box SLU 25A 4x1phase alloy
E-number
E2392623
E2392623
Article number
2392623
2392623
| Type designation | SLU 425 |
|---|---|
| Standard | EN61439-3 |
| Frequency [Hz] | 50Hz |
| Housing material | Light metal |
| Rated current [A] | 25A |
| Rated voltage [V AC] | 690V AC |
| RAL-number | RAL7044 |
| Fuse size | DII |
| Degree of protection [IP] | IP65 |
| NetProductWeight | 3.1 |
| EngineerWidth | 220 |
| EngineerHeight | 210 |
| EngineerDepth | 120 |
| Name | FUSE BASE BOX-SLU25A 4/1 A LM |
|---|---|
| E-number | E2392623 |
| Article number | 2392623 |
