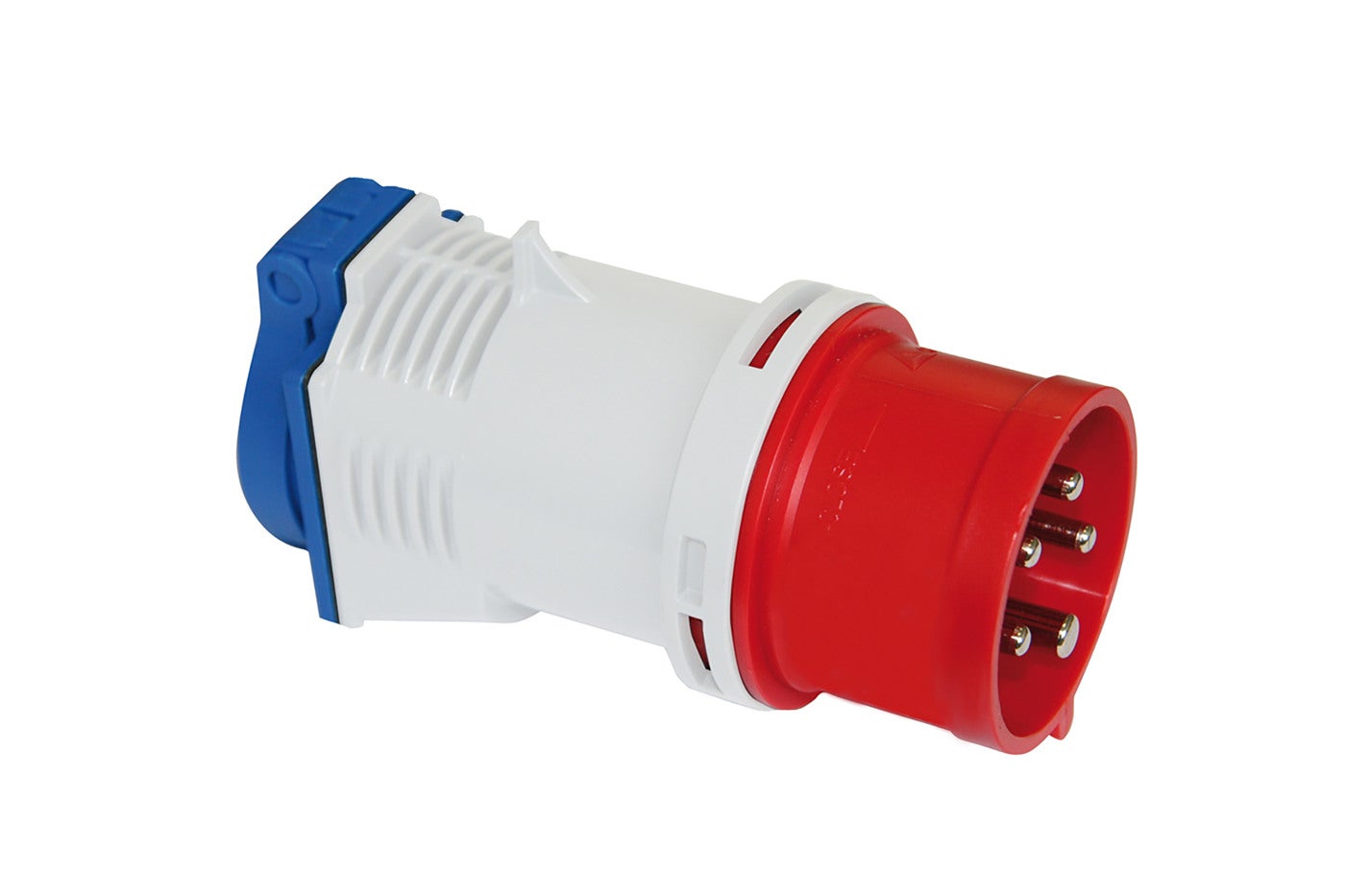

Adapter Basic 5P 16A IP44
GARO’s adapter with IEC/CEE and one Schuko socket at the end. The products are manufactured for temporary use in industrial environments, both indoor & outdoor. The Schuko socket comes in several designs to suit different markets. UIF (Swedish version), UIFF (French version), UIFG (English version) and UIFD (Danish version). Adapter basic with Swedish schuko 5-poles 16A 6h
E-number
E2425135
E2425135
Article number
2425135
2425135
| Type designation | II 416-6 S/UIF |
|---|---|
| Materials | Plastic |
| Standard | Class 1 EN60044-8 |
| Frequency [Hz] | 50/60Hz |
| Color | Red |
| Rated current [A] | 16A |
| Rated voltage [V AC] | 230/400V AC |
| Number of poles | 5 |
| Connection type | Screwed terminal |
| Modelltype | Basic |
| RAL-number | RAL3000 |
| Clock hour position [h] | 6h |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Contact material | CuZn |
| Phase inverter | No |
| Contact plating | Untreated |
| Plug angle | Straight |
| Pin/Sleeve | Pin |
| Construction type | Recessed mount device plug |
| Degree of protection [IP] | IP44 |
| NetProductWeight | 0.22 |
| EngineerWidth | 190 |
| EngineerHeight | 140 |
| EngineerDepth | 290 |
| Name | ADAPTER 5P 16A 6h SCHUKO SE |
|---|---|
| E-number | E2425135 |
| Article number | 2425135 |
