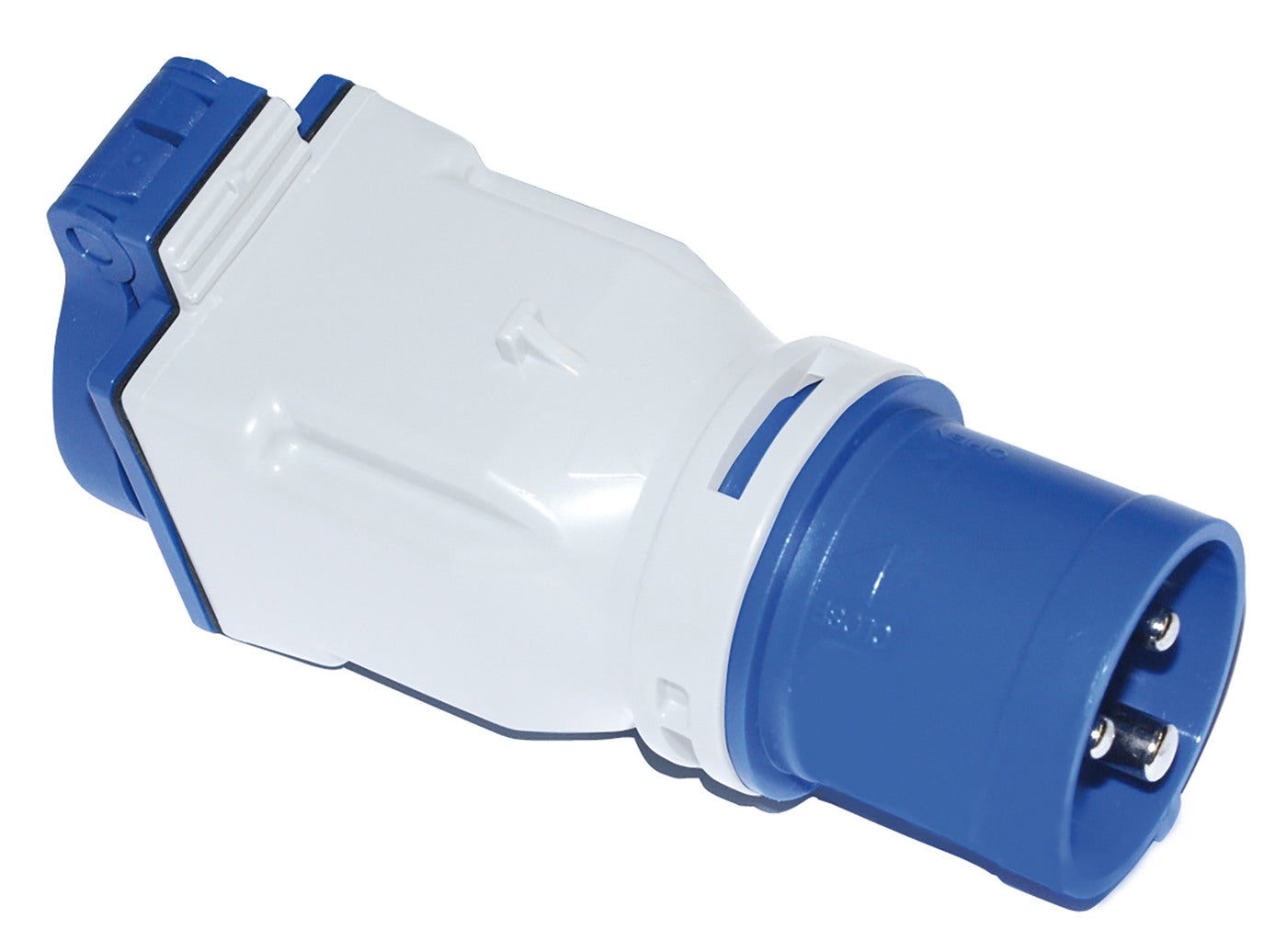

Adapter Basic 3P 16A IP44
GARO’s adapter with IEC/CEE and one Schuko socket at the end. The products are manufactured for temporary use in industrial environments, both indoor & outdoor. The Schuko socket comes in several designs to suit different markets. UIF (Swedish version), UIFF (French version), UIFG (English version) and UIFD (Danish version). Adapter basic with Swedish schuko 3-poles 16A 6h
E-number
E2425131
E2425131
Article number
2425131
2425131
-
ADAPTER 3P 16A 6h SCHUKO SEE-number
E2425131Article number
2425131 -
ADAPTER 3P 16A 6h SCHUKO FRE-number
E2425132Article number
2425132 -

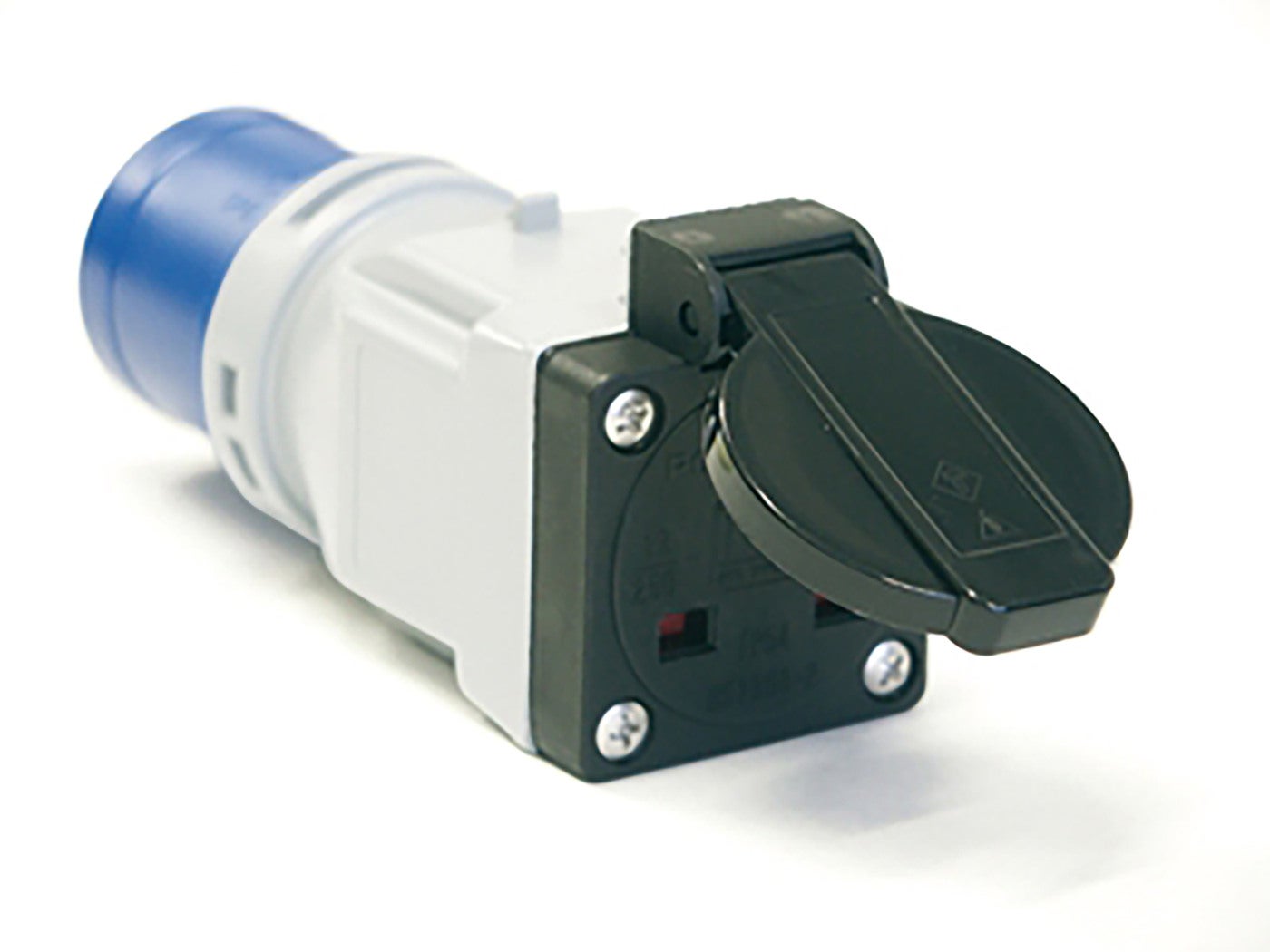

ADAPTER 3P 16A 6h SCHUKO ENE-number
E2425133Article number
2425133 -
ADAPTER 3P 16A 6h SCHUKO DKE-number
E2425134Article number
2425134 -
ADAPTER 5P 16A 6h SCHUKO FRE-number
E2425136Article number
2425136 -

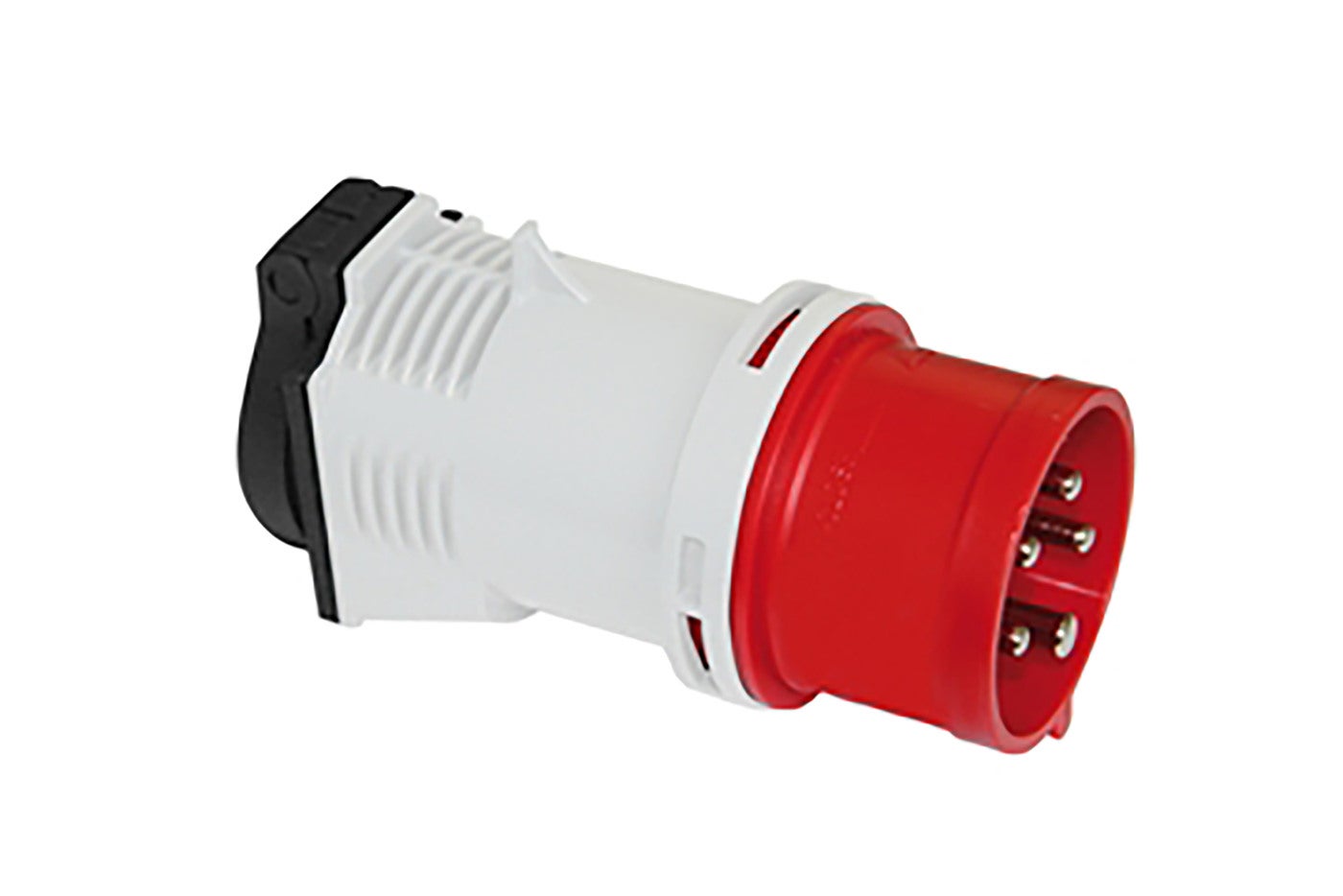

ADAPTER 5P 16A 6h SCHUKO ENE-number
E2425137Article number
2425137 -

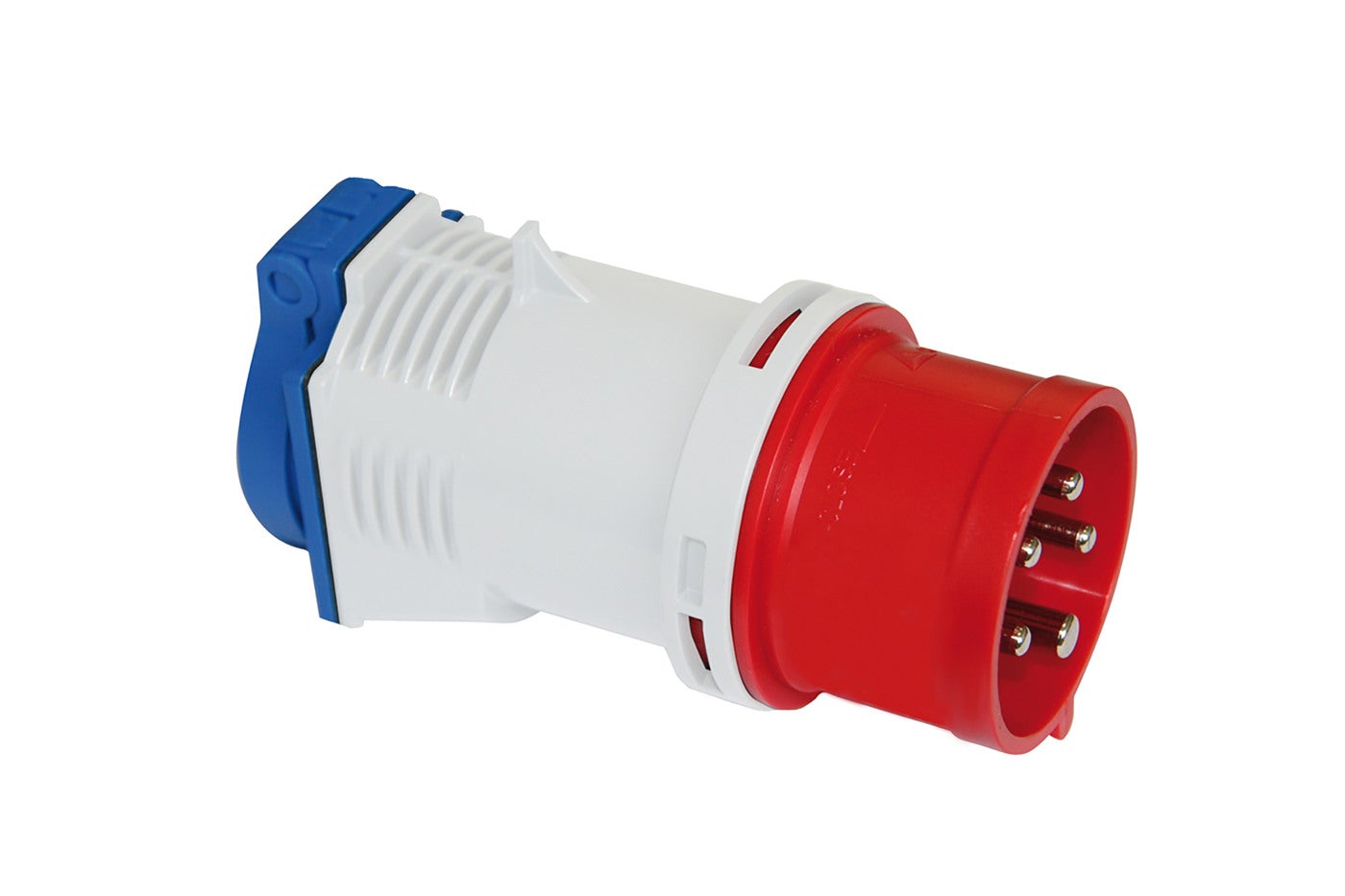

ADAPTER 5P 16A 6h SCHUKO DKE-number
E2425138Article number
2425138
| Materials | Plastic |
|---|---|
| Standard | EN60309-2 |
| Frequency [Hz] | 50/60Hz |
| Rated current [A] | 16A |
| Connection type | Screwed terminal |
| Modelltype | Basic |
| Clock hour position [h] | 6h |
| Contact material | CuZn |
| Phase inverter | No |
| Contact plating | Untreated |
| Plug angle | Straight |
| Degree of protection [IP] | IP44 |
| Name | ADAPTER 3P 16A 6h SCHUKO SE |
|---|---|
| E-number | E2425131 |
| Article number | 2425131 |
| Type designation | II 216-6 S/UIF |
| Color | Blue |
| Rated voltage [V AC] | 200-250V AC |
| Number of poles | 3 |
| RAL-number | RAL5017 |
| Pin/Sleeve | Pin |
