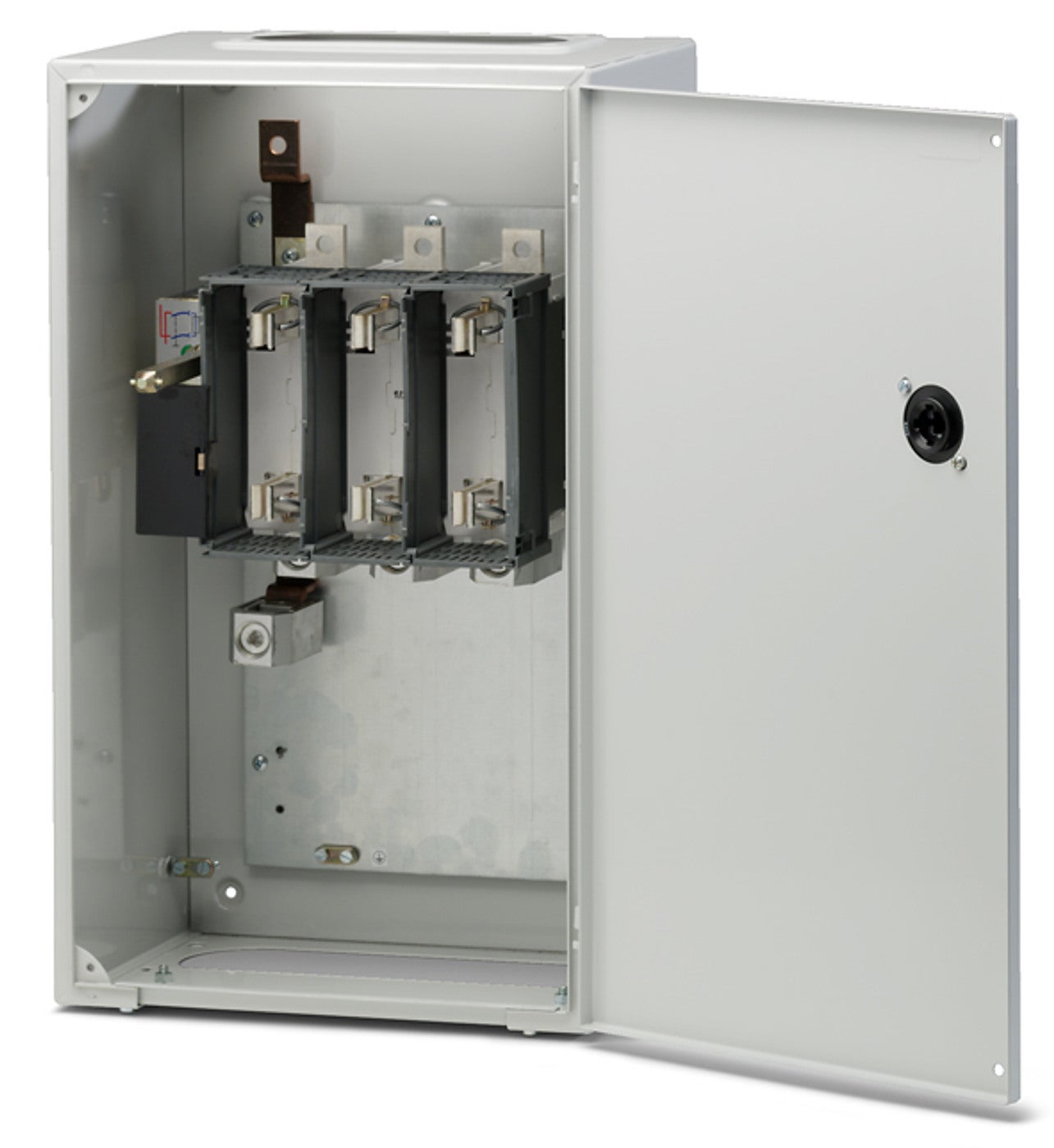

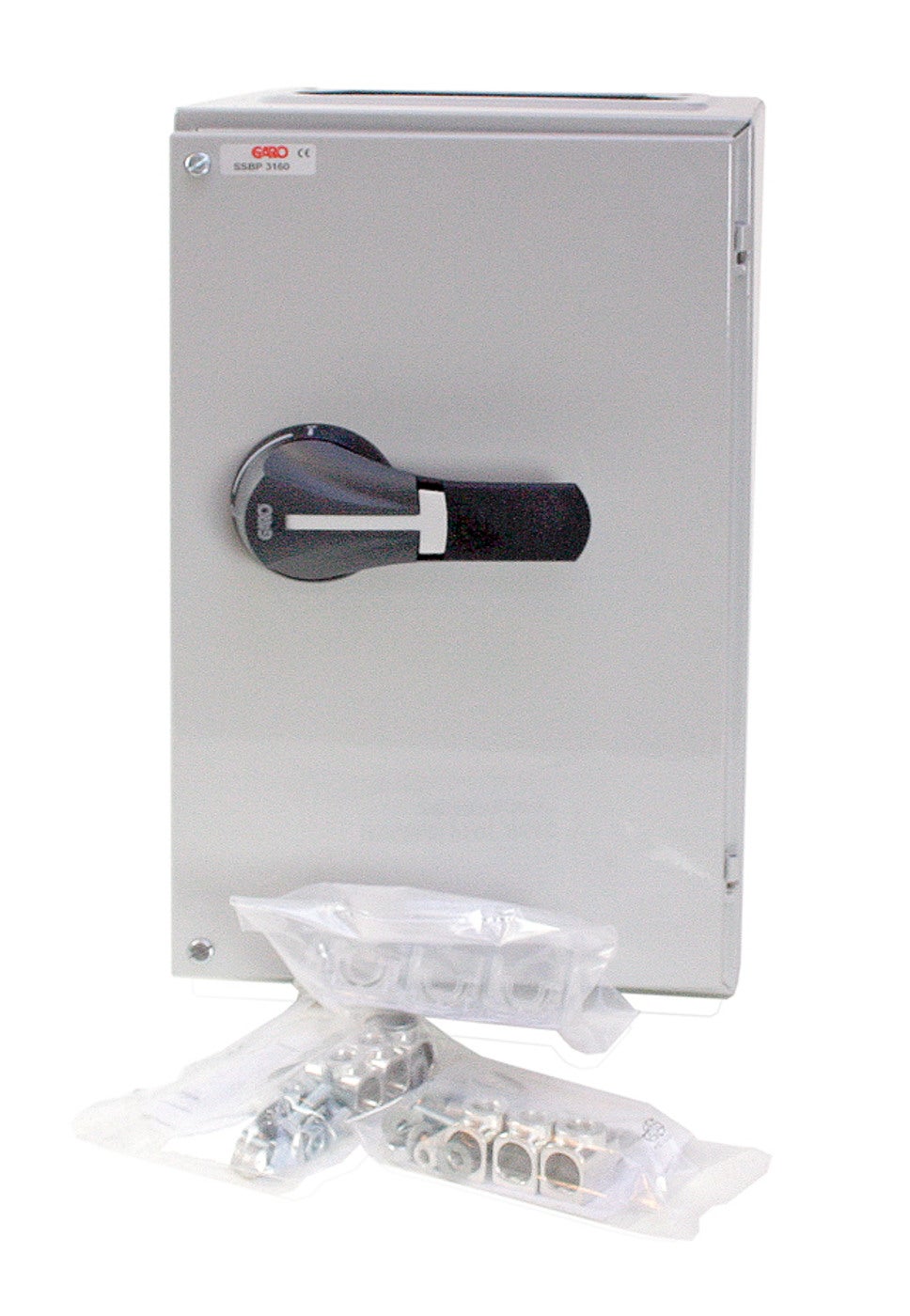

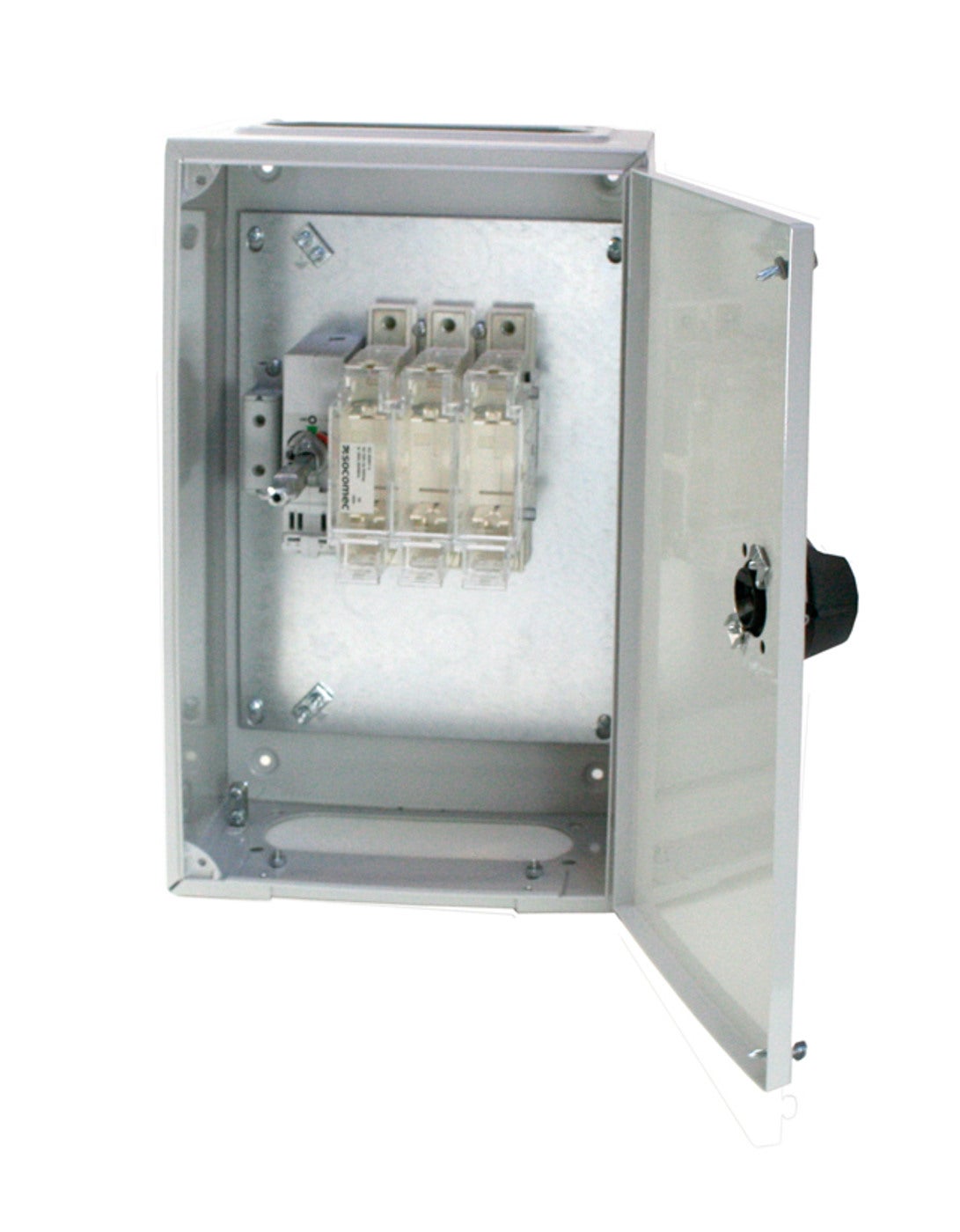

Main inlet box SSBP

Service line fuse box is made to facilitate the connection of service cables from the front, as the bottom flange opening is larger with the possibility to mount a plastic earth cable flange. The cover is interlocked and cannot be opened in the closed position. In the open position, it is energized on both sides of the fuse-link and the switching functions also satisfy the conditions applicable for the disconnector. It is also possible to lock the operating mechanism with a padlock in the closed position. S Main inlet box 160A 3-pole for blade fuse 00, flange 21 up/down
