RCBO C 2P 6A 6kA 30mA 2M GR

Earth leakage circuit breaker (RCBO) 6kA 2P C-char

Earth leakage circuit breaker (RCBO) 6kA 2-poles C-characteristic RCBO GR C-characteristic 6A 6kA 2-pole 2modules
E-number
E2163295
Article number
107415
Support
Standard EN61009-1
Short-circuit current [kA] 6kA
Storage temperature [C] -35C...+55C
Operation Temperature [C] -25C...+55C
Frequency [Hz] 50/60Hz
Housing material Plastic
Color Grey
Rated voltage [V AC] 230/400V AC
Number of modules 2
Number of poles 2
Tightening torque [Nm] 2,5Nm
Tripping characteristics C
Connection type Screw
Wire flexible [mm²] 1,5-25mm²
Mounting method DIN-rail
Degree of protection [IP] IP20
Sensitivity[mA] 30mA
Leakage current type A
Claim prefuse [A] 125A
EngineerHeight 88
EngineerDepth 72
Name RCBO C 2P 6A 6kA 30mA 2M GR
E-number E2163295
Article number 107415
Type designation RCBO C2P 6A 6kA GR
Rated current [A] 6A
NetProductWeight 0.22
EngineerWidth 36

More variants of Earth leakage circuit breaker (RCBO) 6kA 2P C-char

E-number Article number Type designation Rated current [A] NetProductWeight EngineerWidth
RCBO C 2P 6A 6kA 30mA 2M GR E2163295 107415 RCBO C2P 6A 6kA GR 6A 0.22 36
RCBO C 2P 10A 6kA 30mA 2M E2163296 107416 RCBO C2P 10A 6kA GR 10A 0.22 36
RCBO C 2P 13A 6kA 30mA 2M E2163297 107417 RCBO C2P 13A 6kA GR 13A 0.25 35
RCBO C 2P 16A 6kA 30mA 2M GR E2163298 107418 RCBO C2P 16A 6kA GR 16A 0.22 36

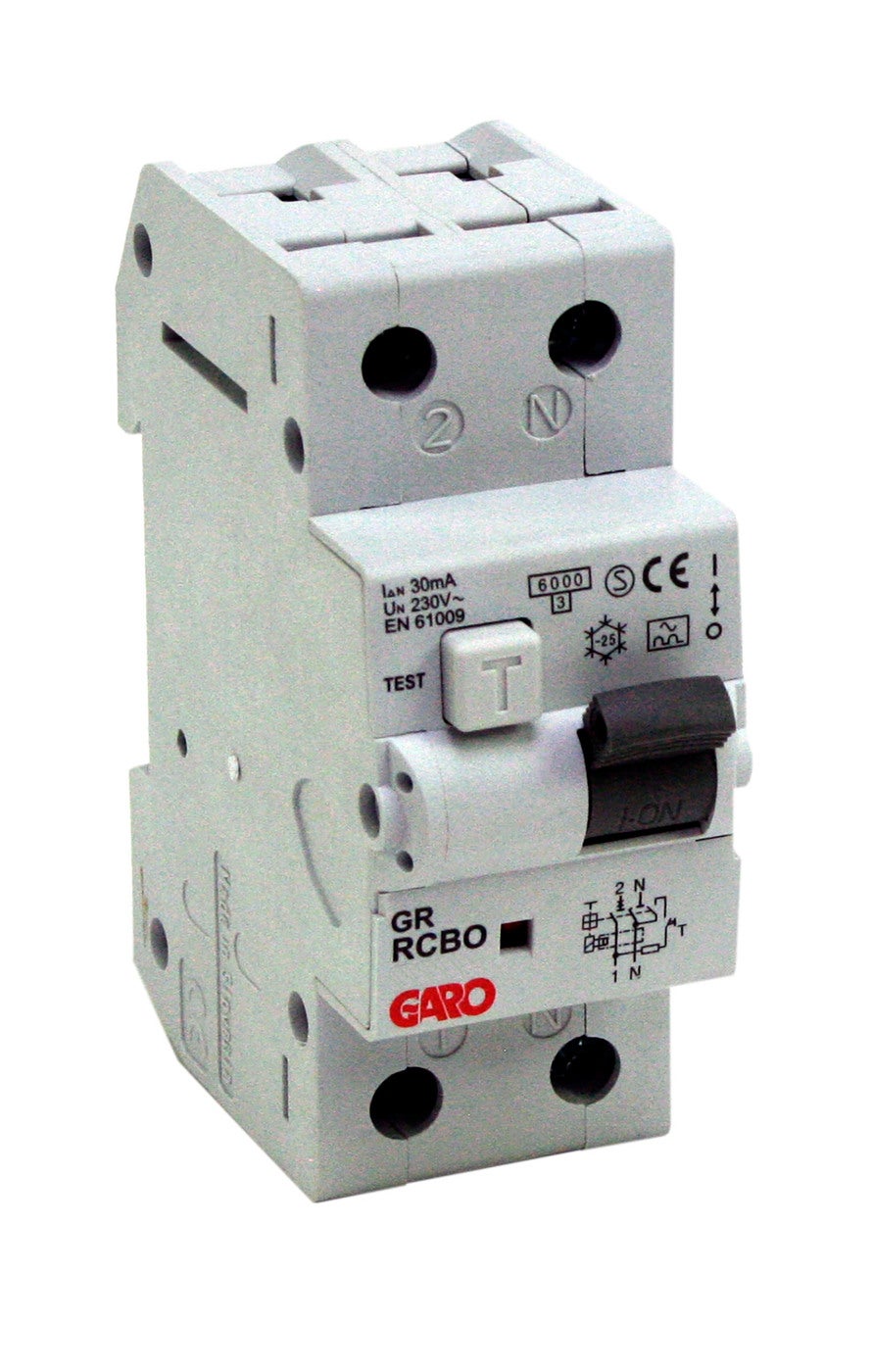

RCBO C 2P 20A 6kA 30mA 2M GR E2163299 107419 RCBO C2P 20A 6kA GR 20A 36
