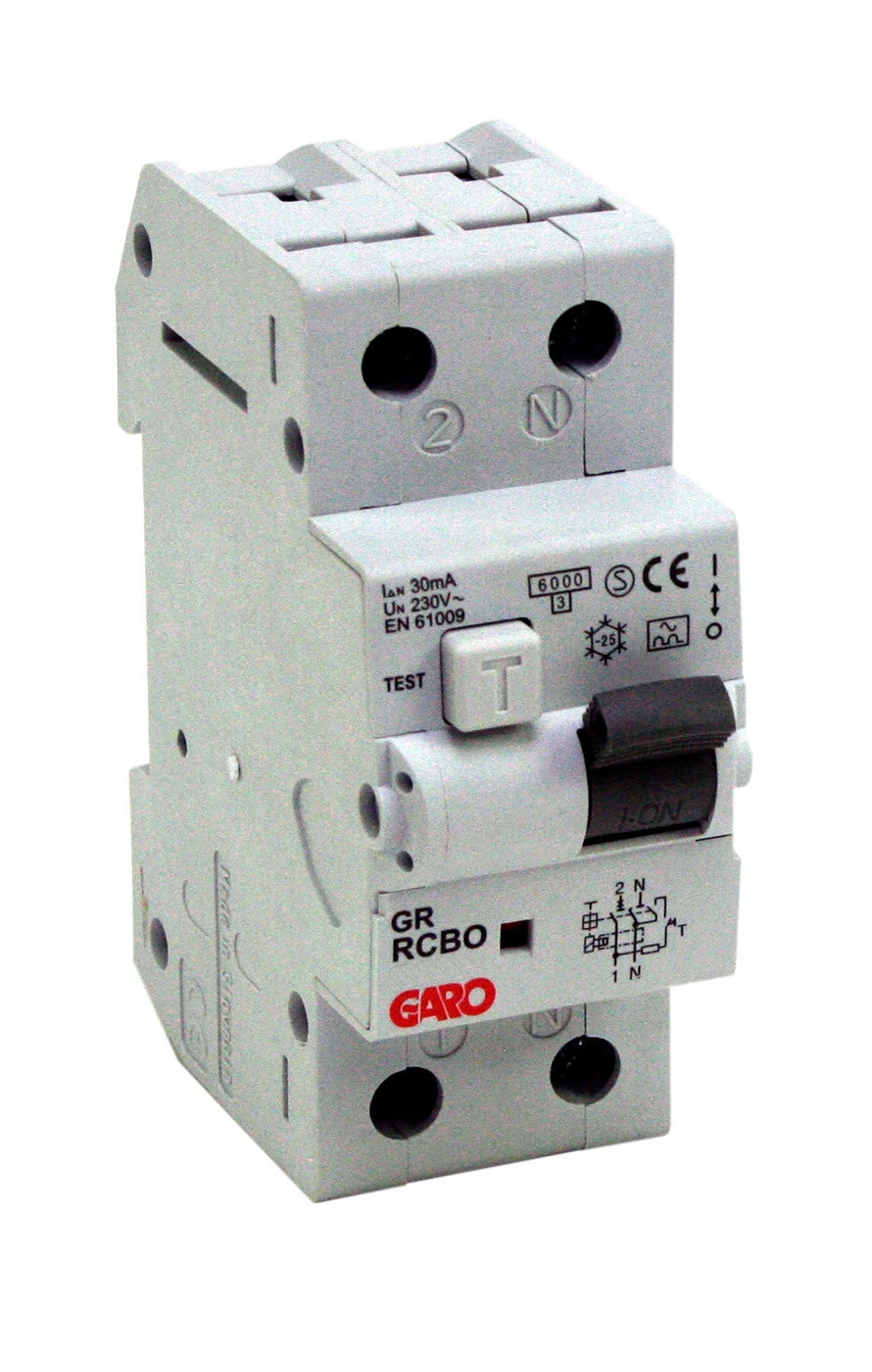

RCBO B 2P 6A 6kA 30mA 2M GR

Earth leakage circuit breaker (RCBO) 6kA 2P B-char

Earth leakage circuit breaker (RCBO) 6kA 2-poles B-characteristic RCBO B 2P 6A 6kA 30mA 2M GR
E-number
E2163290
Article number
107410
Support
Standard EN61009-1
Storage temperature [C] -35C...+55C
Operation Temperature [C] -25C...+55C
Frequency [Hz] 50/60Hz
Housing material Plastic
Color Grey
Rated voltage [V AC] 230/400V AC
Number of modules 2
Number of poles 2
Tightening torque [Nm] 2,5Nm
Tripping characteristics B
Connection type Screw
Mounting method DIN-rail
Degree of protection [IP] IP20
Sensitivity[mA] 30mA
Leakage current type A
Claim prefuse [A] 125A
NetProductWeight 0.22
EngineerWidth 36
EngineerHeight 88
EngineerDepth 72
Name RCBO B 2P 6A 6kA 30mA 2M GR
E-number E2163290
Article number 107410
Type designation RCBO B2P 6A 6kA GR
Short-circuit current [kA] 6kA
Rated current [A] 6A
Wire flexible [mm²] 1,5-25mm²

More variants of Earth leakage circuit breaker (RCBO) 6kA 2P B-char

E-number Article number Type designation Short-circuit current [kA] Rated current [A] Wire flexible [mm²]
RCBO B 2P 6A 6kA 30mA 2M GR E2163290 107410 RCBO B2P 6A 6kA GR 6kA 6A 1,5-25mm²
RCBO B 2P 10A 6kA 30mA 2M GR E2163291 107411 RCBO B2P 10A 6kA GR 10kA 10A 1,5-2,5mm²
RCBO B 2P 13A 6kA 30mA 2M GR E2163292 107412 RCBO B2P 13A 6kA GR 6kA 13A 1,5-25mm²
RCBO B 2P 16A 6kA 30mA 2M GR E2163293 107413 RCBO B2P 16A 6kA GR 6kA 16A 1,5-25mm²
RCBO B 2P 20A 6kA 30mA 2M GR E2163294 107414 RCBO B2P 20A 6kA GR 6kA 20A 1,5-25mm²
