Reserve power

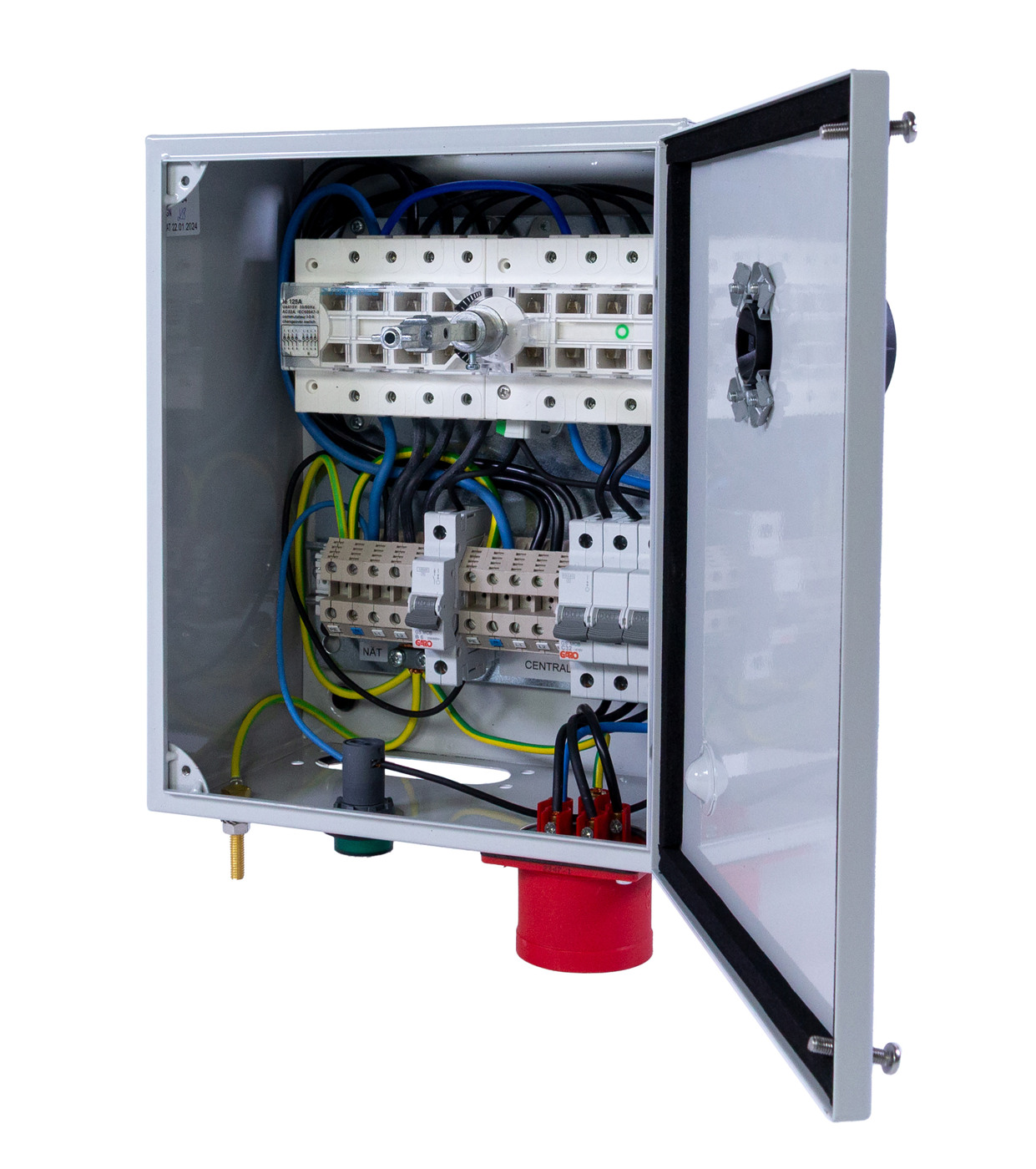

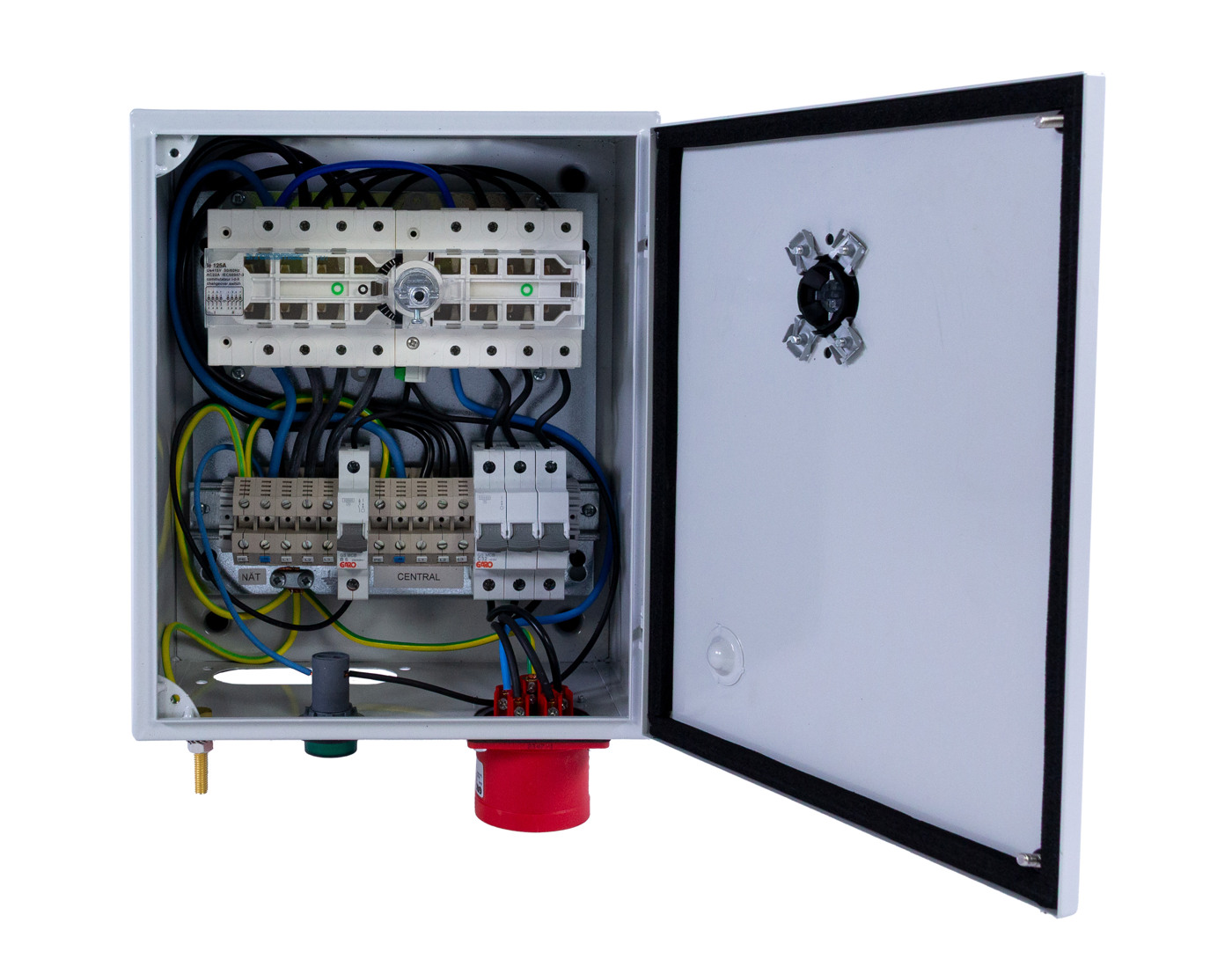

Switching is designed according to the Svenska Elleverantöre’s instructions with fuses on the incoming standby power. Prepared for locking on sockets 63A and 125A and a fully visible status lamp for returning voltage. The breaker in our standby power switches has a rated current value Ith = 125A, is 4-pole and lockable in the OFF position. It meets the requirements for safety switches with disconnection characteristics according to standard SS 428 06 05, SS EN 60 947-1 and SS EN 60 947-3. The switch features a compact design, which results in a safer function, and above all a large installation area for the incoming cables. The box is made of stainless steel sheet, powder coated in grey (RAL 7044) and has flange openings on the top and bottom. Changeover box for reserve power 32A flange 13 up/down
Article number
Colour RAL7035 Grey
Standard EN 61439-3
Depth [mm] 180
Materials Stainless
Switch [A] 4x125
E-number 2387275
Article number 2387275
Type designation RKO 432
Rated current [A] 32
Degree of protection [IP] 44/65
Width [mm] 275
Height [mm] 330
Netweight [kg] 7.70

Instruction Sheet

More variants of Reserve power

E-number Article number Type designation Rated current [A] Degree of protection [IP] Width [mm] Height [mm] Netweight [kg]
CHANGEOVER BOX 32A SS 2387275 2387275 RKO 432 32 44/65 275 330 7.70
CHANGEOVER BOX 63A SS 2387277 2387277 RKO 463 63 44/65 275 440 10
CHANGEOVER BOX 125A SS 2387283 2387283 RKO 4125 125 65 440 550 20.25
