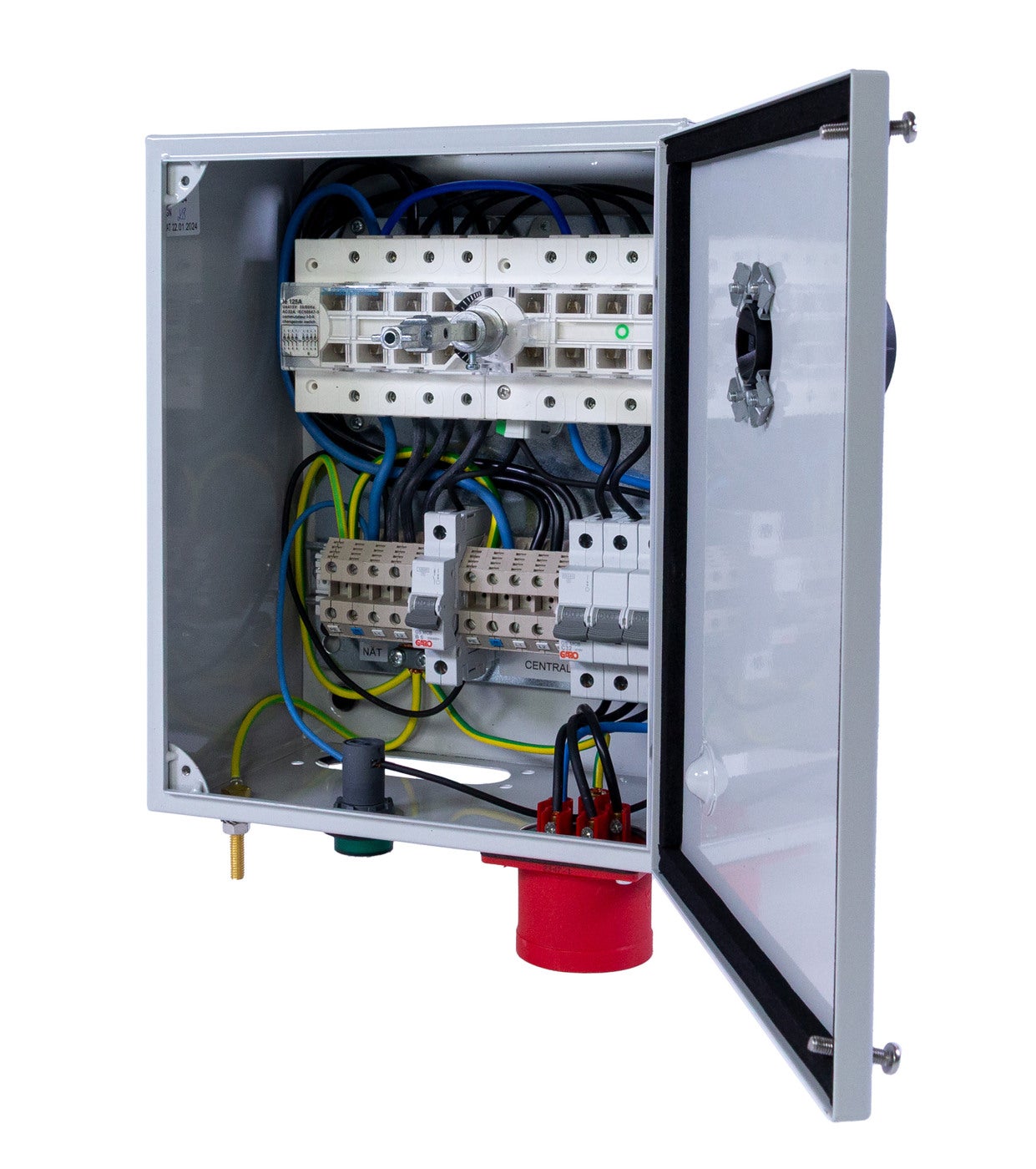

• CHANGEOVER BOX 32A SS - 1

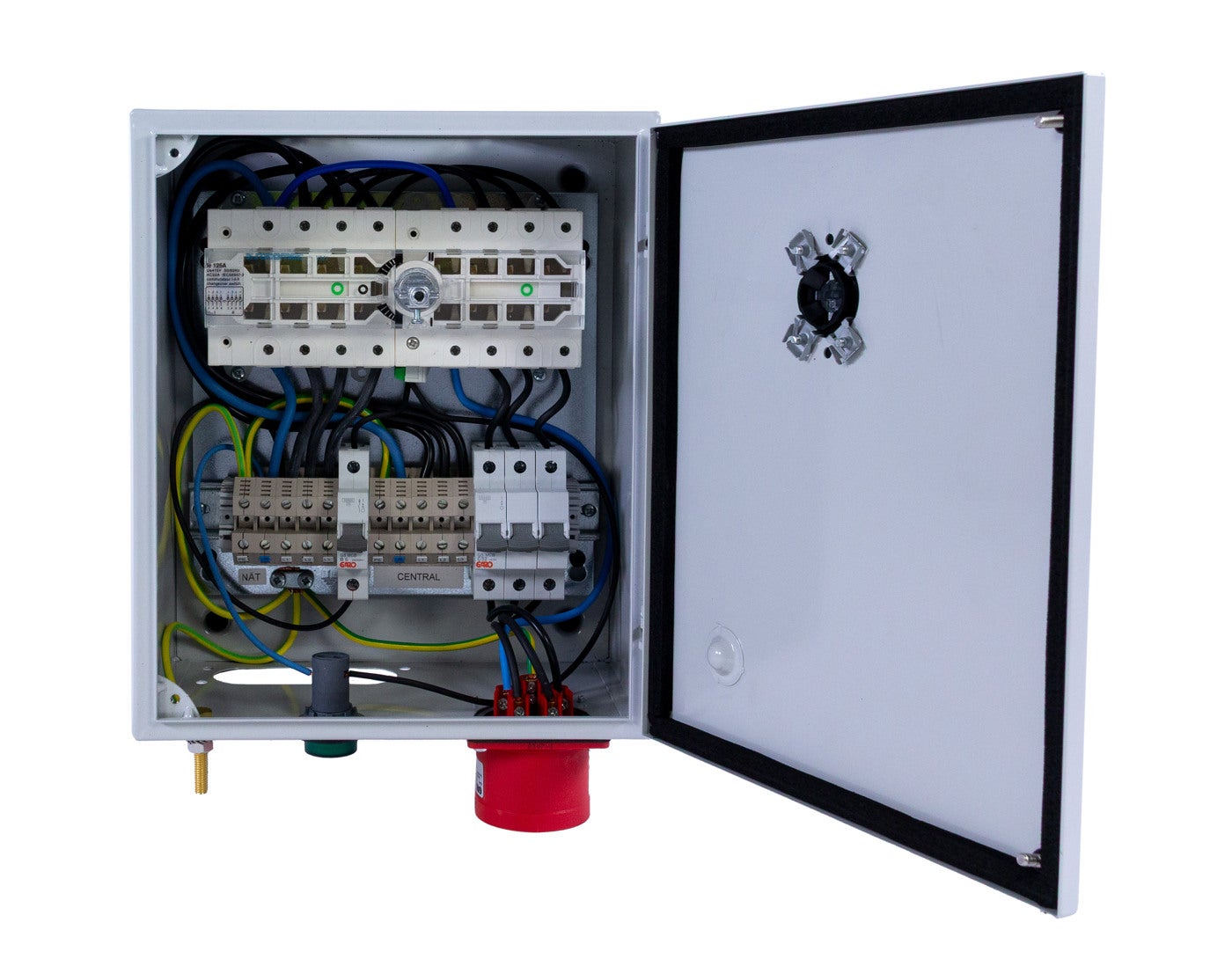

  • CHANGEOVER BOX 32A SS - 2

Reserve power

Switching is designed according to the Svenska Elleverantöre’s instructions with fuses on the incoming standby power. Prepared for locking on sockets 63A and 125A and a fully visible status lamp for returning voltage. The breaker in our standby power switches has a rated current value Ith = 125A, is 4-pole and lockable in the OFF position. It meets the requirements for safety switches with disconnection characteristics according to standard SS 428 06 05, SS EN 60 947-1 and SS EN 60 947-3. The switch feature Changeover box for reserve power 32A flange 13 up/down
E-number
E2387275
Article number
2387275
Support
Materials Stainless
Standard EN61439-3
Color Grey
RAL-number RAL7035
Degree of protection [IP] IP65
EngineerDepth 180
Name CHANGEOVER BOX 32A SS
E-number E2387275
Article number 2387275
Type designation RKO 432
Rated current [A] 32A
NetProductWeight 7.7
EngineerWidth 275
EngineerHeight 330

Instruction Sheet

More variants of Reserve power

E-number Article number Type designation Rated current [A] NetProductWeight EngineerWidth EngineerHeight
CHANGEOVER BOX 32A SS E2387275 2387275 RKO 432 32A 7.7 275 330

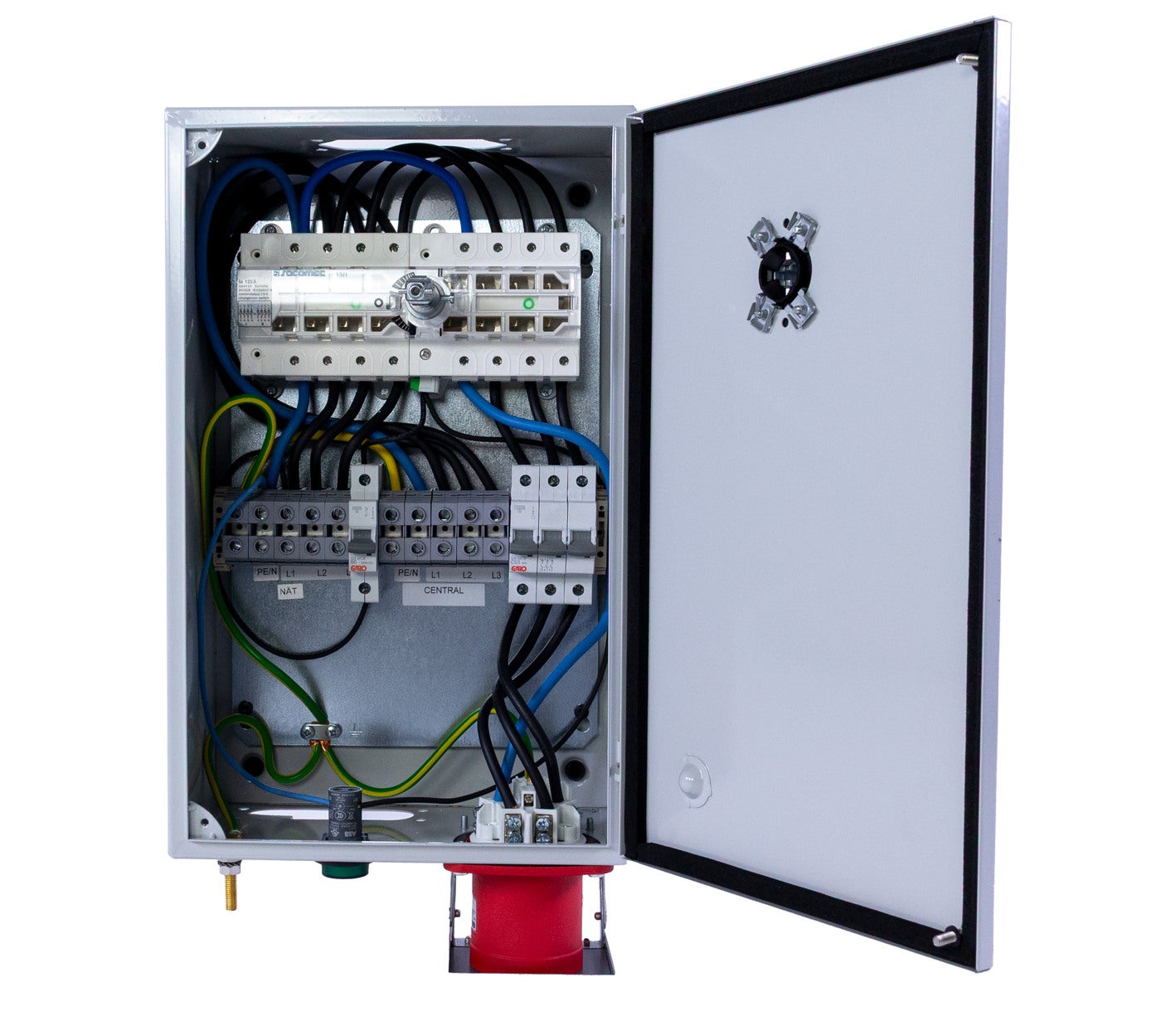

CHANGEOVER BOX 63A SS E2387277 2387277 RKO 463 63A 10 275 440

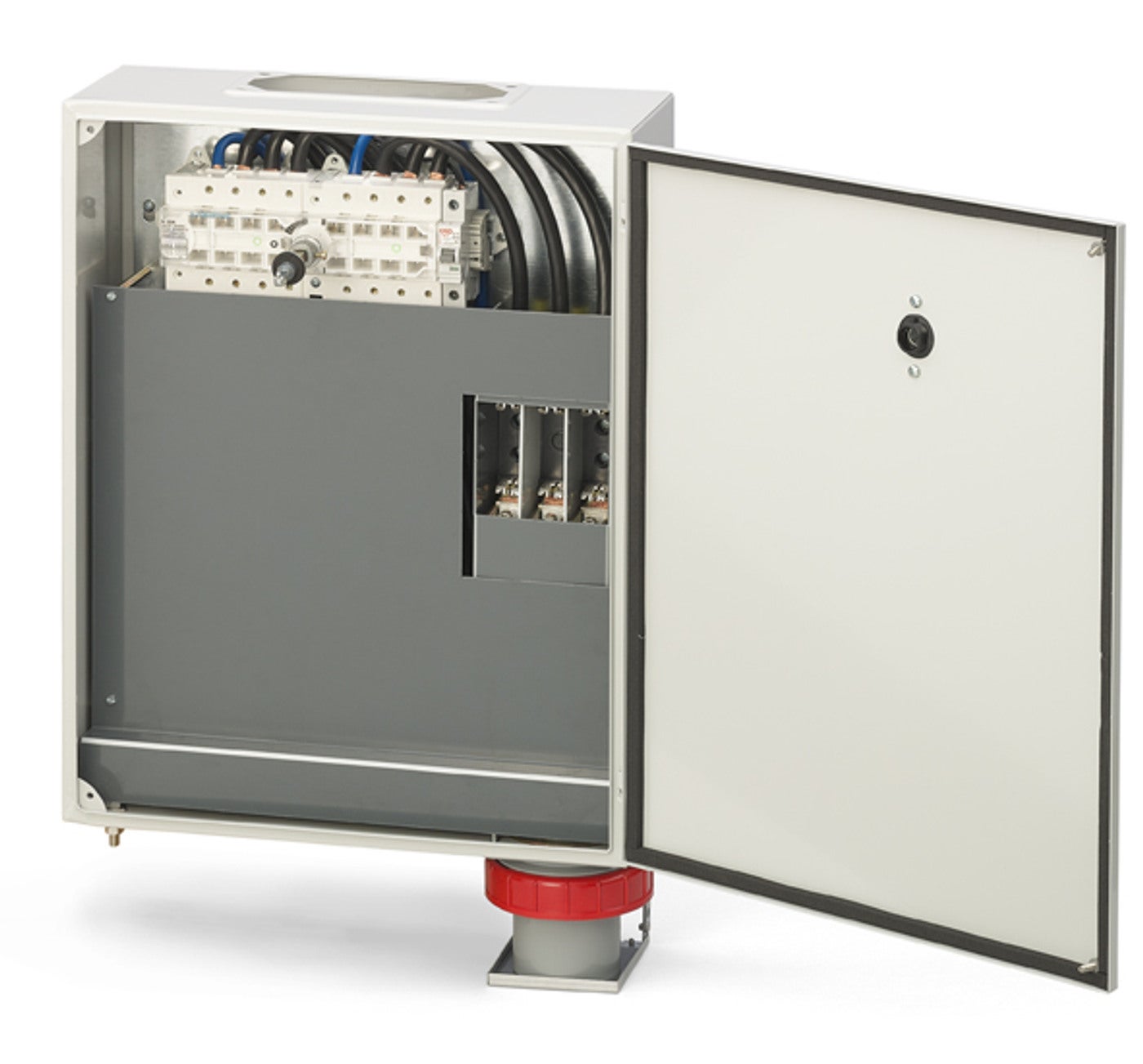

CHANGEOVER BOX 125A SS E2387283 2387283 RKO 4125 125A 20.25 440 550
