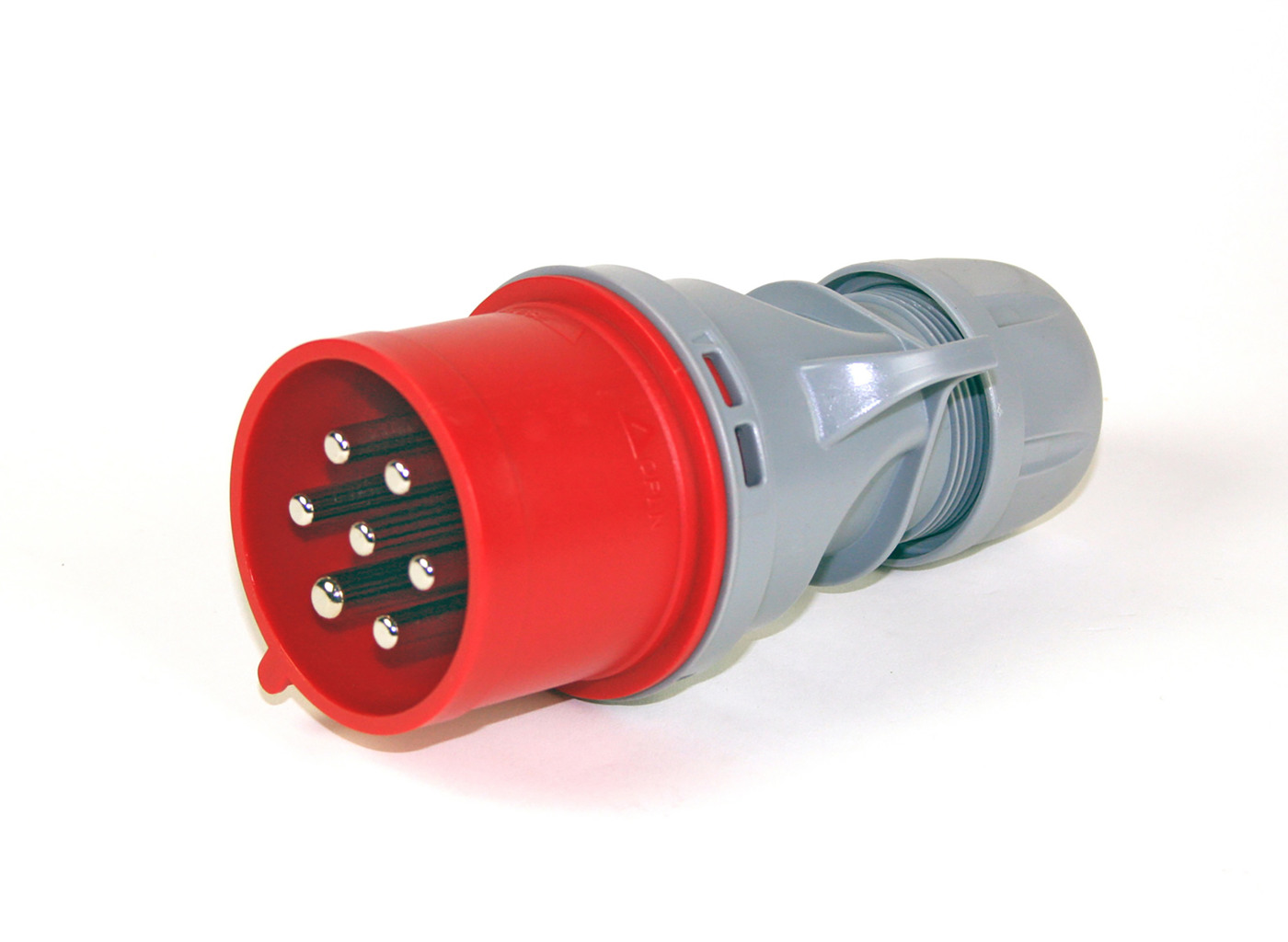

PLUG 7P 16A 9h

Plugs basic 16A IP44 7P

Plugs basic 16A IP44 7P Plug 7-poles 16A 9h
Article number
107839
Support
Rated current [A] 16
No.of Poles [pcs] 7P
Frequency [Hz] 50/60
Degree of protection [IP] 44
Standard Class 1 EN 60044-8
Width [mm] 61
Height [mm] 134
Depth [mm] 61
Netweight [kg] 0.19
Materials Plastic
Function Basic
Name PLUG 7P 16A 9h
Article number 107839
Type designation P 716-9S
Rated voltage [V AC] 480-500
Colour Blue
Position of earth [h] 9
RAL-nummer RAL5017

More variants of Plugs basic 16A IP44 7P

E-number Article number Type designation Rated voltage [V AC] Colour Position of earth [h] RAL-nummer
PLUG 7P 16A 9h 107839 P 716-9S 480-500 Blue 9 RAL5017
PLUG 7P 16A 6h 2425908 107904 P 716-6S 400 Red 6 RAL3000
