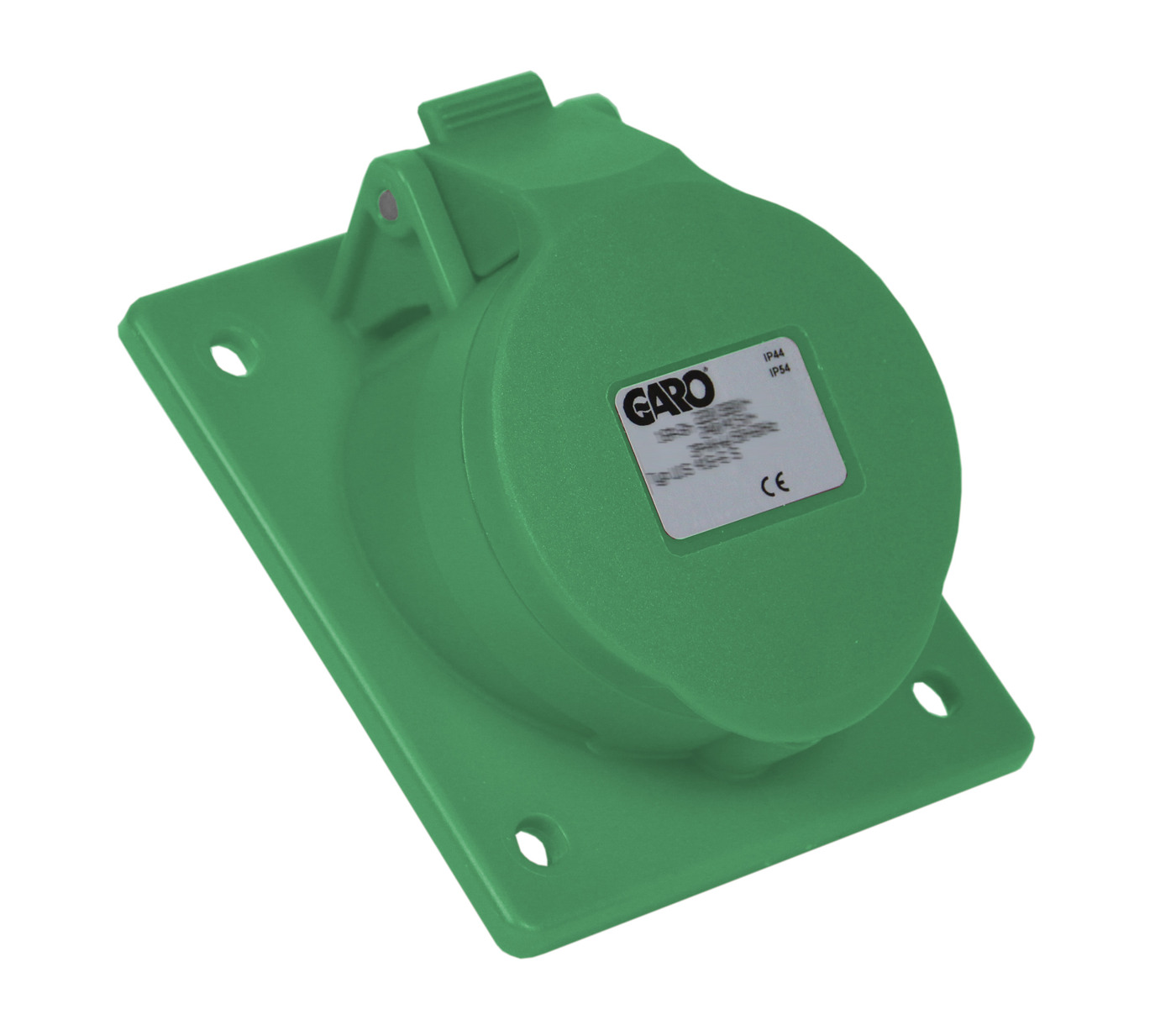

SOCKET SLOPING TT 4P 32A 10h

Flanged sockets Quick with sloping mounting plate 32A IP44

Quick, our screwless range with quick connections that require no tools, just a simple push of the thumb. Socket 32A recess mounting with angled mounting plate. Supplied including seal. SOCKET SLOPING TT 4P 32A 10h
E-number
2425603
Article number
2425603
Support
Rated current [A] 32
Degree of protection [IP] 44
Wire flexible [mm²] 2,5-6
Standard Class 1 EN 60044-8
Package size [pcs] 10
Width [mm] 80
Height [mm] 97
Location Recessed
Function Quick
Wire solid [mm²] 2,5-10
Name SOCKET SLOPING TT 4P 32A 10h
E-number 2425603
Article number 2425603
Type designation UIS 332-10 Q
No.of Poles [pcs] 4/3P+E
Rated voltage [V AC] >50
Frequency [Hz] 100-300
Colour Green
Depth [mm] 102
Netweight [kg] 0.21
Materials Plastic
Position of earth [h] 10

More variants of Flanged sockets Quick with sloping mounting plate 32A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Depth [mm] Netweight [kg] Materials Position of earth [h]
SOCKET SLOPING TT 3P 32A 2h 2425591 2425591 UIS 232-2 Q 3/2P+E >50 >300-500 Green 102 0.19 Plastic 2
SOCKET SLOPING TT 3P 32A 4h 2425592 2425592 UIS 232-4 Q 3/2P+E 100-130 50/60 Yellow 102 0.19 Plastic 4
SOCKET SLOPING TT 3P 32A 6h 2425593 2425593 UIS 232-6 Q 3/2P+E 200-250 50/60 Blue 102 0.19 Plastic 6
SOCKET SLOPING TT 3P 32A 7h 2425594 2425594 UIS 232-7 Q 3/2P+E 480-500 50/60 Black 102 0.19 Plastic 7
SOCKET SLOPING TT 3P 32A 9h 2425595 2425595 UIS 232-9 Q 3/2P+E 380-415 50/60 Red 102 0.19 Plastic 9
SOCKET SLOPING TT 3P 32A 12h 2425596 2425596 UIS 232-12 Q 3/2P+E Matning fr.isolertransf. 50/60 Grey 102 0.19 Plast/Plastic 12
SOCKET SLOPING TT 4P 32A 2h 2425597 2425597 UIS 332-2 Q 4/3P+E >50 >300-500 Green 102 0.21 Plastic 2
SOCKET SLOPING TT 4P 32A 3h 2425598 2425598 UIS 332-3 Q 4/3P+E 380-440 50-60 Red 102 0.21 Plastic 3
SOCKET SLOPING TT 4P 32A 4h 2425599 2425599 UIS 332-4 Q 4/3P+E 100-130 50/60 Yellow 102 0.21 Plastic 4
SOCKET SLOPING TT 4P 32A 6h 2425600 2425600 UIS 332-6 Q 4/3P+E 400 50/60 Red 102 0.21 Plastic 6
SOCKET SLOPING TT 4P 32A 7h 2425601 2425601 UIS 332-7 Q 4/3P+E 480-500 50/60 Black 102 0.21 Plastic 7
SOCKET SLOPING TT 4P 32A 9h 2425602 2425602 UIS 332-9 Q 4/3P+E 230 50/60 Blue 102 0.21 Plastic 9
SOCKET SLOPING TT 4P 32A 10h 2425603 2425603 UIS 332-10 Q 4/3P+E >50 100-300 Green 102 0.21 Plastic 10
SOCKET SLOPING TT 4P 32A 11h 2425604 2425604 UIS 332-11 Q 4/3P+E 440-460 60 Red 102 0.21 Plastic 11
SOCKET SLOPING TT 5P 32A 2h 2425605 2425605 UIS 432-2 Q 5/3PN+E >50 >300-500 Green 103 0.23 Plastic 2
SOCKET SLOPING TT 5P 32A 3h 2425606 2425606 UIS 432-3 Q 5/3PN+E 380-440 50-60 Red 103 0.23 Plastic 3
SOCKET SLOPING TT 5P 32A 4h 2425607 2425607 UIS 432-4 Q 5/3PN+E 100-130 50/60 Yellow 103 0.23 Plastic 4
SOCKET SLOPING TT 5P 32A 6h 2425608 2425608 UIS 432-6 Q 5/3PN+E 230/400 50/60 Red 103 0.23 Plastic 6
SOCKET SLOPING TT 5P 32A 7h 2425609 2425609 UIS 432-7 Q 5/3PN+E 480-500 50/60 Black 103 0.23 Plastic 7
SOCKET SLOPING TT 5P 32A 9h 2425610 2425610 UIS 432-9 Q 5/3PN+E 208-250 50/60 Blue 103 0.23 Plastic 9
SOCKET SLOPING TT 5P 32A 11h 2425611 2425611 UIS 432-11 Q 5/3PN+E 440-460 60 Red 103 0.23 Plastic 11
