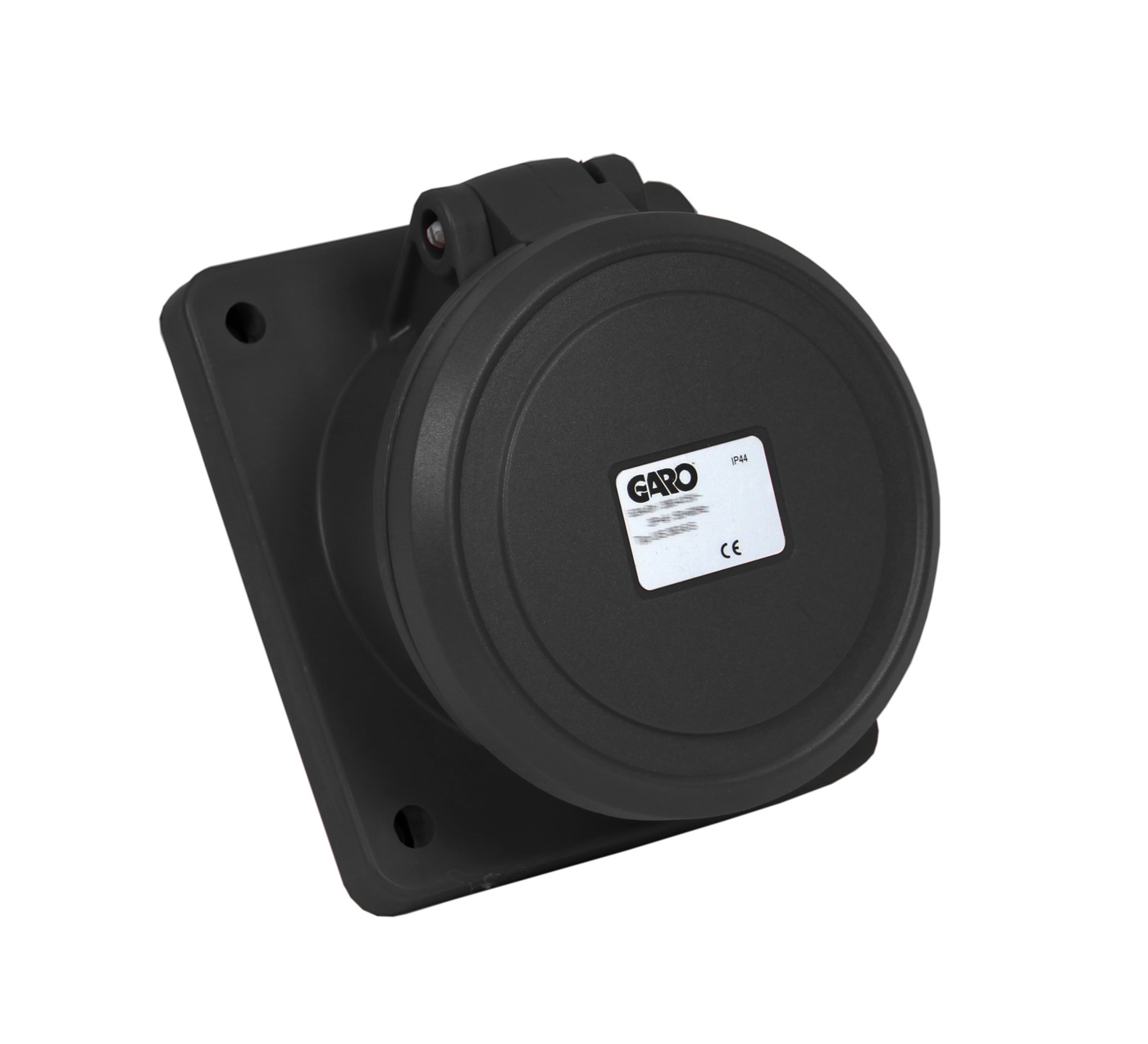

Flanged sockets Basic with sloping mounting plate 63A IP44

Basic, our standard range with a screw function. Socket 63A recess mounting with angled mounting plate. Supplied including seal. Socket sloping basic 5-poles 63A 7h
E-number
2425072
Article number
2425072
Wire flexible [mm²] 6-16
Rated current [A] 63
Degree of protection [IP] 44
Standard Class 1 EN 60044-8
Package size [pcs] 2
Width [mm] 100
Height [mm] 112
Depth [mm] 137
Materials Plastic
Location Recessed
Function Basic
Wire solid [mm²] 6-25
Name SOCKET SLOPING 5P 63A 7h
E-number 2425072
Article number 2425072
Type designation UIS 463-7 S
Colour Black
Frequency [Hz] 50/60
Rated voltage [V AC] 480-500
Netweight [kg] 0.63
No.of Poles [pcs] 5/3PN+E
Position of earth [h] 7
RAL-nummer RAL9005

More variants of Flanged sockets Basic with sloping mounting plate 63A IP44

E-number Article number Type designation Colour Frequency [Hz] Rated voltage [V AC] Netweight [kg] No.of Poles [pcs] Position of earth [h] RAL-nummer
SOCKET SLOPING 3P 63A 4h 2425060 2425060 UIS 263-4 S Yellow 50/60 100-130 0.54 3/2P+E 4 RAL1023
SOCKET SLOPING 3P 63A 6h 2425061 2425061 UIS 263-6 S Blue 50/60 200-250 0.54 3/2P+E 6 RAL5017
SOCKET SLOPING 3P 63A 9h 2425062 2425062 UIS 263-9 S Red 50/60 380-415 0.54 3/2P+E 9 RAL3000
SOCKET SLOPING 3P 63A 12h 2425063 2425063 UIS 263-12 S Grey 50/60 Matning fr.isolertransf. 0.54 3/2P+E 12 RAL7046
SOCKET SLOPING 4P 63A 4h 2425064 2425064 UIS 363-4 S Yellow 50/60 100-130 0.56 4/3P+E 4 RAL1023
SOCKET SLOPING 4P 63A 6h 2425065 2425065 UIS 363-6 S Red 50/60 400 0.56 4/3P+E 6 RAL3000
SOCKET SLOPING 4P 63A 7h 2425066 2425066 UIS 363-7 S Black 50/60 480-500 0.56 4/3P+E 7 RAL9005
SOCKET SLOPING 4P 63A 9h 2425067 2425067 UIS 363-9 S Blue 50/60 230 0.56 4/3P+E 9 RAL5017
SOCKET SLOPING 4P 63A 11h 2425068 2425068 UIS 363-11 S Red 60 440-460 0.56 4/3P+E 11 RAL3000
SOCKET SLOPING 5P 63A 2h 2425069 2425069 UIS 463-2 S Green >300-500 >50 0.63 5/3PN+E 2 RAL6010
SOCKET SLOPING 5P 63A 4h 2425070 2425070 UIS 463-4 S Yellow 50/60 100-130 0.63 5/3PN+E 4 RAL1023
SOCKET SLOPING 5P 63A 6h 2425071 2425071 UIS 463-6 S Red 50/60 230/400 0.63 5/3PN+E 6 RAL3000
SOCKET SLOPING 5P 63A 7h 2425072 2425072 UIS 463-7 S Black 50/60 480-500 0.63 5/3PN+E 7 RAL9005
SOCKET SLOPING 5P 63A 9h 2425073 2425073 UIS 463-9 S Blue 50/60 208-250 0.63 5/3PN+E 9 RAL5017
SOCKET SLOPING 5P 63A 11h 2425074 2425074 UIS 463-11 S Red 60 440-460 0.63 5/3PN+E 11 RAL3000
