• SOCKET SLOPING 4P 63A 6h - 1

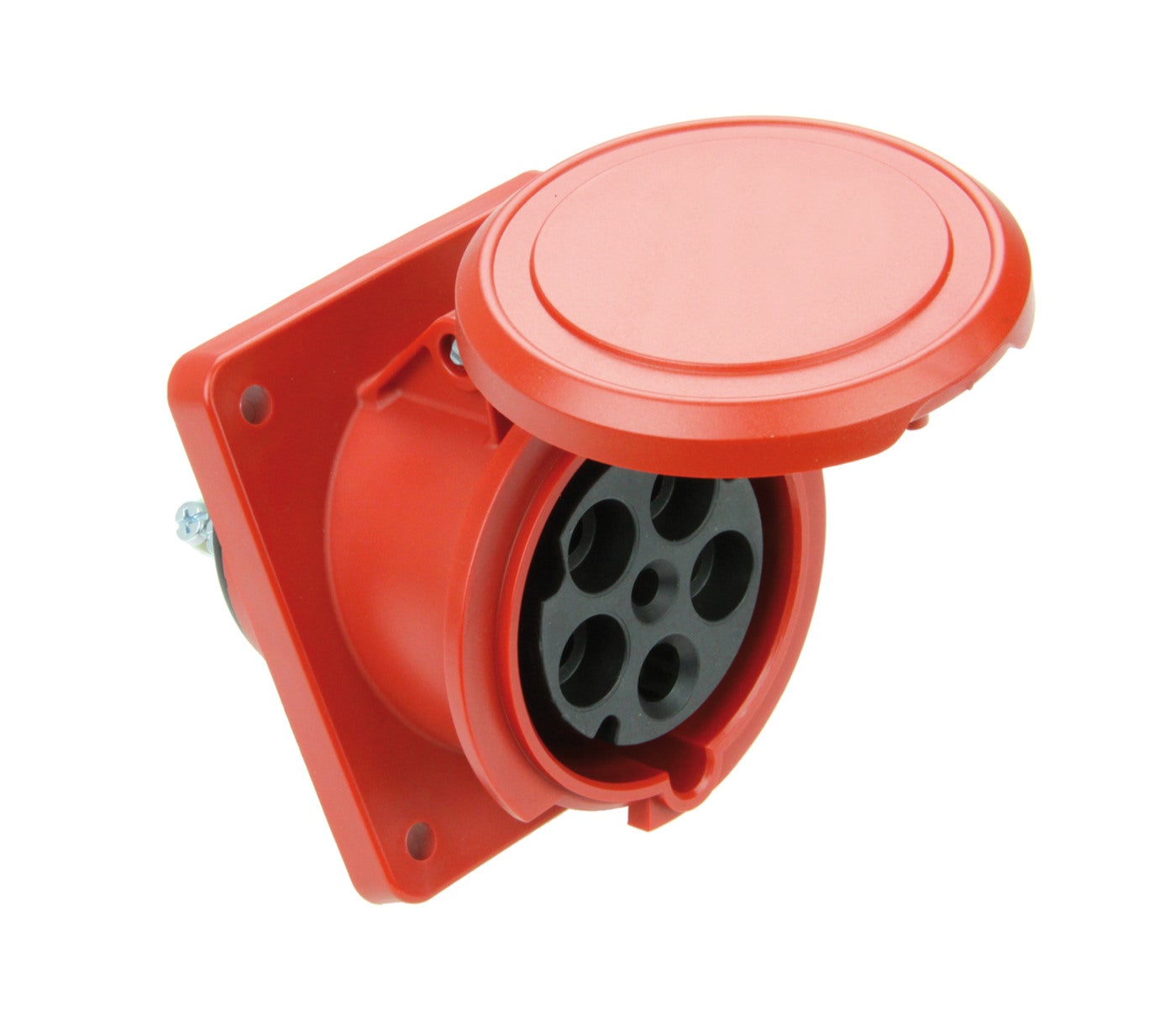

  • SOCKET SLOPING 4P 63A 6h - 2

Flanged sockets Basic Sloping 63A IP44

Basic, our standard range with a screw function. Socket 63A recess mounting with angled mounting plate. Supplied including seal. Socket sloping basic 4-poles 63A 6h
E-number
E2425065
Article number
2425065
Support
Housing material Plastic
Rated current [A] 63A
Modelltype Basic
Wire solid [mm²] 6-25mm²
Degree of protection [IP] IP44
Name SOCKET SLOPING 4P 63A 6h
E-number E2425065
Article number 2425065
Type designation UIS 363-6 S
Frequency [Hz] 50/60Hz
Color Red
Rated voltage [V AC] 400V AC
Number of poles 4/3P+E
Wire flexible [mm²] 6-16mm²
RAL-number RAL3000
Clock hour position [h] 6h
NetProductWeight 0.56
EngineerWidth 190
EngineerHeight 140
EngineerDepth 290

More variants of Flanged sockets Basic Sloping 63A IP44

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles Wire flexible [mm²] RAL-number Clock hour position [h] Type of fastening NetProductWeight EngineerWidth EngineerHeight EngineerDepth
SOCKET SLOPING 3P 63A 6h E2425061 2425061 UIS 263-6 S 50/60Hz Blue 200-250V AC 3/2P+E 6-16mm² RAL5017 6h Recessed mount device plug 0.54 190 140 290
SOCKET SLOPING 3P 63A 9h E2425062 2425062 UIS 263-9 S Red 380-415V AC 3/2P+E 6-16mm² RAL3000 9h
SOCKET SLOPING 3P 63A 12h E2425063 2425063 UIS 263-12 S 50/60Hz Grey After isolating transformerb 3/2P+E 4-16mm² RAL7046 12h
SOCKET SLOPING 4P 63A 4h E2425064 2425064 UIS 363-4 S 50/60Hz Yellow 100-130V AC 4/3P+E 6-16mm² RAL1023 4h
SOCKET SLOPING 4P 63A 6h E2425065 2425065 UIS 363-6 S 50/60Hz Red 400V AC 4/3P+E 6-16mm² RAL3000 6h 0.56 190 140 290
SOCKET SLOPING 4P 63A 11h E2425068 2425068 UIS 363-11 S 60Hz Red 440-460V AC 4/3P+E 6-16mm² RAL3000 11h
SOCKET SLOPING 5P 63A 6h E2425071 2425071 UIS 463-6 S 50/60Hz Red 230/400V AC 5/3P+N+E 6-16mm² RAL3000 6h 0.63 100 112 137
SOCKET SLOPING 5P 63A 7h E2425072 2425072 UIS 463-7 S 50/60Hz Black 480-500V AC 5/3P+N+E 6-16mm² RAL9005 6h
