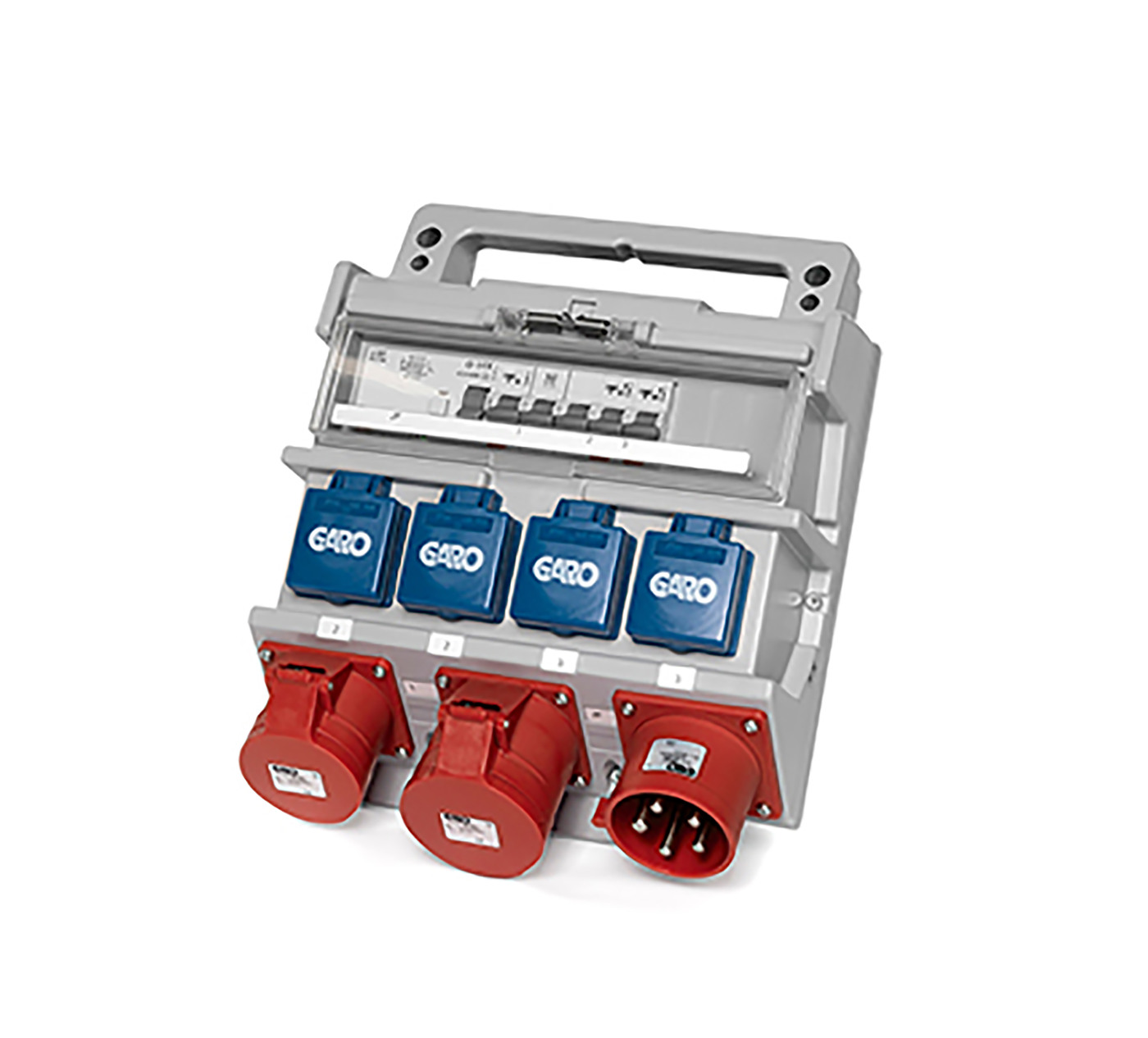

Portable outlet boxes 32A

Portable electricity cases/distribution boards 32A for different purposes, such as distribution, with a different number of sockets, for containers, etc. Portable cases 32A RCCB 4xschuko 1x16A outlet 1x32A outlet 2xMCB
E-number
2468977
Article number
2468977
Materials Plastic
Degree of protection [IP] 44
Colour Grey
Rated current [A] 32
Frequency [Hz] 50
Standard EN 61439-3
Flanged plug 1 pcs 32A 3P+N+E 230/400V
Rated voltage [V AC] 230/400
Package size [pcs] 1
Short-circuit current [kA] 10
Name POWERB 32A 01104-2S RCCB
E-number 2468977
Article number 2468977
Type designation U GBL 432-6/00/01104-10
Netweight [kg] 2.60
Width [mm] 275
Height [mm] 330
Depth [mm] 120
Flanged socket outlet 1 pcs 16A 3P+N+E 230/400V
Flanged socket outlet 1 pcs 32A 3P+N+E 230/400V
RCCB 1 pcs 40A/4P
MCB 2 pcs C113
MCB 1 pcs C316
Schuko [pcs] 4

More variants of Portable outlet boxes 32A

E-number Article number Type designation Netweight [kg] Width [mm] Height [mm] Depth [mm] Flanged socket outlet Flanged socket outlet RCCB MCB MCB Schuko [pcs]
POWERB 32A 01104-2S RCCB 2468977 2468977 U GBL 432-6/00/01104-10 2.60 275 330 120 1 pcs 16A 3P+N+E 230/400V 1 pcs 32A 3P+N+E 230/400V 1 pcs 40A/4P 2 pcs C113 1 pcs C316 4
POWERB 32A RCB 1x32 3x16 6x230 2469007 2469007 U GBN 432-6/00/01306-10 6.50 330 512 120 3 pcs 16A 3P+N+E 230/400V 1 pcs 32A 3P+N+E 230/400V 1 pcs 40A/4P 3 pcs C113 2 pcs C316 6
POWERB 32A RCB 1x32 1x16 5x230
2469011 2469011 U GBN 432-6/00/01105-20 5.50 330 387 200 1 pcs 16A 3P+N+E 230/400V 1 pcs 32A 3P+N+E 230/400V 2 pcs 40A/4P 3 pcs C113 1 pcs C316 4
POWERB GB 32A 011.10 RCCB 2469109 2469109 U GBN 432-6/00/011.10-10 6 512 330 120 1 pcs 16A 3P+N+E 230/400V 1 pcs 32A 3P+N+E 230/400V 1 pcs 40A/4P 5 pcs C113 1 pcs C316 10
POWERB 32A 01104-3S RCCB 2466414 351943 U GBL 432-6/00/01104-10 2.60 275 375 120 1 pcs 16A 3P+N+E 230/400V 1 pcs 32A 3P+N+E 230/400V 1 pcs 40A/4P 3 pcs C113 1 pcs C316 4
POWERB 32A 00204-2S RCCB 2466413 352425 U GBL 432-6/00/00204-10 2.60 275 330 120 2 pcs 16A 3P+N+E 230/400V 1 pcs 40A/4P 2 pcs C113 2 pcs C316 4

Accessories for Portable outlet boxes 32A

Name E-number Article number Type designation Description
OUTLET SCHUKO 10/16A OUTLET SCHUKO 10/16A 1896880 1896880 UIF 10/16 Outlet schuko 10/16A
MCB GS C-KAR 10A 10kA 1P MCB GS C-KAR 10A 10kA 1P 2142706 2142706 MCB GS C110 MCB GS C-Characteristic 10A 10kA 1-pole
MCB GS C-KAR 13A 10kA1P MCB GS C-KAR 13A 10kA1P 2142707 2142707 MCB GS C113 MCB GS C-Characteristic 13A 10kA 1-pole
MCB GS C-KAR 16A 10kA 3P MCB GS C-KAR 16A 10kA 3P 2142753 2142753 MCB GS C316 MCB GS C-Characteristic 16A 10kA 3-pole
RCCB GS 40A 4P 30mA RCCB GS 40A 4P 30mA 2163209 RCCB GS 40A 30mA 4P RCCB type GS 40A 4-pole 30mA
DISTRIB.BOX 16A 1XII 2XSCH. DISTRIB.BOX 16A 1XII 2XSCH. 2403010 2403010 GUS 16/0102 Distribution box 5-poles 16A 1XII 1XUI 2XSCH.
DISTRIB.BOX 16A 5P 1XII 3XUI DISTRIB.BOX 16A 5P 1XII 3XUI 2403012 2403012 GUS 16/0300 Distribution box 5-poles 16A 1XII 3XUI.
DISTRIB.BOX 32A 5P 1XII 3XUI DISTRIB.BOX 32A 5P 1XII 3XUI 2403013 2403013 GUS 32/3000 Distribution box 5-poles 32A 1XII 3XUI.
SOCKET STRAIGHT 5P 16A 6h SOCKET STRAIGHT 5P 16A 6h 2424909 2424909 UI 416-6 S Socket straight basic 5-poles 16A 6h
SOCKET STRAIGHT 5P 32A 6h SOCKET STRAIGHT 5P 32A 6h 2424930 2424930 UI 432-6 S Socket straight basic 5-poles 32A 6h
INLET STRAIGHT 5P 16A 6h
INLET STRAIGHT 5P 16A 6h 2425298 2425298 II 416-6 S Inlet straight basic 5-poles 16A 6h
INLET STRAIGHT 5P 32A 6h INLET STRAIGHT 5P 32A 6h 2425319 2425319 II 432-6 S Inlet straight basic 5-poles 32A 6h
WALLPLATE G-BOX SIPOREX WALLPLATE G-BOX SIPOREX 2468850 2468850 VFSG Wallplate for siporex wall fits G-box and U-GBN
WALLPLATE G-BOX HOLE WALLPLATE G-BOX HOLE 2468851 2468851 VGF Wallplate for external attachment fits G-box and U-GBN.
WALL DISTANCE G-BOX WALL DISTANCE G-BOX 2468852 2468852 VDG Wall distance to create distance for cables behind the enclosure fits G-box and U-GBN.
ADAPTERPLATE G-BOX ADAPTERPLATE G-BOX 2468854 2468854 APG Adapterplate for enclosure at Ø60mm pole fits G-box and U-GBN.
ADAPTERPLATE POLE G-BOX ADAPTERPLATE POLE G-BOX 2468856 2468856 APSG Adapterplate for pole to adapt at Ø60mm pole fits G-box and U-GBN.
DOOR G-BOX DOOR G-BOX 2468857 2468857 DG Door for enclosure with lock for padlock and hinges fits G-box and U-GBN.
CABINET G-BOX CABINET G-BOX 2468858 2468858 SG Cabinet for G-box, made of stainless steel textured in grey-black shade. Comes with 2 wall brackets for easy mounting of G-box and U GBN in the cabinet.
STAND FOR POWERBOX UGBL STAND FOR POWERBOX UGBL 2469030 2469030 UGBLS Stands for portable power case and Gbox
STANDS LOCKABLE STANDS LOCKABLE 2469035 2469035 LBS 16-63 Stands lockable for portable boxes 16-32
FUSE COVER COMPL 351763 Complete fuse cover for 16- and 32A electrical bags.
STAND FOR POWERBOX UGBL/GBOX
STAND FOR POWERBOX UGBL/GBOX 2466382 352053 S-UNI Portable stand for outletbox UGBL, G-Box
DISTR BOX 230V 3V 0,75M
DISTR BOX 230V 3V 0,75M 2466384 352055 G-U 230-08 Distribution boxes 3-ways 0,75meter cable with plug 230V
DISTR.BOX 230V 3V 10M
DISTR.BOX 230V 3V 10M 2466385 352056 G-U 230-10 Distribution boxes 3-ways 10meter cable with plug 230V
DISTR.BOX 400-230V 3V 0,5M DISTR.BOX 400-230V 3V 0,5M 2466386 352057 G-U 400-05 Distribution boxes 3-ways 0,5meter cable with plug 416-6 400-230V
EXT CABLE  230-25H H07 25M 3G1,5 EXT CABLE 230-25H H07 25M 3G1,5 352077 Extension cable 230 H07 3G1,5 25meter
EXT CABLE 16A H07 5G2,5 25M EXT CABLE 16A H07 5G2,5 25M 352095 Extension cable 16A H07RN-F 5G2,5 25meter
EXT CABLE 32A H07 5G6 25M EXT CABLE 32A H07 5G6 25M 352096 Extension cable 32A H07RN-F 5G6 25meter
ADAPTER 400V 16A->32A W CABLE
ADAPTER 400V 16A->32A W CABLE 2417720 352426 KBAD416-6/432-6 Adapter 416-6->432-6 400V with cable
