Fuse combination box SLBP

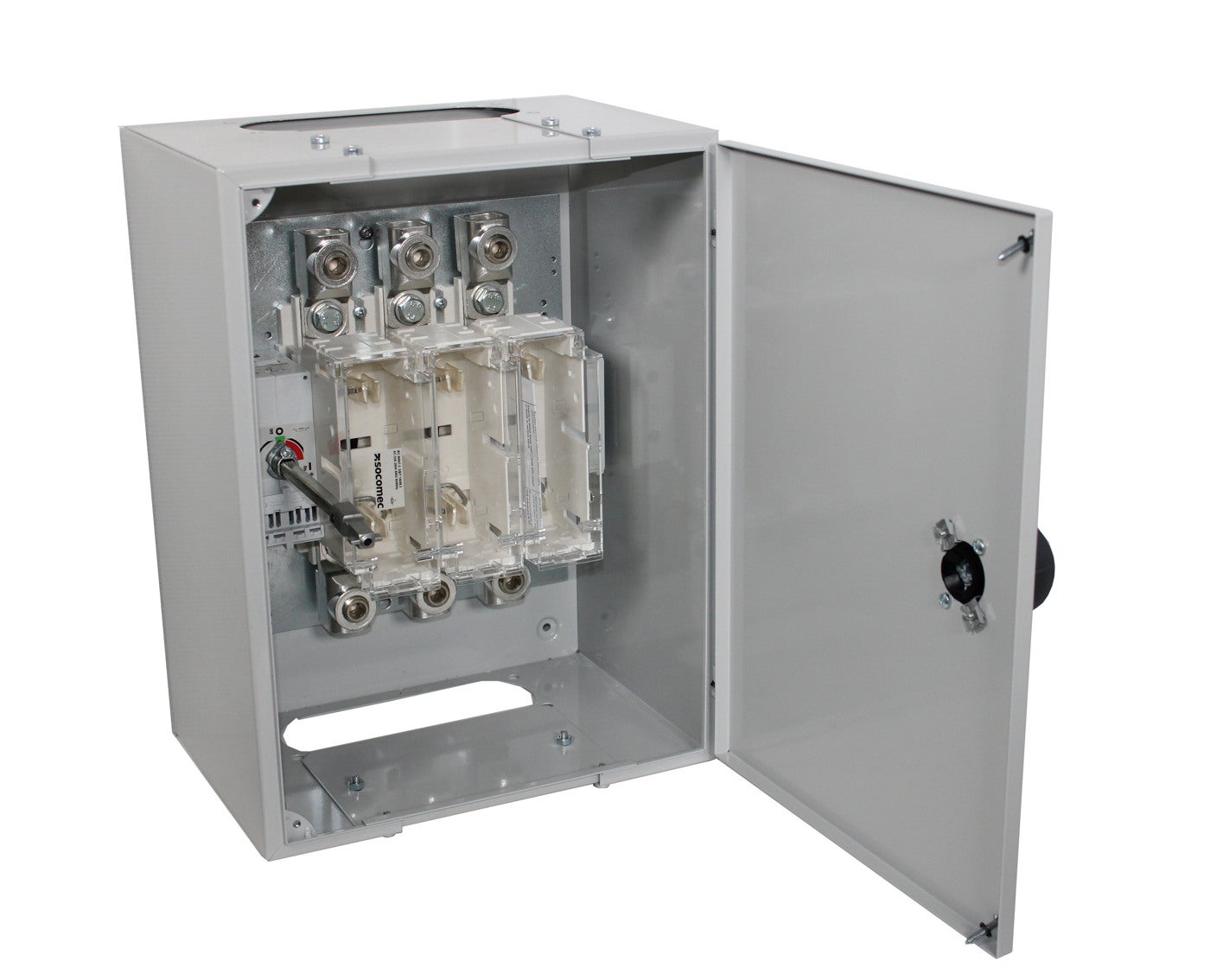

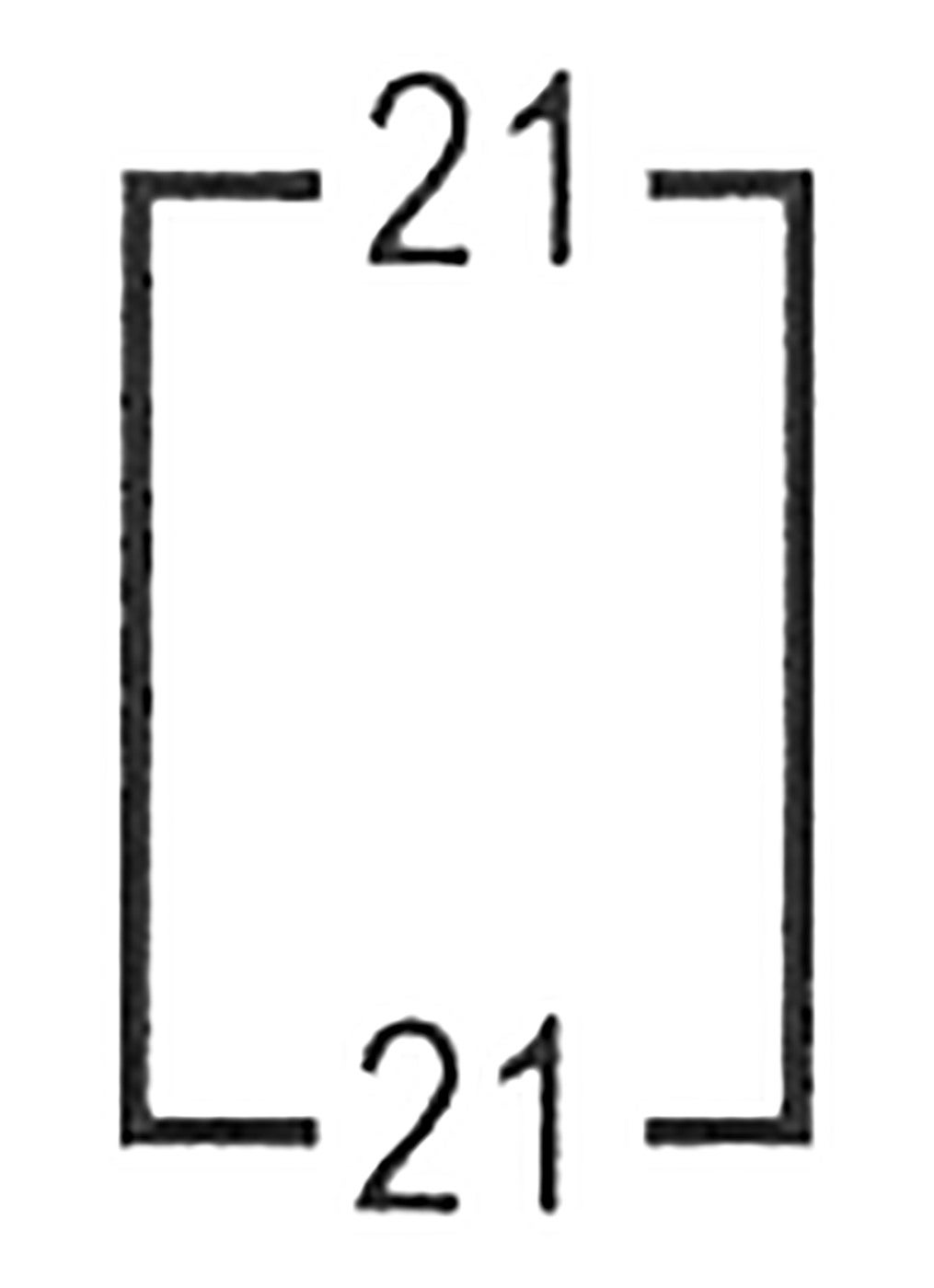

The fuse-switch consists of a combined 3-pole fuse-link base with front operated switch-disconnector function. The cover is interlocked and cannot be opened in the closed position. In the open position, it is energized on both sides of the fuse-link and the switching functions also satisfy the conditions applicable for the disconnector. It is also possible to lock the operating mechanism with a padlock in the closed position. SLBP 3250, 3400 SLBP and SLBP 3630 have two-piece flange openings on the top and b Fuse switch enclosure 250A 3-pole for blade fuse 1 flange 21 up/down
E-number
E2384215
Article number
2384215
Support
Materials Sheet steel
Standard EN61439-3
Color Grey
RAL-number RAL7035
Degree of protection [IP] IP43
Name FUSE BREAKER ENCLOSURE 250A SP
E-number E2384215
Article number 2384215
Type designation SLBP 3250
Rated current [A] 250A
Fuse size 1
NetProductWeight 14.8
EngineerWidth 325
EngineerHeight 440
EngineerDepth 240

More variants of Fuse combination box SLBP

E-number Article number Type designation Rated current [A] Switch [pcs] Fuse size NetProductWeight EngineerWidth EngineerHeight EngineerDepth
FUSE BREAKER ENCLOSURE 125A SP E2384201 2384201 SLBP 3125 125A 3x125A 00 6.3 215 330 175
FUSE BREAKER ENCLOSURE 160A SP E2384205 2384205 SLBP 3160 160A 00 7.2 270 330 175
FUSE BREAKER ENCLOSURE 250A SP E2384215 2384215 SLBP 3250 250A 1 14.8 325 440 240
FUSE BREAKER ENCLOSURE 400A SP E2384222 2384222 SLBP 3400 400A 19 435 550 240

Accessories for Fuse combination box SLBP

Name E-number Article number Type designation Description
FLANGE SM 0 FLANGE SM 0 2394410 2394410 SM0 Flange between SM 0
FLANGE SM FLANGE SM E2394411 2394411 SM Flange between SM
FLANGE SM416 FLANGE SM416 E2394412 2394412 Flange between SM416
FLANGE SM435 FLANGE SM435 2394413 2394413 SM435 Flange between SM435
CABLE SPREADER W CLAMP PF 1301-38 CABLE SPREADER W CLAMP PF 1301-38 E2645003 2645003 Cable spreder with clamp PF1301-38
CABLE SPREADER W CLAMP PF 1302-38 CABLE SPREADER W CLAMP PF 1302-38 E2645007 2645007 Cable spreder with clamp PF1302-38
CABLE SPREADER W CLAMP KF 133-60 CABLE SPREADER W CLAMP KF 133-60 E2645145 2645145 Cable spreader with clamp KF 133-60
CABLE SPREADER W CLAMP KF 233-60 CABLE SPREADER W CLAMP KF 233-60 E2645151 2645151 Cable spreader with clamp KF 233-60
CABLE SPREADER W CLAMP KF 233-68 CABLE SPREADER W CLAMP KF 233-68 E2645153 2645153 Cable spreader with clamp KF 233-68
CABLE SPREADER W CLAMP KF 333-56 CABLE SPREADER W CLAMP KF 333-56 E2645161 2645161 Cable spreader with clamp KF 333-56
NUT DOUBLE DM 13 NUT DOUBLE DM 13 E2646093 2646093 Double nut DM13
NUT DOUBLE M8 DM 21 NUT DOUBLE M8 DM 21 E2646094 2646094 DM 21 Double nut DM21
