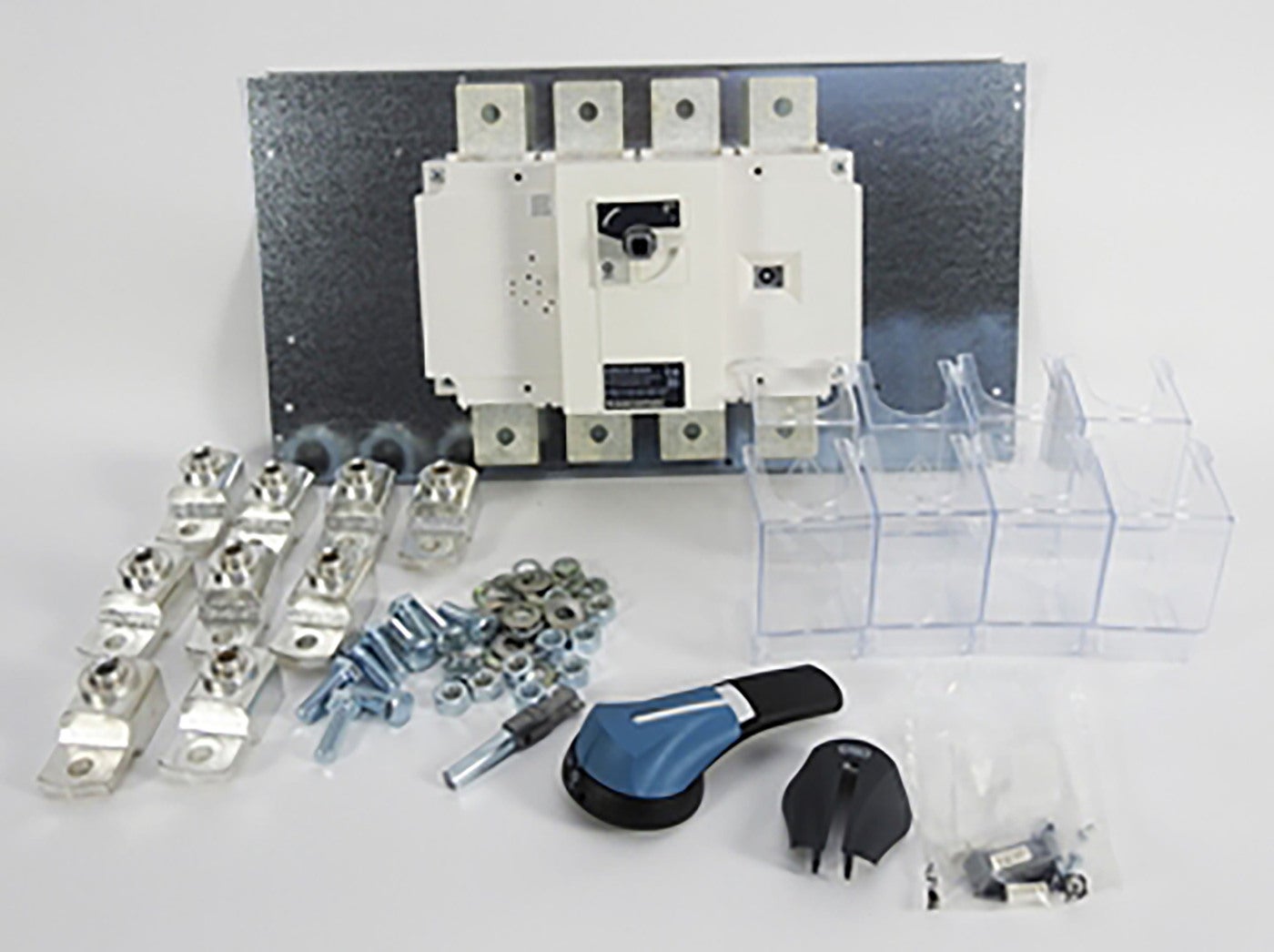

INSERT LOAD BREAKER SW 630A 4P

Inserts load break switch W577 GCS

Inserts load break switch W577 GCS INSERT LOAD BREAKER SW 630A 4P
Article number
2260552
Support
Mounting method Floor fastening
EngineerWidth 577
EngineerHeight 300
EngineerDepth 300
Name INSERT LOAD BREAKER SW 630A 4P
Article number 2260552
Type designation ILB 4630
Rated current [A] 630A
Number of poles 4
Incoming terminal [mm²] AL/Cu 16-185
Connection PE [mm²] AL/Cu 16-185
NetProductWeight 8.3

More variants of Inserts load break switch W577 GCS

E-number Article number Type designation Rated current [A] Number of poles Incoming terminal [mm²] Outgoing terminal [mm²] Connection PE [mm²] NetProductWeight
INSERT LOAD BREAKER SW 630A 4P 2260552 ILB 4630 630A 4 AL/Cu 16-185 AL/Cu 16-185 8.3
INSERT LOAD BREAKER SW 800A 3P 2260553 ILB 3800 800A 3 M12 50mm CU rail M12 50mm CU rail M8 13.2

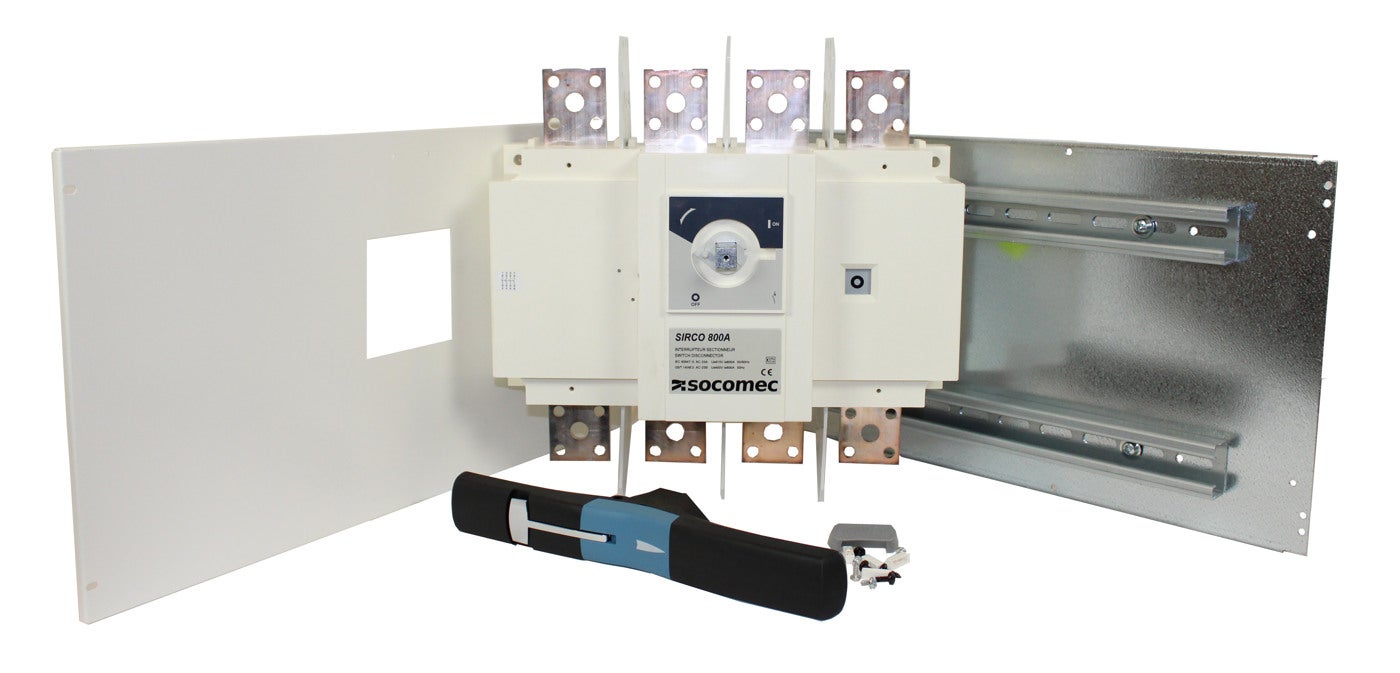

INSERT LOAD BREAKER SW 800A 4P 2260554 ILB 4800 800A 4 M12 50mm CU rail M8 13.7
