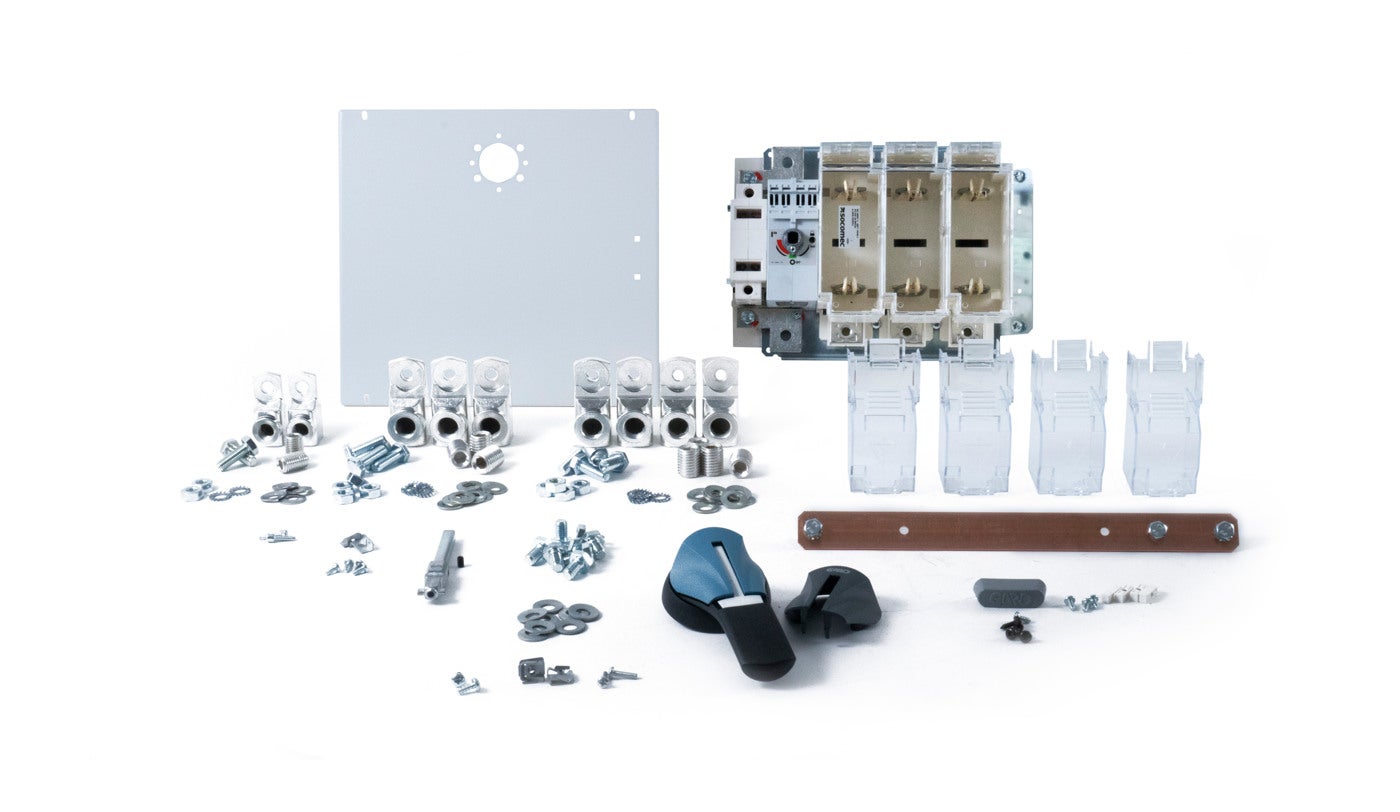

  • INSERT FUSE LOAD SWITCH 250A 4P DIN1 - 2

Inserts fuse combination NH1 GCS

Inserts fuse combination NH1 GCS Insert fuse comb 250A 4-poles DIN 1
Article number
2260531
Support
Rated current [A] 250A
Mounting method Floor fastening
Fuse size NH1
EngineerWidth 277
EngineerHeight 300
EngineerDepth 215
Name INSERT FUSE LOAD SWITCH 250A 4P DIN1
Article number 2260531
Type designation ISB 4250
Number of poles 4
NetProductWeight 8.7

More variants of Inserts fuse combination NH1 GCS

E-number Article number Type designation Number of poles Tightening torque [Nm] Incoming terminal [mm²] Outgoing terminal [mm²] Connection N [mm²] Connection PE [mm²] NetProductWeight
INSERT FUSE LOAD SWITCH 250A 3P DIN1 2260530 ISB 3250 3 25Nm Al/CU 16-95, ALK 16-95 Al/Cu 50-240/Clamp Al/Cu 50-300 AL/Cu 16-185 9.1
INSERT FUSE LOAD SWITCH 250A 4P DIN1 2260531 ISB 4250 4 8.7
